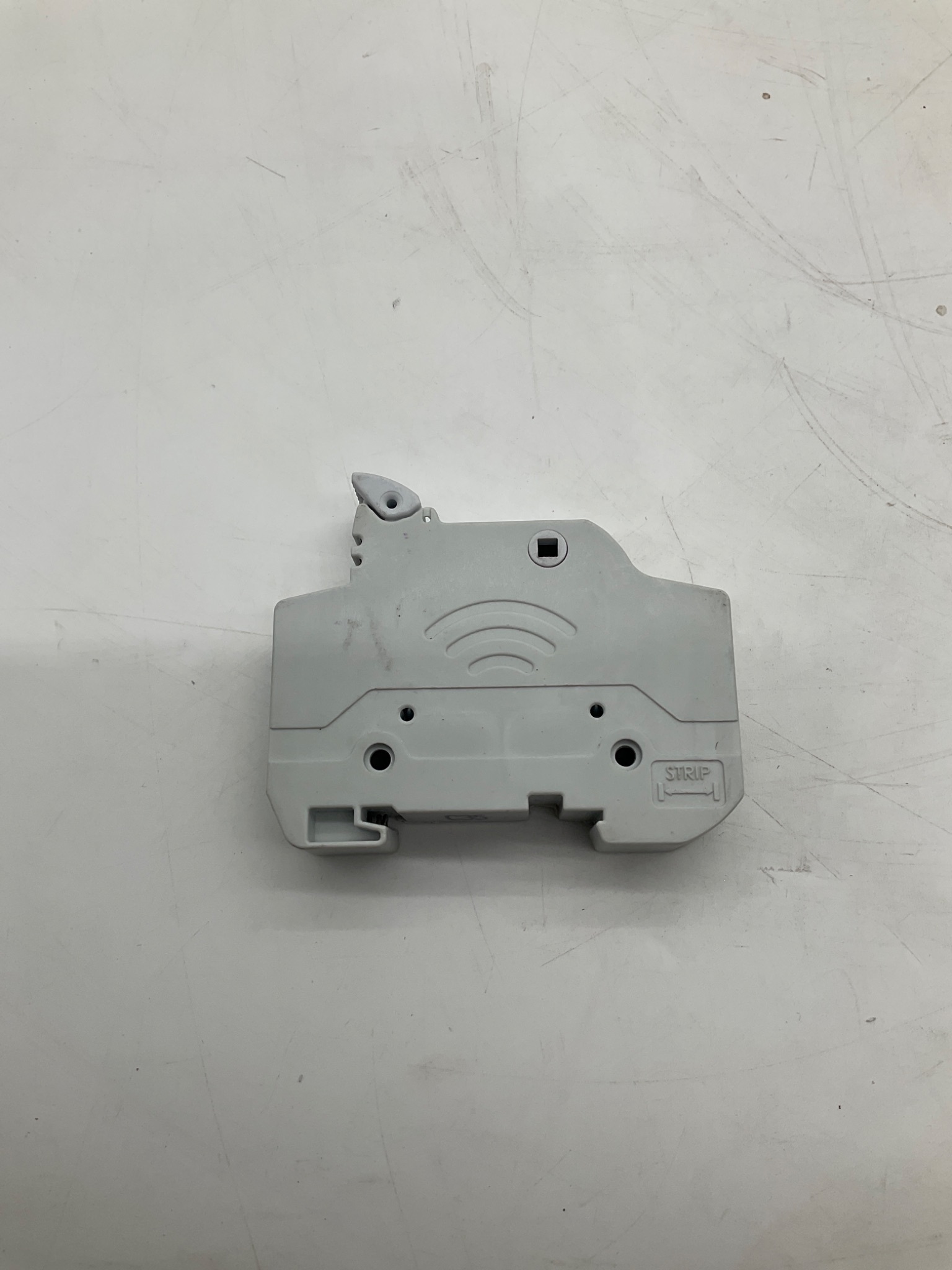

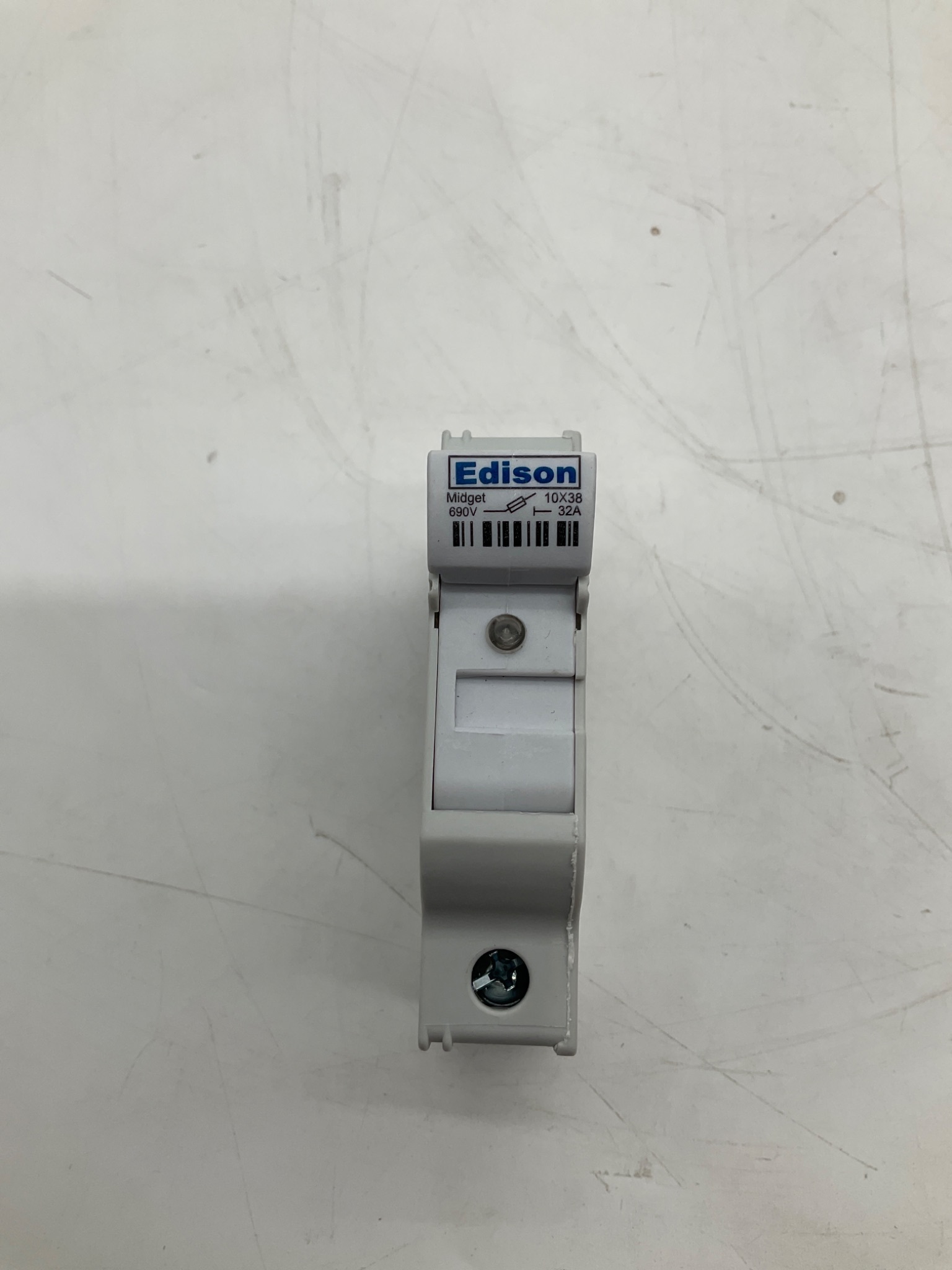

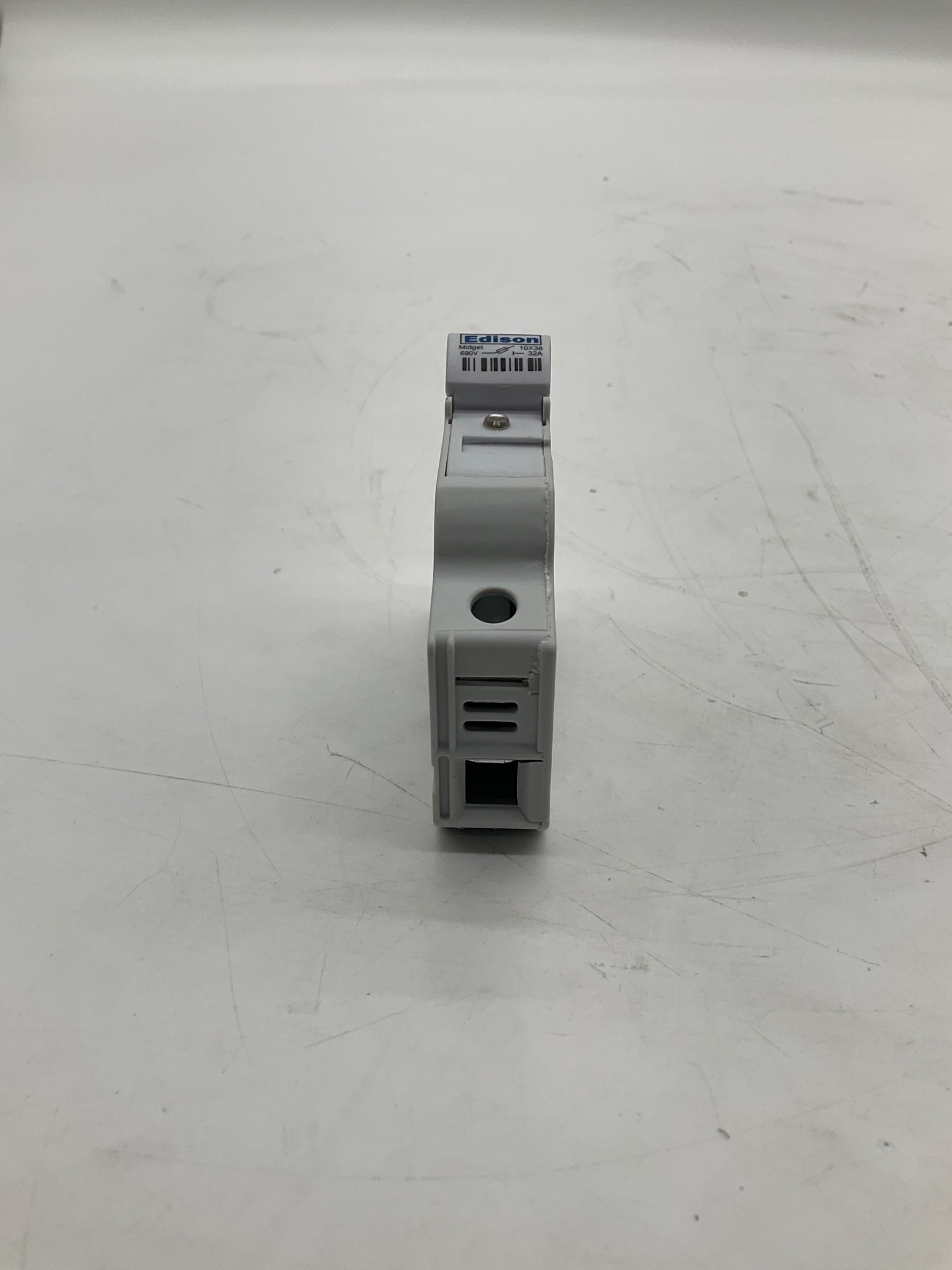

Edison EHM Midget Fuse Holder 30A 600V USED

Specification Table

Manufacturer: Edison   Series: EHM Condition: USED   Product Type: Fuse Holder Fuse Type: Midget Fuse Fuse Size: 10 x 38 mm   Current Rating: 30 A Voltage Rating: 600 V Frequency: 50/60 Hz   Interrupt Rating: 200 kA RMS Symmetrical   Indication Minimum Voltage: 90 V   IEC Standard: IEC 60269-2   IEC Current Rating: 32 A IEC Voltage Rating: 690 VAC IEC Interrupt Rating: 120 kA IEC Pole Configuration: 3W   Degree of Protection: IP20   Mounting Type: DIN Rail   Conductor Types: Solid Stranded Fine Stranded Spade Terminal Comb Bus   Wire Range: 18-14 AWG (0.8-2.0 mm²) 18-16 AWG (0.8-1.3 mm²) 14-10 AWG (2.0-5.2 mm²) 12-10 AWG (3.3-5.2 mm²) 8-4 AWG (8.3-21.2 mm²)   Terminal Torque: 20 lb-in (2.3 Nm) 25 lb-in (2.8 Nm) 30 lb-in (3.4 Nm)   Country of Manufacture: China   Approvals: UL Recognized CSA CE
