DONGAN 76-0209SH Three Phase General Purpose Transformer 9 KVA USED

Specification Table

Power

9 kV·A

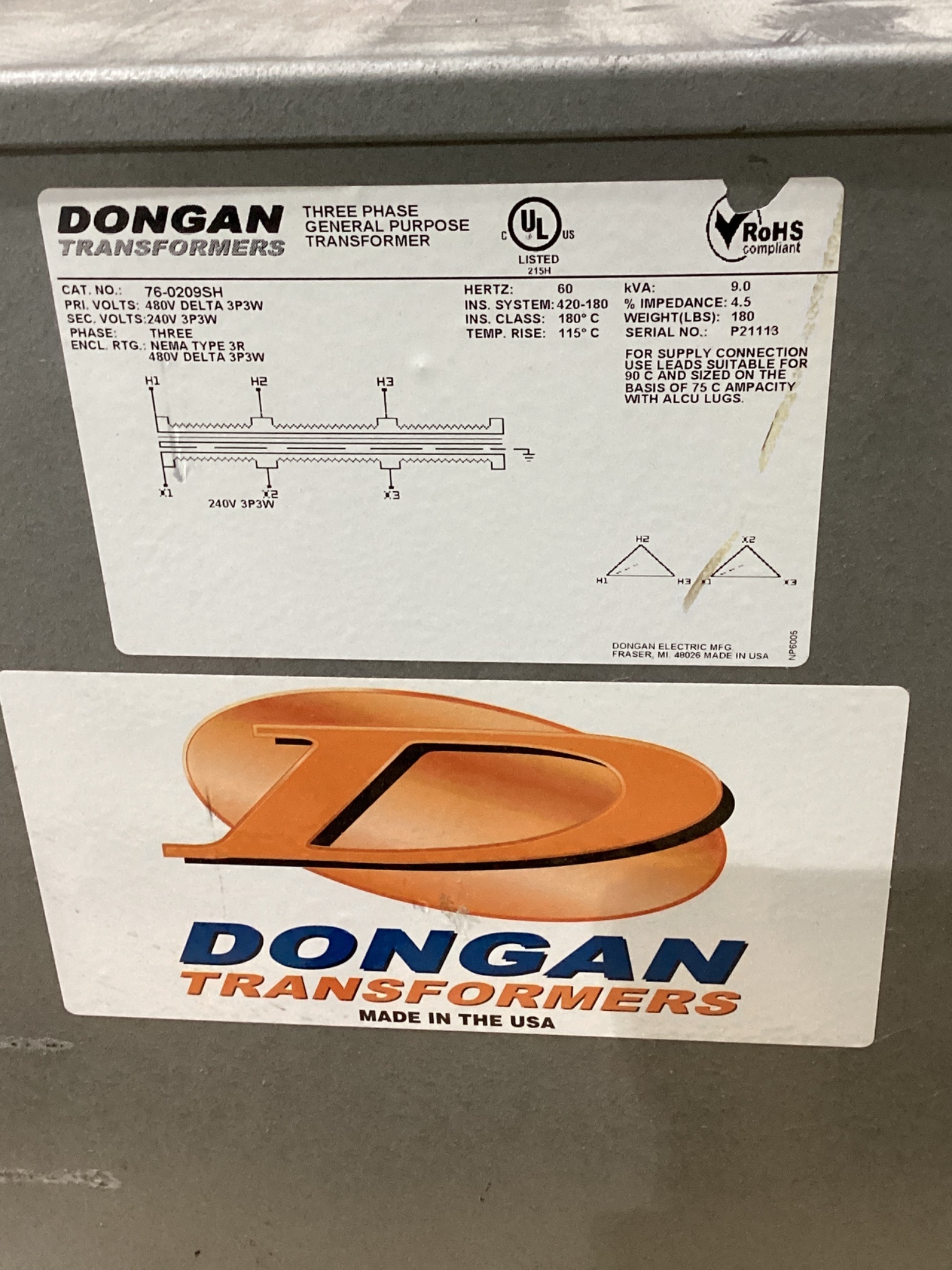

Manufacturer: Dongan Part Number: 76-0209SH Condition: USED YOM: n/a   Product Type: Three Phase General Purpose Transformer   Power Rating: 9.0 kVA   Primary Voltage: 480V Delta Primary Configuration: 3 Phase 3 Wire   Secondary Voltage: 240V Delta Secondary Configuration: 3 Phase 3 Wire   Phase: Three Phase Frequency: 60 Hz   Enclosure Rating: NEMA Type 3R   Insulation System: 420-180 Insulation Class: 180°C Temperature Rise: 115°C   Percent Impedance: 4.5%   Weight: 180 lb   Primary Terminals: H1, H2, H3 Secondary Terminals: X1, X2, X3   Primary Winding: Delta Secondary Winding: Delta   Approvals: UL Listed Compliance: RoHS   Serial Number: P21113   Country of Manufacture: USA
