DOALL 2013-20 Vertical Contour Band Saw USED

$2,000.00
Availability:

1 in stock
BRAND: DOALL MODEL: 2013-20 CONDITION: used
SKU: IGAM4190003 Weight: 2450 lbs Freight (Item Must Ship Freight)

1 in stock

Make an offer
Get Shipping Quote

Overview

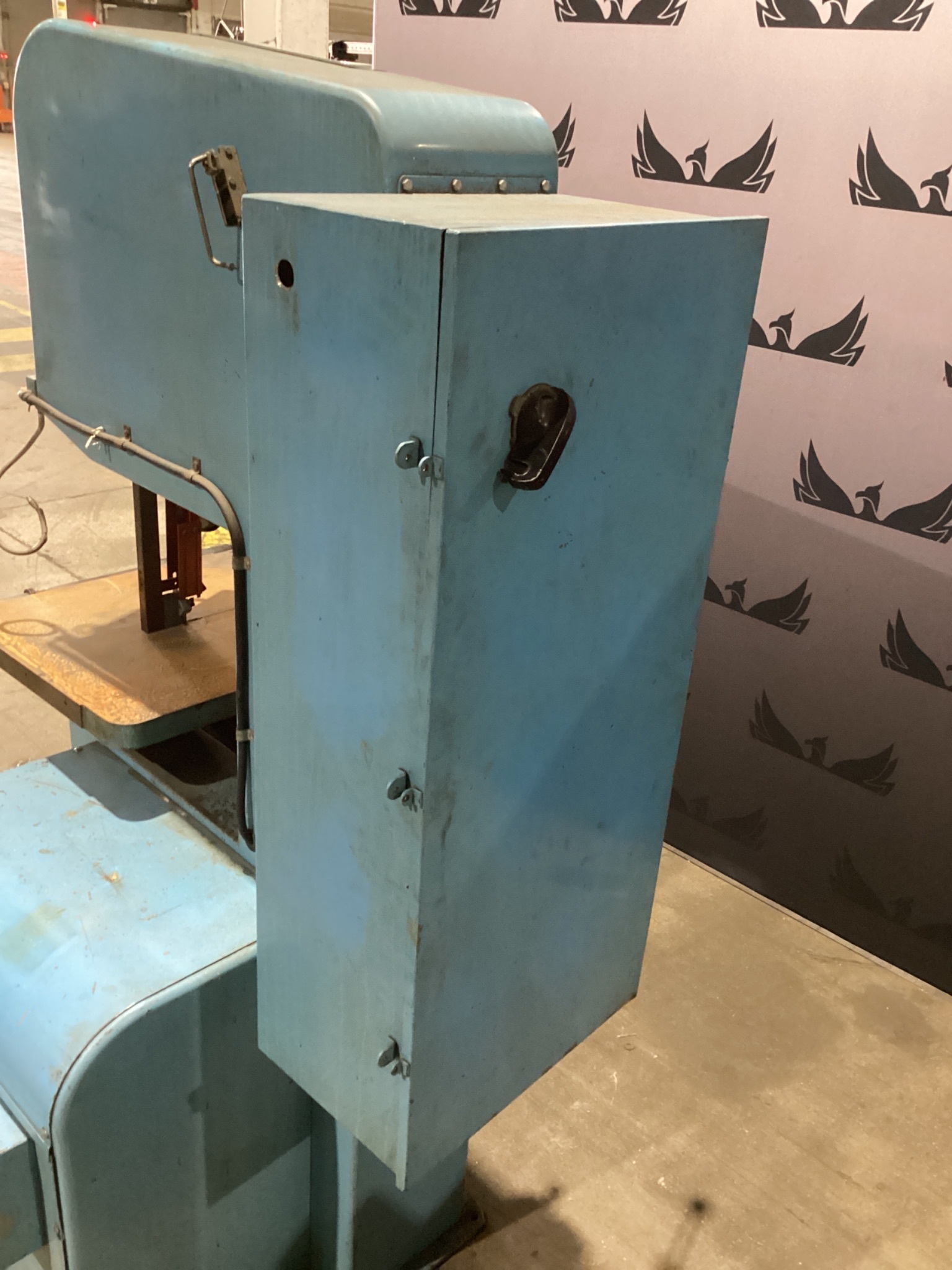

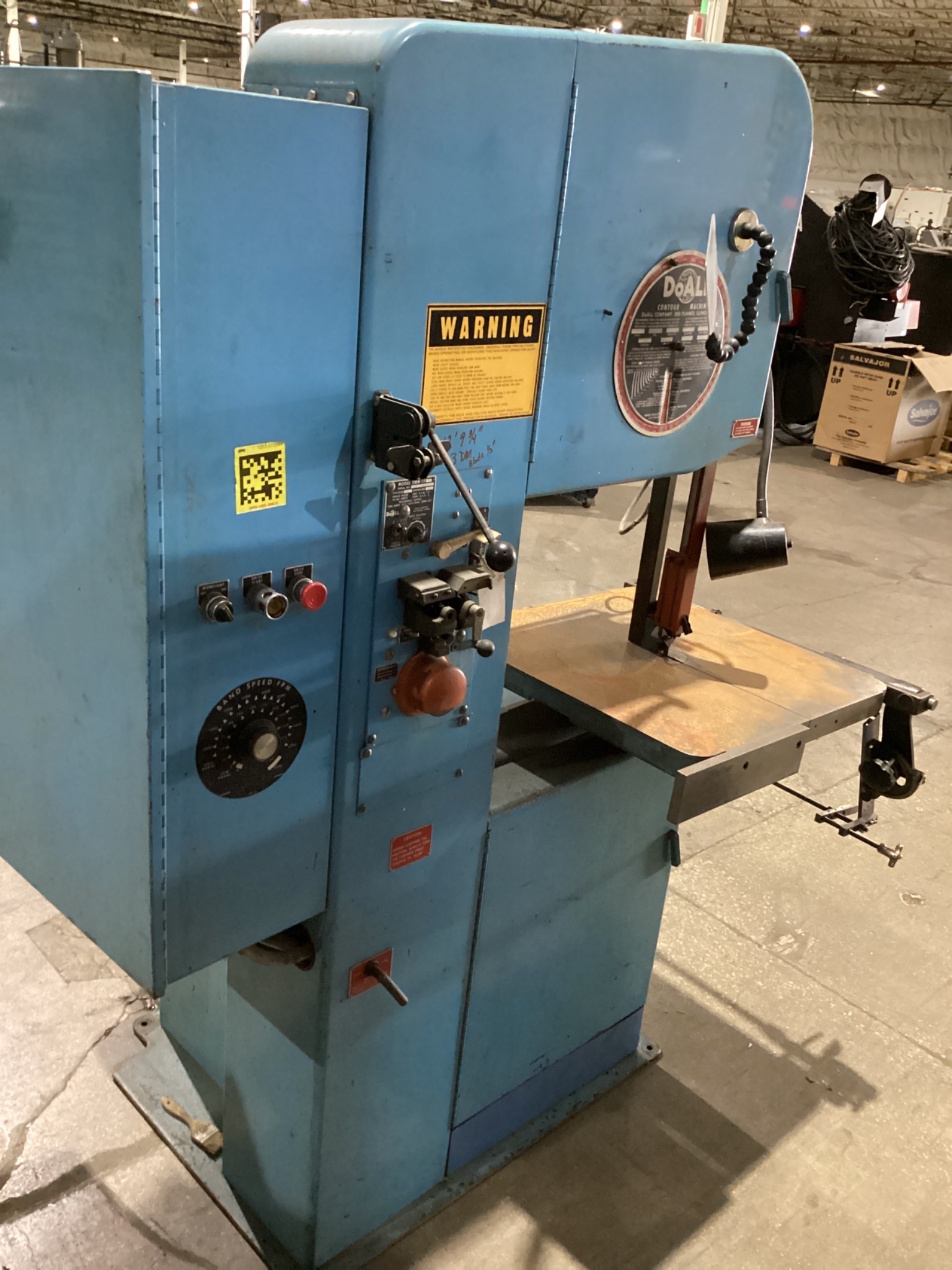

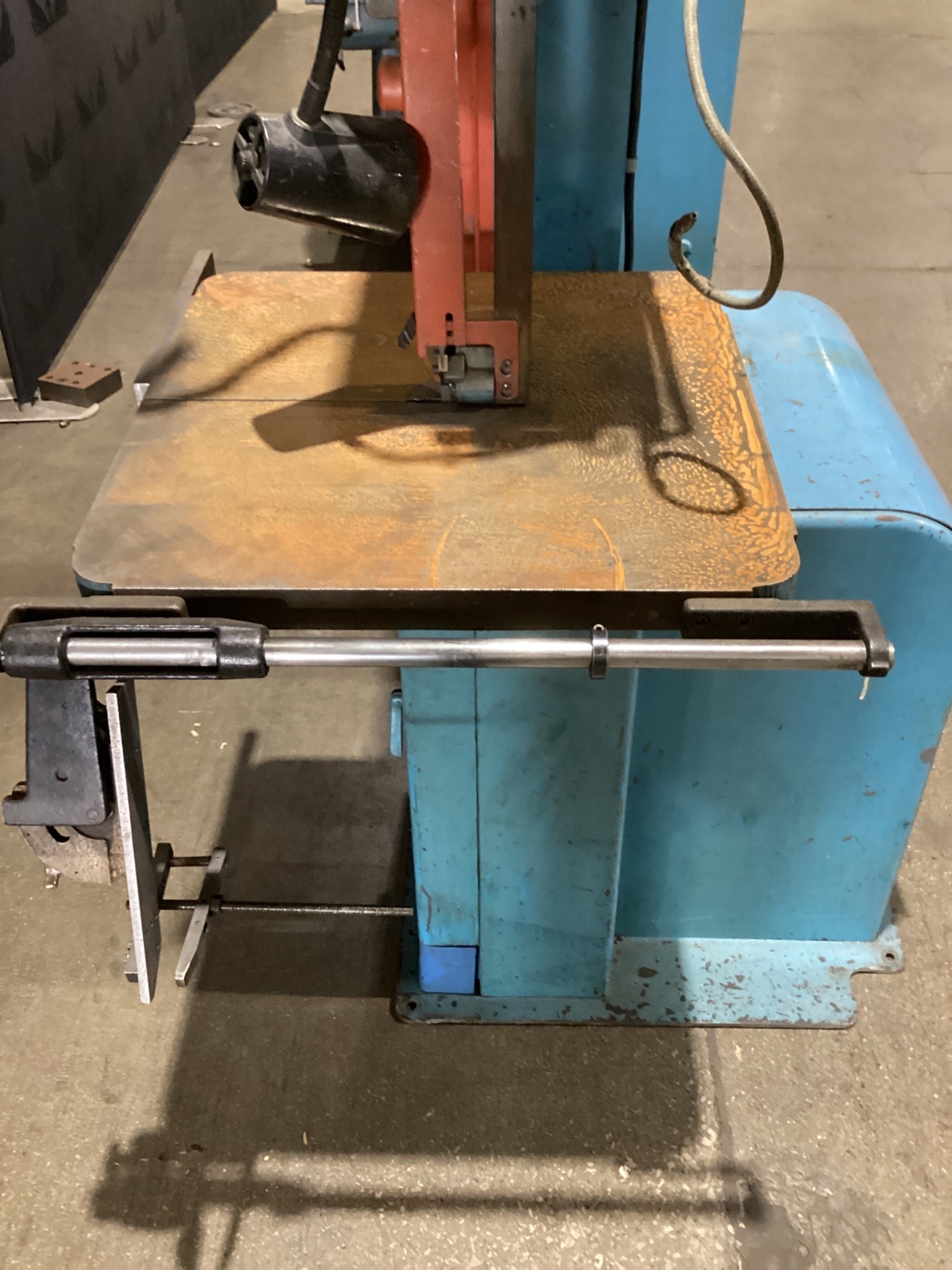

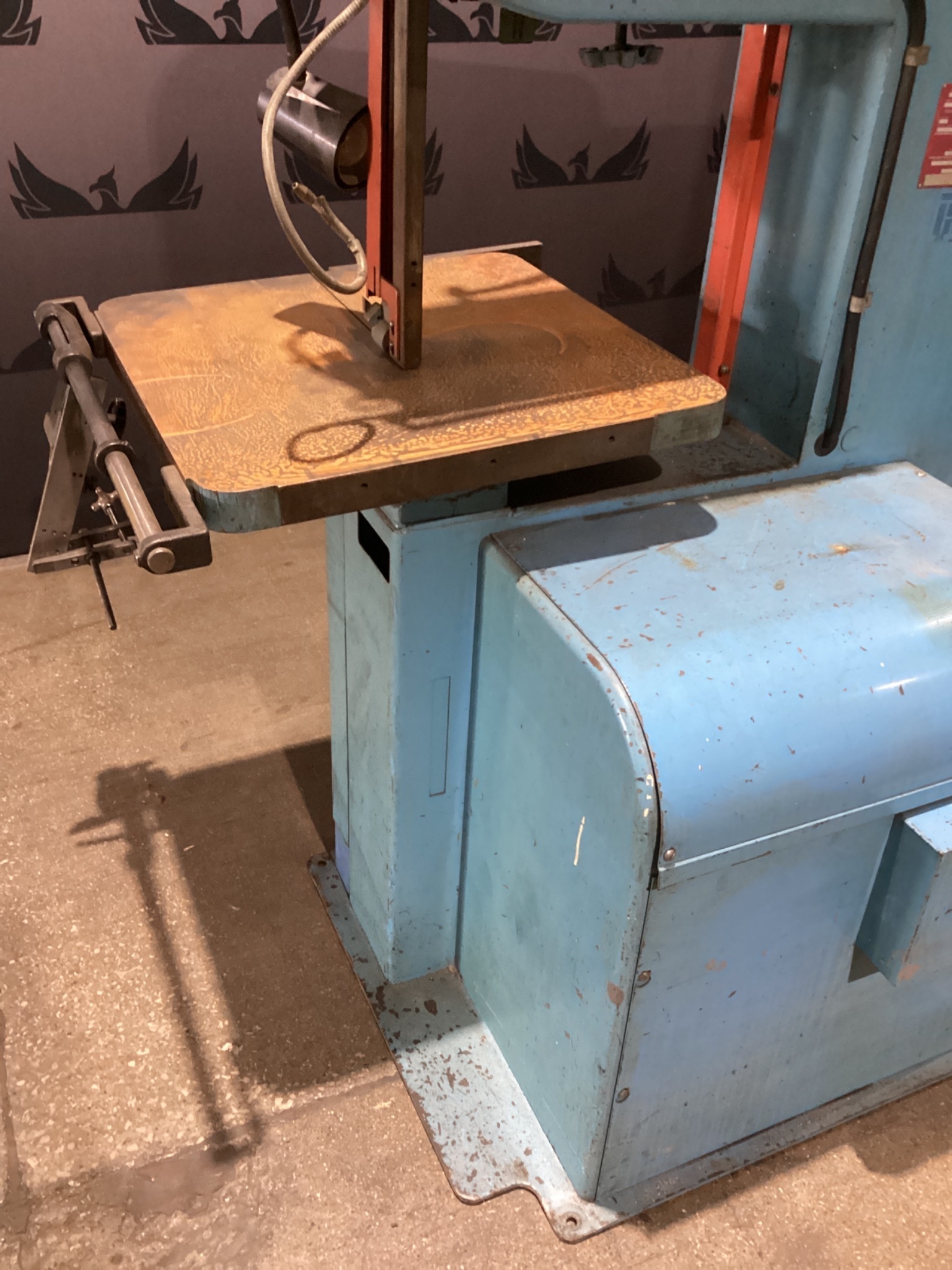

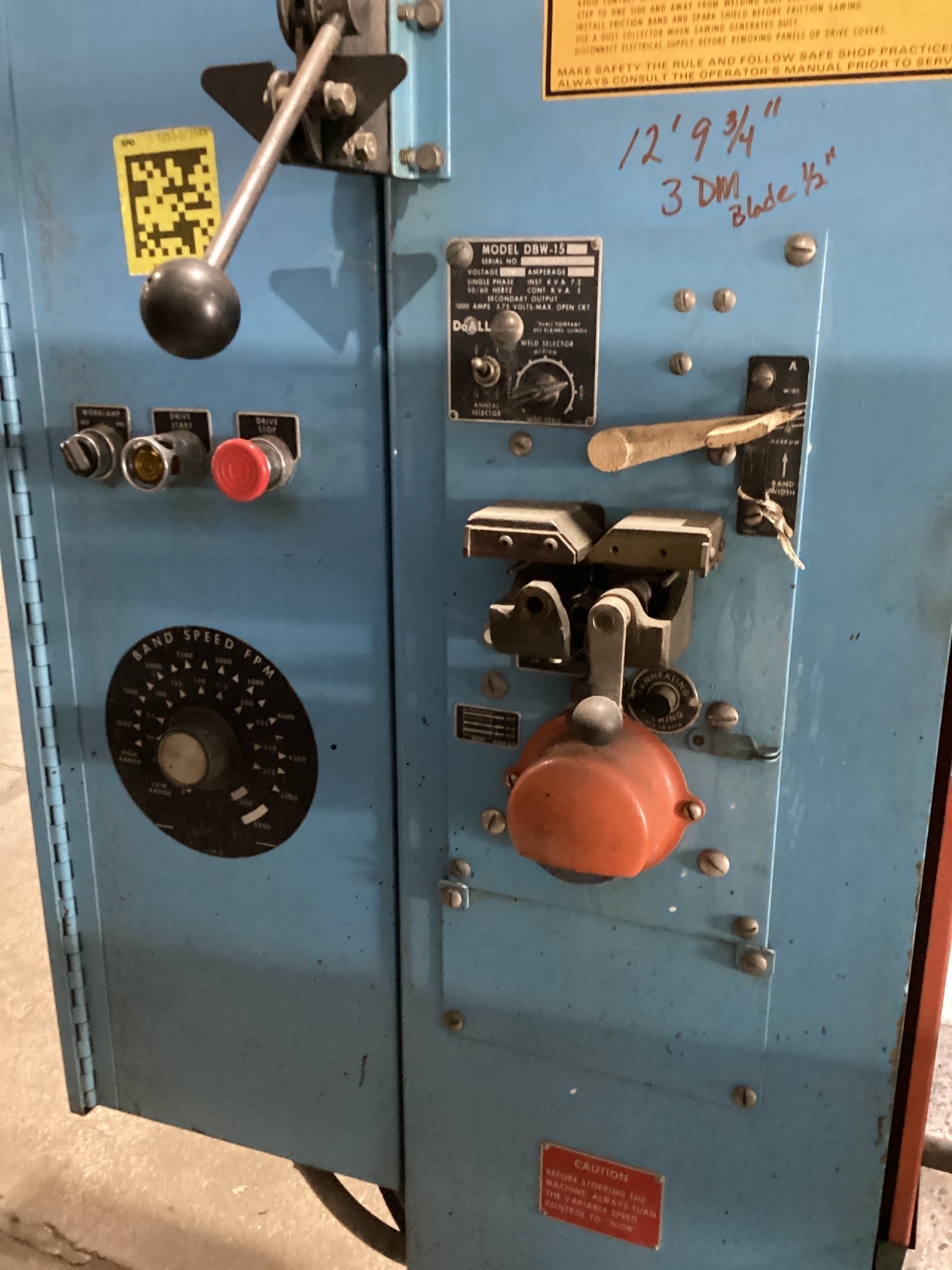

This listing is for a USED DoAll 2013-20 Vertical Contour Band Saw. The 2013-20 is a floor-standing metalworking machine used for contour cutting, profiling, trimming, and precision sawing operations. This machine incorporates variable band speed adjustment, an integrated DBW-15 blade welder, and a welded steel frame suitable for fabrication, toolroom, and production environments.

Specification Table

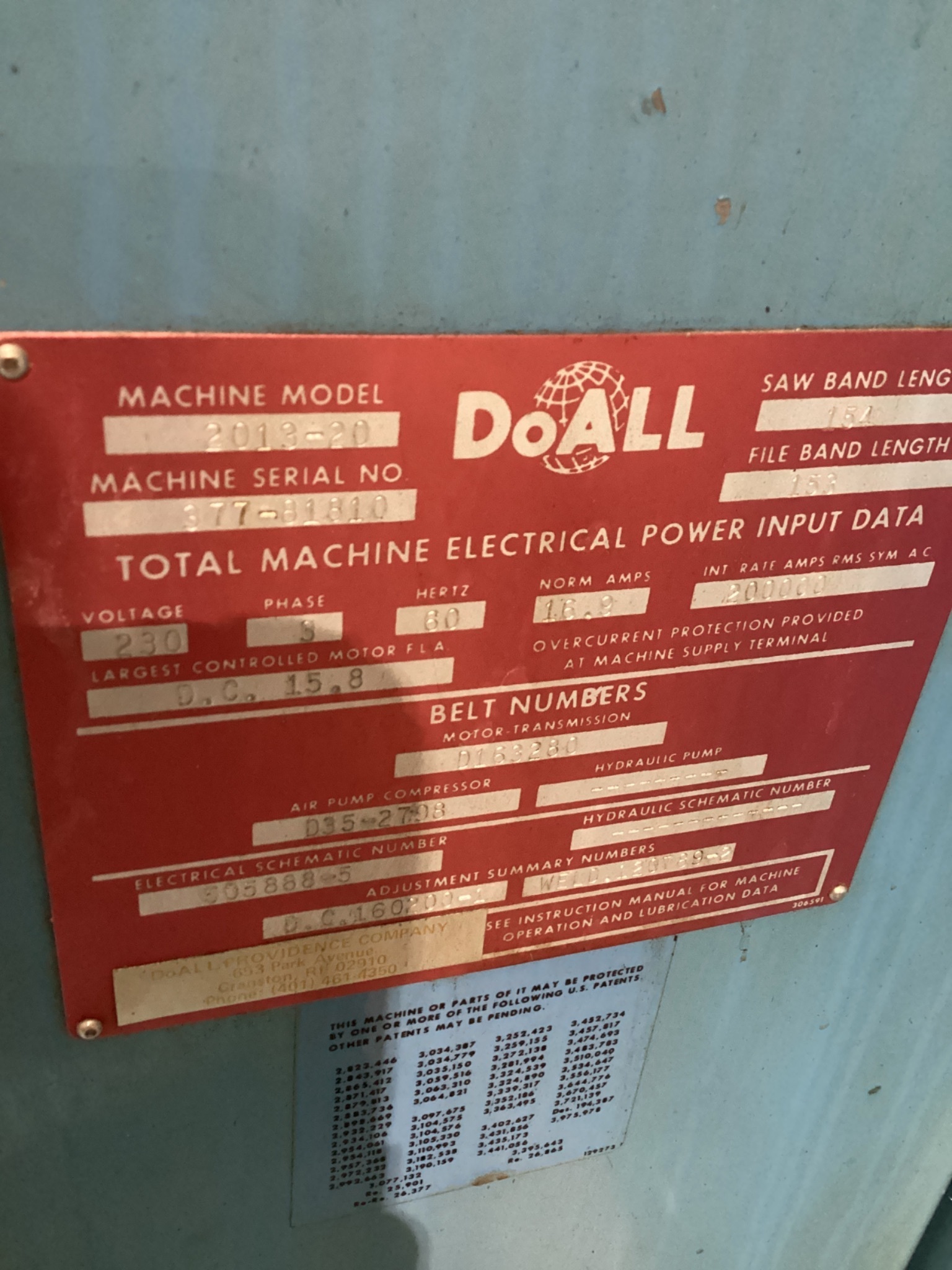

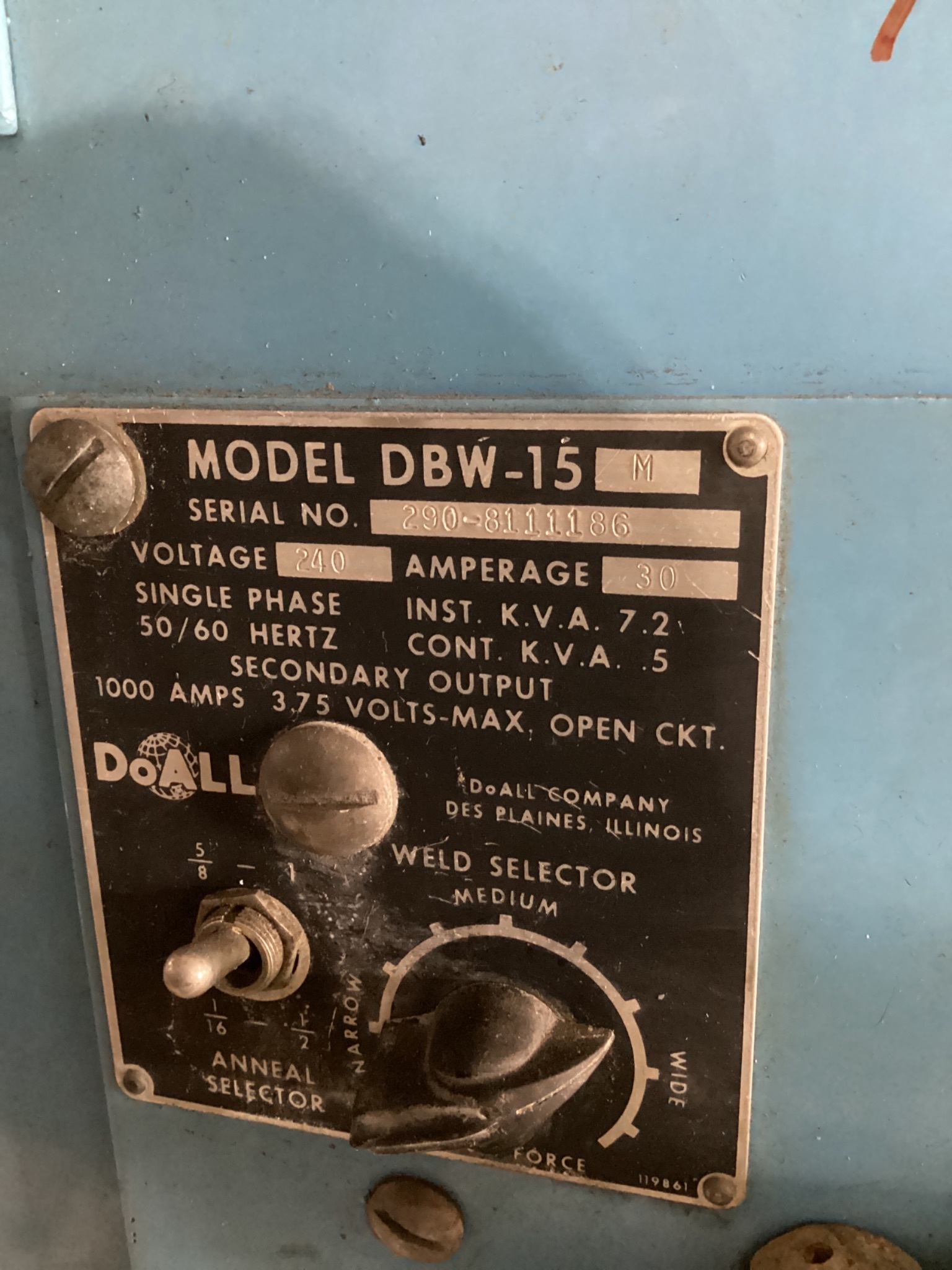

Manufacturer: DoAll Model: 2013-20 Equipment Type: Vertical Contour Band Saw Condition: USED   Machine Serial Number: 377-81810   Saw Type: Vertical Contour Band Saw Construction: Floor Standing Drive Type: Variable Speed   Saw Band Length: 154 in File Band Length: 153 in   Voltage: 230 VAC Phase: 3 Phase Frequency: 60 Hz Normal Current: 16.9 A   Largest Controlled Motor FLA: D.C. 15.8 A   Interrupt Rating: 200,000 A RMS Sym. AC   Blade Welder Model: DBW-15M Blade Welder Serial: 290-8111186   Welder Voltage: 240 VAC Welder Phase: Single Phase Welder Frequency: 50/60 Hz Welder Current: 30 A   Instantaneous KVA: 7.2 Continuous KVA: 0.5   Secondary Output: 1000 A Open Circuit Voltage: 3.75 V Max   Motor Transmission Belt Number: D163280   Air Pump Compressor Belt Number: D35-2798   Electrical Schematic: 5058886-5   Adjustment Summary No.: D.C.160200-1 Welder Summary No.: WELD.120789-2
