DAYTON 6K702N 1.5 HP General Purpose Motor USED

Name: DAYTON 6K702N 1.5 HP General Purpose Motor USED
Brand: DAYTON
SKU: IGAM2580052
Price: 200 USD
Availability: InStock

Availability:

1 in stock

BRAND: DAYTON MODEL: 6K702N CONDITION: used

SKU: IGAM2580052 Weight: 45 lbs Shipping Calculated at Checkout

1 in stock

Make an offer

Overview

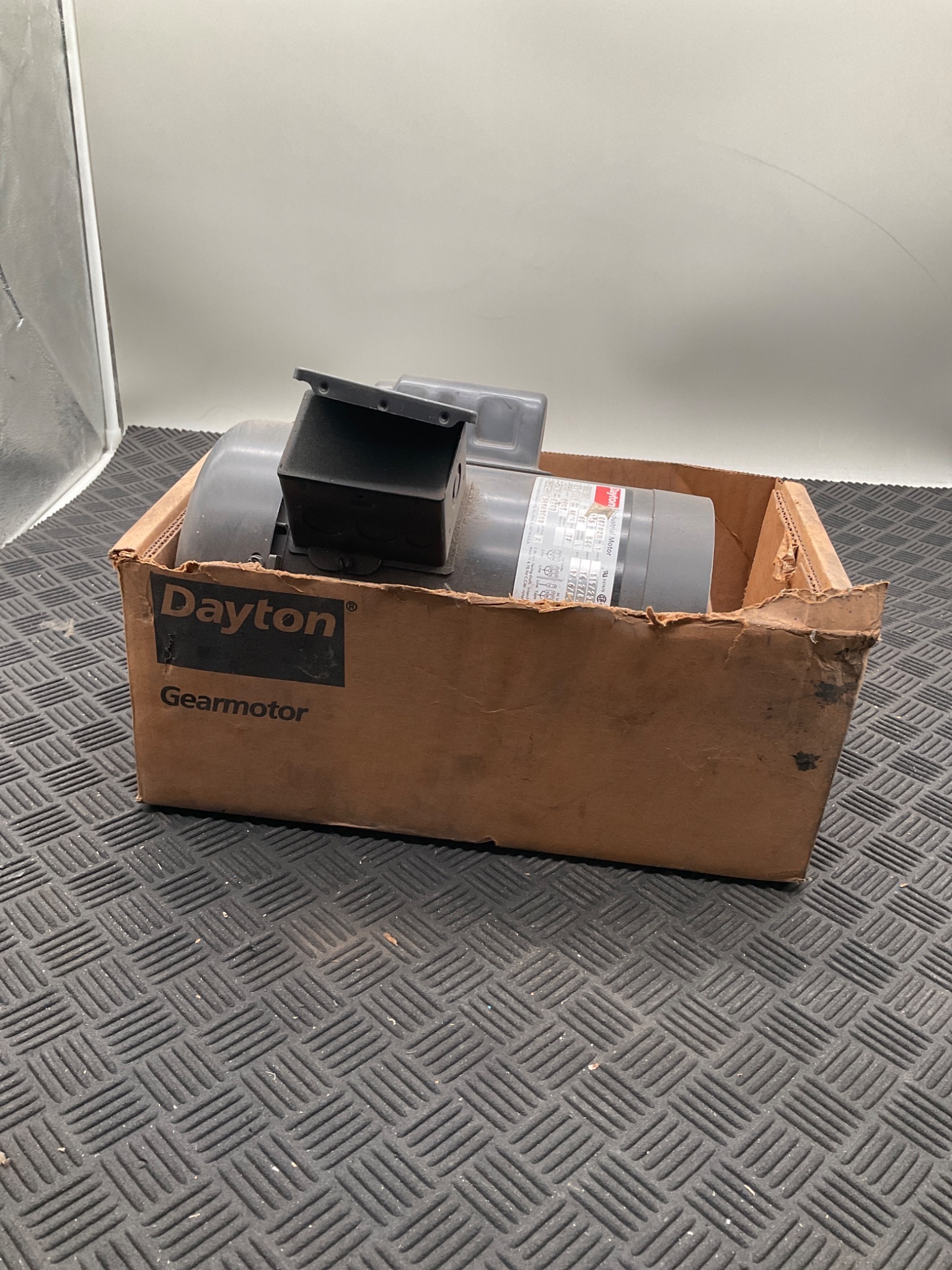

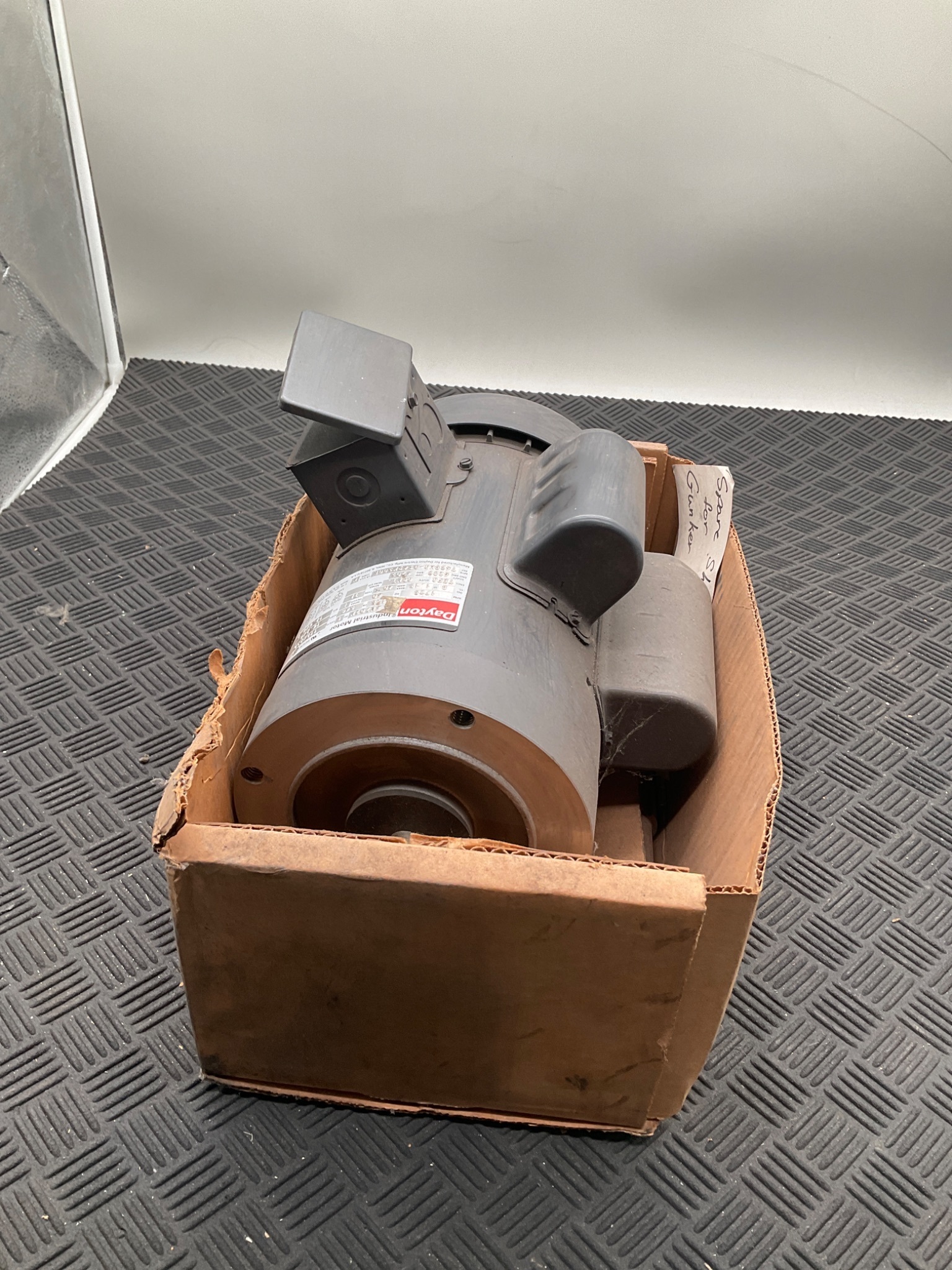

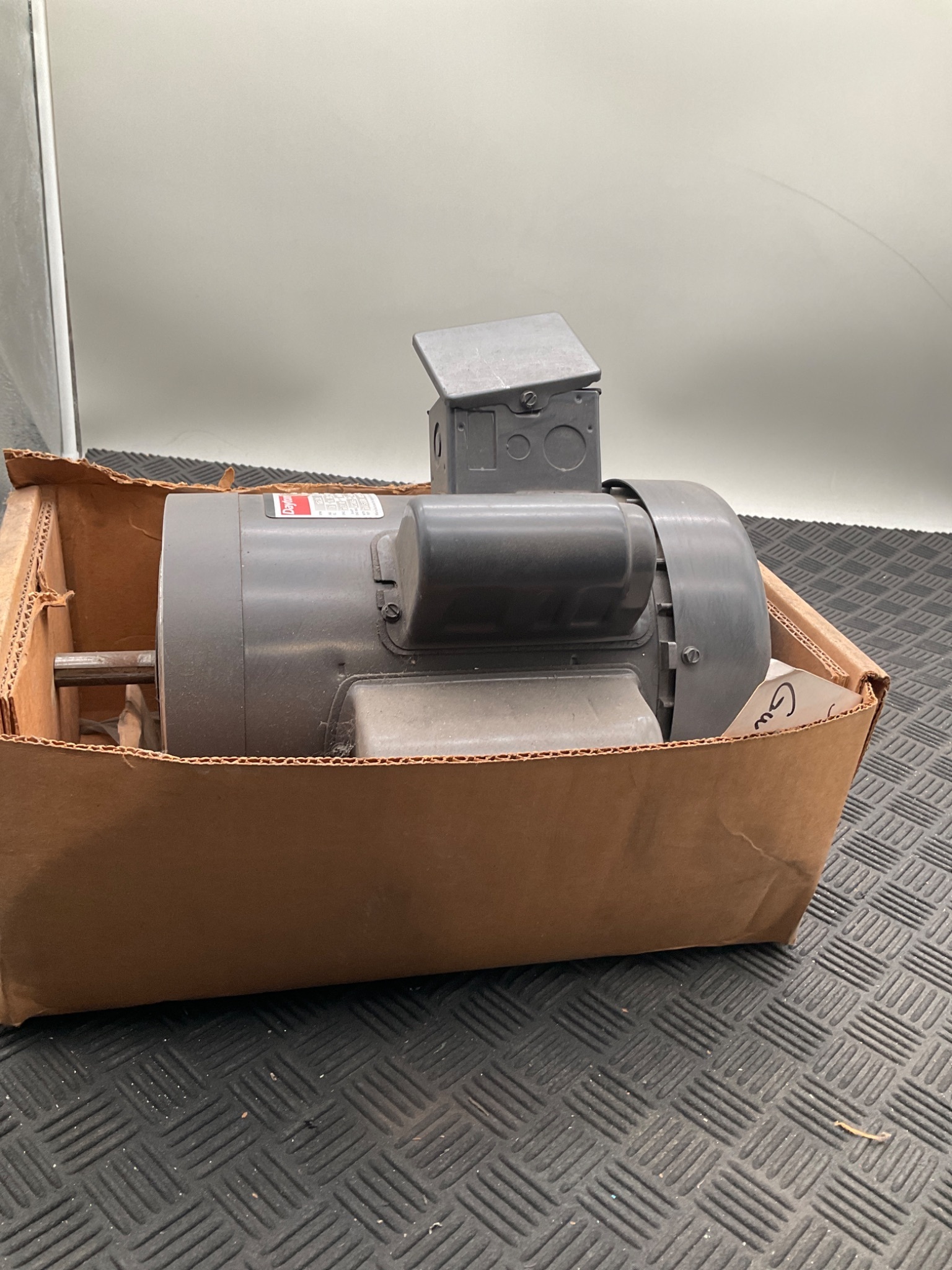

This listing is for a USED Dayton 6K702N General Purpose Motor. It is designed for industrial and commercial machinery requiring a reliable single‑phase AC motor. The unit is rated at 1.5 HP, operates at 1725 RPM, and supports dual‑voltage operation at 115/230V. It features a TEFC enclosure, continuous‑duty operation, a NEMA 56C frame, and ball‑bearing construction for long service life.

Description
Tags

Specification Table

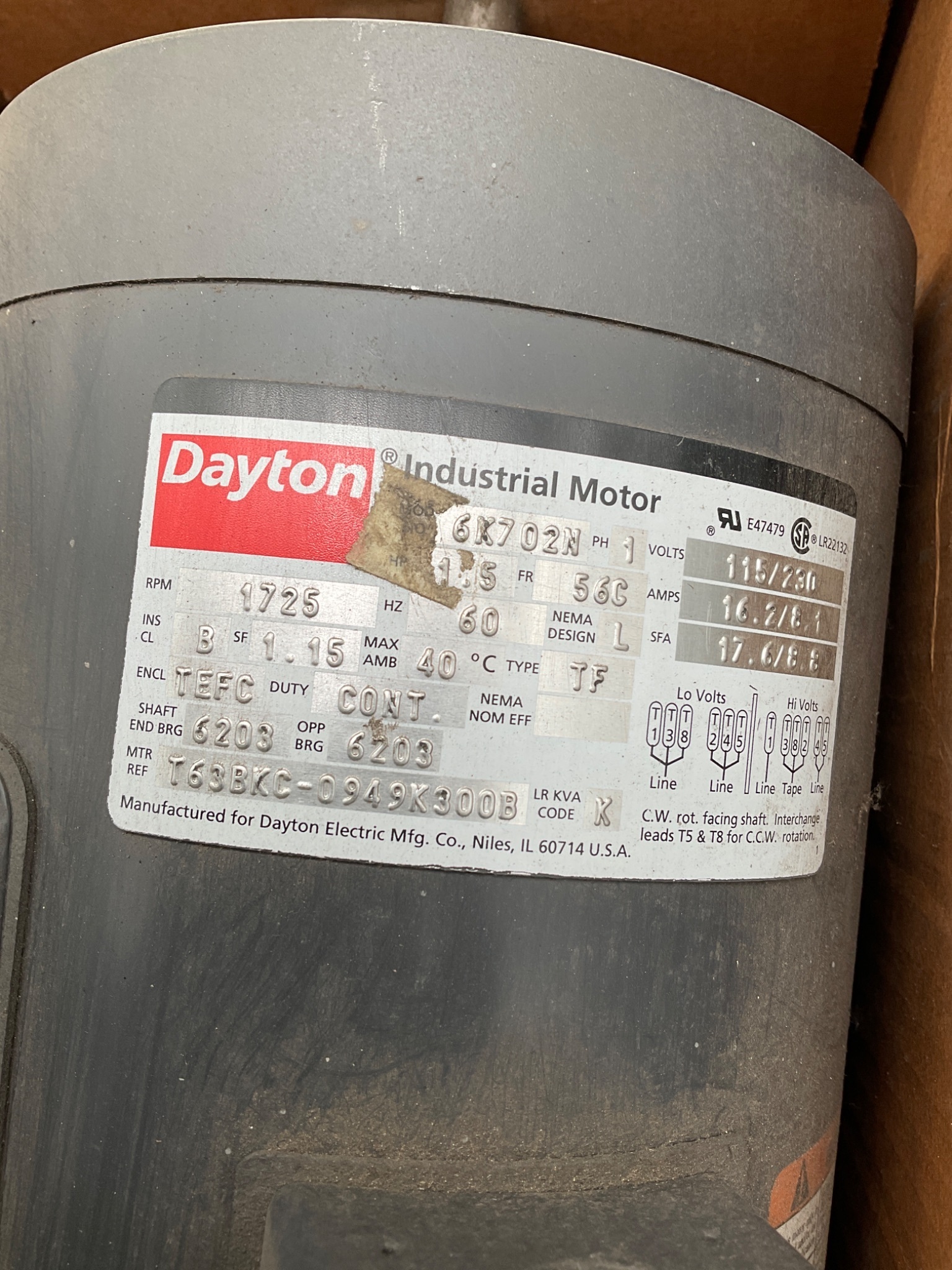

Manufacturer: Dayton Part Number: 6K702N Condition: USED Function: General Purpose AC Motor Horsepower: 1.5 HP Voltage: 115/230 V Phase: 1 Phase Amps: 16.2 / 8.1 A RPM: 1725 Frame: 56C Enclosure: TEFC Duty: Continuous Insulation Class: B Service Factor: 1.15 Max Ambient Temperature: 40°C Bearings: 6208 (DE) / 6203 (ODE)

▸ Key Features:

• 1.5 HP single-phase AC induction motor
• Operates at 1725 RPM for smooth, stable output
• Dual-voltage capability: 115/230V
• TEFC (Totally Enclosed Fan Cooled) enclosure protects internal components
• Continuous-duty rating suitable for extended operation
• NEMA 56C frame commonly used across general machinery
• Ball bearing design ensures long service life and reliability
• Factory-provided wiring diagram supports CW or CCW rotation

▸ Applications:

• Pumps and pump‑driven systems
• Conveyors and material-handling machinery
• Blowers, fans, and air‑moving equipment
• Manufacturing and workshop machinery
• OEM equipment requiring a 56C-frame TEFC motor
• Replacement motor for general-purpose industrial applications

▸ Alternative Model Numbers:

6K702P
6K702B
6K702C
6K703 Series
5KCR49 Series (similar Dayton GP motors)

▸ Common Misspellings or Phrasing:

6K702-N
6702N
Dayton 1.5HP Motor
K702N
Dayton GP Motor 6K702N

“
