Chroma 8700 Cell Auto Test System Battery Test System NEW

Specification Table

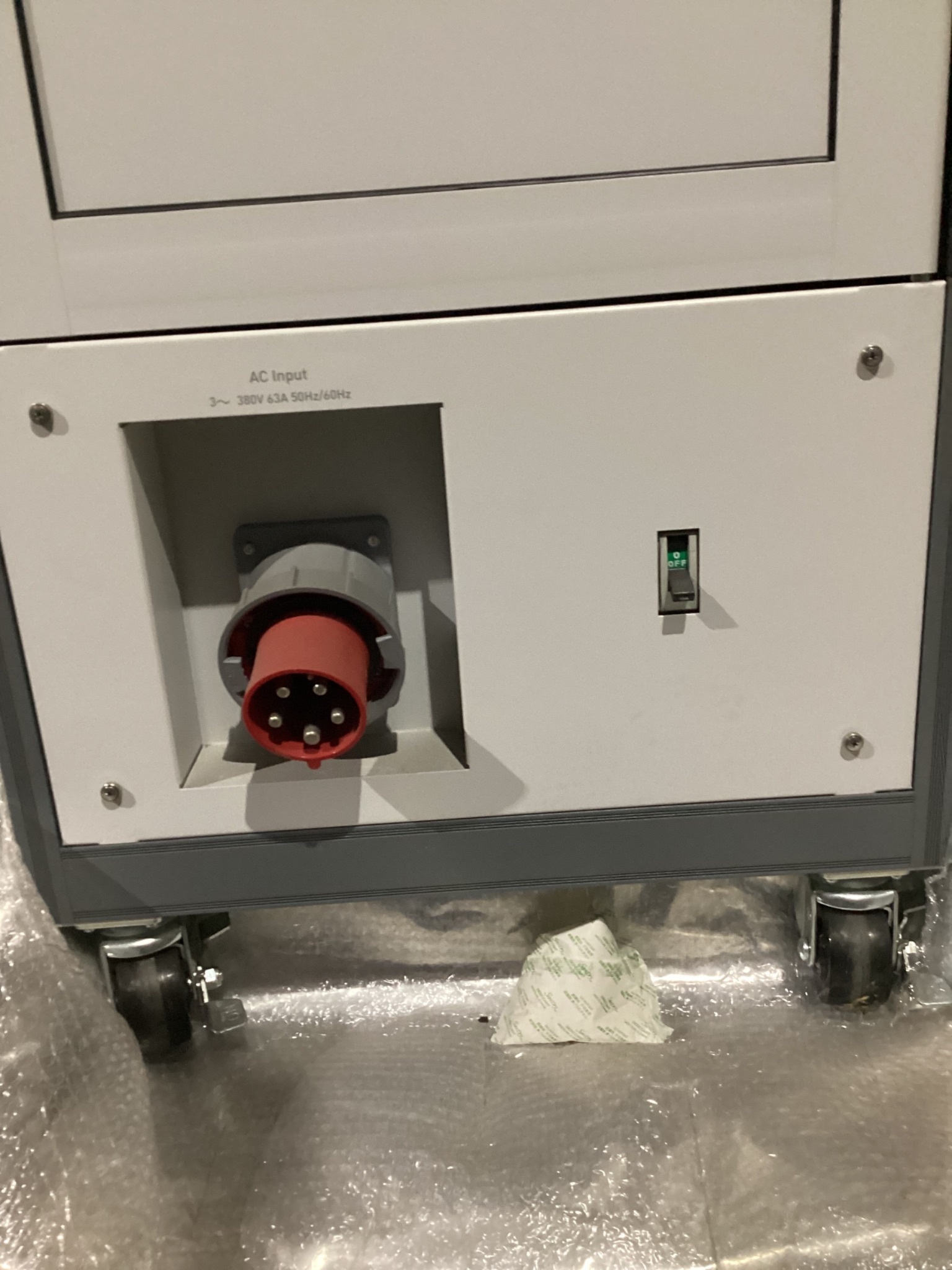

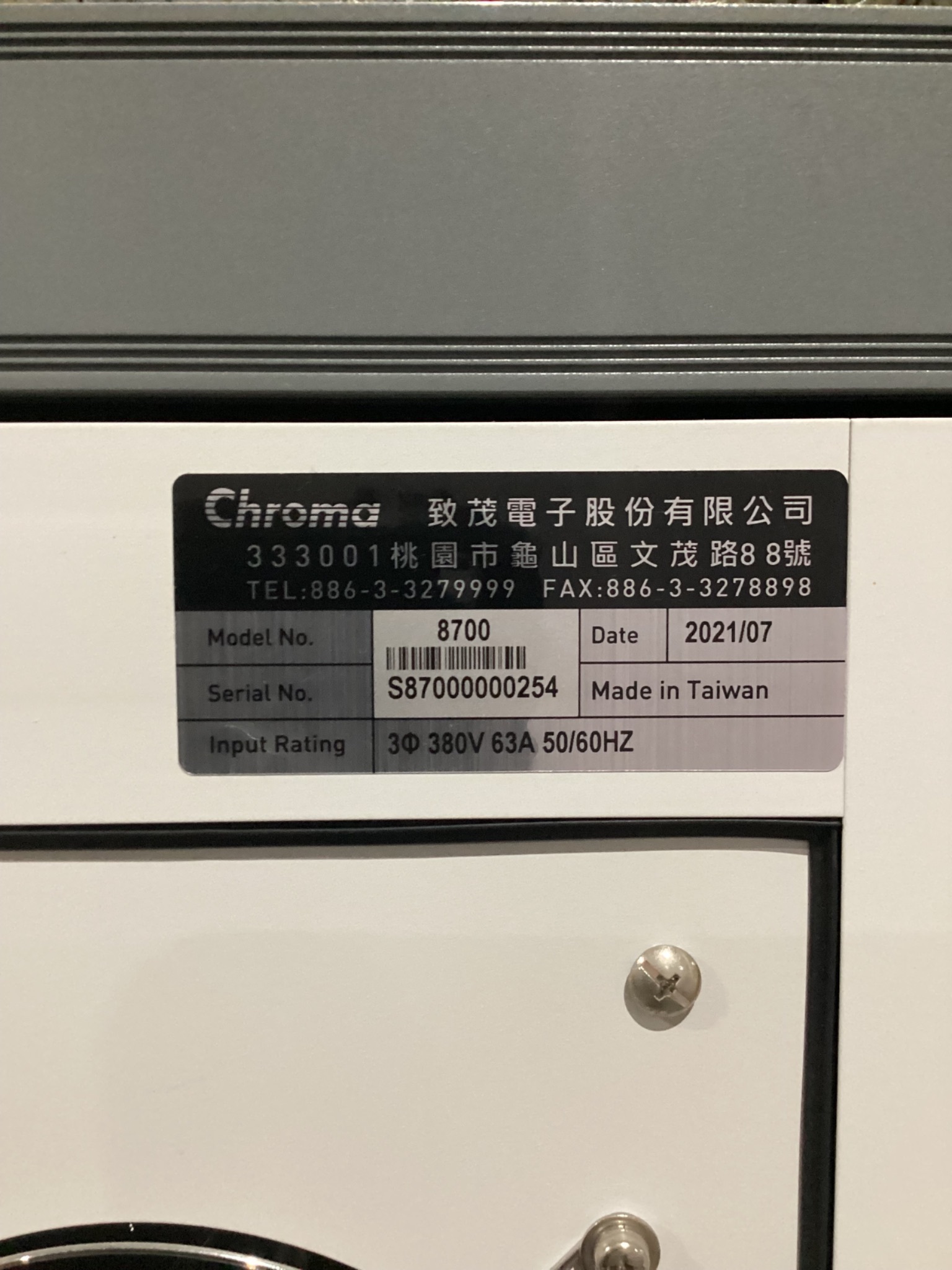

Manufacturer: Chroma Model: 8700 Condition: NEW Product Type: Cell Auto Test System System Type: Automated Battery Cell Test Platform   8700 Platform Specifications: Platform Architecture: Modular Rack-Mounted System Application: Battery Cell Charge/Discharge Testing Test Channel Capacity: Up to 1,280 Channels Network Architecture: Distributed Control System Data Acquisition: Centralized Test Control: Multi-Channel Independent Control Cell Types Supported: Lithium-Ion, Lithium Polymer, NiMH, NiCd Production Integration: Supported Database Management: Supported Automated Test Sequencing: Supported   Controller: Industrial Computer: Advantech 610H Operating System: Windows 10 IoT Enterprise 2019 LTSC High End   Installed Test Hardware: Module Model: Chroma 17216M-6-12 Installed Modules: 4 Visible Channels per Module: 16 Visible Channel Count: 64   17216M Module Specifications: Module Type: Charge/Discharge Test Module Voltage Range: 0-6 V Current Range: ±12 A Channel Configuration: 16 Independent Channels Charge Function: Supported Discharge Function: Supported Voltage Measurement: Per Channel Current Measurement: Per Channel   Input Power: Supply Voltage: 380 VAC Phase: 3 Phase Input Current: 63 A Frequency: 50/60 Hz   Operator Controls: Emergency Stop: Installed Reset Pushbutton: Installed Power On Pushbutton: Installed Power Off Pushbutton: Installed Mode Selector: Auto / Maintain   System Configuration: Cabinet Type: Mobile Rack Enclosure Mobility: Caster Mounted Industrial PC Control: Yes   Serial Number: S87000000254 Country of Origin: Taiwan Manufacture Date: 2021/07
