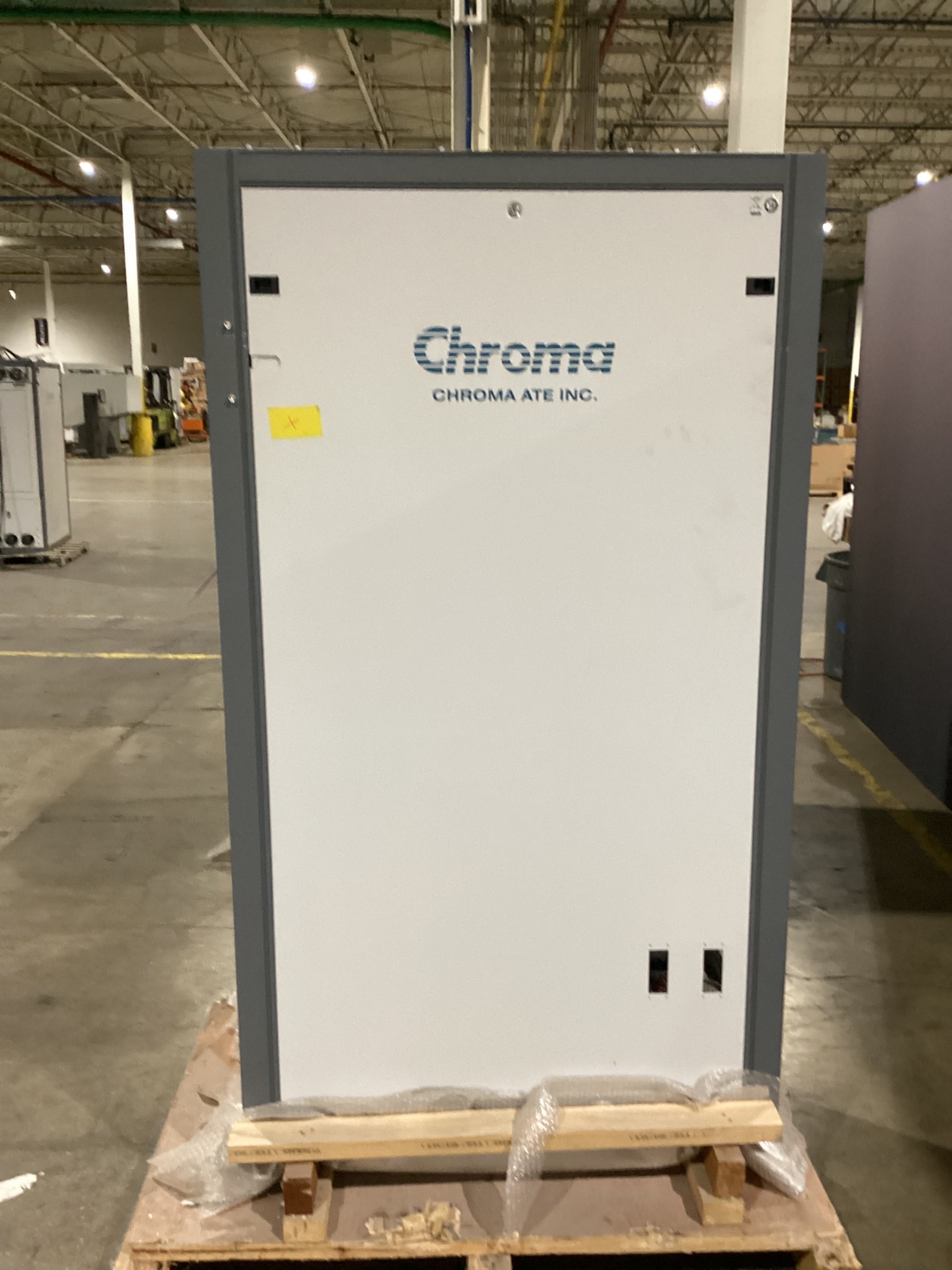

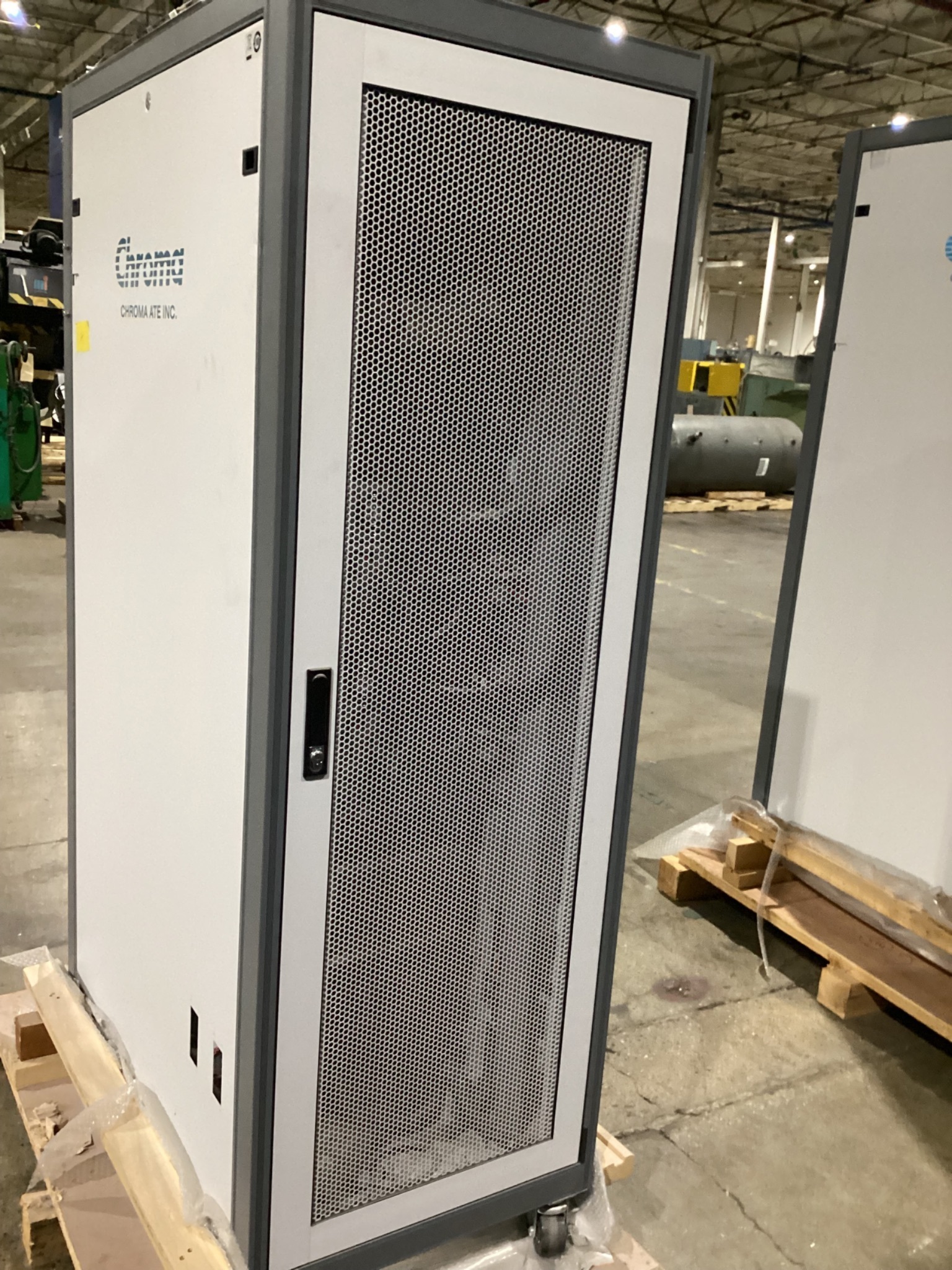

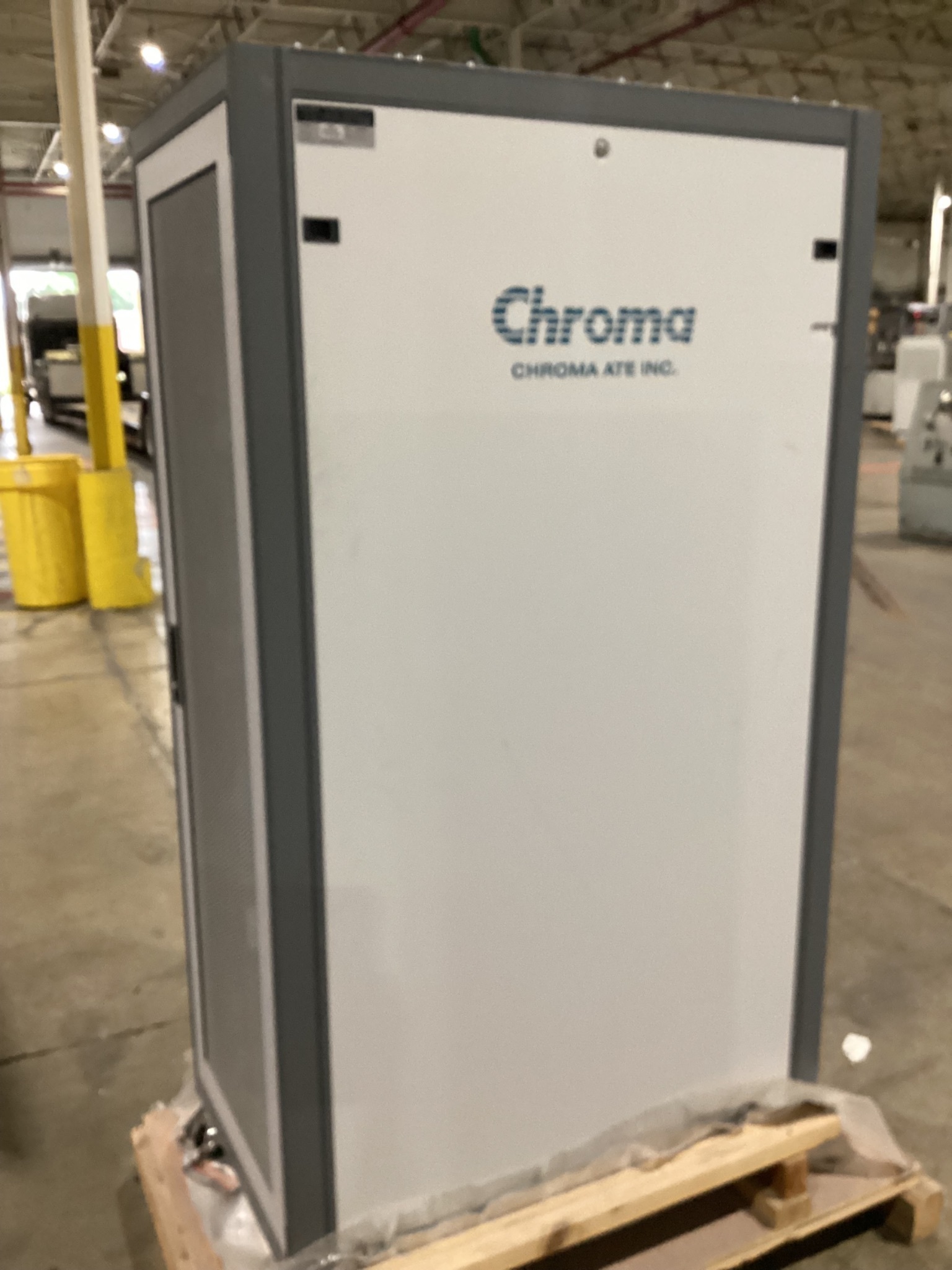

Chroma 17020 Regenerative Battery Pack Test System NEW

Specification Table

Manufacturer: Chroma Model: 17020 Condition: NEW Product Type: Regenerative Battery Pack Test System System Type: Battery Charge / Discharge Test Platform   17020 Platform: Architecture: Modular Rack-Mounted System Battery Type Support: Lithium-Ion, Lithium Polymer, NiMH, NiCd Energy Recovery: Regenerative Charge Testing: Supported Discharge Testing: Supported Cycle Life Testing: Supported Production Testing: Supported Research & Development: Supported Automated Test Sequencing: Supported Computer Controlled: Yes Data Acquisition: Integrated Data Logging: Supported   Controller: Model: 69200-1 Type: Charge / Discharge Controller Display: Integrated LCD Control Method: Centralized System Control   Industrial Computer: Manufacturer: Advantech Model: 610H Operating System: Windows 10 IoT Enterprise 2019 LTSC High End   Installed Regenerative Testers: Model: 69225-60-4 Quantity Installed: 2 Visible Tester Type: Regenerative Charge / Discharge Tester Channels Per Unit: 4 Visible Channel Count: 8 Channel Control: Independent Energy Recovery: Supported   69225-60-4 OEM Specifications: Maximum Voltage: 60 V Maximum Charge Current: 25 A Maximum Discharge Current: 25 A Channel Configuration: 4 Independent Channels Charge Operation: Constant Current / Constant Voltage Discharge Operation: Regenerative Measurement Functions: Voltage, Current, Capacity Battery Pack Testing: Supported   Installed Power Conversion: Converter Model: A691101 Quantity Installed: 2 Visible Converter Type: DC/AC Bi-Direction Converter Power Flow: Bidirectional Regenerative Operation: Supported   System Power: Input Voltage: 380 VAC Phase: 3 Phase Wiring Configuration: 5 Wire Input Current: 75 A   Operator Controls: Emergency Stop: Installed Power Pushbutton: Installed Indicator Lamp: Installed   Cabinet Configuration: Enclosure Type: Rack Cabinet Mobility: Caster Mounted Cooling Method: Forced Air Rack Construction: Modular   Identification: Serial Number: S17020000497 Country of Origin: Taiwan Manufacture Date: 2021/07
