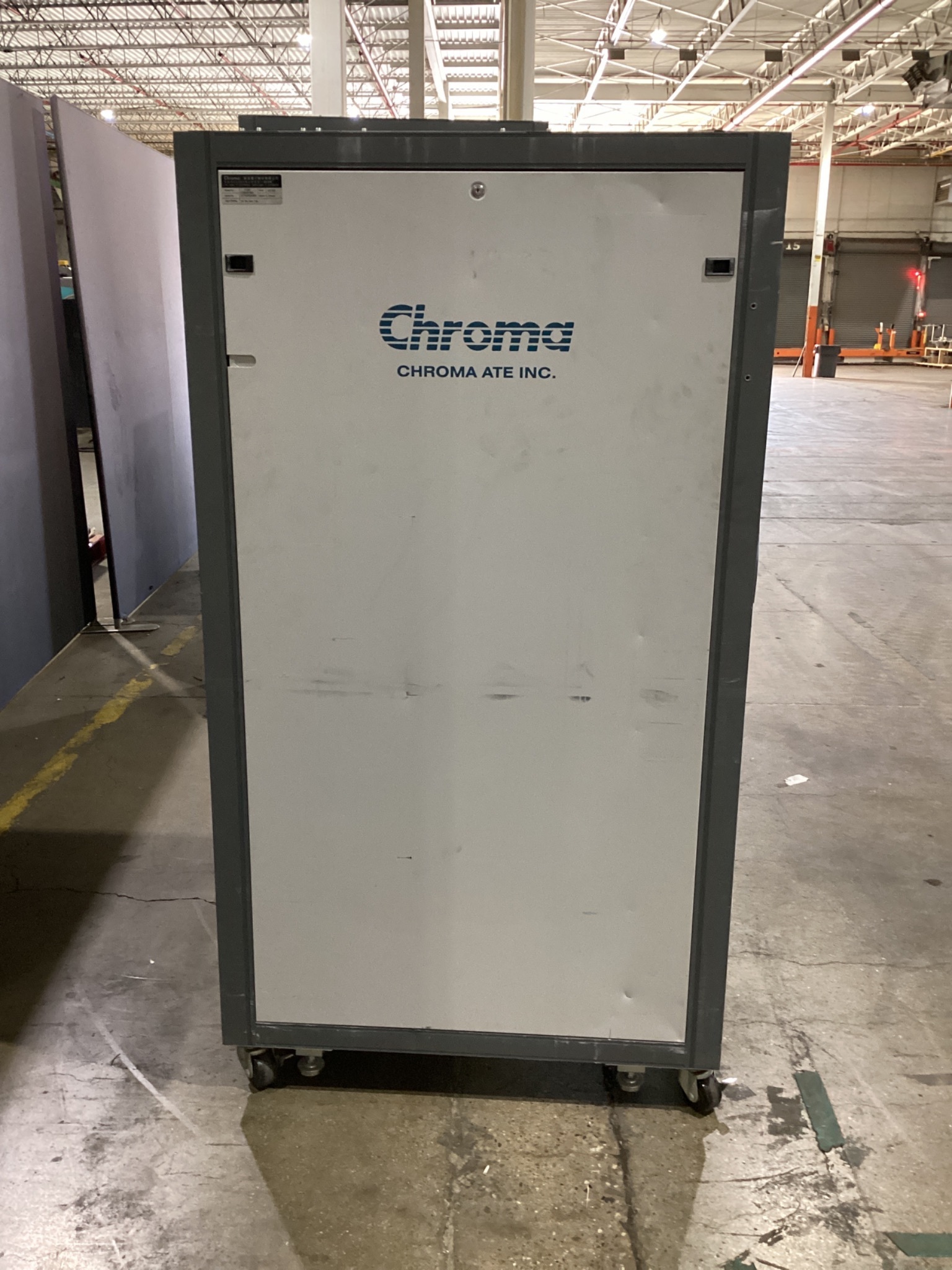

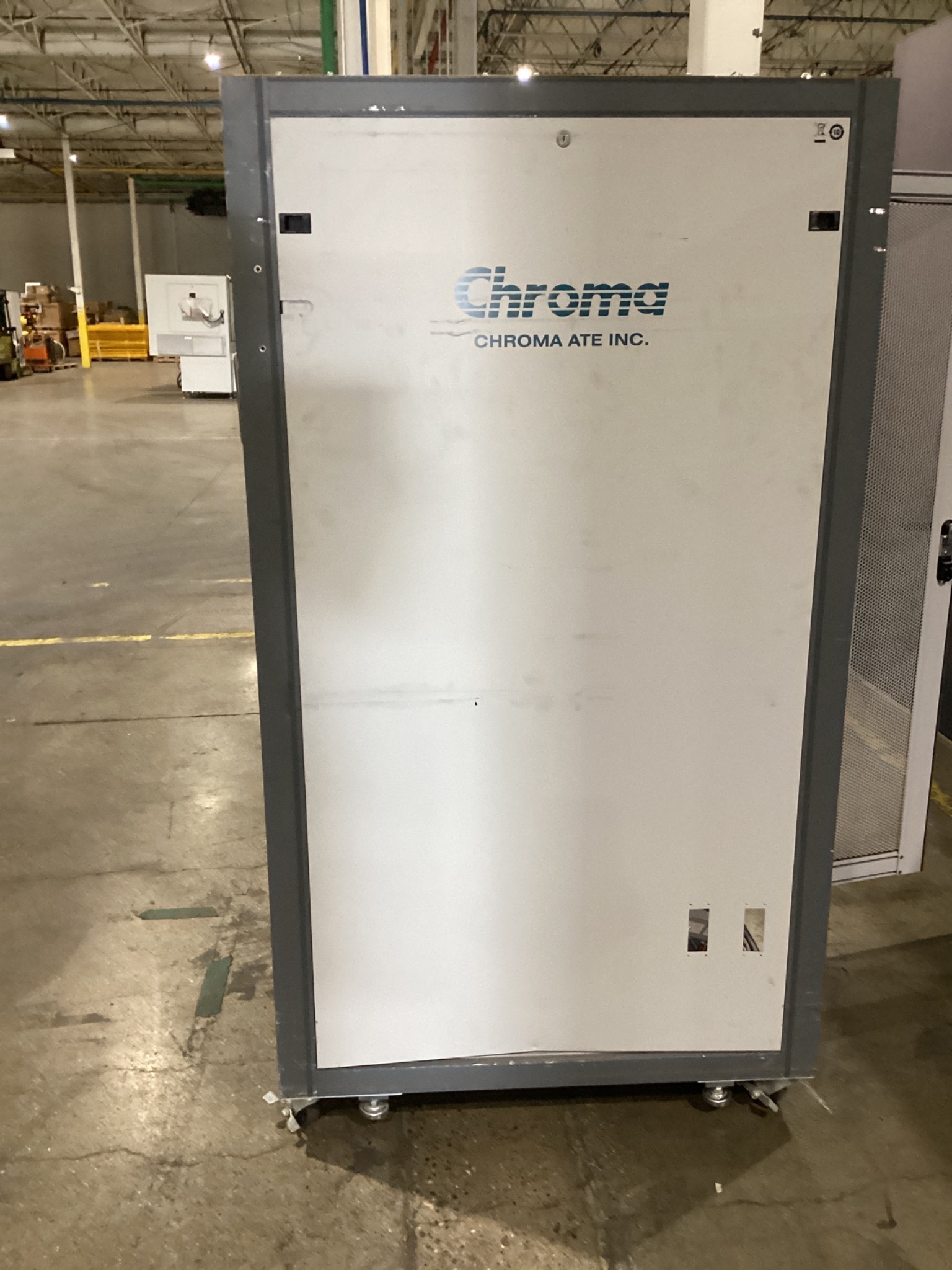

CHROMA 17020 Regenerative Battery Pack Test System 380V 75A USED

Specification Table

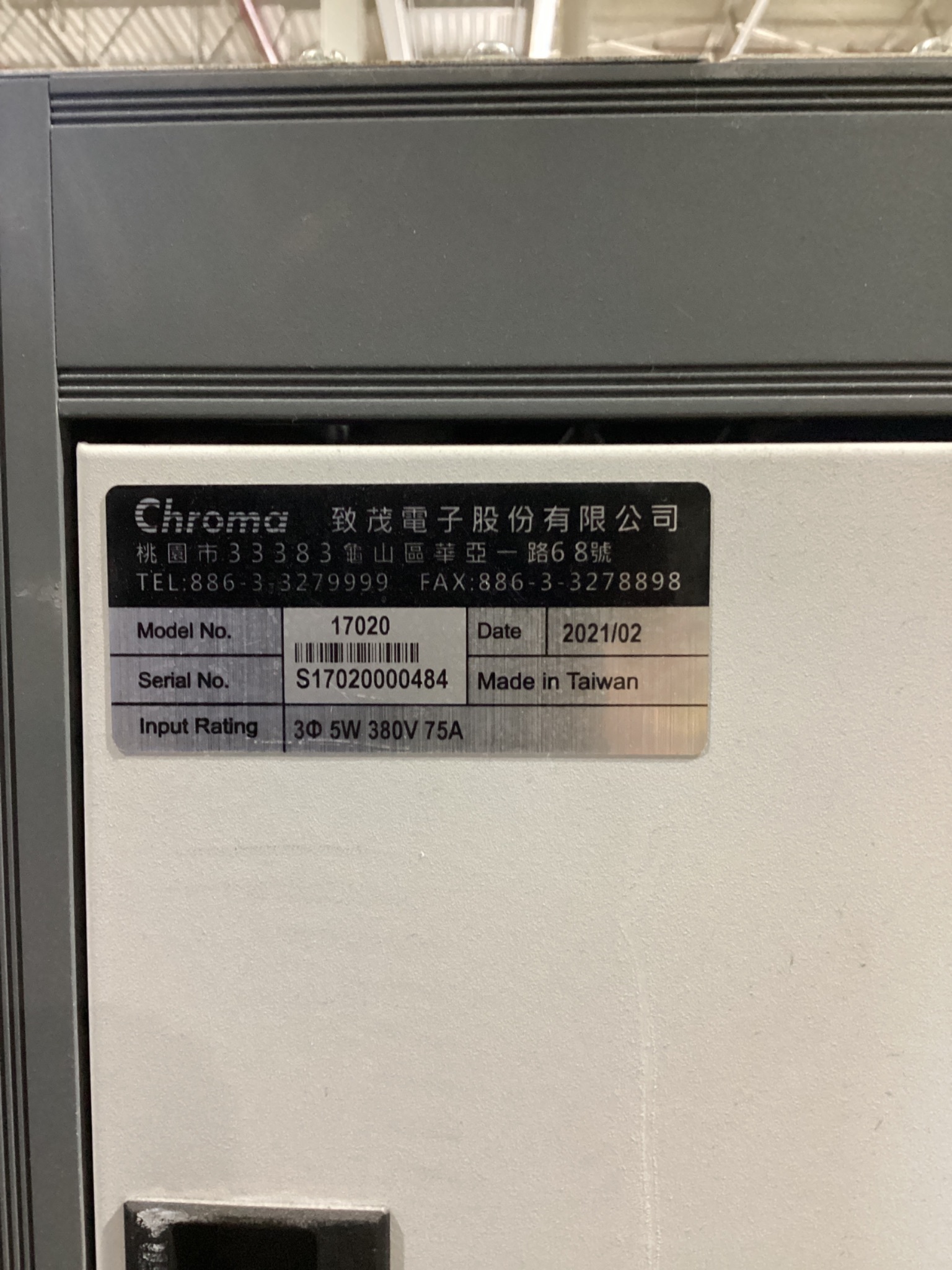

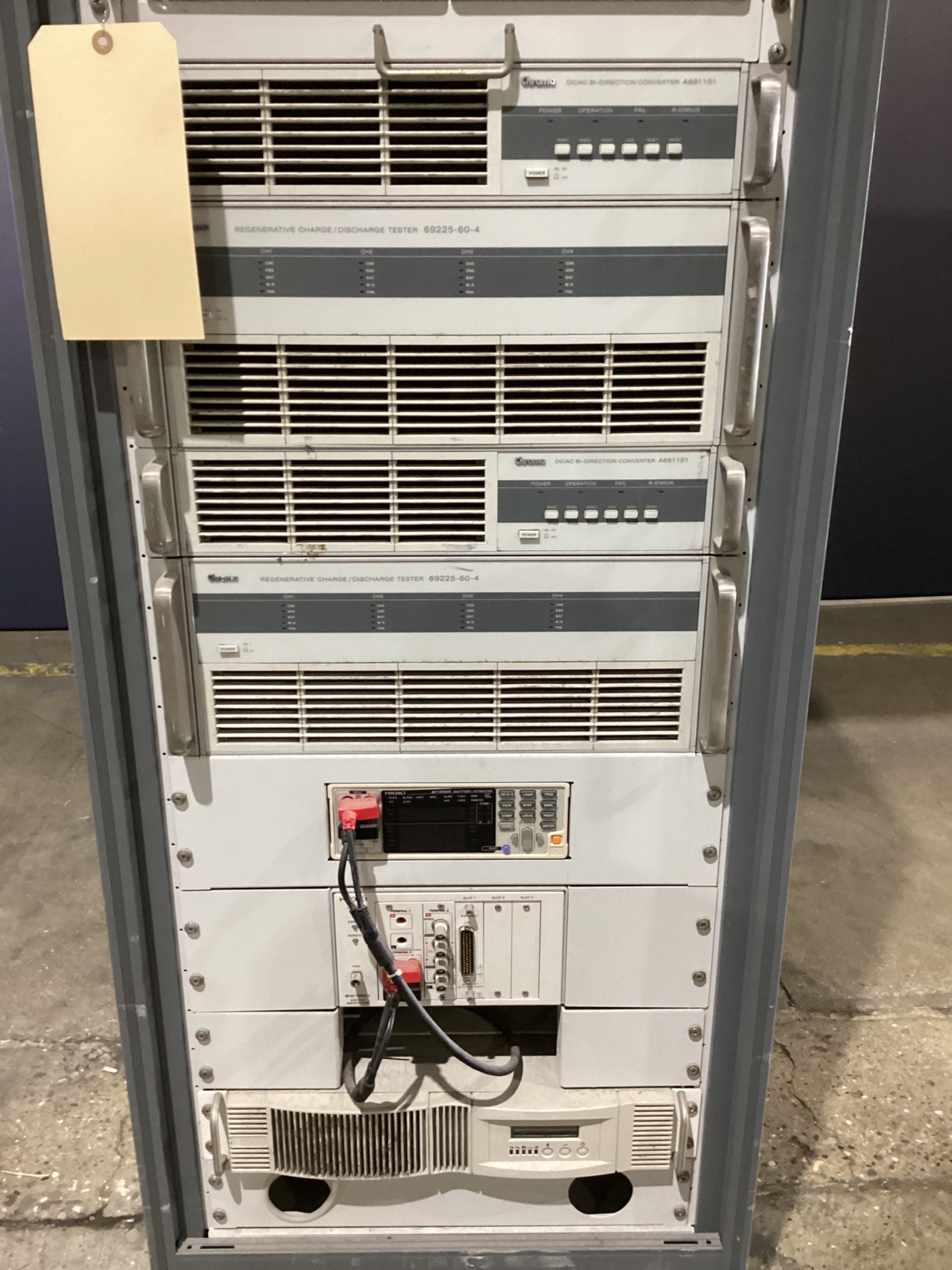

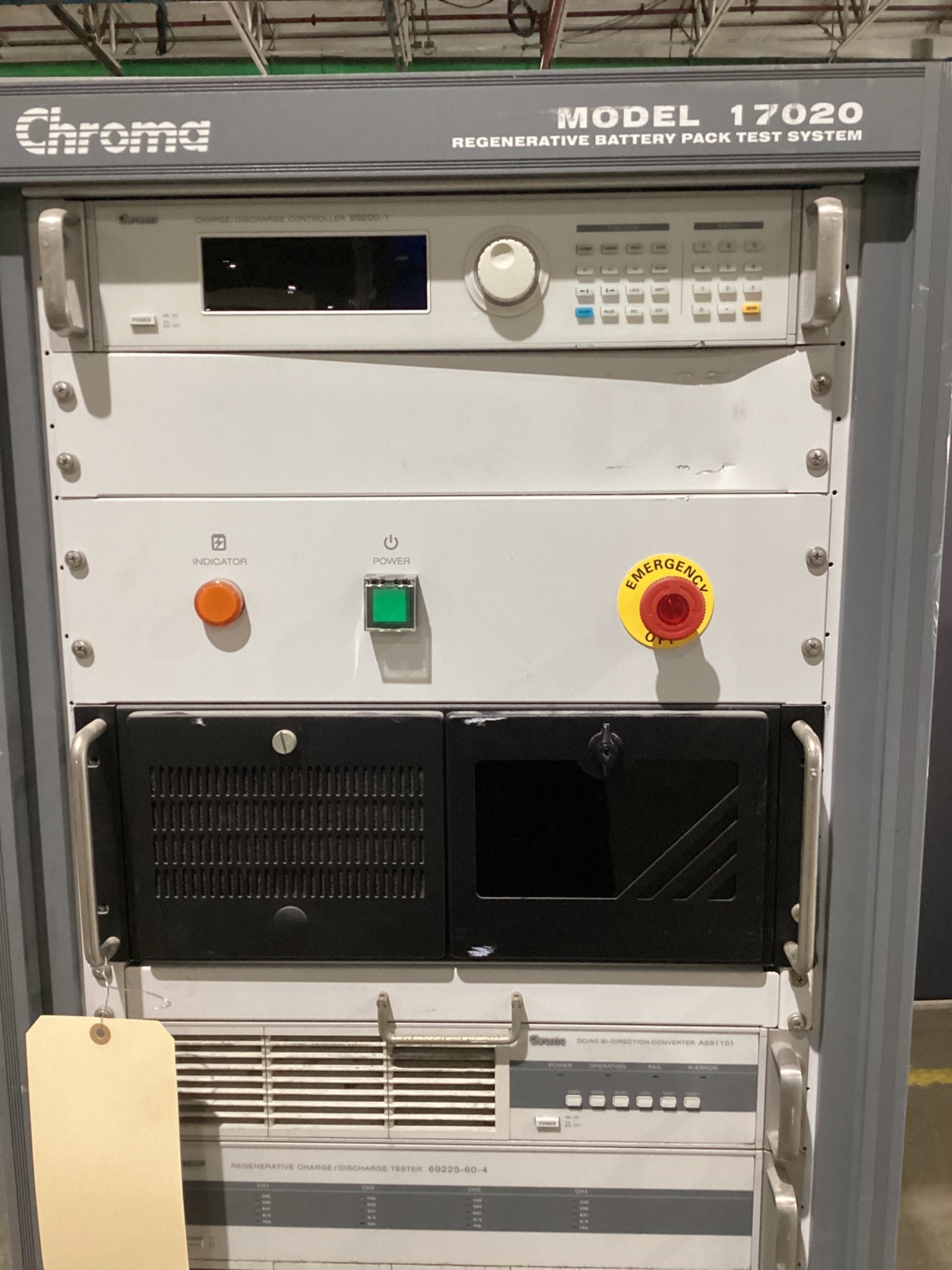

Manufacturer: Chroma Model: 17020 Product Type: Regenerative Battery Pack Test System Condition: USED   Serial Number: S17020000484 YOM: 2021 Country of Origin: Taiwan   Input Configuration: 3 Phase, 5 Wire Input Voltage: 380 VAC Input Current: 75 A Input Frequency: 47-63 Hz   Installed Controller: Chroma 69200-1 Controller Qty: 1 Controller Function: Charge/Discharge System Control   Installed Tester Module: Chroma 69225-60-4 Tester Module Qty: 2 Module Type: Regenerative Charge/Discharge Tester Channels per Module: 4 Installed Channel Count: 8   Installed Converter: Chroma A691101 Converter Qty: 2 Converter Type: DC/AC Bi-Direction Converter   Installed Instrumentation: Hioki BT3554 Battery HiTester Instrumentation Qty: 1   Operating Modes: CC, CV, CP, CC-CV Drive Cycle Simulation: Supported DCIR Testing: Supported Capacity Testing: Supported Performance Testing: Supported Cycle Life Testing: Supported   Communications: Ethernet BMS Recording: Supported BMS Protocols: CAN Bus, SMBus Thermal Chamber Integration: Supported   Sampling Rate: 50 kHz Profile Memory: 720,000 Points per Channel Charge/Discharge Transition: 50 ms   Energy Recovery: Regenerative Efficiency: 85-90% Typical Power Factor: >0.9 Current THD: <5%   Protection Functions: OVP, UVP, OCP, OTP, OPP   Cabinet Type: Rack Mounted Mobility: Casters Installed Emergency Stop: Installed
