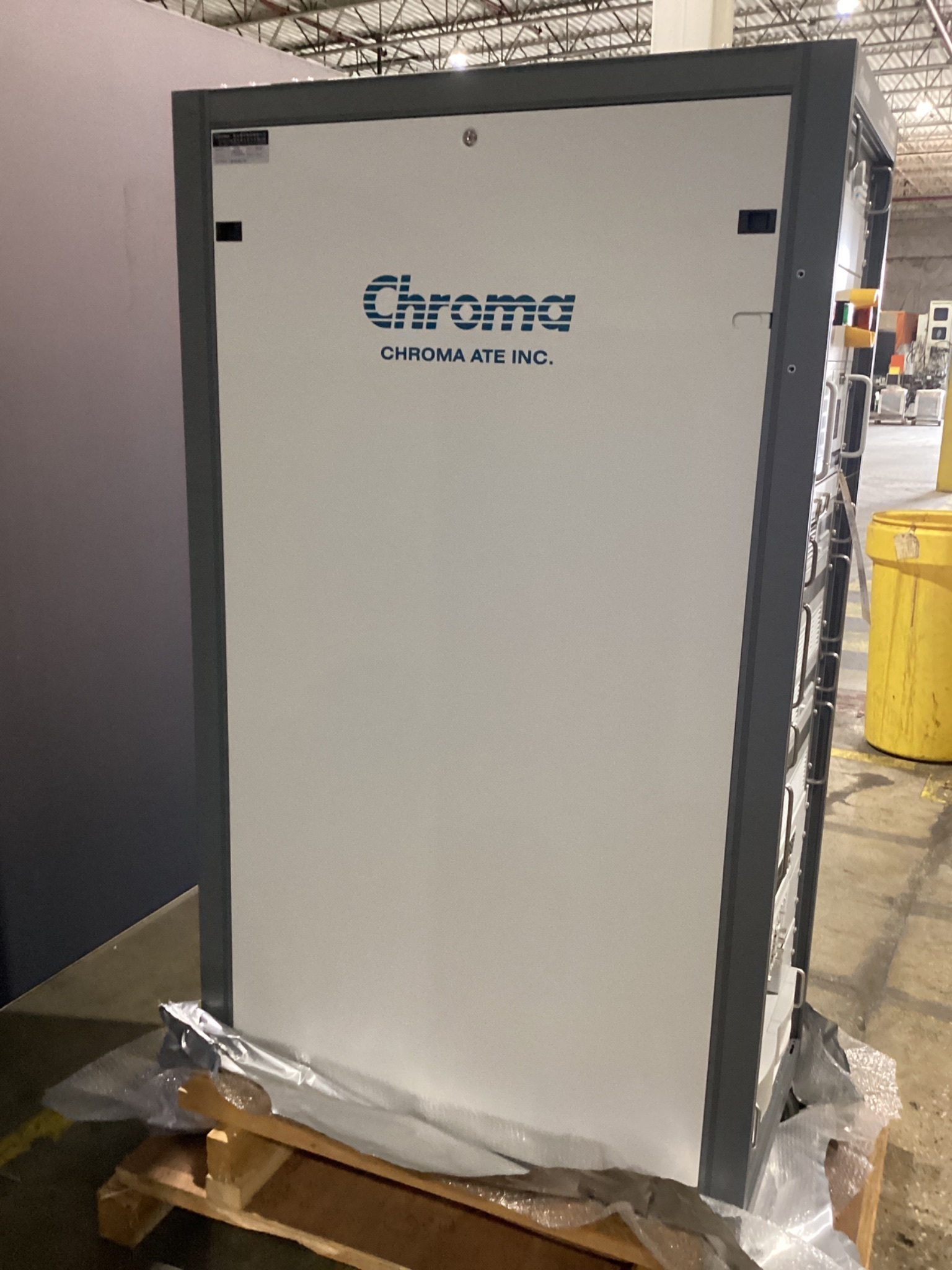

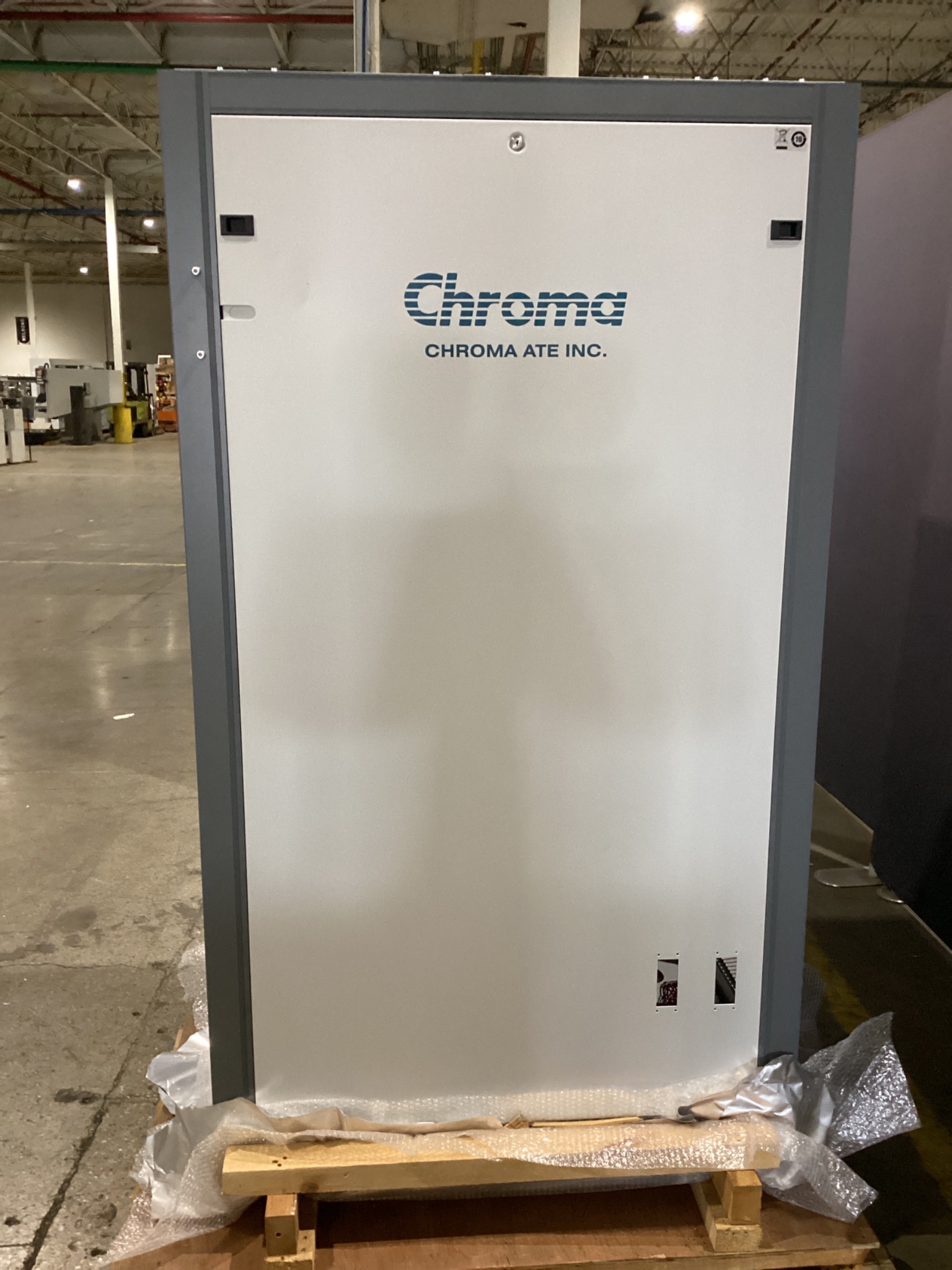

CHROMA 17020 Regenerative Battery Pack Test System 380V 75A NEW

Specification Table

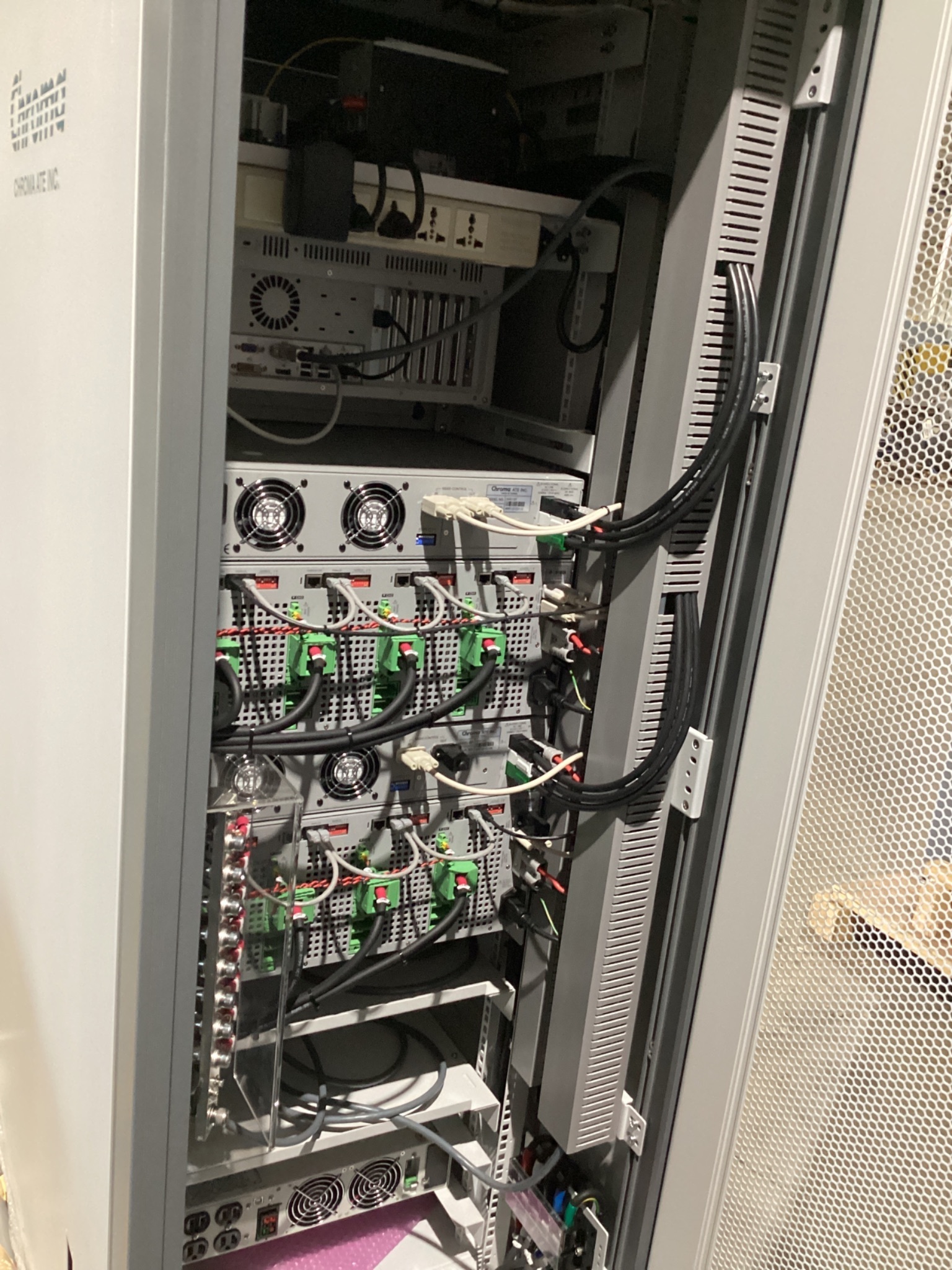

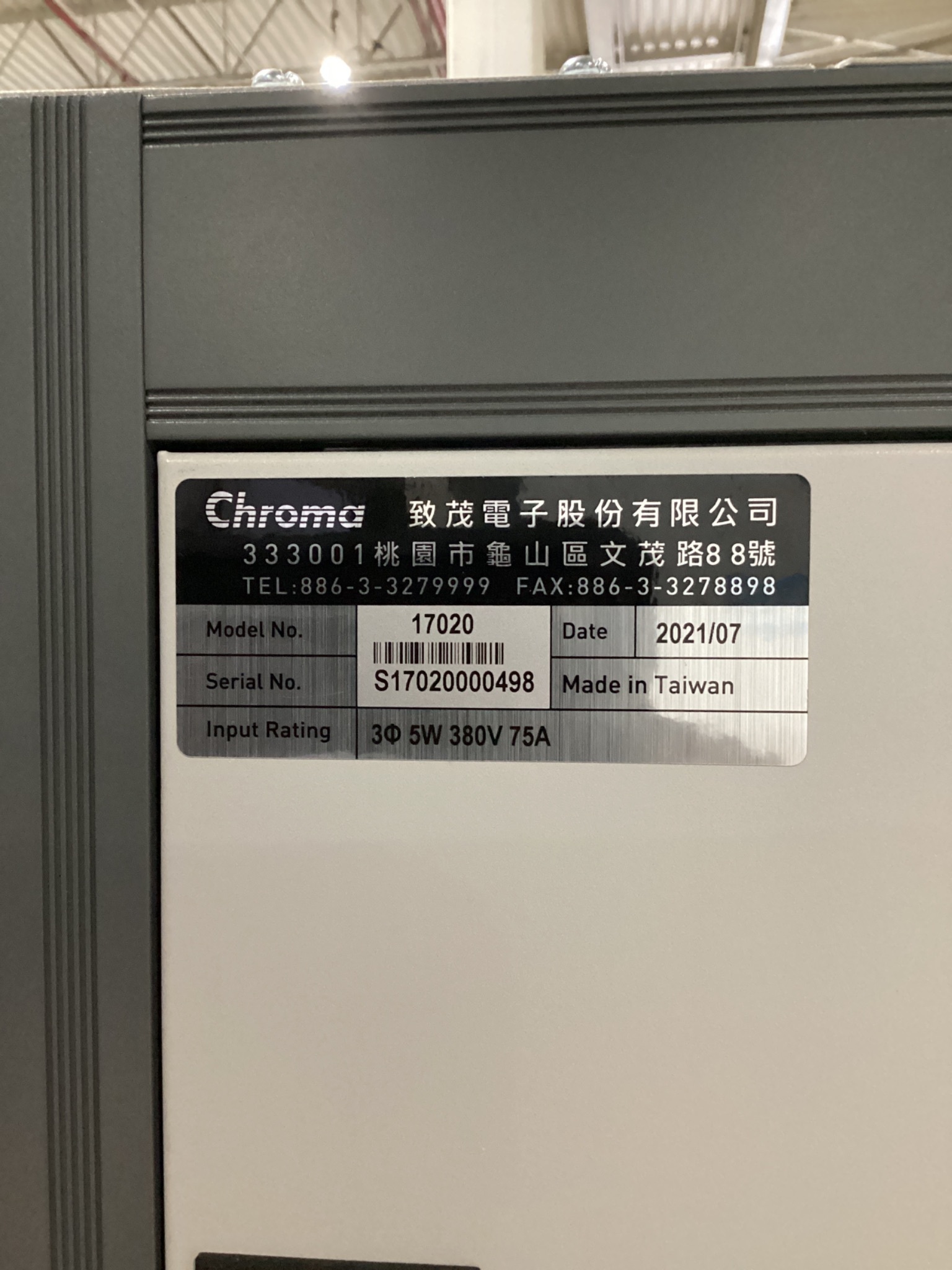

System Information ------------------ Manufacturer: Chroma Model: 17020 Product Type: Regenerative Battery Pack Test System Condition: NEW   Serial Number: S17020000498 YOM: 2021 Country of Origin: Taiwan   Power Requirements ------------------ Input Configuration: 3 Phase, 5 Wire Input Voltage: 380 VAC Input Current: 75 A Input Frequency: 47-63 Hz   Installed Hardware Configuration ------------------------------- Charge/Discharge Controller: Chroma 69200-1 Controller Qty: 1   Industrial Computer: Advantech 610H Computer Qty: 1   Regenerative Tester Modules: Chroma 69225-60-4 Tester Module Qty: 2   Channels per Module: 4 Installed Channel Count: 8   DC/AC Converters: Chroma A691101 Converter Qty: 2   Battery HiTester: Hioki BT3562 Battery HiTester Qty: 1   Switch Mainframe: Hioki SW1001 Switch Mainframe Qty: 1   Multiplexer Module: Hioki SW9001 Multiplexer Module Qty: 1   Test Functions -------------- Operating Modes: CC, CV, CP, CC-CV Drive Cycle Simulation: Supported DCIR Testing: Supported Capacity Testing: Supported Performance Testing: Supported Cycle Life Testing: Supported   Communications -------------- Communications: Ethernet BMS Recording: Supported Supported Protocols: CAN Bus, SMBus Thermal Chamber Integration: Supported   Performance ----------- Sampling Rate: 50 kHz Profile Memory: 720,000 Points Per Channel Charge/Discharge Transition: 50 ms   Energy Recovery: Regenerative Efficiency: 85-90% Typical Power Factor: >0.9 Current THD: <5%   Protection Functions: OVP, UVP, OCP, OPP, OTP   Physical Configuration ---------------------- Cabinet Type: Rack Mounted Mobility: Casters Installed Emergency Stop: Installed
