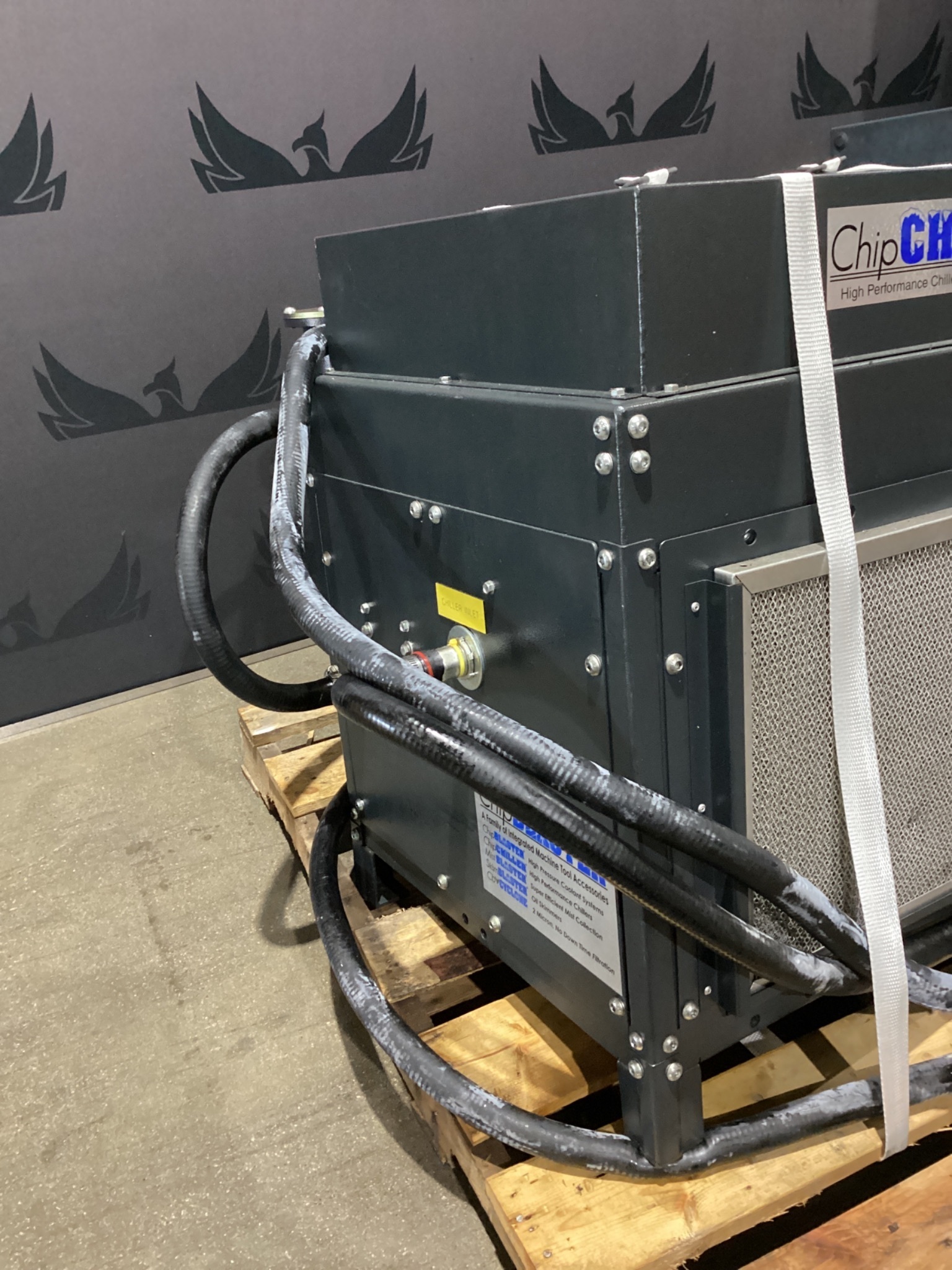

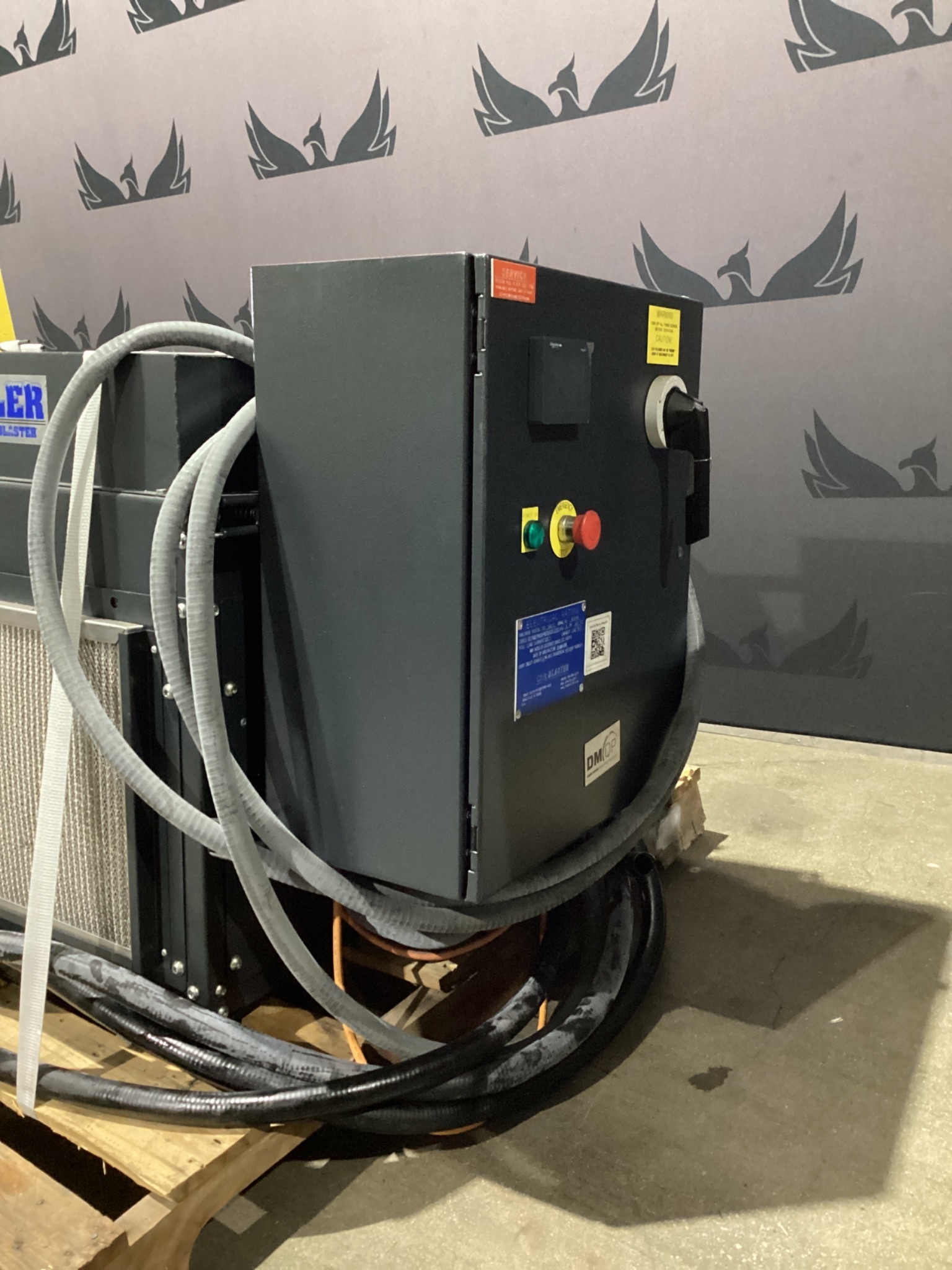

CHIPBLASTER SACC Coolant Chiller System USED

Specification Table

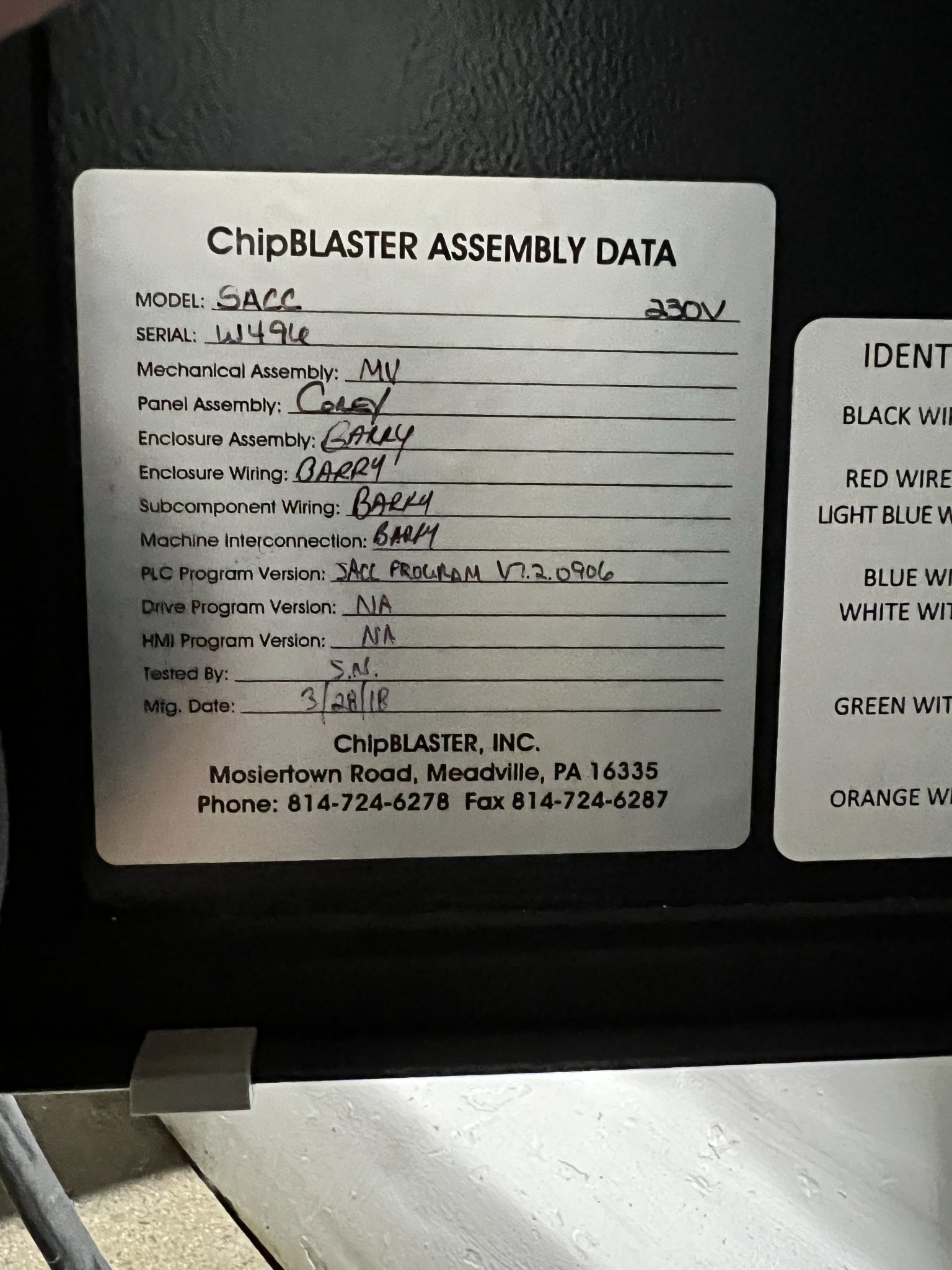

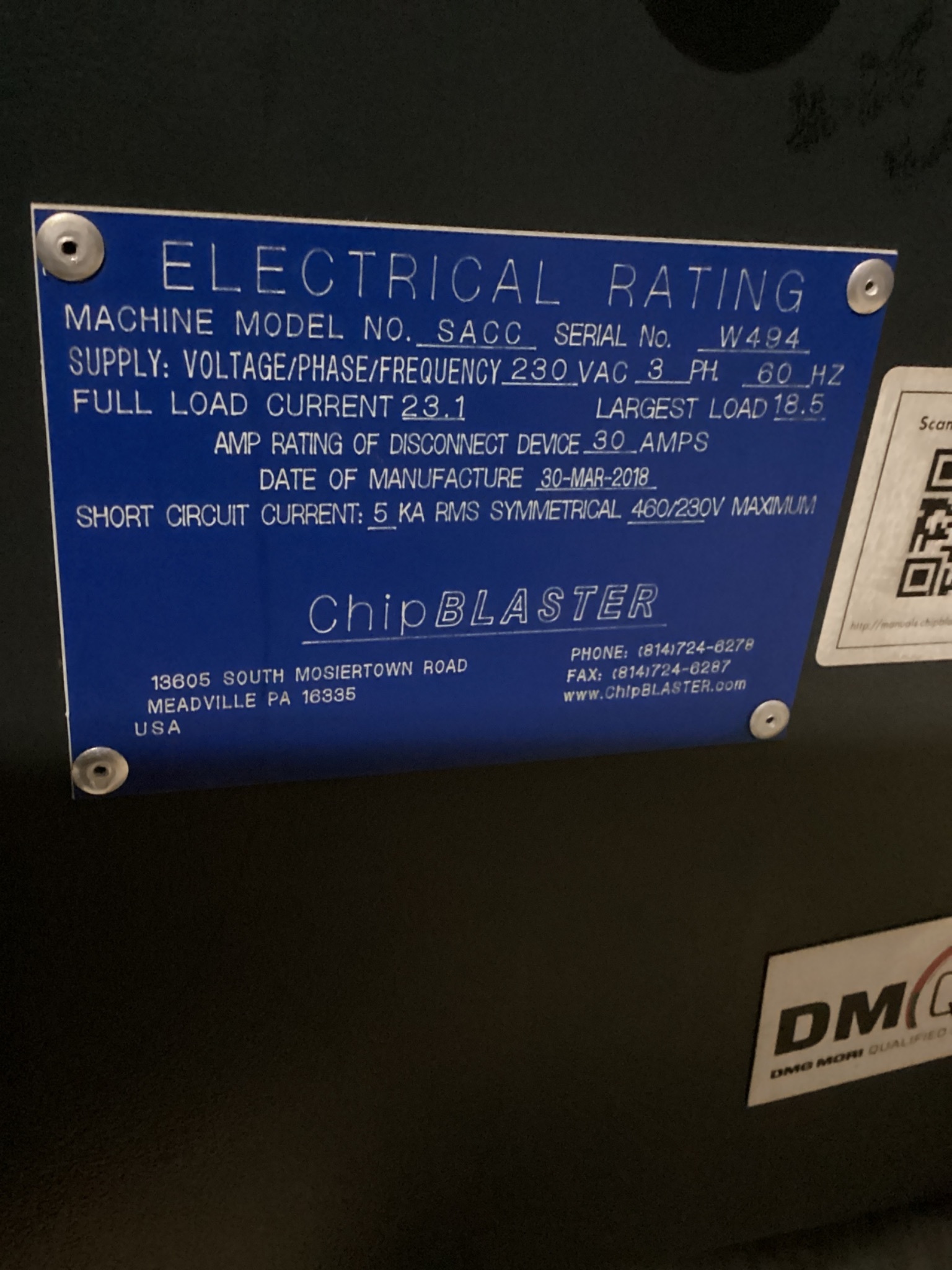

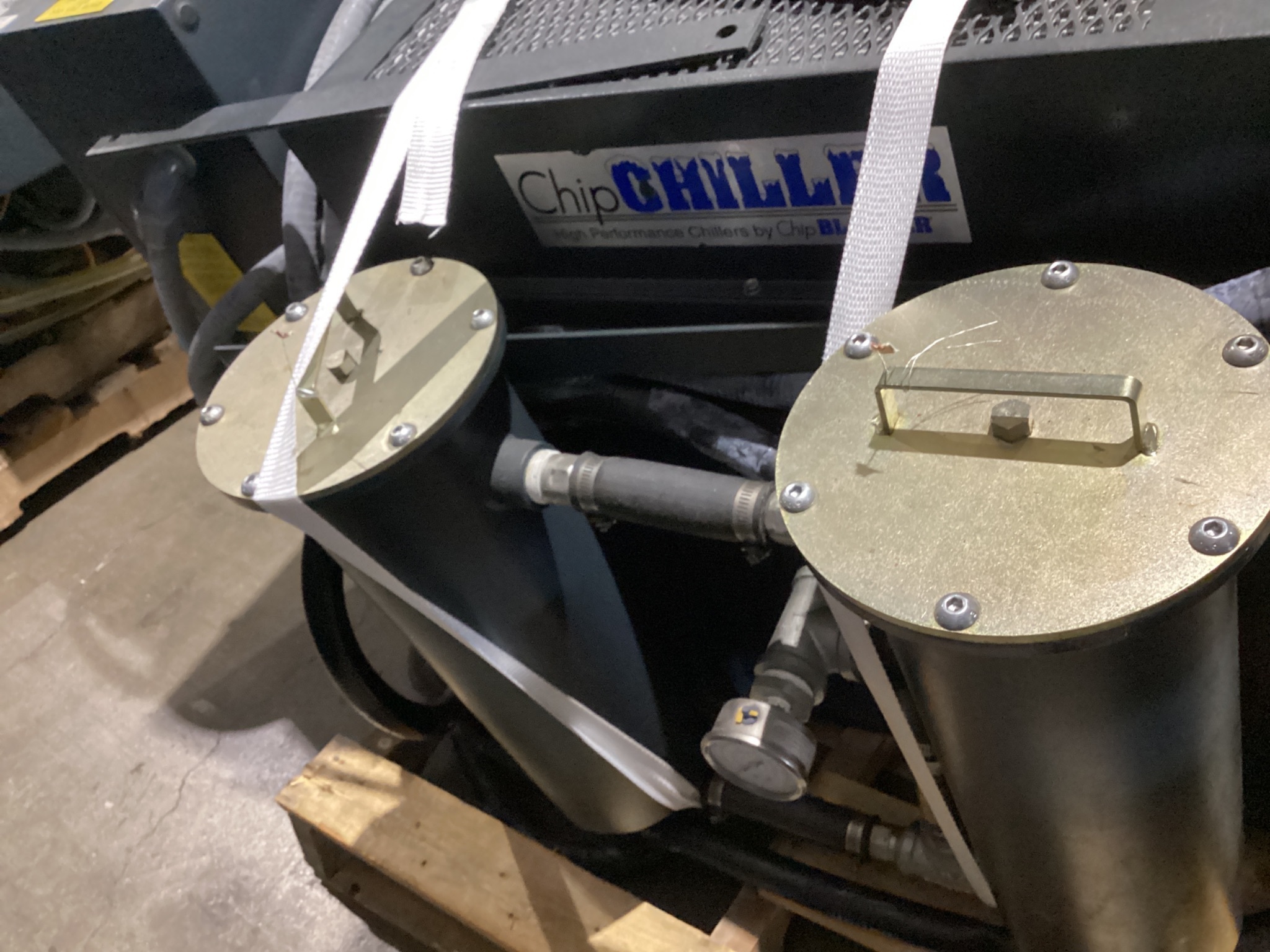

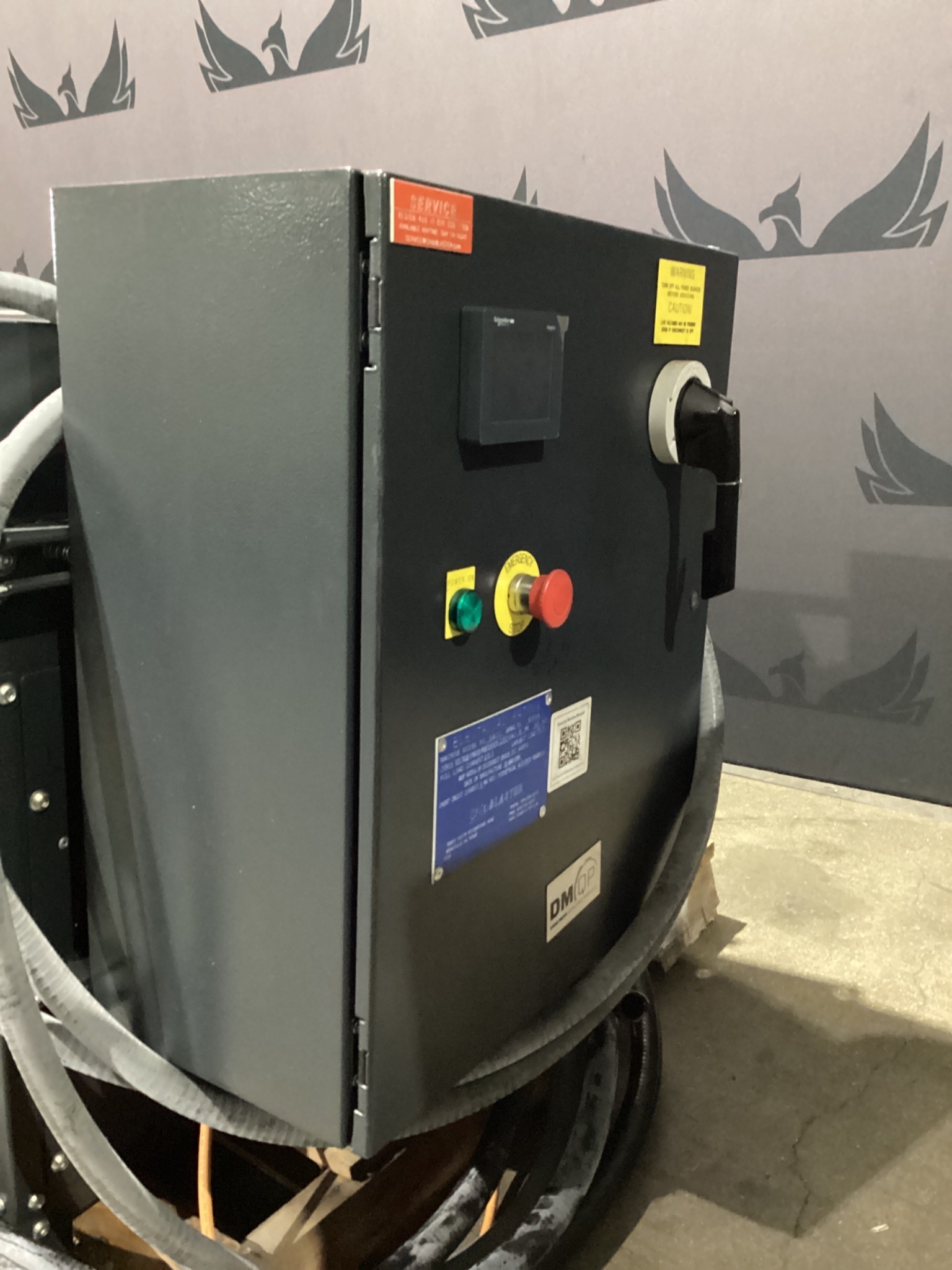

IDENTIFICATION   Manufacturer: ChipBLASTER Model: SACC Condition: USED Serial Number: W494 YOM: 2018 Country of Manufacture: USA   TYPE   Equipment Type: Coolant Chiller System Cooling Application: Machine Tool Coolant Management Configuration: Standalone Process Chiller Installation Type: Floor Mounted   PERFORMANCE   Cooling Capacity: Not specified Temperature Range: Not specified Reservoir Capacity: Not specified Coolant Type: Not specified Process Cooling Method: Closed-Loop Coolant Cooling Pressure Monitoring: Gauge Installed   ELECTRICAL   Supply Voltage: 230 VAC Phase: 3 Phase Frequency: 60 Hz Full Load Current: 23.1 A Largest Load: 18.5 A Disconnect Rating: 30 A Short Circuit Rating: 5 kA RMS Symmetrical Power Disconnect: Integrated Rotary Disconnect   CONTROLS & INSTRUMENTATION   Operator Interface: Schneider Electric Magelis HMI PLC Program Version: V7.2.0906 Power Indicator: Installed Emergency Stop: Installed Control Enclosure: Integrated System Monitoring: HMI-Based Interface   CONSTRUCTION   Electrical Enclosure: Integrated Reservoir Configuration: Dual Cylindrical Reservoirs Pressure Gauge: Installed Flexible Process Hoses: Installed Process Piping: Installed Base Construction: Steel Frame   INSTALLATION   Mounting Style: Floor Mounted Electrical Connection: Hardwired Process Connections: Hose Connections Installed
