CHEMTEC 500316BPXNOEPRFP BYPASS FLOW SWITCH 316SS USED

Overview

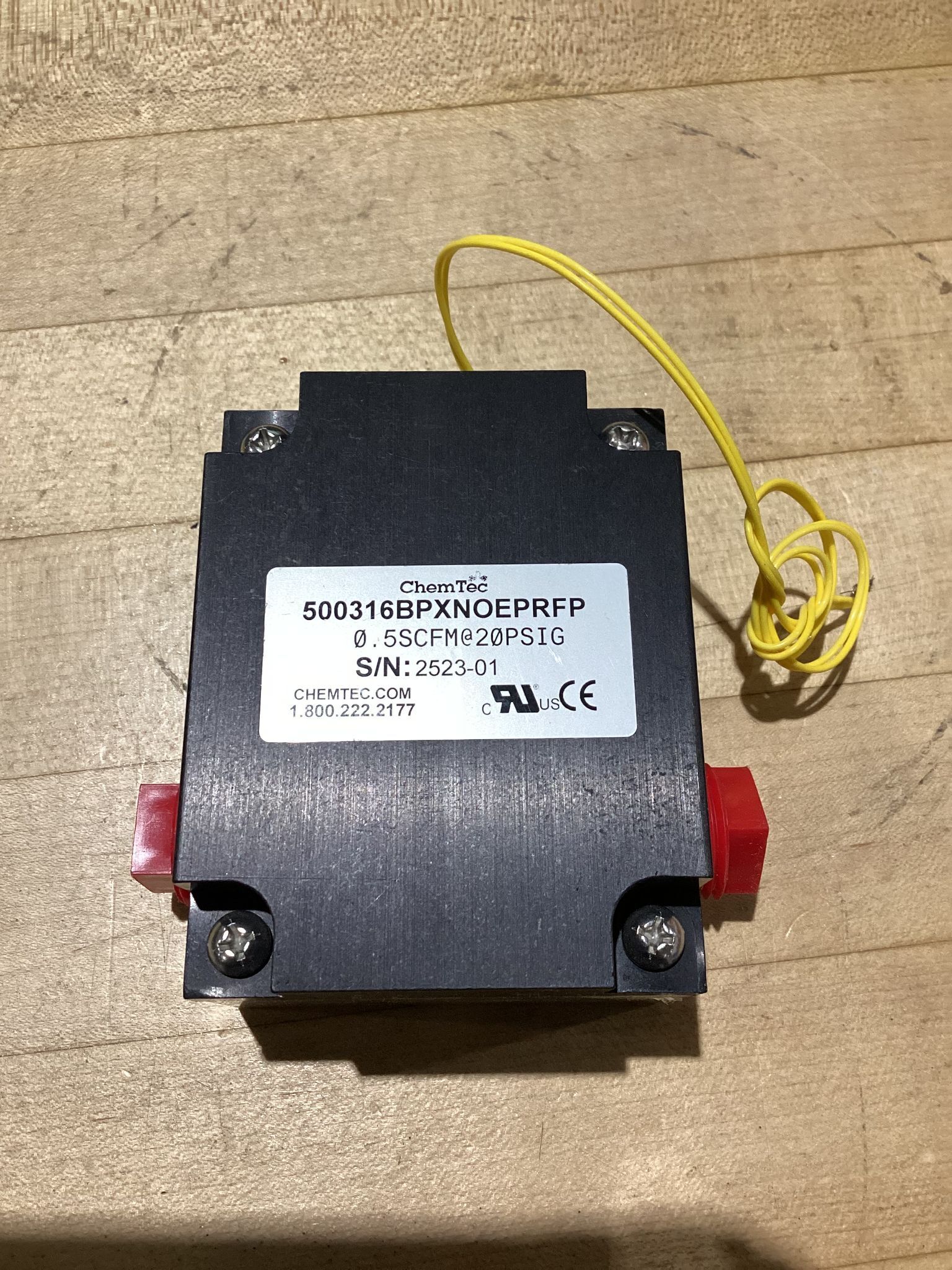

This listing is for a Used CHEMTEC 500316BPXNOEPRFP Bypass Flow Switch.

This unit is part of ChemTec’s 500 BPX Series—compact, adjustable bypass flow monitors designed for reliable flow detection in gas or liquid systems. It features a magnetic piston and reed switch mechanism for accurate flow sensing, with a rugged 316 stainless steel body and EPR seals for chemical compatibility.

See photos for details.

Part No: 500316BPXNOEPRFP
Type: Adjustable Bypass Flow Switch
Condition: Used
Material: 316 Stainless Steel
Seal Material: EPR (Ethylene Propylene Rubber)
Switch Type: SPST, Normally Open
Operating Pressure: Up to 3000 PSIG
Flow Range: 0.11 to 15.14 LPM (Water), 6 to 991 SLPM (Air)
Repeatability: ±2%
Port Size: 1/2″ FNPT
Temperature Range: Up to 340°F (with HT option)
Applications: Cooling Systems, Biomedical Instruments, Vacuum Systems, Wet Stations, CVD Furnaces

Please message us with any questions.
