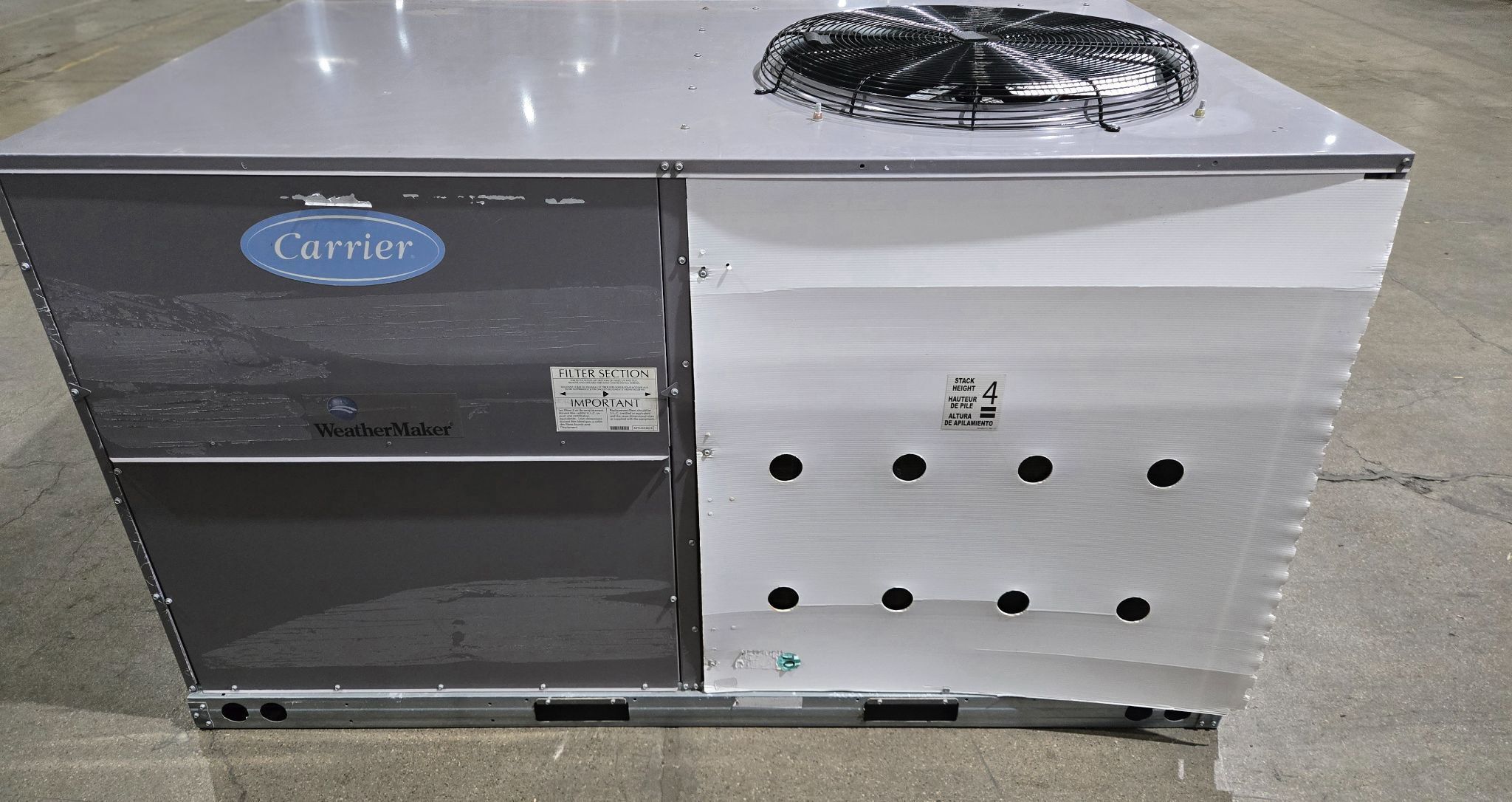

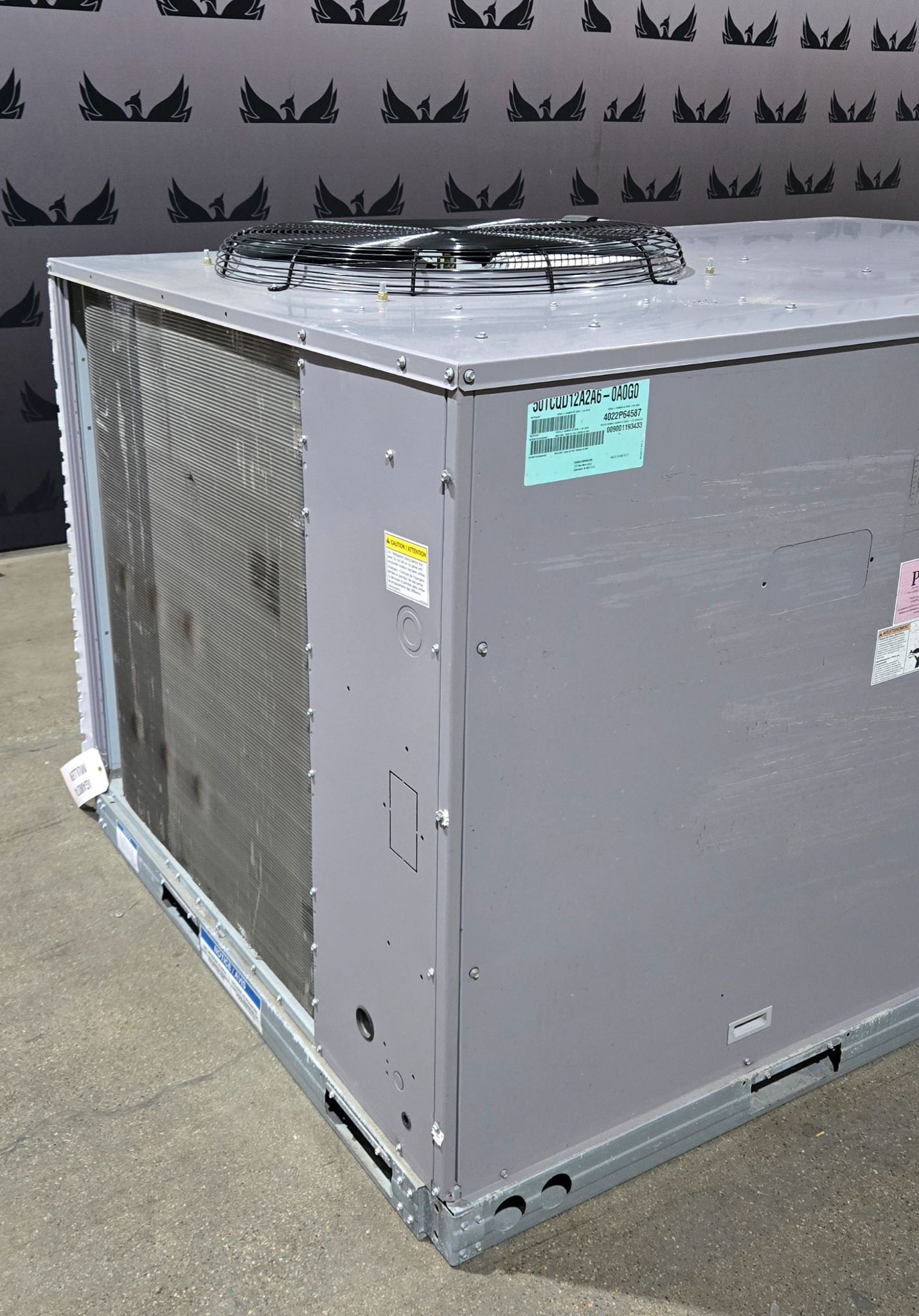

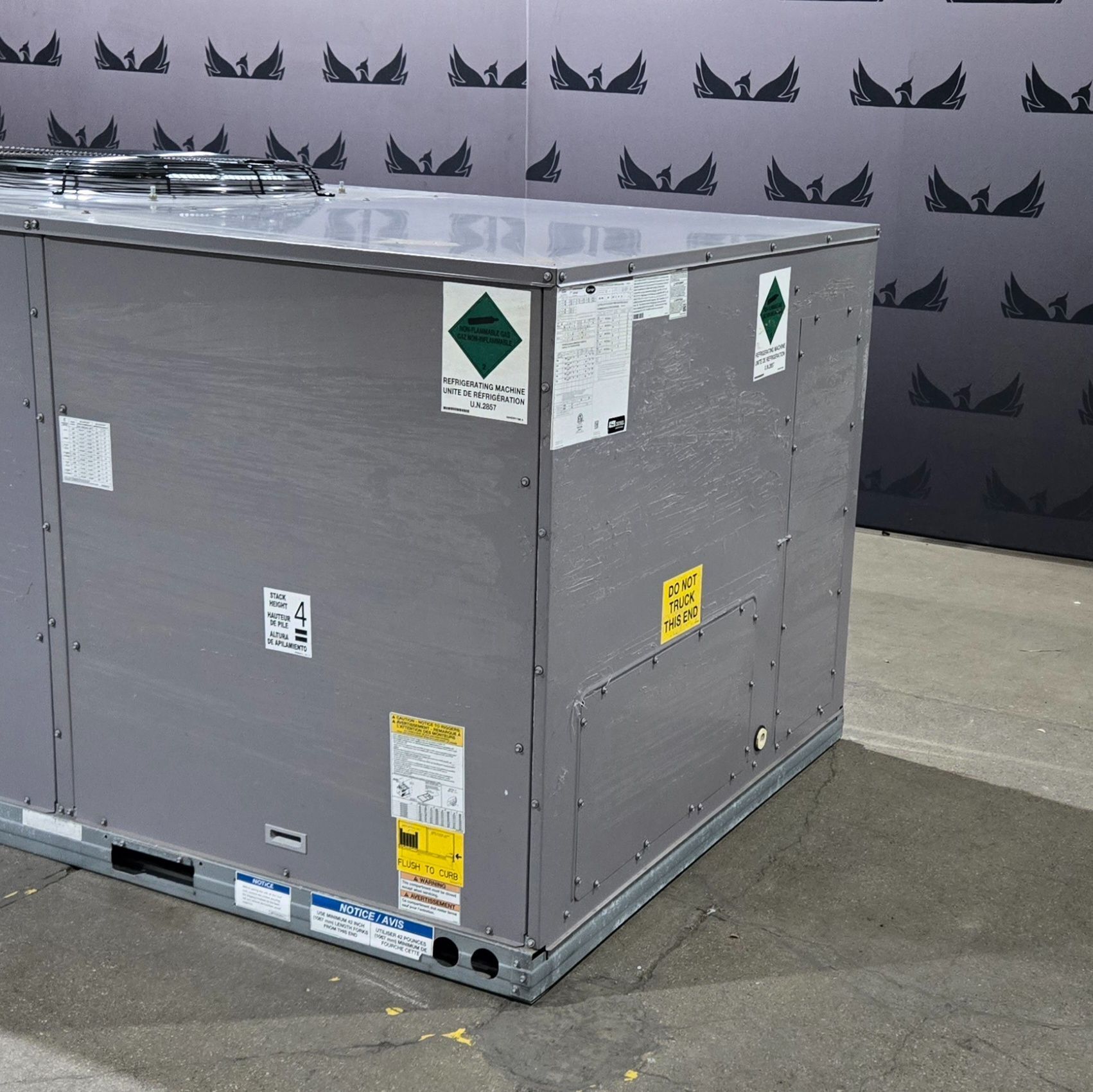

Carrier WeatherMaker 50TCQD12A2A6A0A0G0 Rooftop HVAC Unit 460V 3PH USED

Specification Table

Manufacturer: Carrier Corporation Model: 50TCQD12A2A6A0A0G0 Series: WeatherMaker Condition: USED YOM: n/a Serial Number: 4022P65487 Equipment Type: Packaged Rooftop HVAC Unit Cooling Capacity: 116,000 BTU/hr Cooling Capacity (kW): 34.2 Cooling Capacity (Tons): ~9.7 Ton Refrigeration Type: Mechanical Vapor Compression Refrigerant Type: R-401A Compressor Quantity: 2 Compressor Voltage: 460 V Compressor Phase: 3 Phase Compressor RLA: 7.7–8.5 A (per circuit) Compressor LRA: 66 A Outdoor Fan Motor Quantity: 1 Outdoor Fan Voltage: 460 V Outdoor Fan FLA: 3.1 A Evaporator / Supply Fan Motor Quantity: 1 Evaporator Motor Voltage: 460 V Evaporator Motor FLA: 4.9 A Nominal Voltage: 460 VAC Phase: 3 Phase Frequency: 60 Hz Minimum Circuit Ampacity (MCA): 41.4 A Maximum Overcurrent Protection: 70 A Short Circuit Rating: 5 kA RMS Symmetrical Unit Weight: 550 lbs Shipping Weight: 310.6 lbs IEER: 11 COP: 3.4 Airflow Configuration: Top Discharge Condenser / Ducted Supply Air Cabinet Construction: Packaged Outdoor Steel Enclosure Function: Self-contained rooftop HVAC system providing commercial-scale cooling
