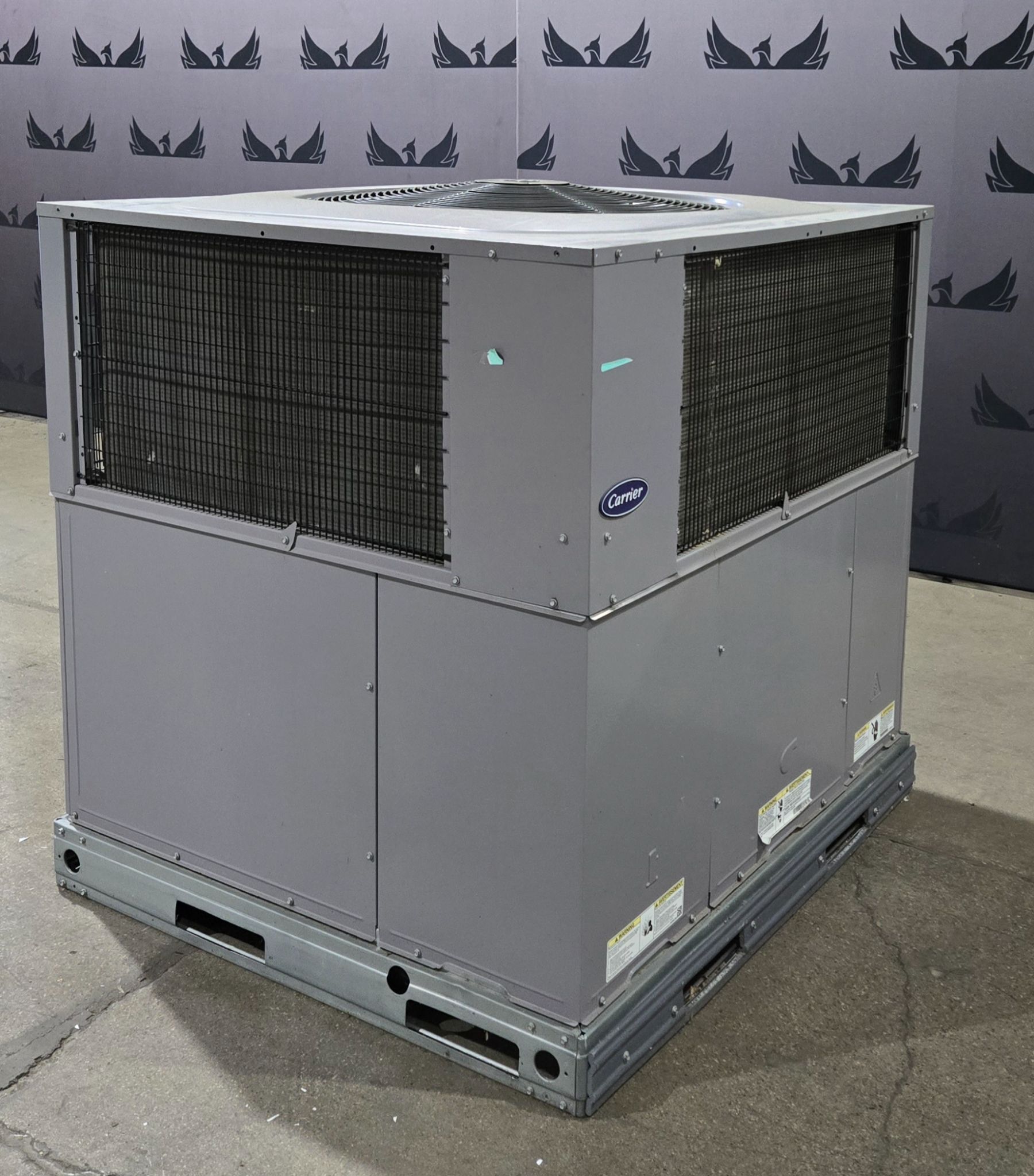

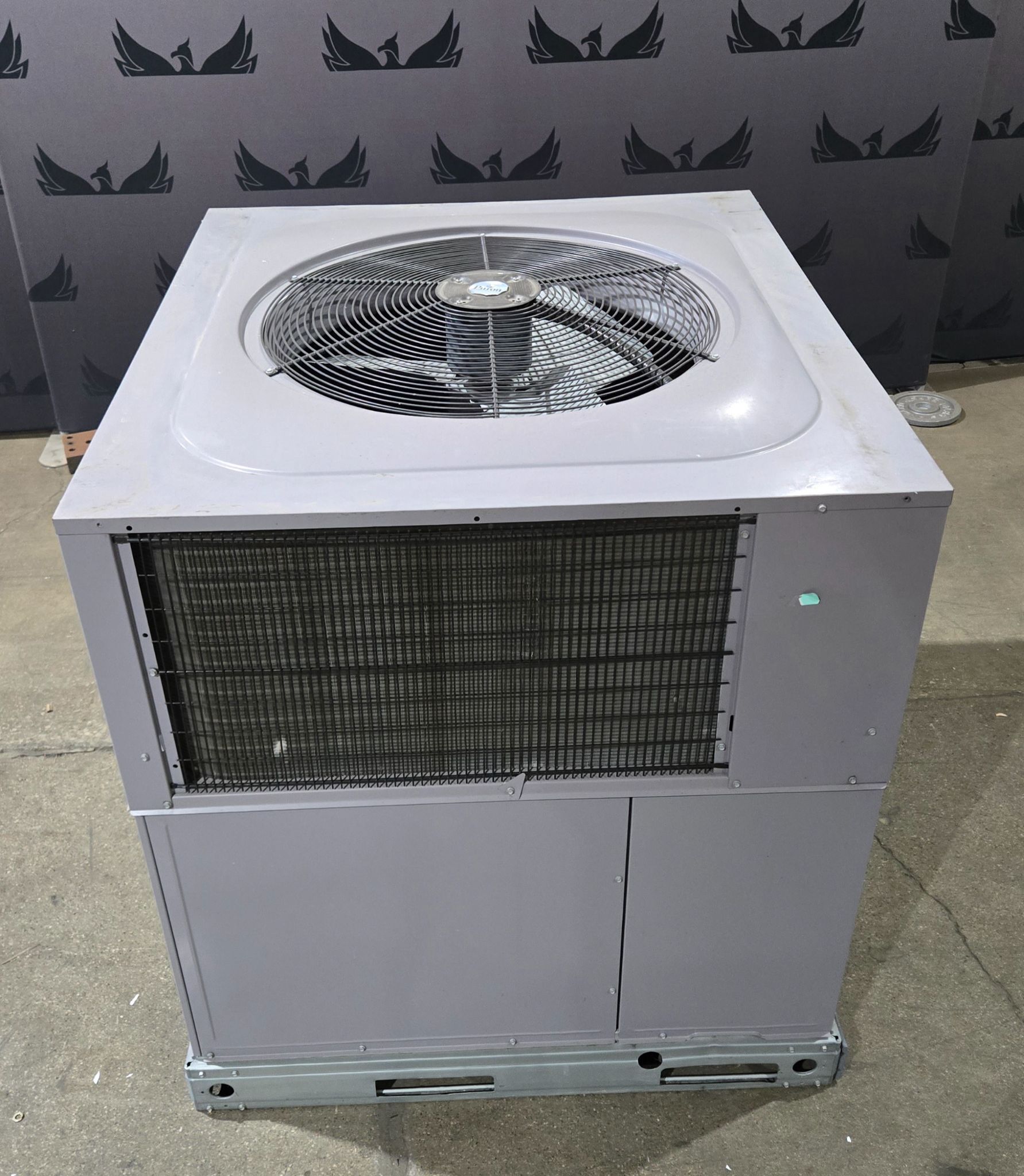

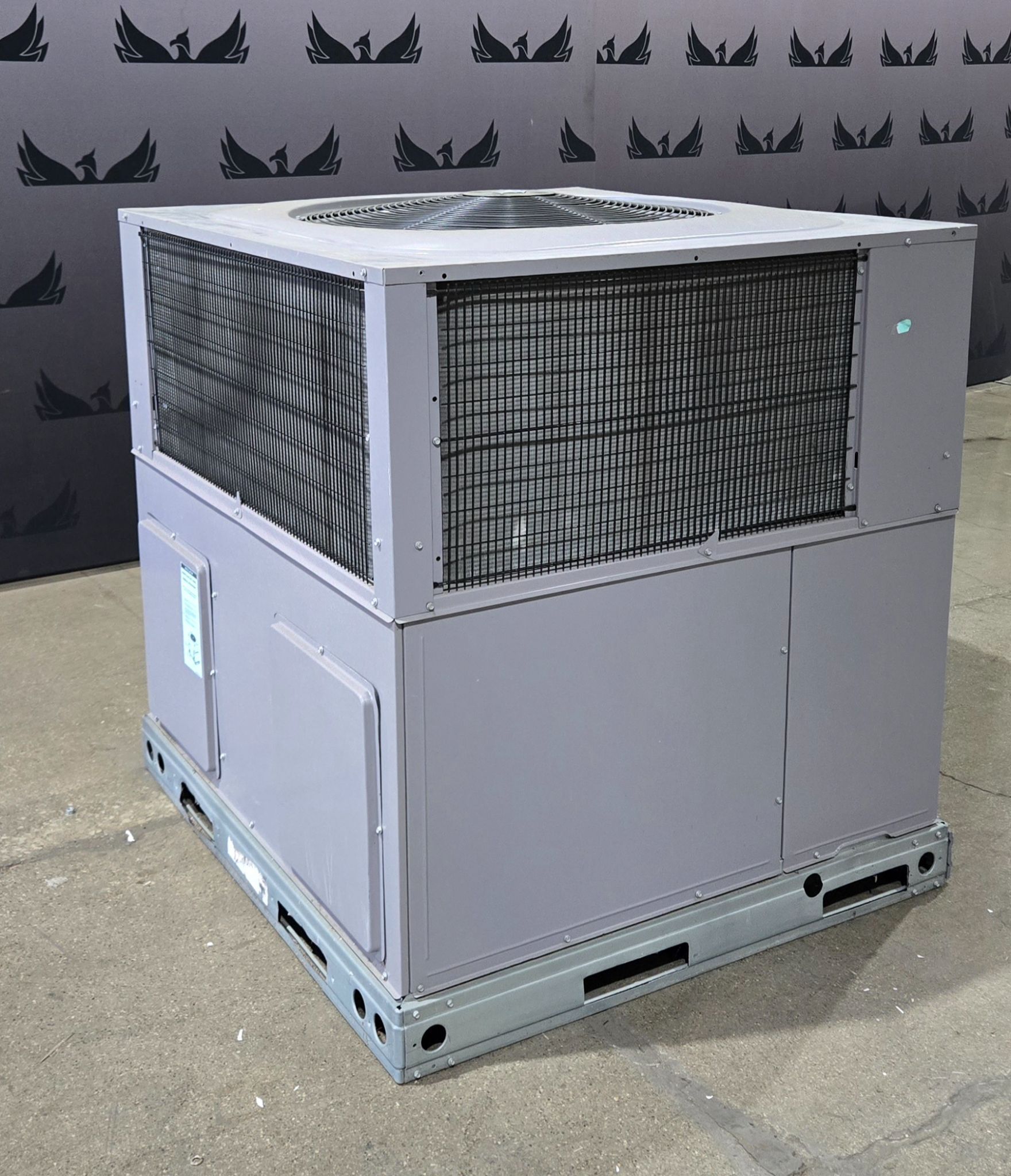

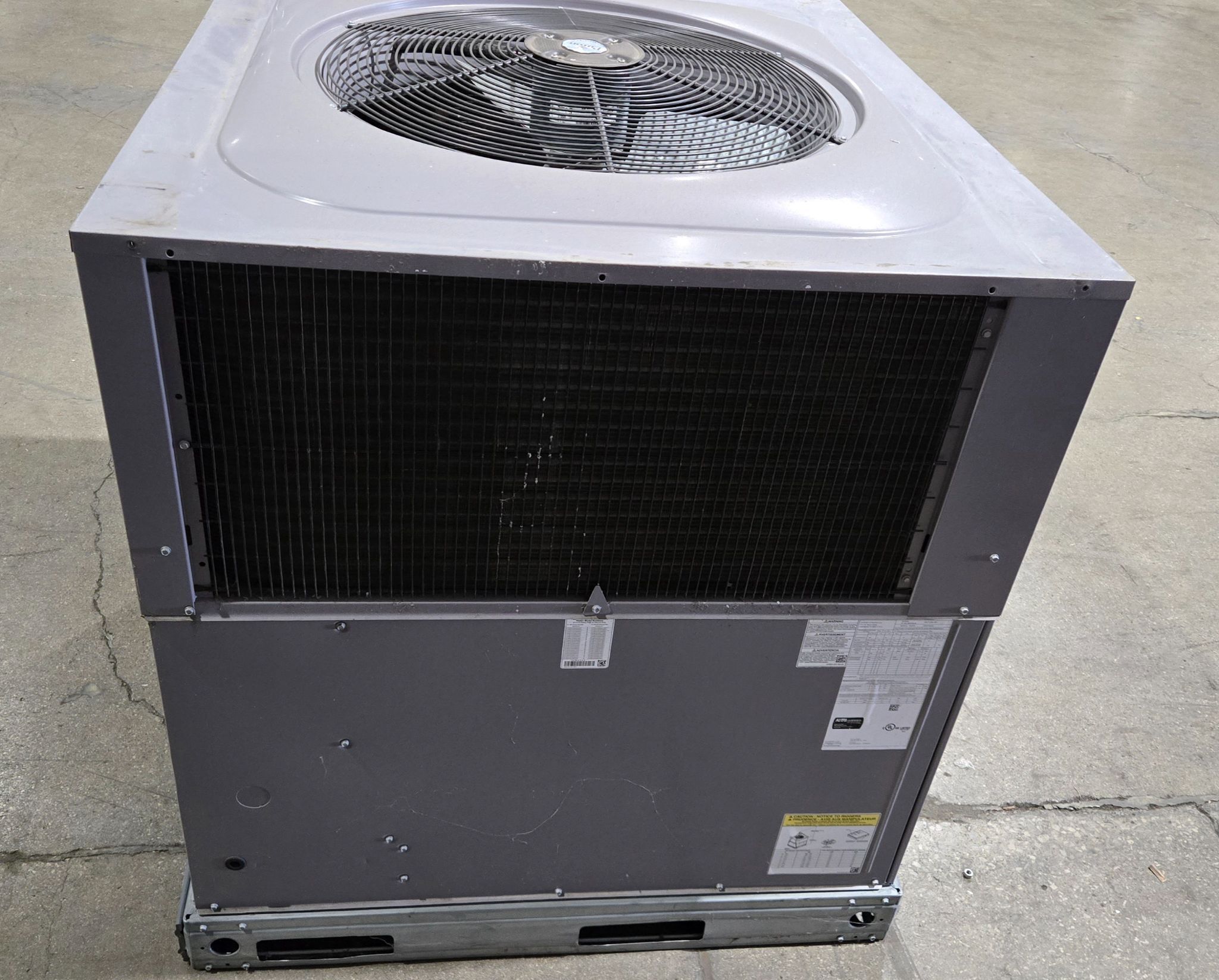

Carrier 50VT-C36-60 Rooftop HVAC Unit 460V 3PH USED

Specification Table

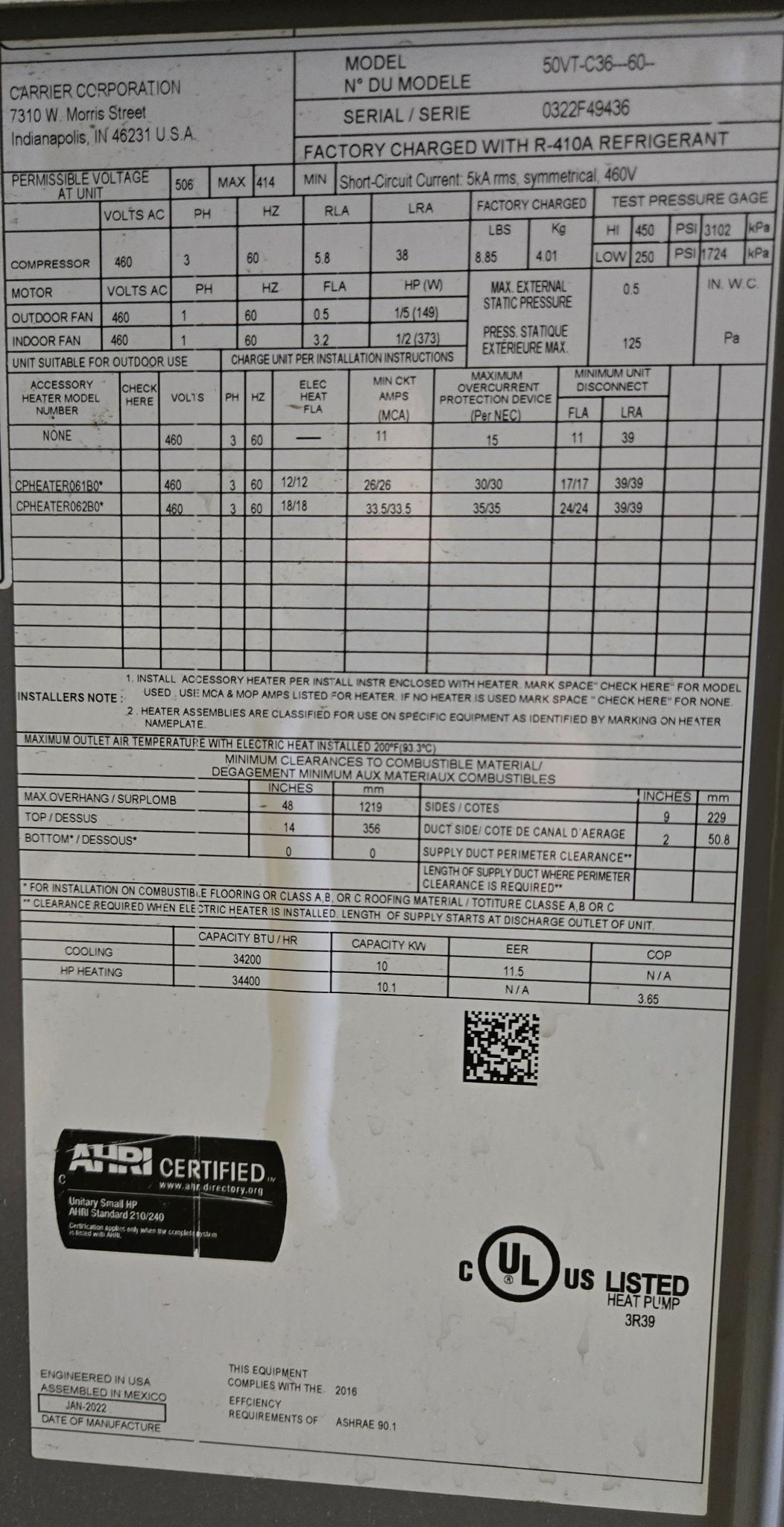

Manufacturer: Carrier Corporation Model: 50VT-C36-60 Condition: USED YOM: 2022 Serial Number: 0322E49346 Equipment Type: Packaged Rooftop HVAC Unit Cooling Capacity: 36,000 BTU/hr (3 Ton Class) Heating Type: Electric Heat Compatible (Accessory-Based) Refrigerant Type: R-410A Factory Refrigerant Charge: 8.55 lbs (Primary Circuit) Additional Charge: 4.01 lbs (Secondary/Total Circuit Reference) Compressor Quantity: 1 Compressor RLA: 5.8 A Compressor LRA: 38 A Outdoor Fan Motor Quantity: 1 Outdoor Fan Motor HP: 0.5 HP Outdoor Fan FLA: 1.5 A Supply Air Configuration: Packaged Internal Blower System Nominal Voltage: 460 VAC Phase: 3 Phase Frequency: 60 Hz Minimum Circuit Ampacity (MCA): 11 A Maximum Overcurrent Protection: 15 A Design Pressure High Side: 450 PSIG Design Pressure Low Side: 150 PSIG Test Pressure High Side: 724 PSIG Test Pressure Low Side: 310 PSIG Cooling Capacity: 34,200 BTU/hr Heating Capacity: 34,400 BTU/hr (with electric heat option) Cabinet Type: Outdoor Rated Packaged Unit Airflow Configuration: Horizontal Discharge with Top Condenser Function: Self-contained rooftop HVAC system providing cooling and optional electric heating
