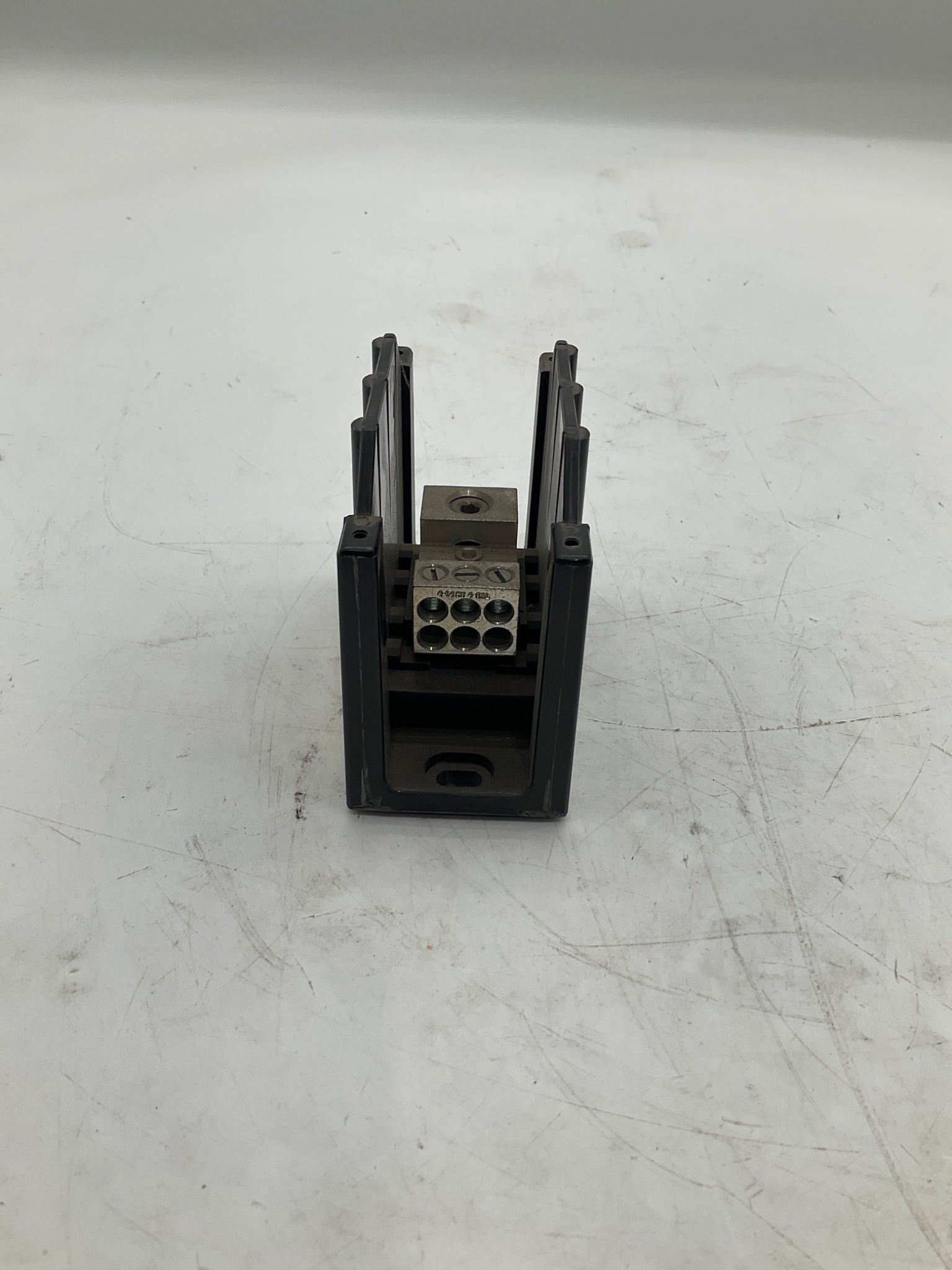

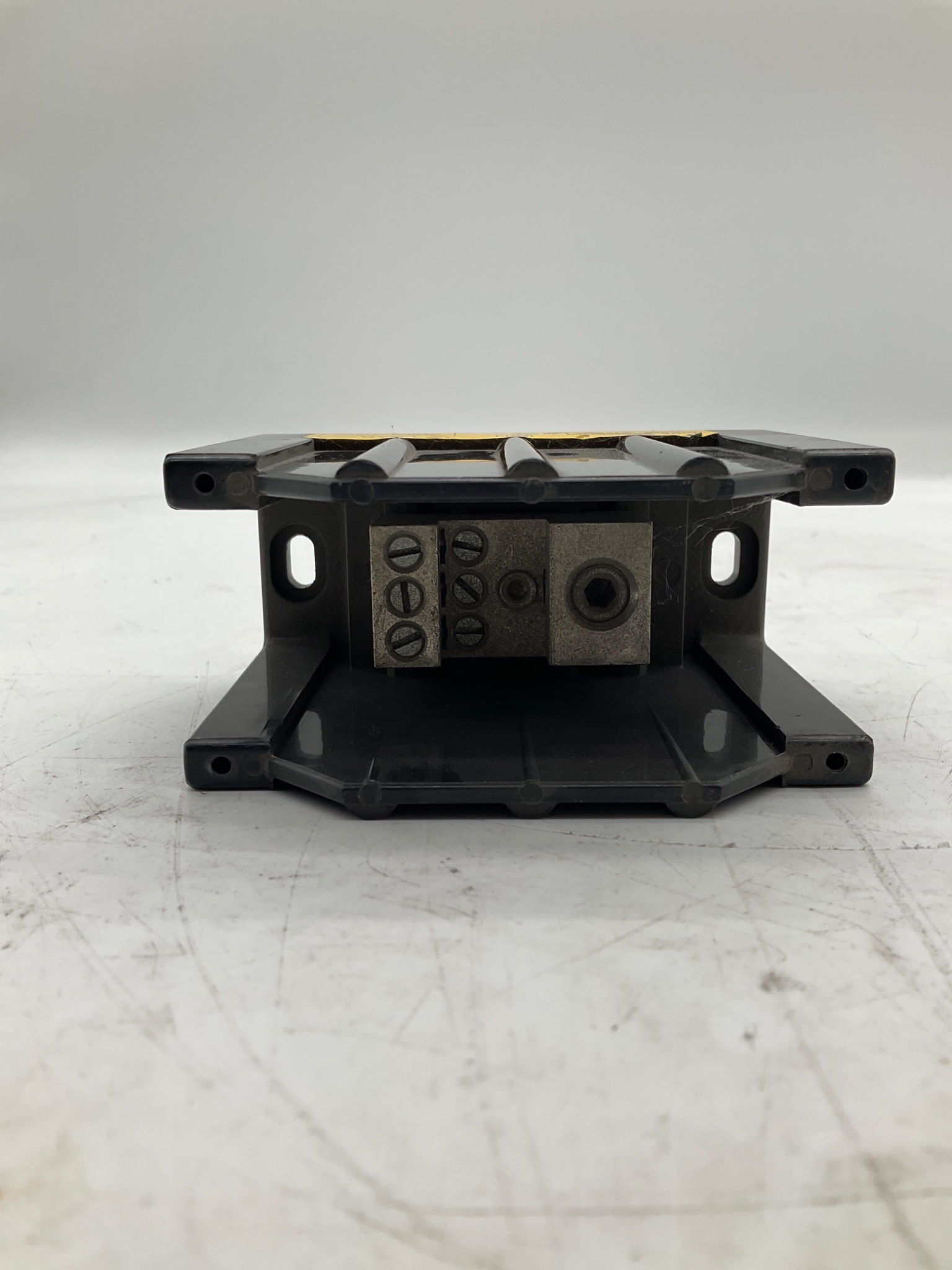

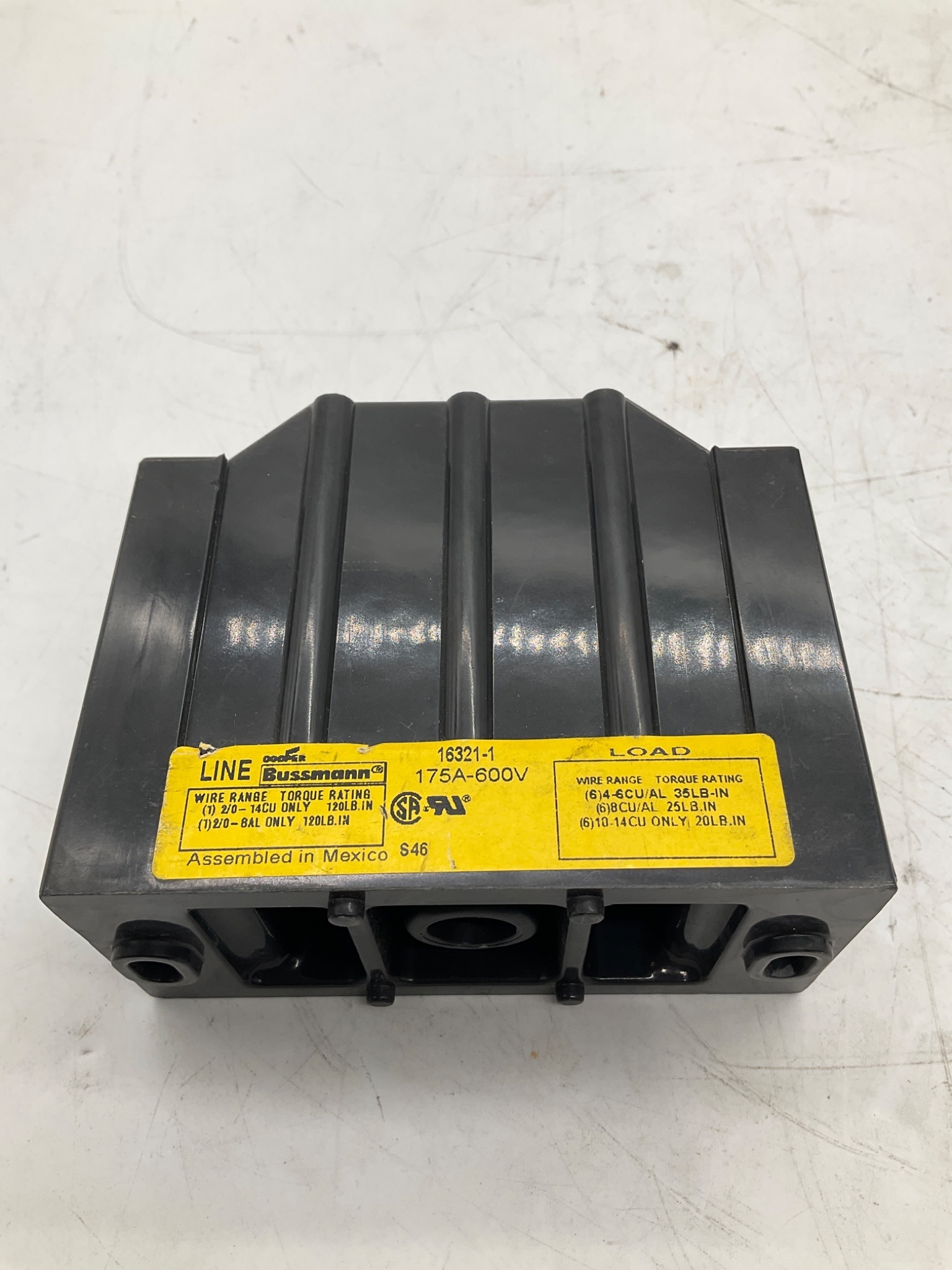

Bussmann 175A-600V Power Distribution Block USED

Specification Table

IDENTIFICATION Manufacturer: Bussmann Catalog Number: 16321-1 Rating Marking: 175A-600V Product Type: Power Distribution Block Condition: USED Country of Assembly: Mexico YOM: n/a   FUNCTION Primary Function: Power distribution and conductor termination Application: Branch and feeder circuit distribution Connection Type: Mechanical set-screw conductor termination   ELECTRICAL Current Rating: 175 A Voltage Rating: 600 V Frequency Rating: Not specified   CONDUCTOR CAPACITY - LINE SIDE (1) 2/0 AWG to 14 AWG CU Only (1) 2/0 AWG to 8 AWG AL Only   CONDUCTOR CAPACITY - LOAD SIDE (6) 4 AWG to 6 AWG CU/AL (6) 8 AWG CU/AL (6) 10 AWG to 14 AWG CU Only   TERMINAL DATA Line Side Torque: 120 lb-in Load Side Torque (4-6 AWG CU/AL): 35 lb-in Load Side Torque (8 AWG CU/AL): 25 lb-in Load Side Torque (10-14 AWG CU): 20 lb-in   CONSTRUCTION Body Material: Insulated Molded Housing Number of Poles: Single Pole Terminal Material: Not specified Mounting Style: Panel Mount Protective Housing: Integrated Insulating Base   INSTALLATION Conductor Material Compatibility: Copper and Aluminum Connection Method: Mechanical Compression Terminals Mounting Orientation: Not specified   COMPLIANCE UL Recognized: Yes CSA Certified: Yes
