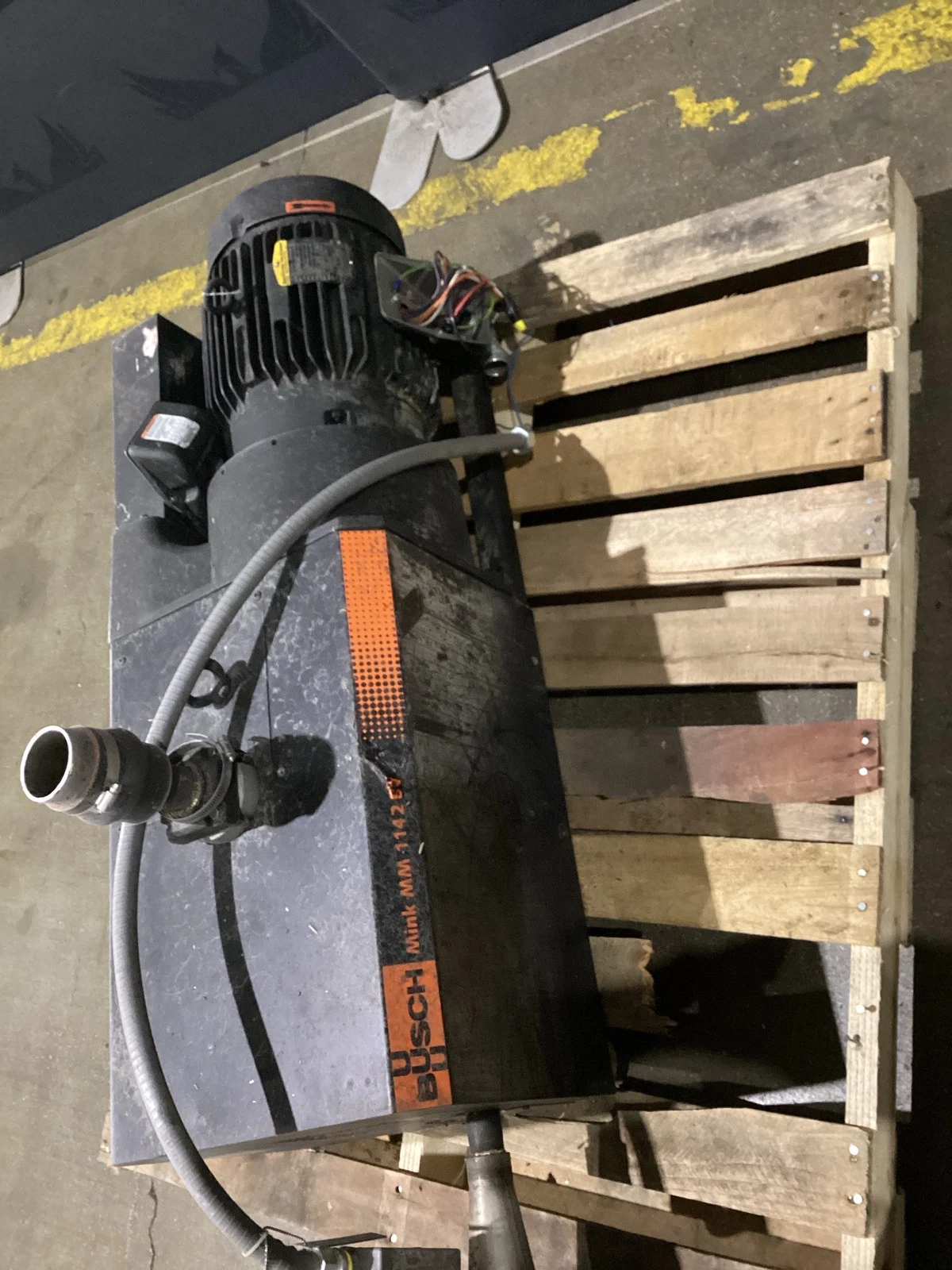

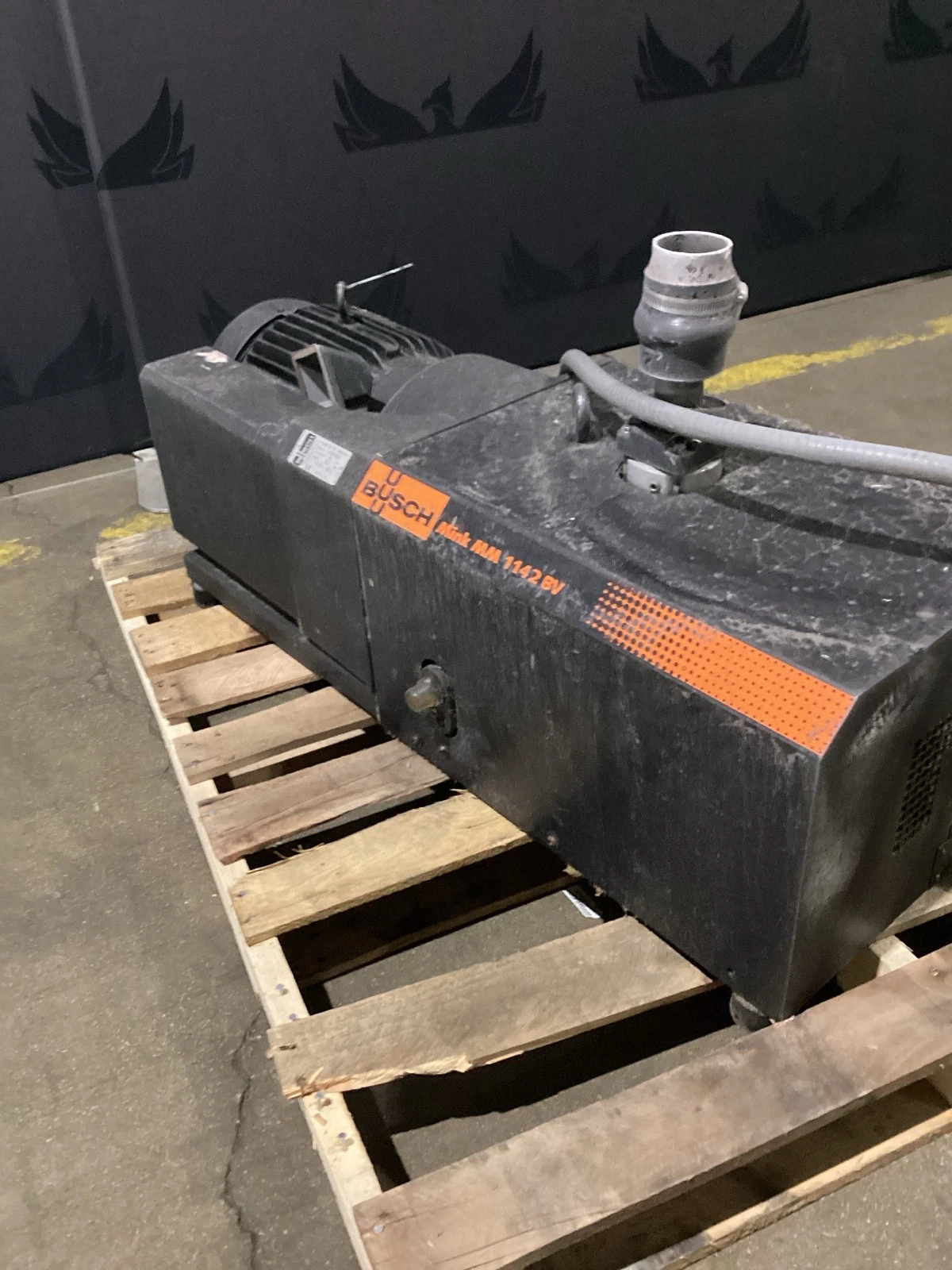

BUSCH MM 1142 BV Vacuum Pump USED

Specification Table

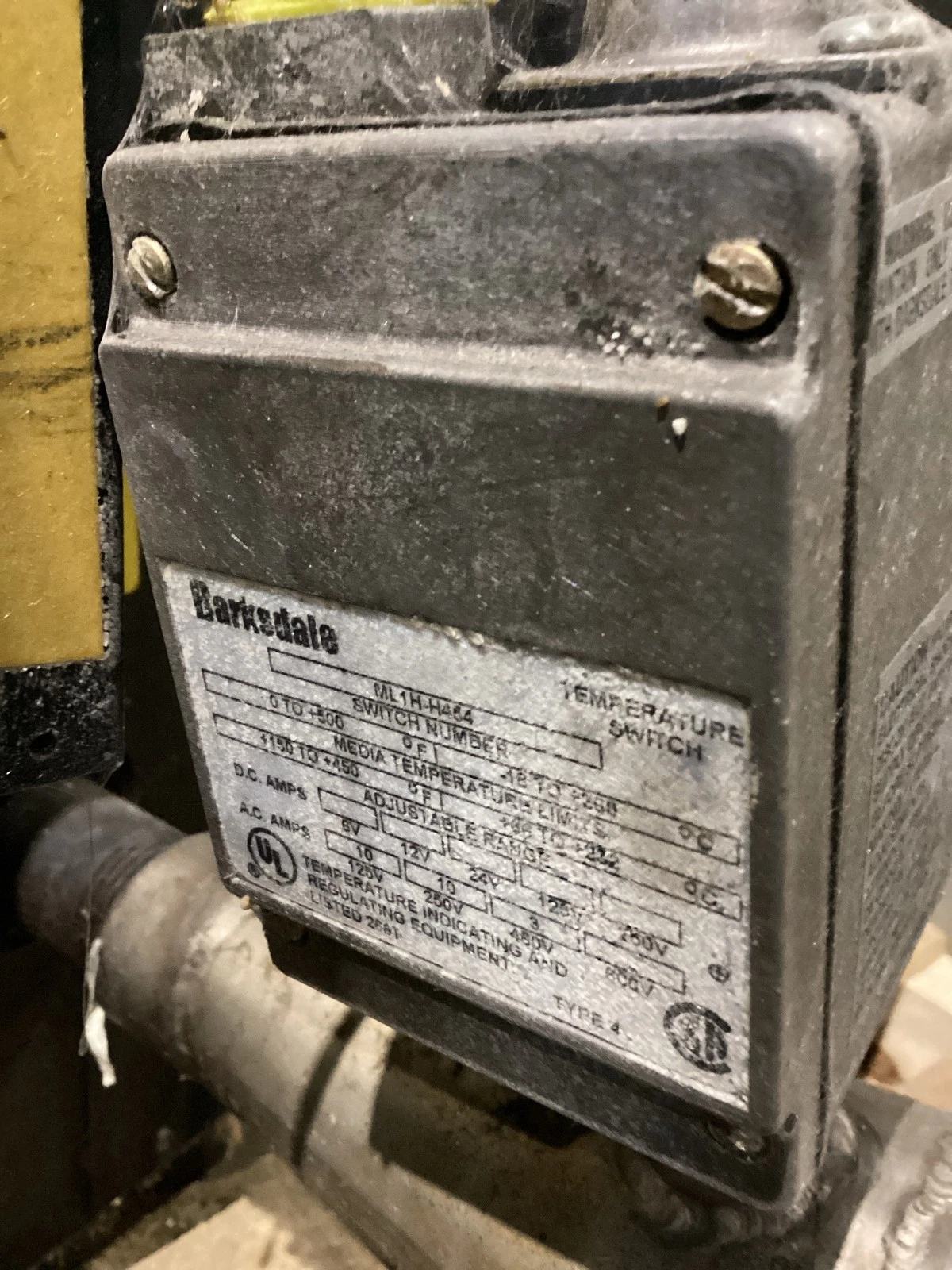

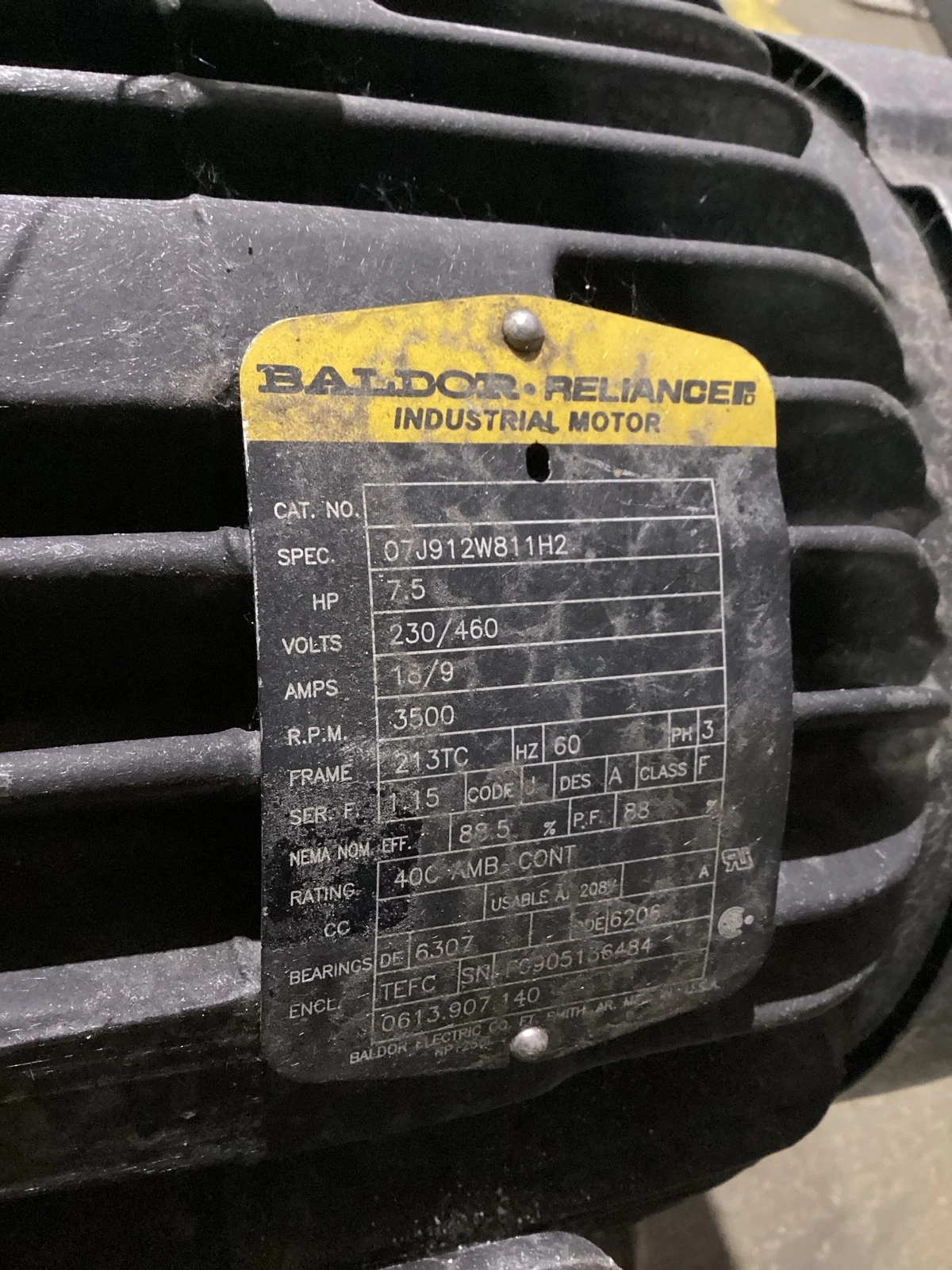

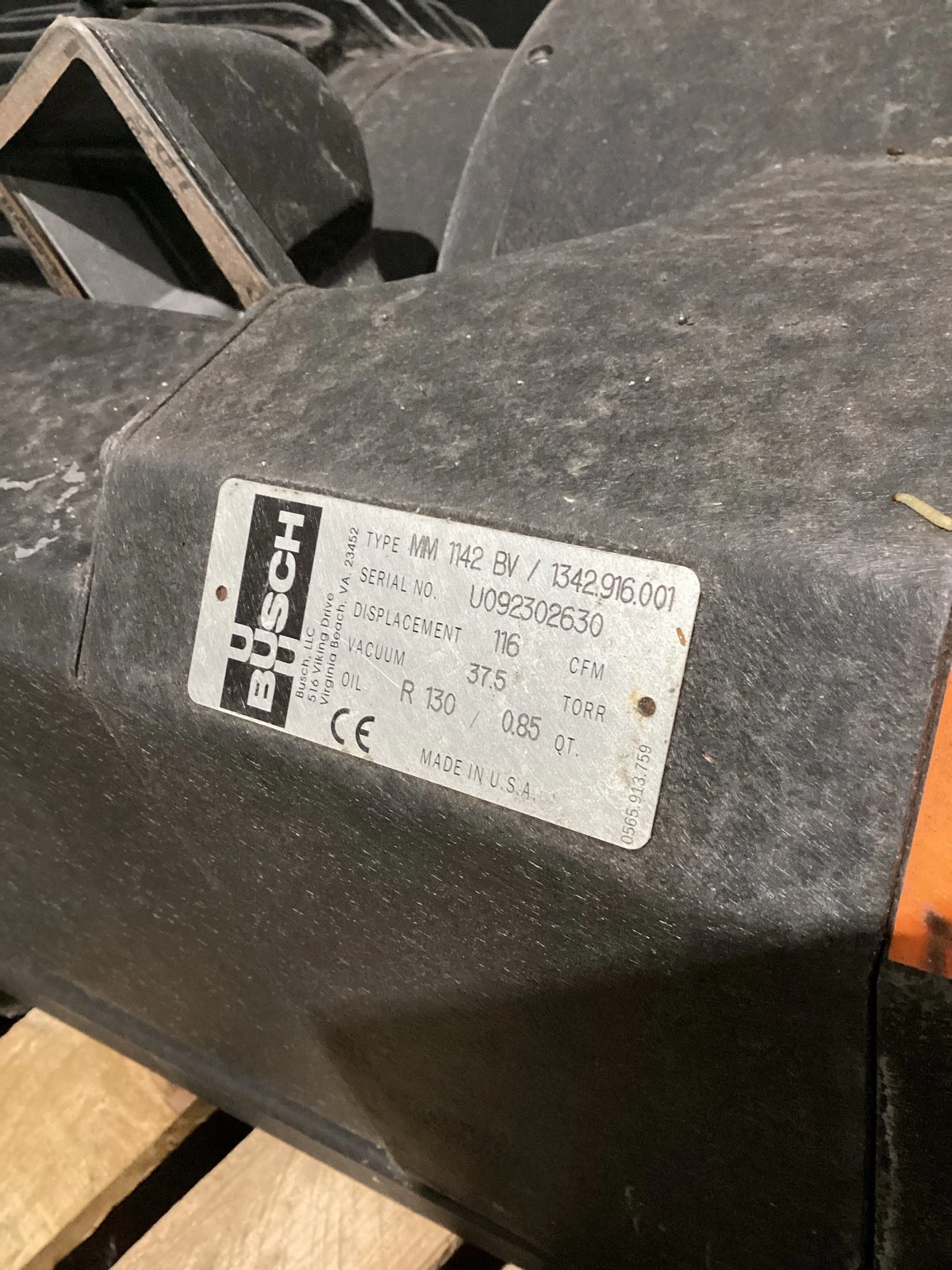

IDENTIFICATION Manufacturer: Busch Model: MM 1142 BV Part Number: 1342.916.001 Equipment Type: Vacuum Pump Condition: USED Serial Number: U092302630 Country of Manufacture: USA VACUUM PERFORMANCE Displacement: 116 CFM Ultimate Vacuum: 37.5 Torr LUBRICATION Oil Type: R130 Oil Capacity: 0.85 qt MOTOR DATA Motor Manufacturer: Baldor Reliance Motor Specification: 0TJ912W811H2 Horsepower: 7.5 HP Voltage: 230/460 VAC Current: 18 / 9 A Speed: 3500 RPM Phase: 3 Frequency: 60 Hz Frame Size: 213TC NEMA Design: A Insulation Class: F NEMA Efficiency: 88.5% Power Factor: 88% Service Factor: 1.15 Duty Rating: Continuous Ambient Rating: 40°C Enclosure Type: TEFC BEARING DATA Drive End Bearing: 6307 Opposite End Bearing: 6205 INSTRUMENTATION Temperature Switch: Installed Temperature Switch Model: 8VL1H-H454 Temperature Switch Adjustment Range: 0°F to 400°F TEMPERATURE SWITCH ELECTRICAL RATINGS 8 VDC: 10 A 12 VDC: 10 A 24 VDC: 12 A 125 VAC: 10 A 250 VAC: 10 A 480 VAC: 8 A CONSTRUCTION Drive Configuration: Direct Drive Motor: Integrated Pump Enclosure: Installed APPLICATION DATA Packaging Equipment: Yes Vacuum Hold-Down Systems: Yes Material Handling Equipment: Yes Printing Machinery: Yes Thermoforming Equipment: Yes Industrial Manufacturing: Yes Vacuum Generation: Yes
