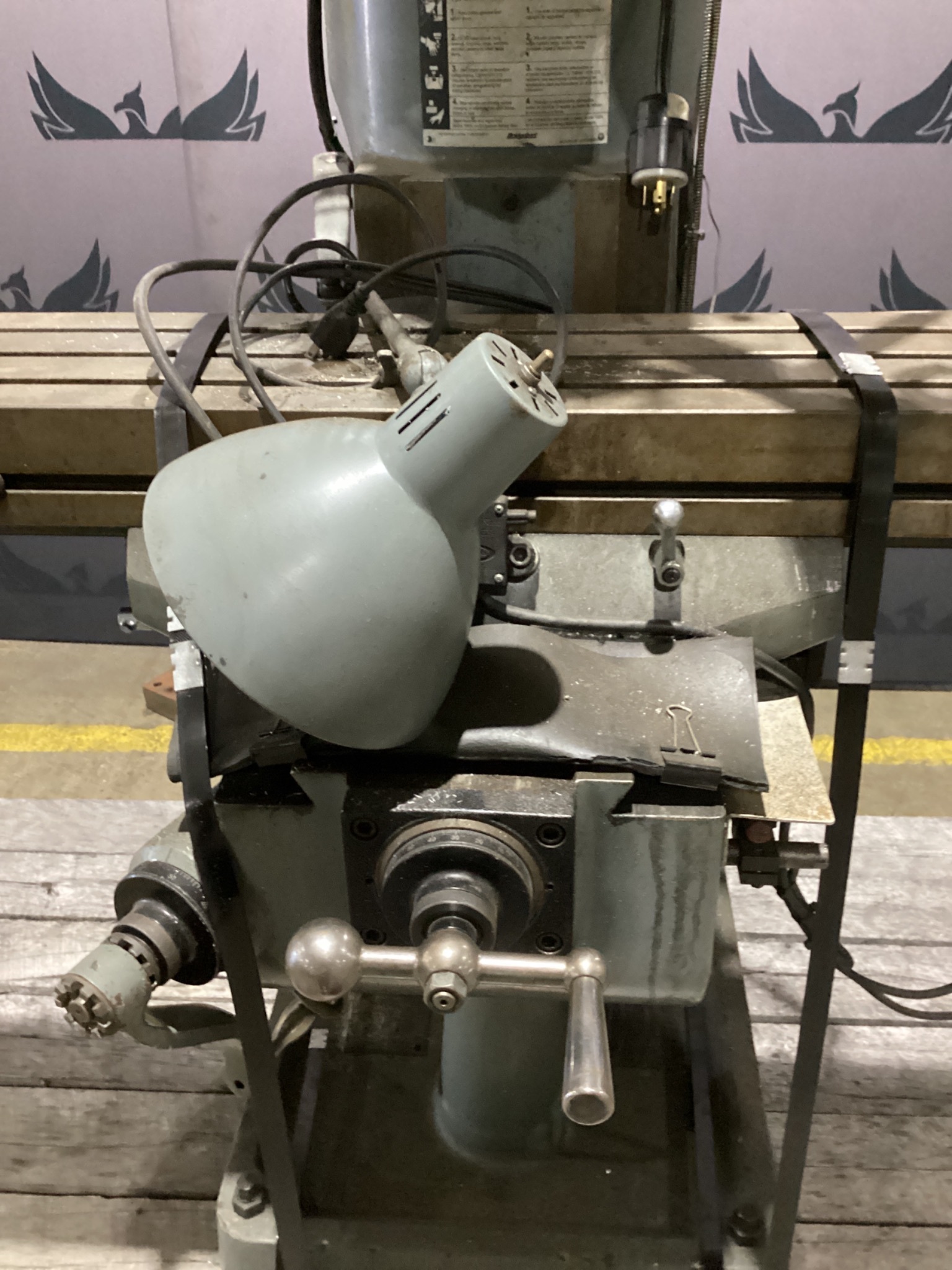

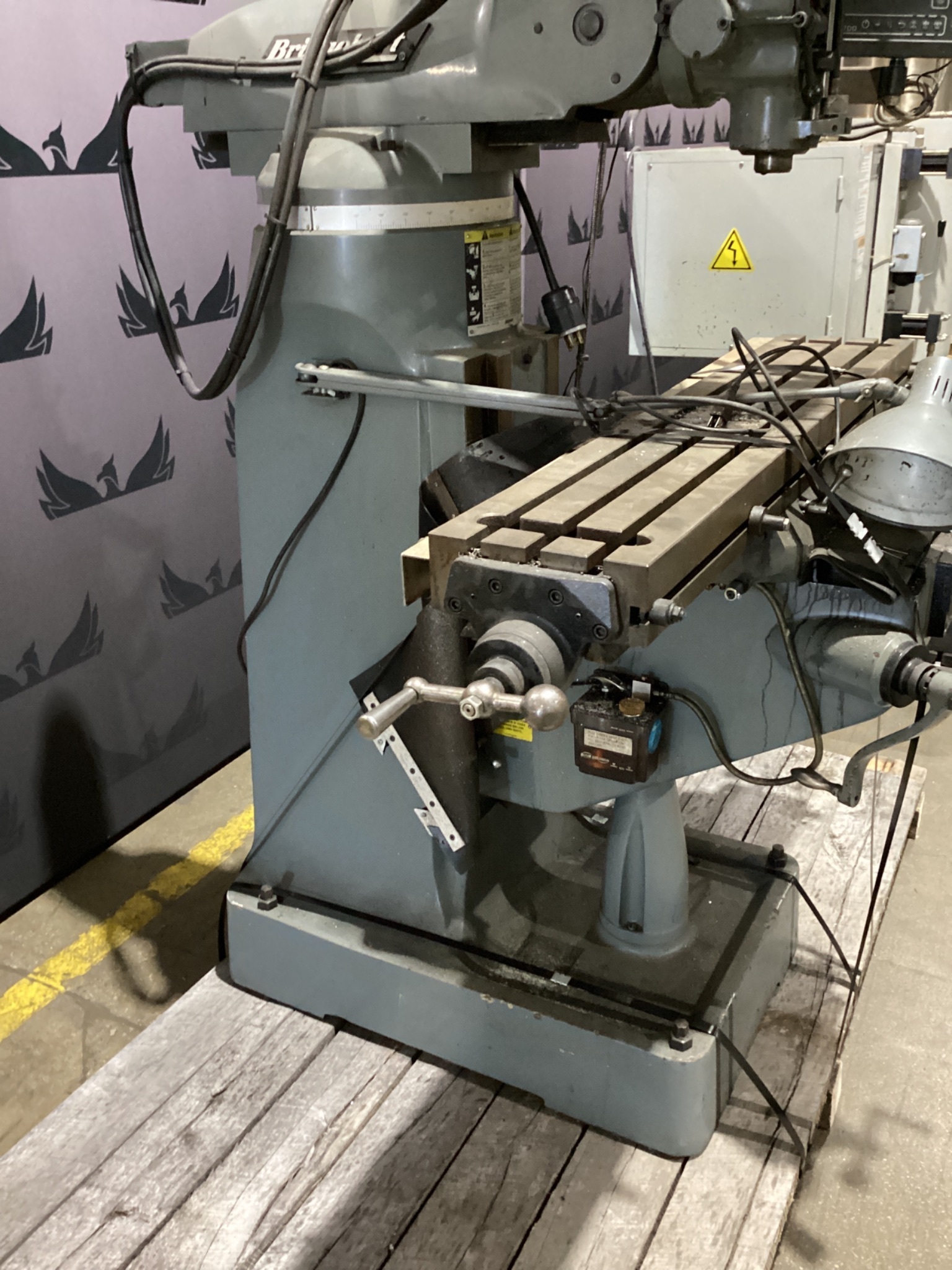

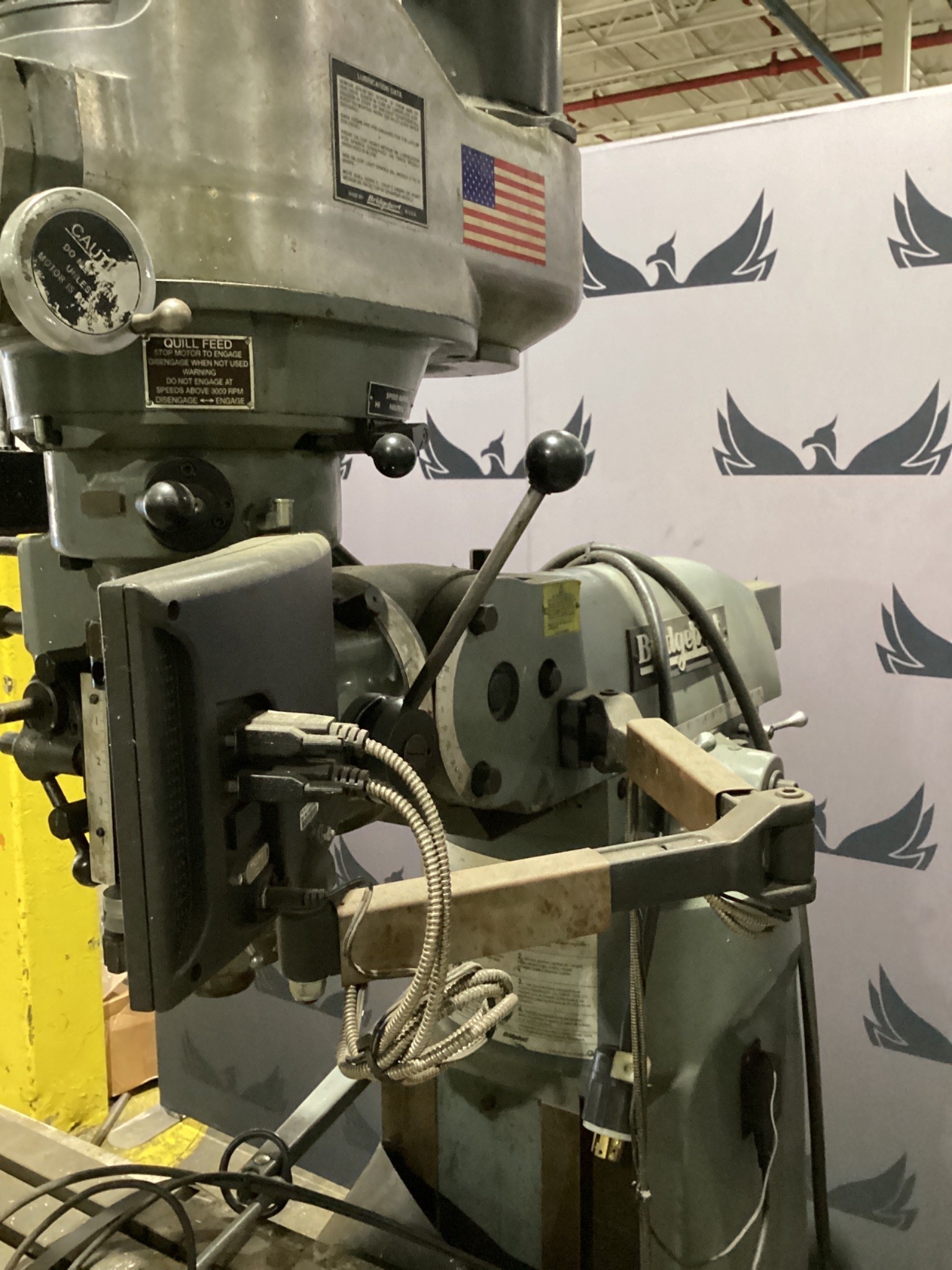

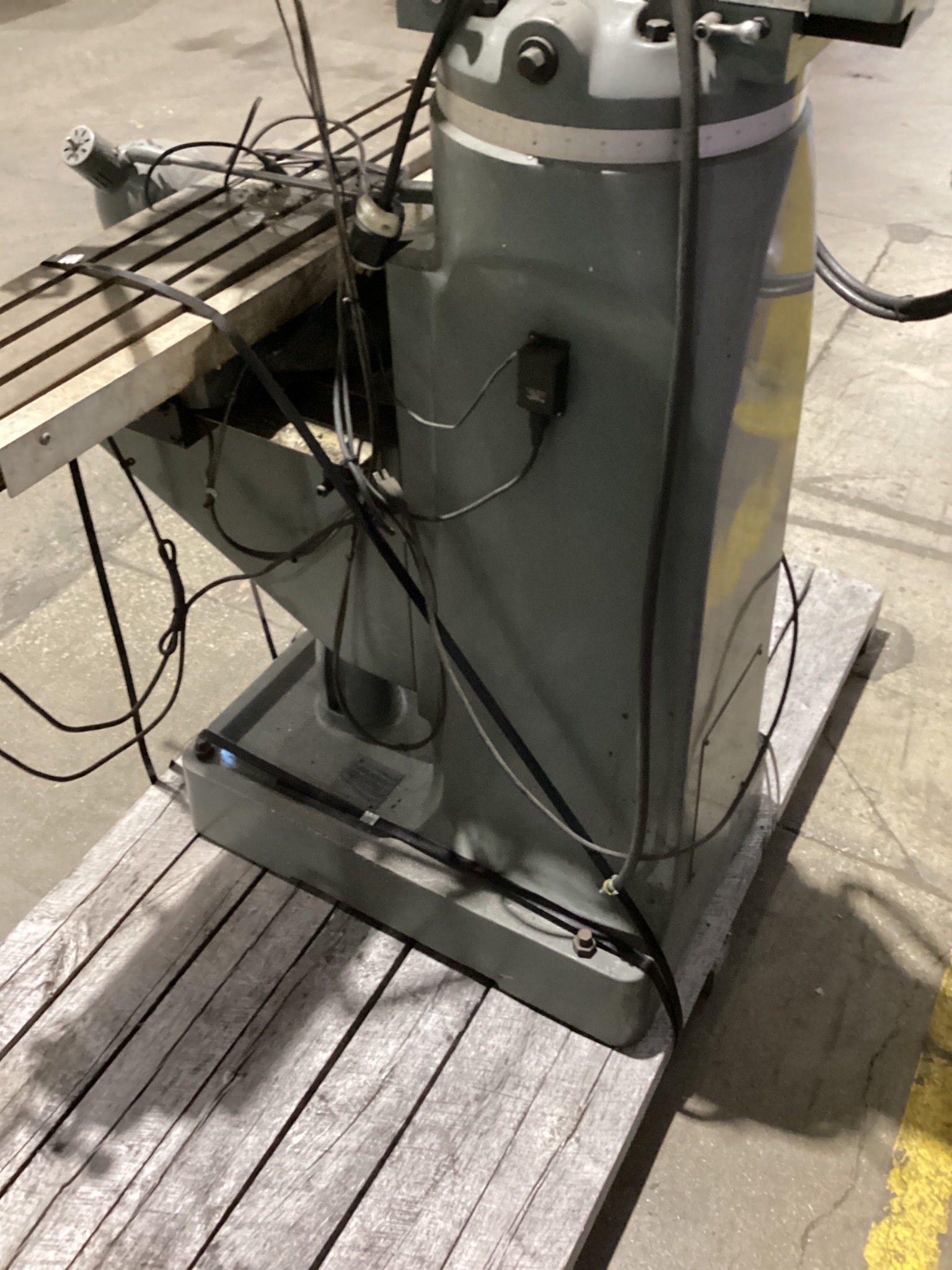

BRIDGEPORT SERIES I Vertical Milling Machine With DRO & Power Feed USED

Specification Table

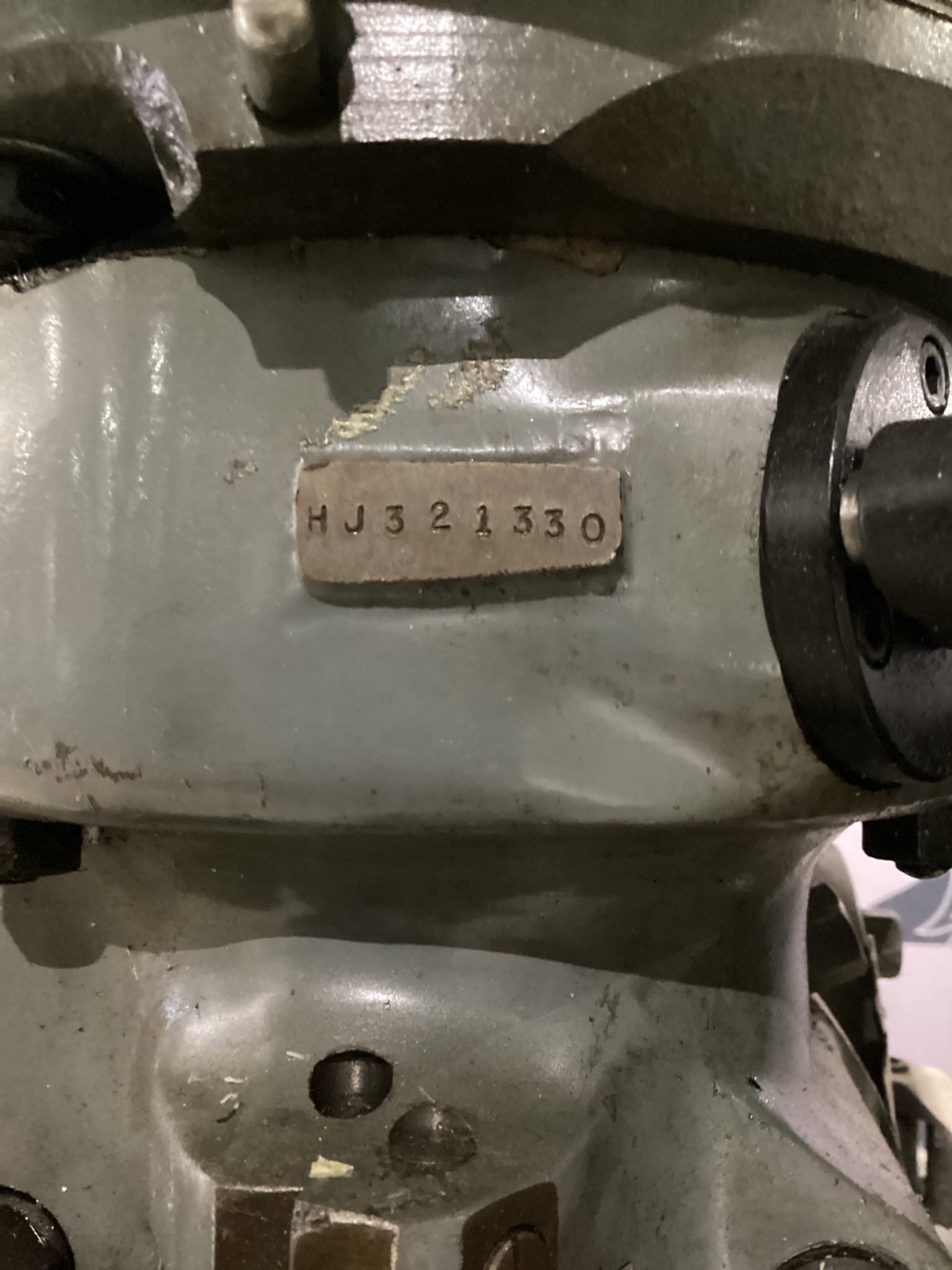

IDENTIFICATION Manufacturer: Bridgeport Model / Series: Series I Product Type: Vertical knee milling machine Serial Number: HJ321330 Condition: USED YOM: n/a   MILLING HEAD / SPINDLE Head Configuration: Vertical Head Type: Variable speed Spindle Speed Control: Mechanical variable speed Spindle Drive: Electric motor Quill: Present Manual Quill Feed: Present Quill Fine Feed: Present Quill Feed Engagement: Present Spindle Brake: Present Forward / Reverse Control: Present   TABLE / WORKHOLDING Table Type: Rectangular T-slot table Number of T-Slots: 3 Longitudinal Axis: Present Cross Axis: Present Knee Axis: Present   AXIS CONTROL / FEED Longitudinal Movement: Manual / power feed Cross Movement: Manual Knee Movement: Manual Table Power Feed: Installed Handwheel Controls: Present Digital Position Readout: Installed   HEAD / RAM POSITIONING Ram Configuration: Adjustable Ram Travel: Not specified Head Positioning: Adjustable Head Tilt Range: Not specified Head Rotation Range: Not specified Turret Rotation: Adjustable   ELECTRICAL Machine Supply Voltage: Not specified Phase: Not specified Frequency: Not specified Spindle Motor Rating: Not specified Electrical Cord / Plug: Present   INSTALLED EQUIPMENT Digital Readout: Present Table Power Feed: Present Work Light: Present Lubrication Equipment: Present Machine Controls: Present   CONSTRUCTION / INSTALLATION Machine Configuration: Floor-standing knee mill Column Construction: Cast construction Knee Construction: Cast construction Machine Base: Integrated Table Surface: Machined
