BOSTON GEAR F718-5-B7-G Worm Gear Speed Reducer 5:1 Ratio NEW

$625.00
Availability:

1 in stock

BRAND: BOSTON GEAR MODEL: F718-5-B7-G CONDITION: New
SKU: IGAM2780016 Weight: 10 lbs Shipping Calculated at Checkout

1 in stock

Overview

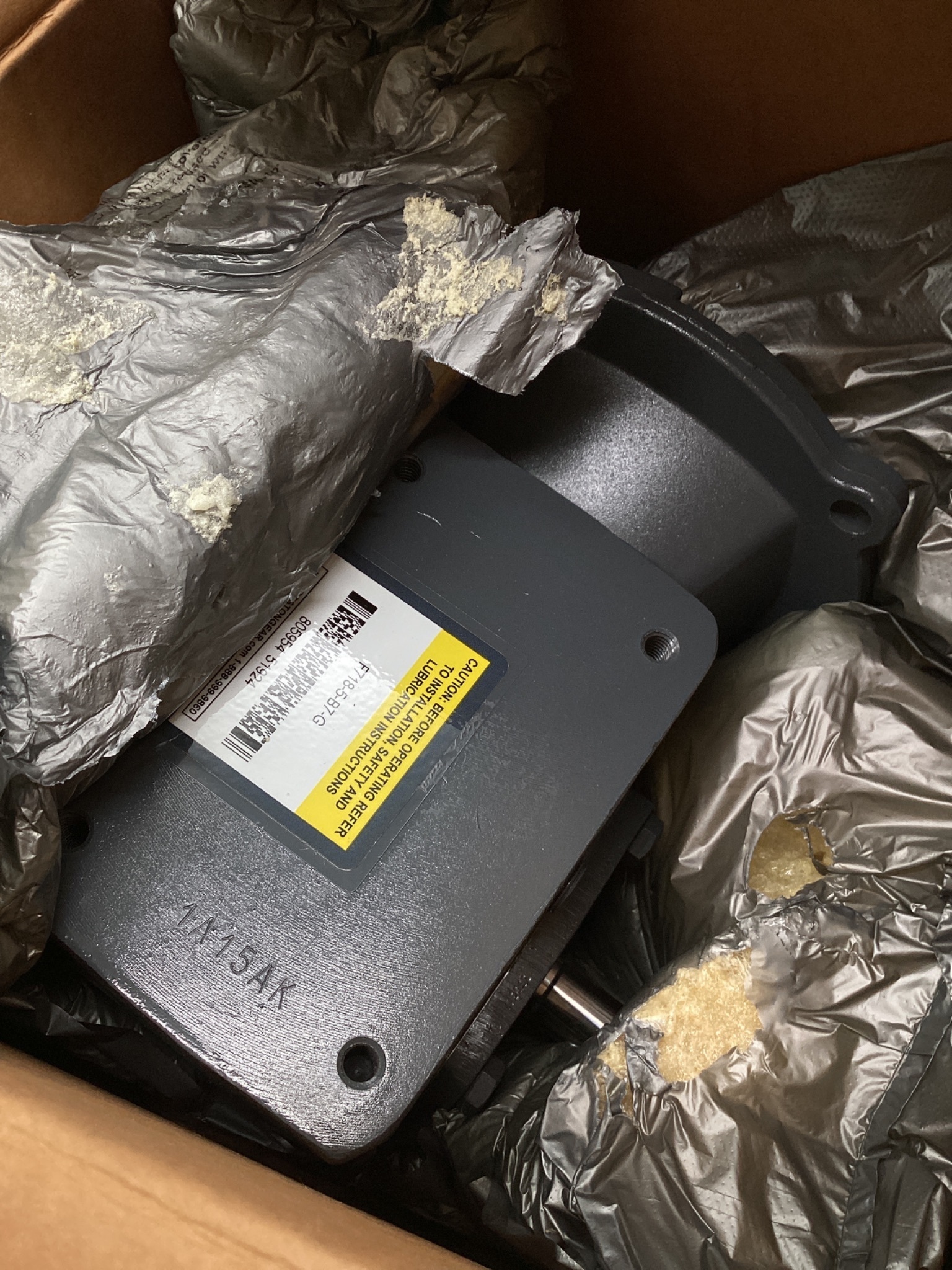

This listing is for a NEW Boston Gear F718-5-B7-G speed reducer. It provides torque multiplication and speed reduction through a worm gear drive, supporting controlled rotational output in industrial machinery and power transmission systems. The unit features an F718 series gearbox configuration with a 5:1 reduction ratio and NEMA 140TC motor mounting interface.

Specification Table

Manufacturer: Boston Gear Series: F700 Part Number: F718-5-B7-G Condition: NEW YOM: n/a Component Type: Worm gear speed reducer Gear Ratio: 5:1 Mounting Configuration: C-face (NEMA motor mount) Motor Frame Size: 140TC Input Orientation: Right-angle Housing Material: Cast iron Lubrication Type: Oil-filled (sealed housing) Output Shaft: Solid shaft Mounting Position: Not specified

▸ Key Features:
• 5:1 gear reduction ratio
• Right-angle worm gear configuration
• Rated for 2.0 HP and 337 lb-in torque
▸ Applications:
• Industrial drive systems
• Conveyor and material handling equipment
• OEM machinery requiring speed reduction
▸ Alternative Model Numbers:
F718-5-B7-G-A
F718-5-B7-G-B
F718-5-B7-G-C
F718-5-B7-G-D
F718-5-B7-G-E
▸ Common Misspellings or Phrasing:
F7185B7G
Boston Gear Reducer
F718-5B7G
F718-5-B7G
Boston F718-5-B7-G
