BOSTON GEAR CMBA140TU-6 Gearmotor USED

$1,100.00
Availability:

1 in stock
BRAND: BOSTON GEAR MODEL: CMBA140TU-6 CONDITION: used
SKU: IGAM3470108 Weight: 54 lbs Shipping Calculated at Checkout

1 in stock

Make an offer

Overview

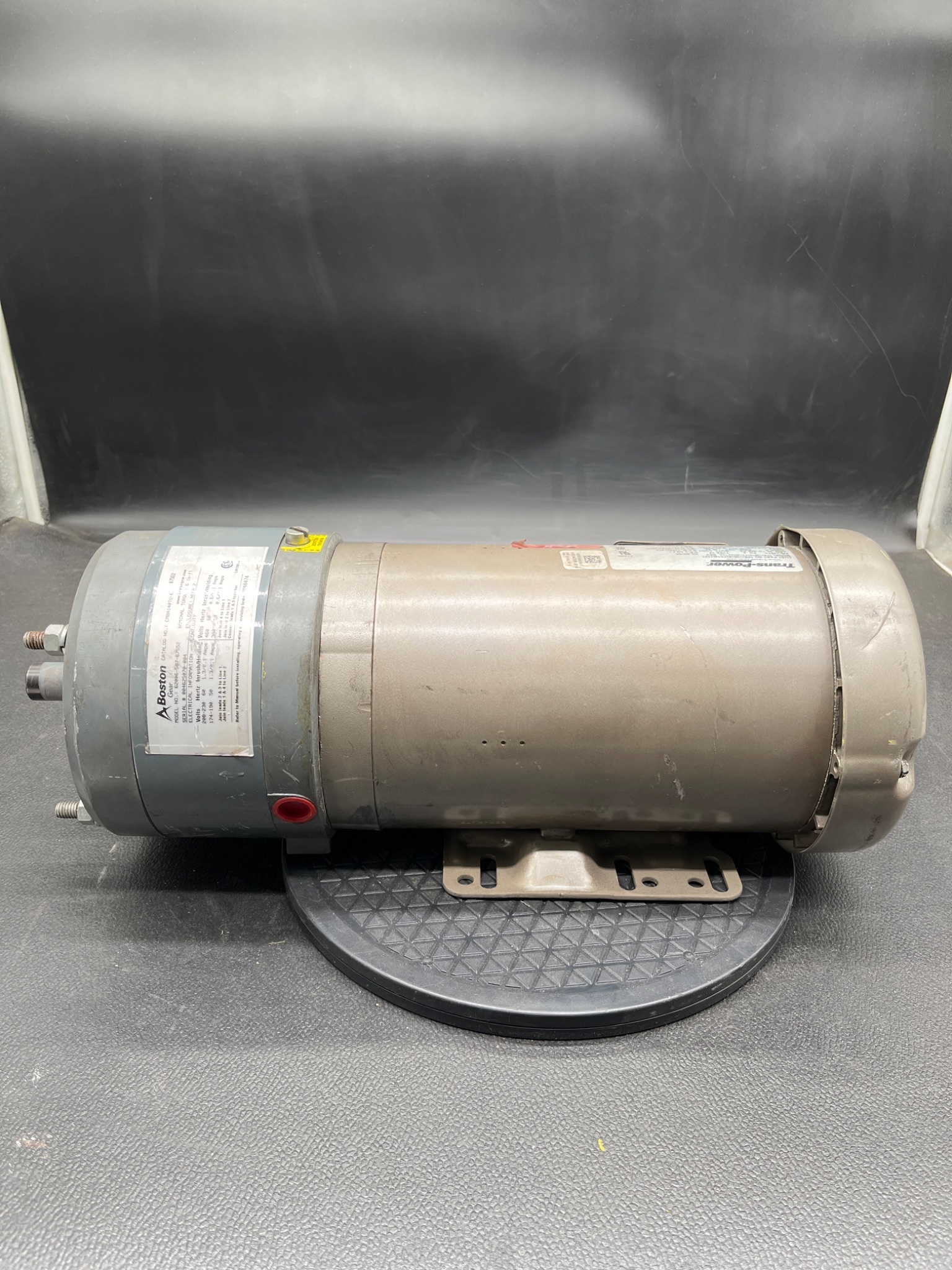

Used Boston Gear CMBA140TU-6 gearmotor providing integrated speed reduction and motor-driven torque output for industrial drive systems. Rated 1/2 HP with multi-voltage 208-230/460V (60 Hz) and 174-190/380V (50 Hz) capability, delivering 6 lb-ft nominal torque with right-angle output configuration for controlled mechanical power transmission.

Specification Table

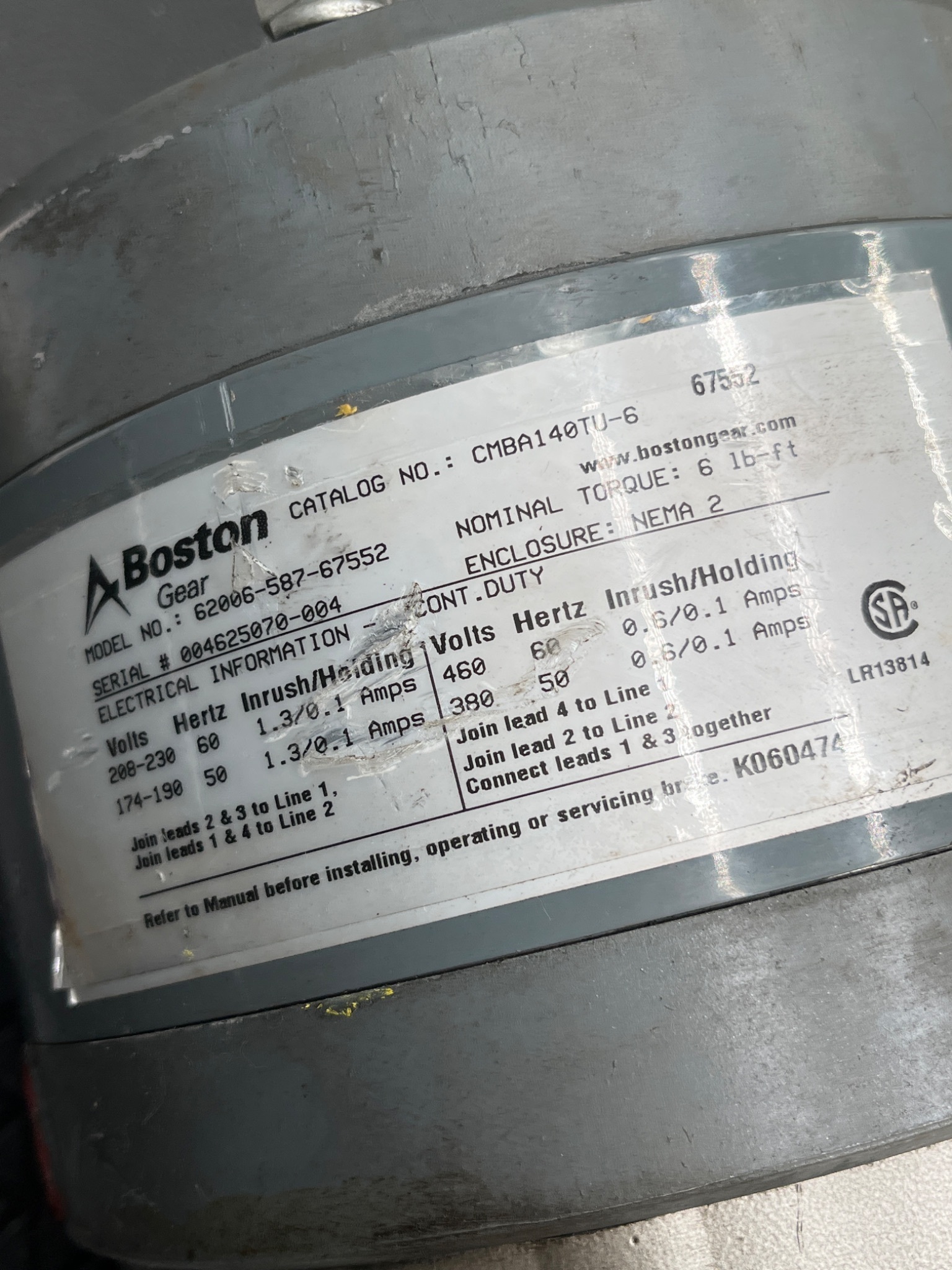

Manufacturer: Boston Gear Model: CMBA140TU-6 Condition: USED YOM: n/a Type: Gearmotor (integrated motor and reducer) Configuration: Right-angle gearmotor Mounting: Foot-mounted Enclosure: NEMA 2 Frame: 145T Nominal Torque: 6 lb-ft Duty Rating: Continuous duty Frequency: 50 / 60 Hz Phase: 3 Phase Voltage (50 Hz): 174–190 / 380 V Voltage (60 Hz): 208–230 / 460 V Current (50 Hz): 1.3 / 0.6 / 0.6 A Current (60 Hz): 1.3–1.0 / 0.6 A Speed: 1755 / 1470 RPM Horsepower: 1/2 HP Power: 0.37 kW Efficiency (60 Hz): 85.1% Power Factor (60 Hz): 0.71 / 0.64 Insulation Class: F Protection Rating: IP43 Motor Manufacturer: Trans-Power Drive End Bearing: 6205 Opposite End Bearing: 6203
