Bond Fluidaire BPU-102512-1 5 HP Hydraulic Power Unit USED

Specification Table

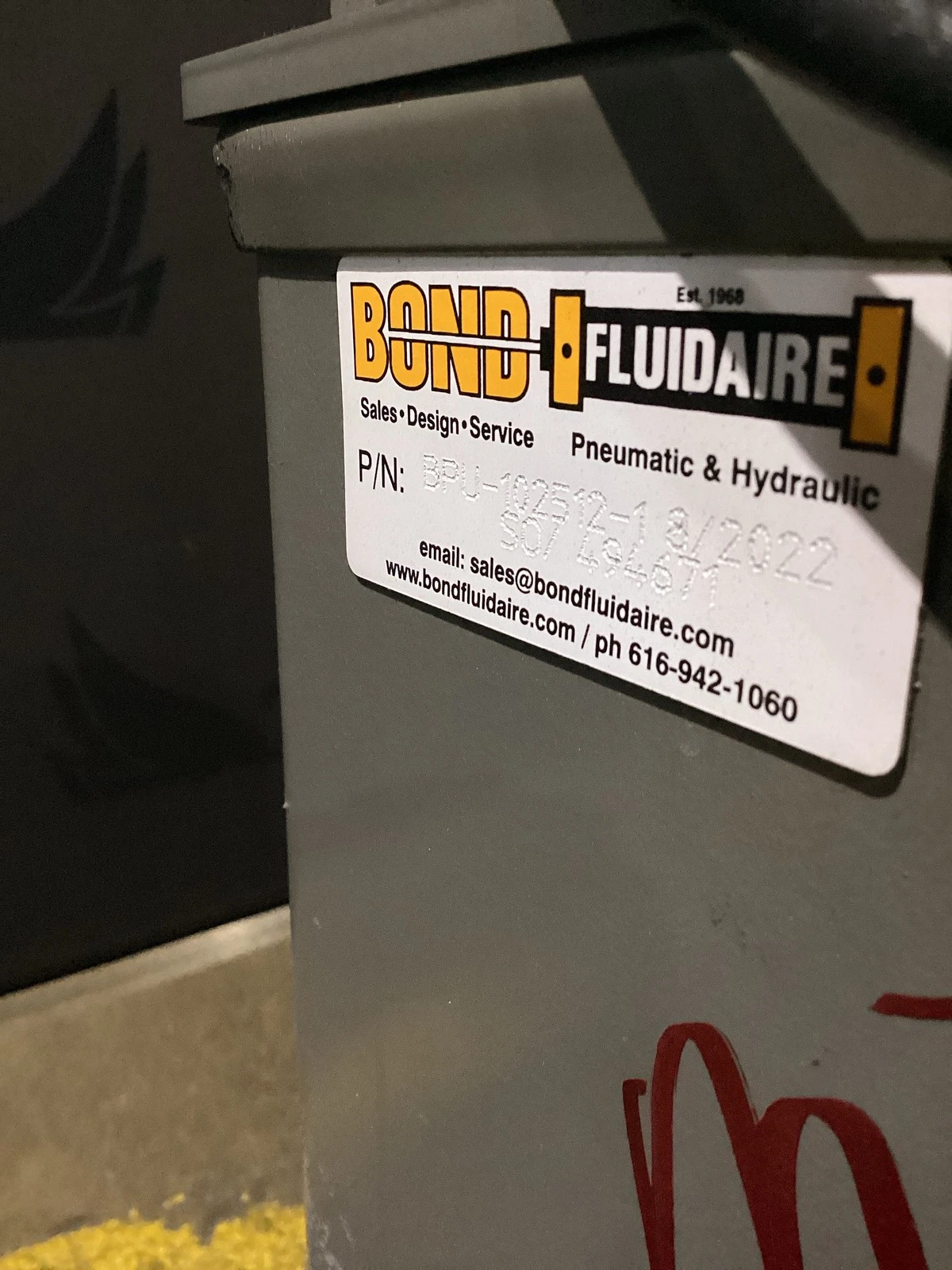

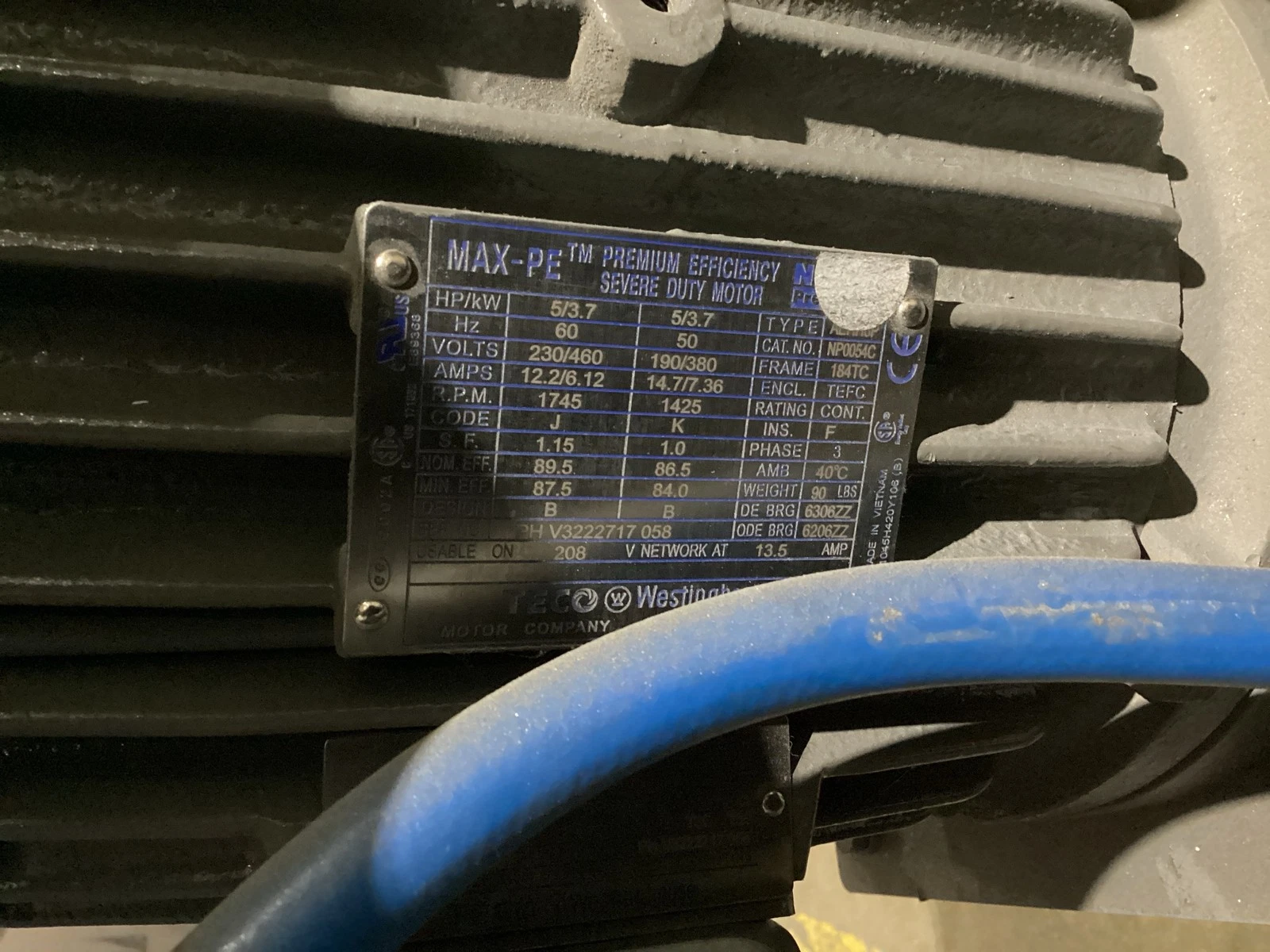

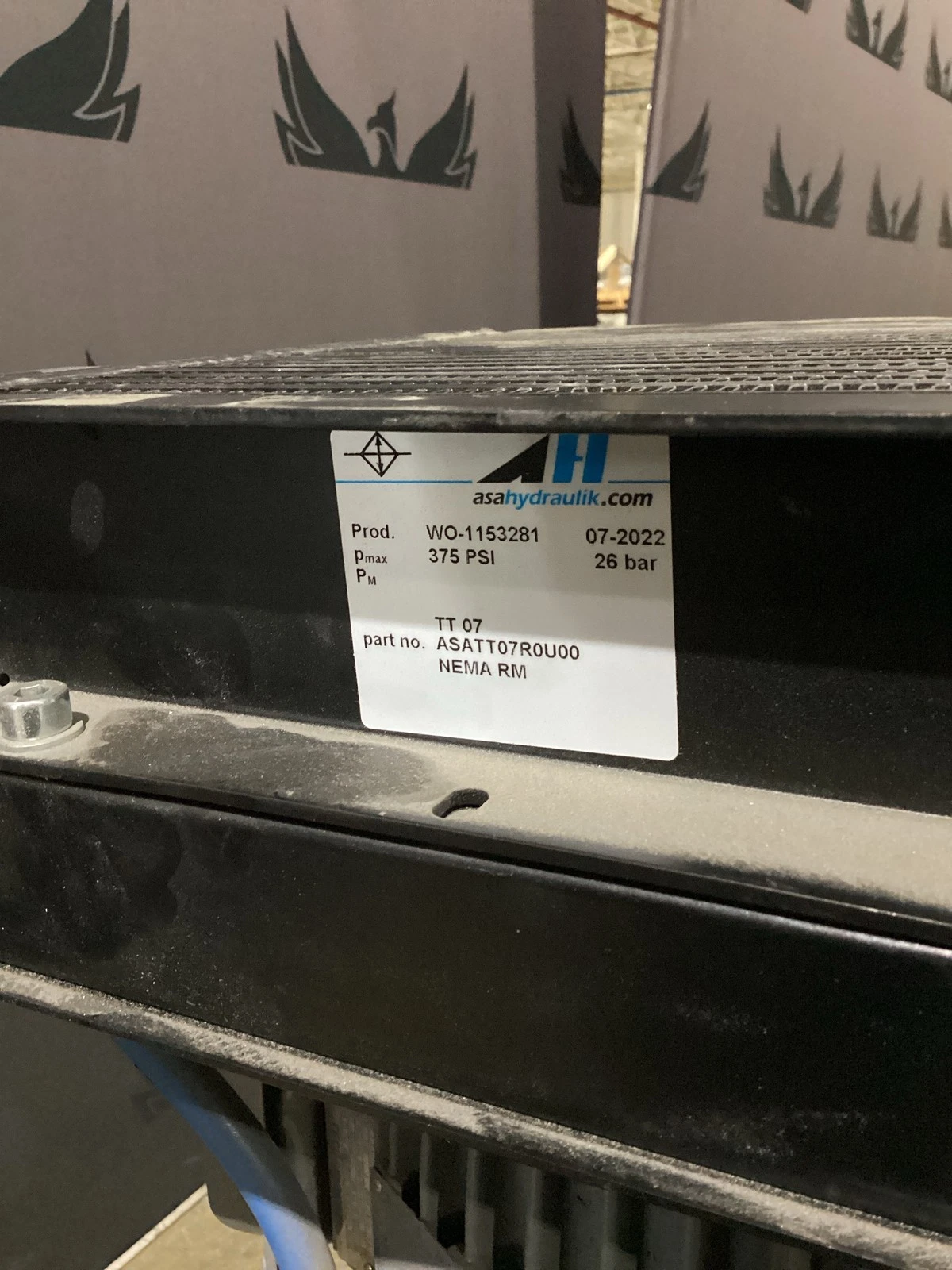

IDENTIFICATION Manufacturer: Bond Fluidaire Part Number: BPU-102512-1 Product Type: Hydraulic Power Unit Condition: USED YOM: 2022   HYDRAULIC SYSTEM Hydraulic Pump: Included Reservoir: Included Valve / Manifold Controls: Included System Operating Pressure: Not specified Pump Flow: Not specified Reservoir Capacity: Not specified Pump Displacement: Not specified   MOTOR Manufacturer: TECO-Westinghouse Series: MAX-PE Motor Type: Premium Efficiency Severe Duty Rated Power: 5 HP (3.7 kW) Frame: 184TC Enclosure: TEFC Duty Rating: Continuous Phase: 3 Phase Insulation Class: F Ambient Rating: 40°C   60 HZ MOTOR DATA Voltage: 230 / 460 V Full Load Current: 12.2 / 6.12 A Rated Speed: 1745 RPM Service Factor: 1.15 NEMA Code: J Nominal Efficiency: 89.5% Minimum Efficiency: 87.5% NEMA Design: B   50 HZ MOTOR DATA Voltage: 190 / 380 V Full Load Current: 14.7 / 7.36 A Rated Speed: 1425 RPM Service Factor: 1.0 NEMA Code: K Nominal Efficiency: 86.5% Minimum Efficiency: 84.0% NEMA Design: B   208 V MOTOR DATA Rated Current: 13.5 A   OIL COOLER Manufacturer: ASA Hydraulik Model: TT 07 Part Number: ASATT07R0U00 Maximum Pressure: 375 PSI (26 bar) Mounting Configuration: NEMA RM   MOTOR BEARINGS Drive-End Bearing: 6306ZZ Opposite-End Bearing: 6206ZZ   HAZARDOUS LOCATION RATING Classification: Class I, Division 2 Groups: C & D Temperature Code: T3C
