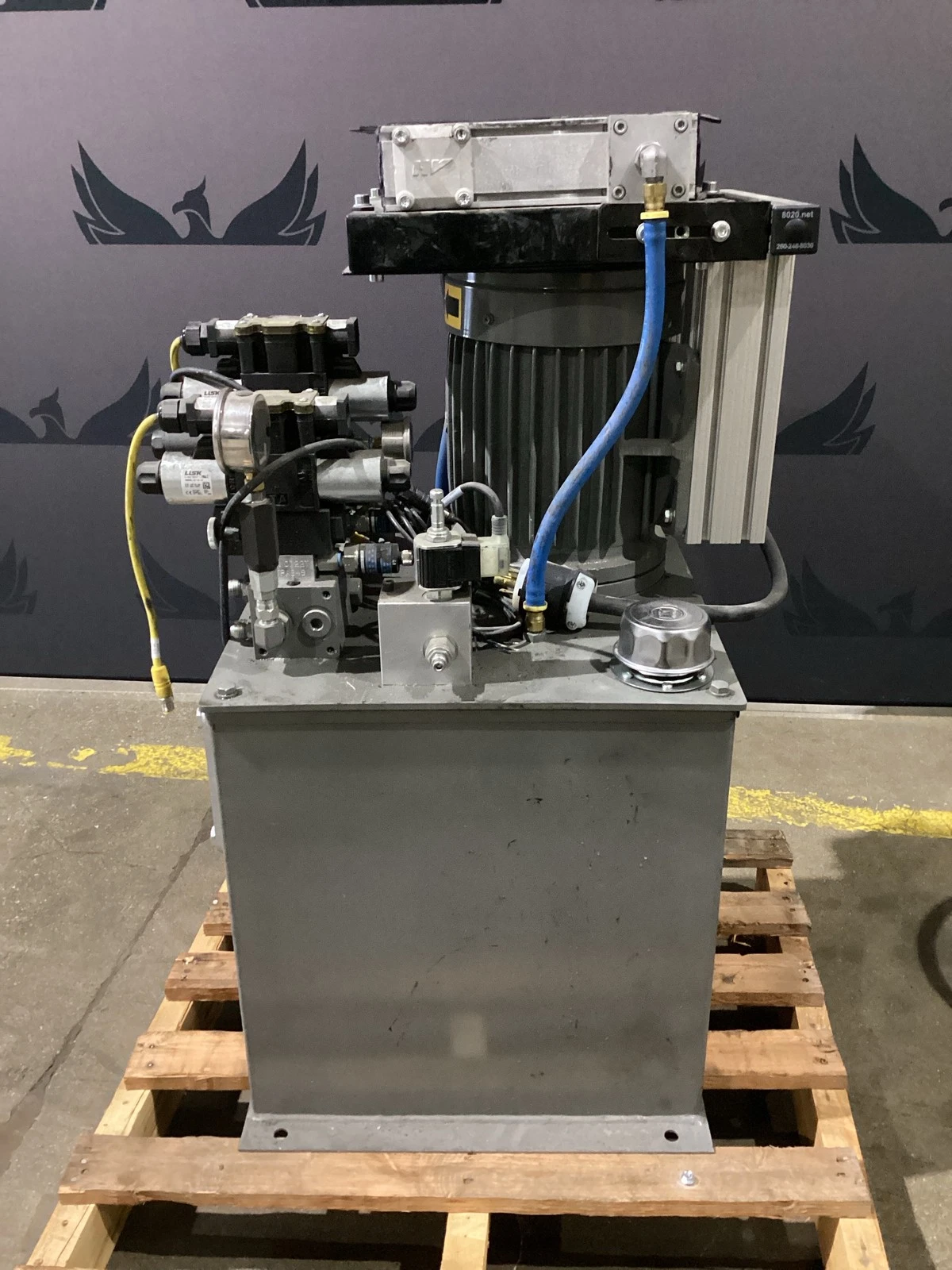

Bond Fluidaire BPU-102512-1 5 HP Hydraulic Power Unit USED

Specification Table

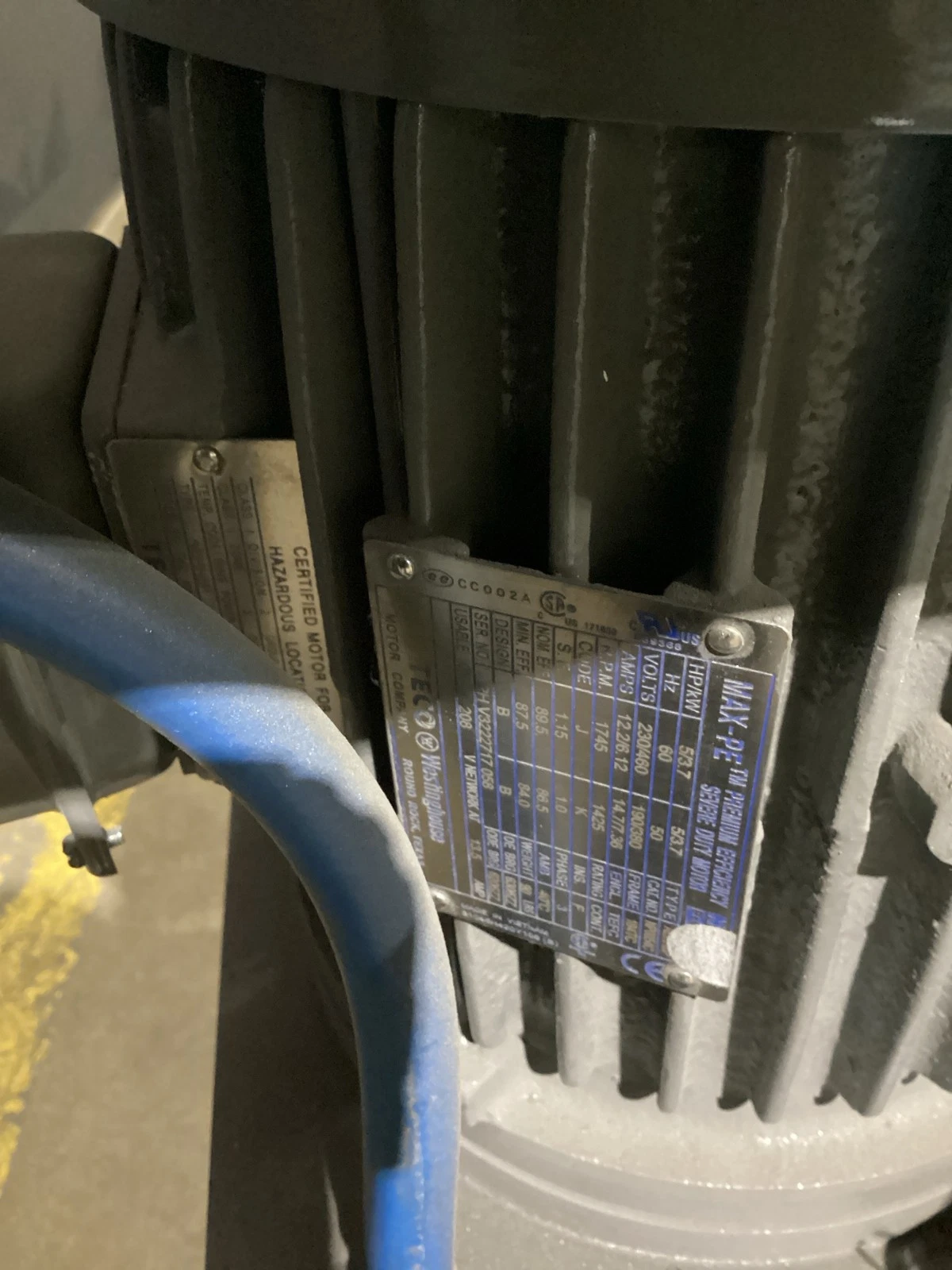

IDENTIFICATION Manufacturer: Bond Fluidaire Part Number: BPU-102512-1 Product Type: Hydraulic Power Unit Condition: USED YOM: 2022   HYDRAULIC SYSTEM Drive Method: Electric Motor Hydraulic Pump: Included Reservoir: Included Control Method: Electrohydraulic Solenoid Valves: Multiple Pressure Monitoring: Gauge System Operating Pressure: Not specified Pump Flow: Not specified Pump Displacement: Not specified Reservoir Capacity: Not specified Hydraulic Fluid: Not specified   MOTOR Manufacturer: TECO-Westinghouse Series: MAX-PE Motor Type: Premium Efficiency Severe Duty Rated Power: 5 HP (3.7 kW) Frame: 184TC Enclosure: TEFC Duty Rating: Continuous Phase: 3 Phase Insulation Class: F Ambient Rating: 40°C NEMA Design: B   60 HZ MOTOR DATA Voltage: 230 / 460 V Full Load Current: 12.2 / 6.12 A Rated Speed: 1745 RPM Service Factor: 1.15 NEMA Code: J Nominal Efficiency: 89.5% Minimum Efficiency: 87.5%   50 HZ MOTOR DATA Voltage: 190 / 380 V Full Load Current: 14.7 / 7.36 A Rated Speed: 1425 RPM Service Factor: 1.0 NEMA Code: K Nominal Efficiency: 86.5% Minimum Efficiency: 84.0%   208 V MOTOR DATA Rated Current: 13.5 A   HAZARDOUS LOCATION MOTOR Classification: Class I, Division 2 Groups: C & D Temperature Code: T3C Motor Type: AEHH8P Motor Serial Number: PHV3222717058   OIL COOLER Manufacturer: ASA Hydraulik Model: TT 07 Part Number: ASATT07R0U00 Work Order: WO-1153281 Maximum Pressure: 375 PSI (26 bar) Date: 07-2022 Mounting Configuration: NEMA RM   INSTALLATION Configuration: Reservoir-Mounted Mounting Type: Floor / Base Mount
