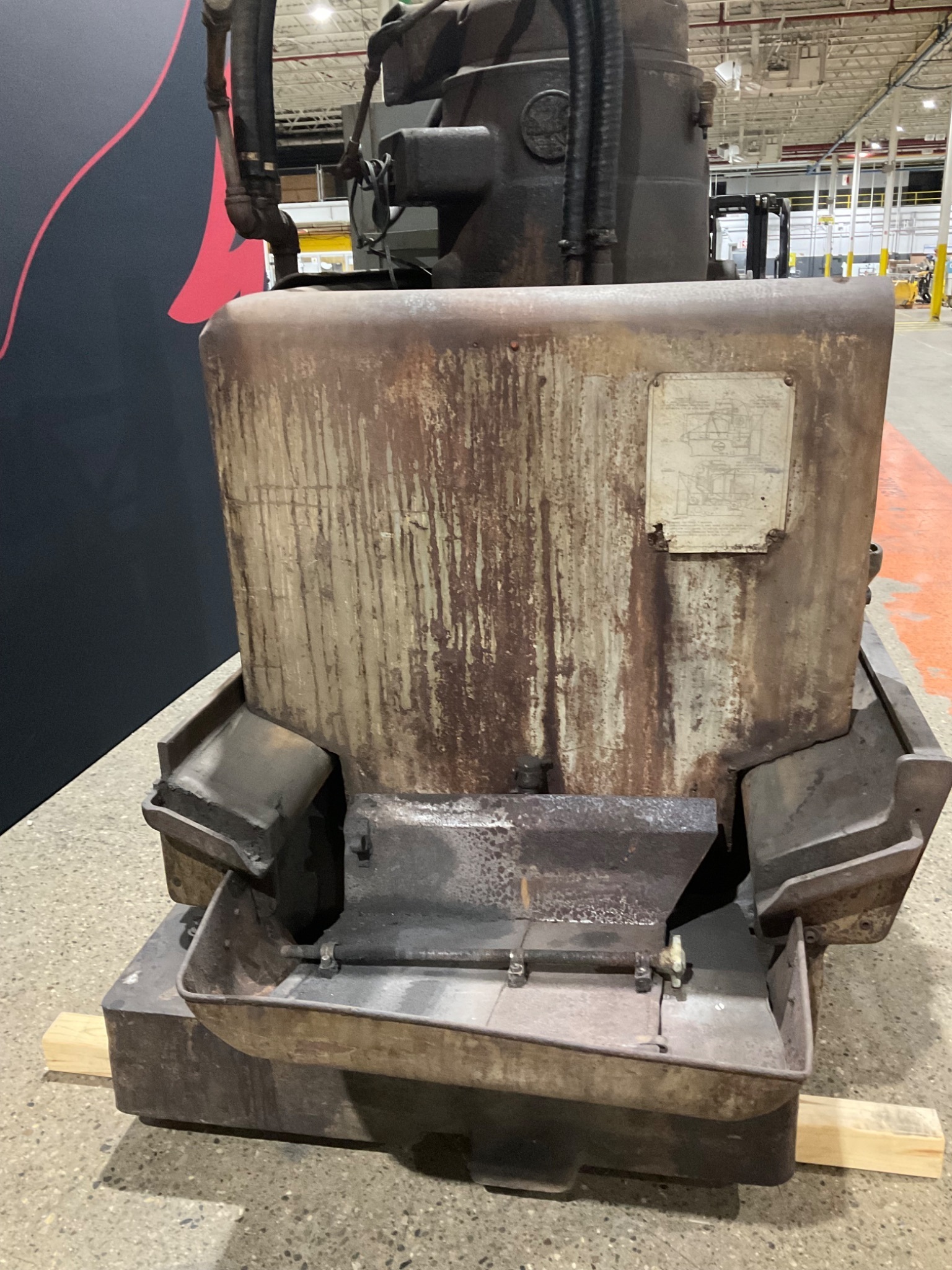

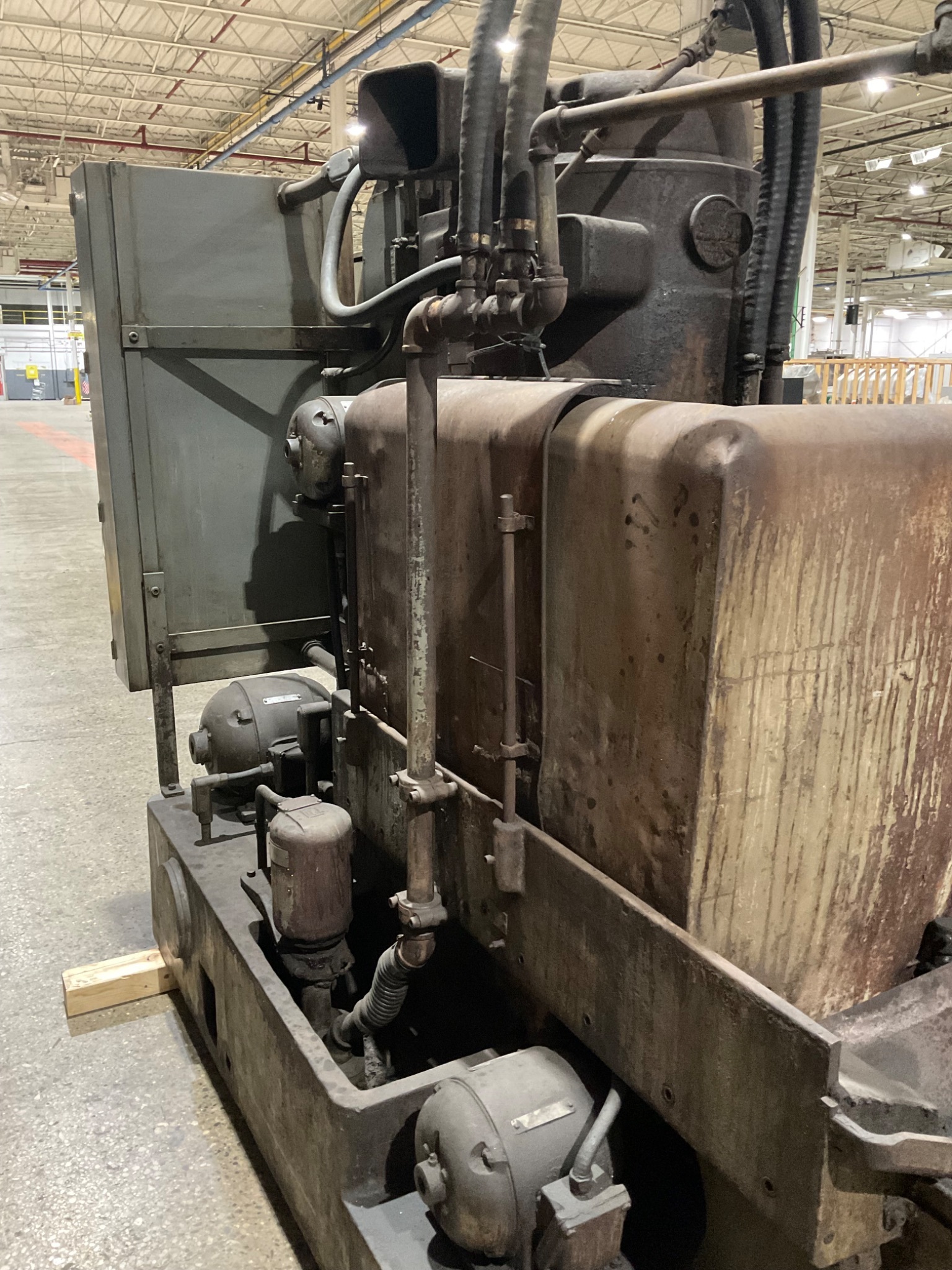

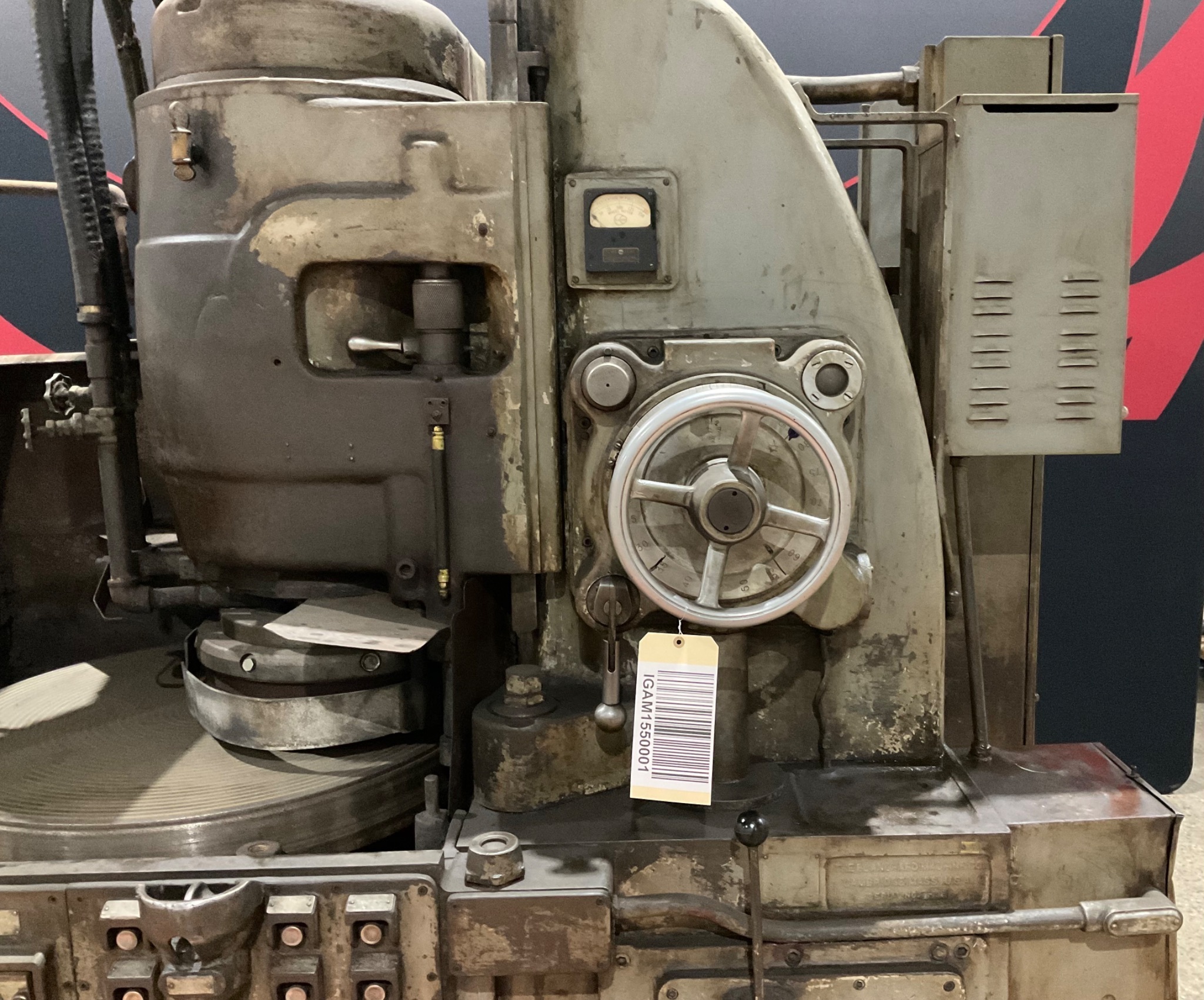

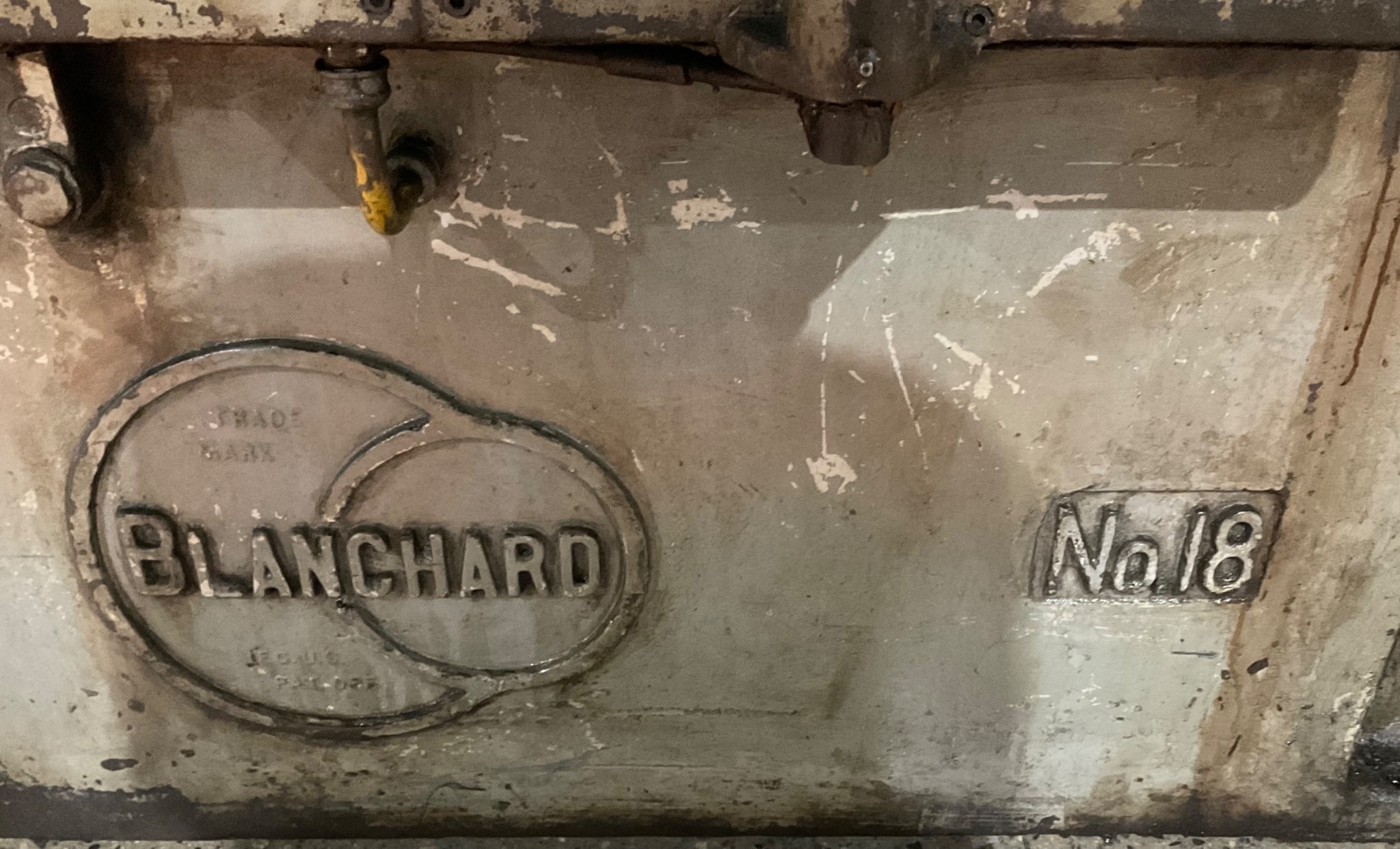

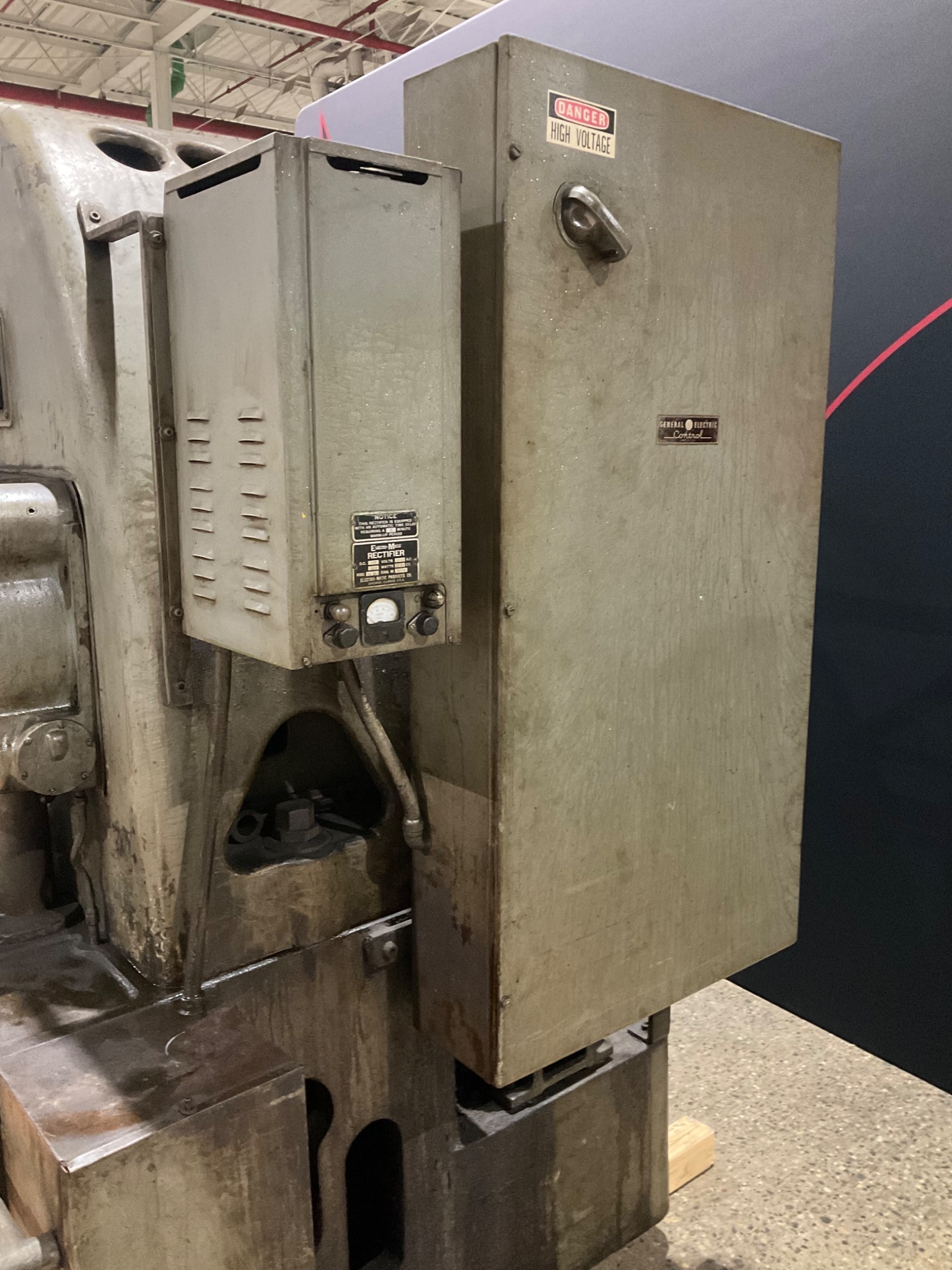

BLANCHARD NO18 ROTARY SURFACE GRINDER USED

Product Specifications

• Brand: BLANCHARD

• Model: No. 18

• Condition: Used

• Table (Magnetic Chuck) Diameter: 36 in

• Spindle Orientation: Vertical

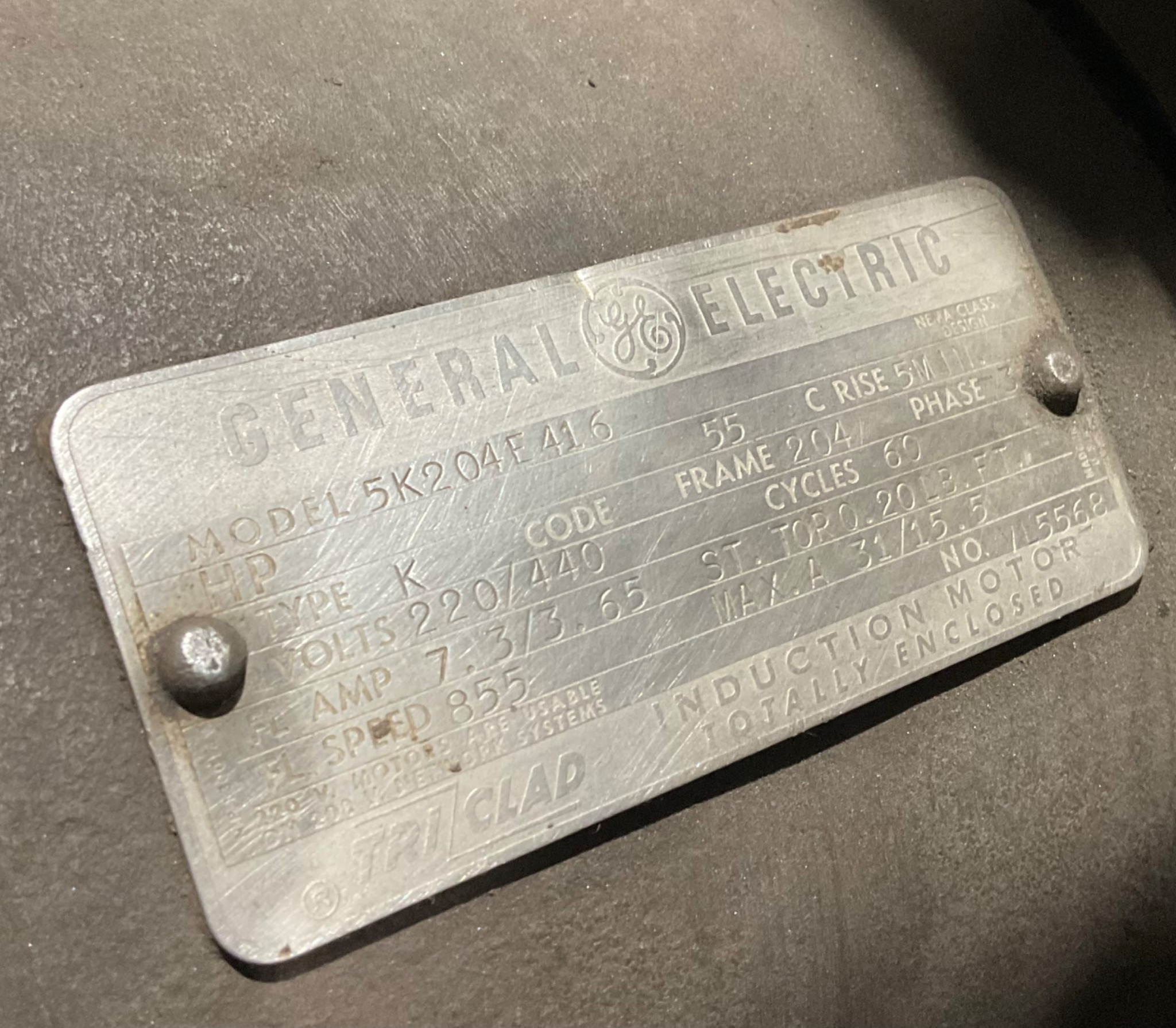

• Spindle Drive Motor: Approximately 50 HP (varies by machine)

• Vertical Travel (Z-Axis): Up to 18 in

• Table Speed: Variable rotary speeds

• Crossfeed: Power feed

• Machine Type: Rotary surface grinder

• Chuck Type: Electro-magnetic chuck

• Coolant System: Typically included

• Machine Weight: Approx. 20,000 – 22,000 lbs (varies by unit)

Key Features

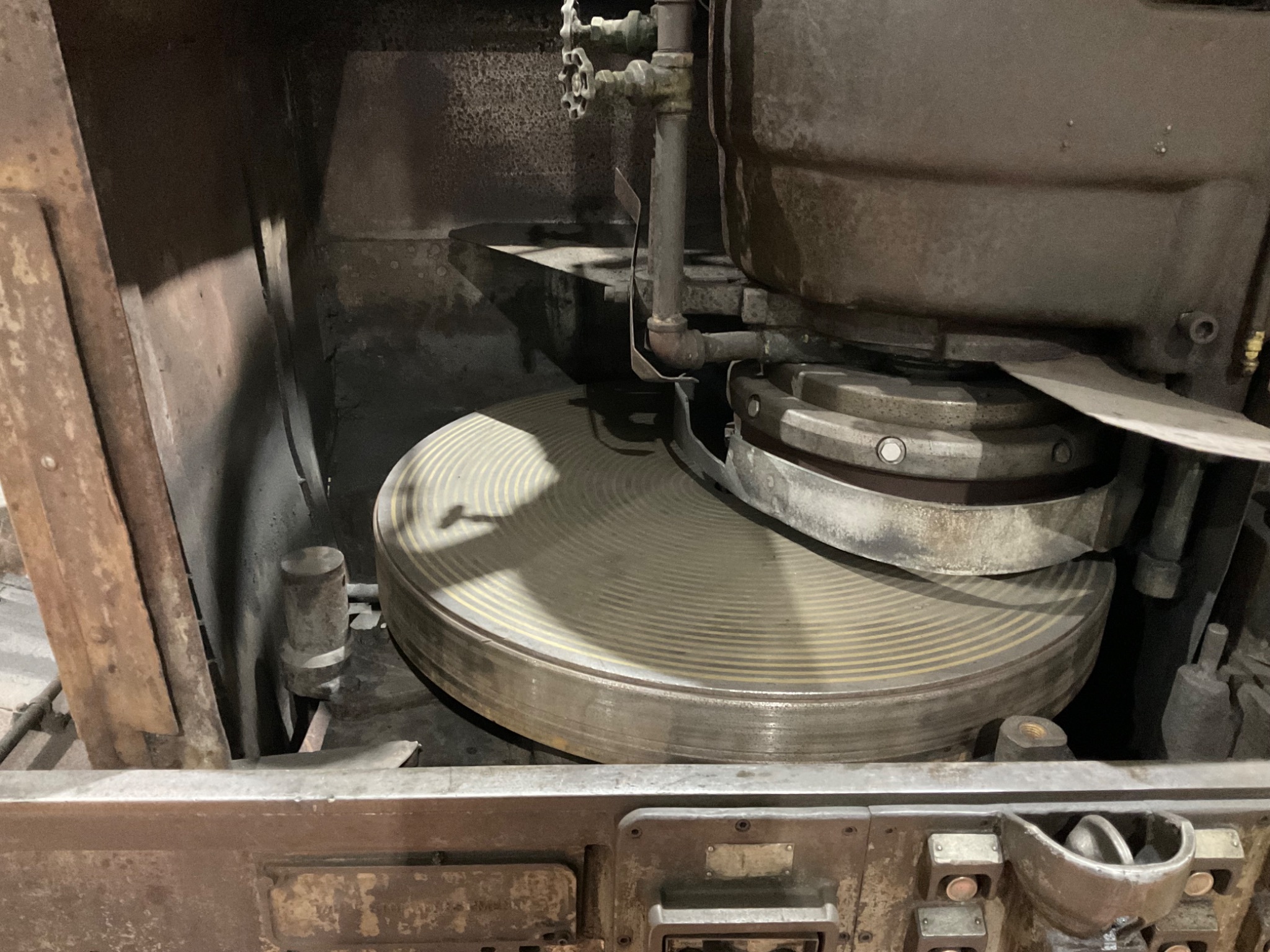

• 36-inch electromagnetic chuck provides secure workholding for large parts

• Vertical spindle design ensures uniform material removal across surfaces

• Power crossfeed and elevation for repeatable and hands-free grinding passes

• Heavy-duty cast iron base offers vibration damping and long-term stability

• High-horsepower motor enables aggressive material removal when needed

• Proven Blanchard rotary grinding process delivers flat, consistent finishes

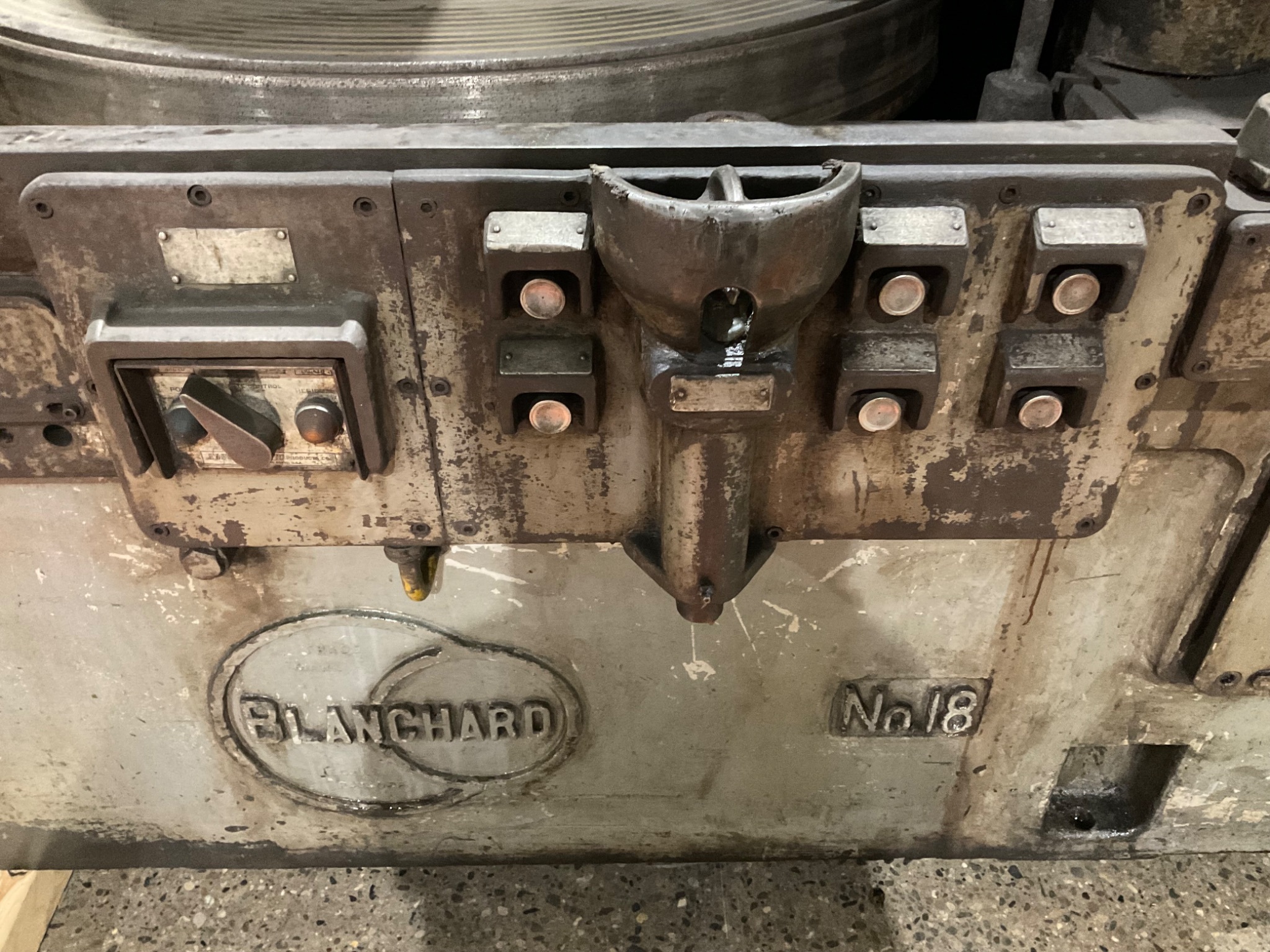

• Easy-to-use controls minimize operator training time

• Reliable mechanical systems built to last through demanding production cycles

Applications

• Precision toolroom grinding for die bases and fixture plates

• Steel plate preparation for fabrication and welding

• Large part finishing in automotive, aerospace, and heavy equipment industries

• Grinding of castings and weldments to achieve uniform thickness

• General machining requiring flat and parallel surface finishes on ferrous materials

Alternative model numbers include: Blanchard 18-36, No. 18 Rotary Grinder, 36″ Blanchard Surface Grinder, Blanchard Model 18, Blanchard 18 Vertical Grinder

Common misspellings include: Blancherd 18, Blanshard No. 18, Blanchard #18, Blanchart 36in Grinder, Blanchrd No18
