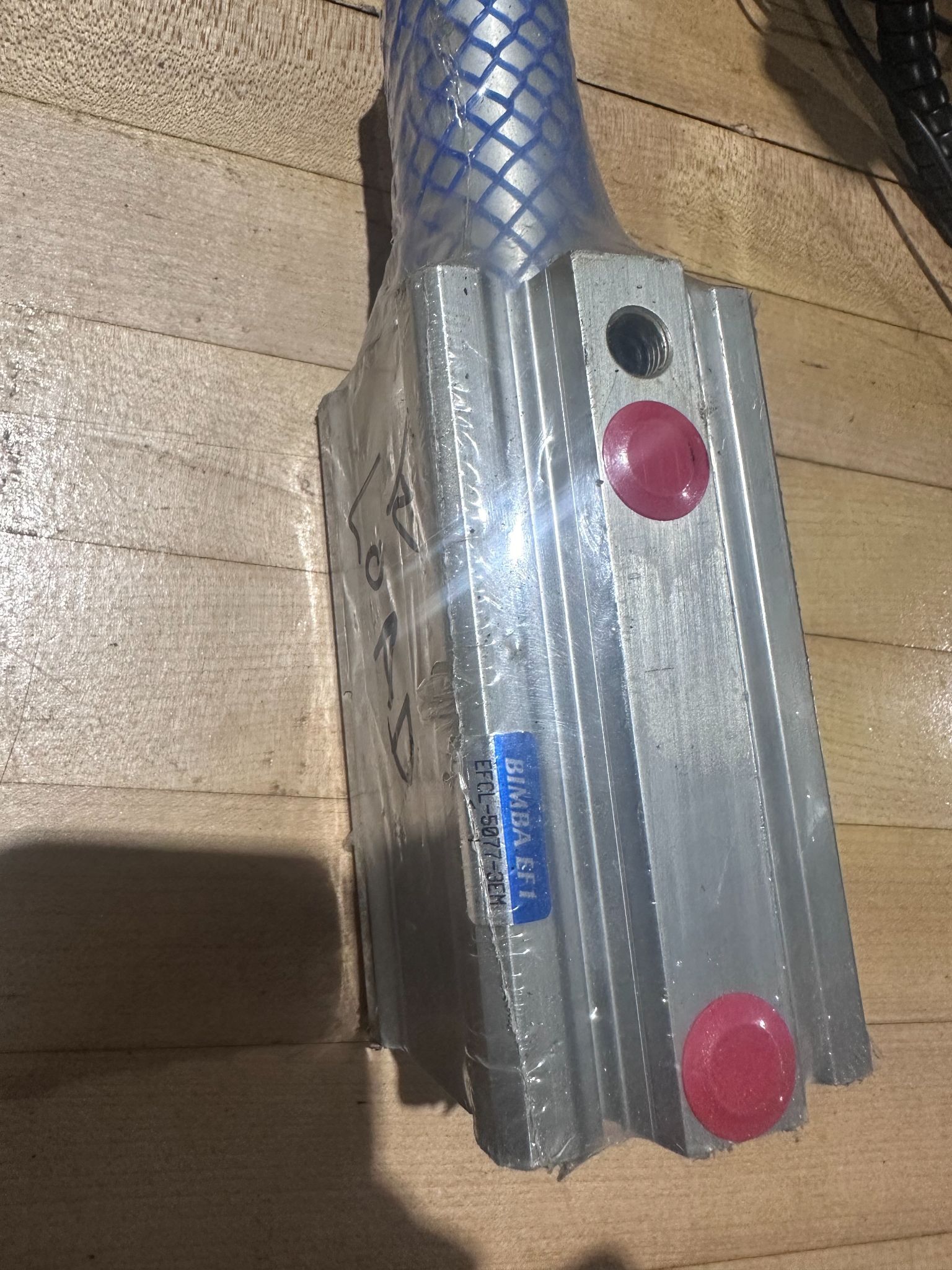

BIMBA EFCL-5077-3EM TWIST CLAMP CYLINDER NEW

Overview

This listing is for a Used BIMBA EFCL-5077-3EM.

This is a pneumatic twist clamp cylinder that combines linear and 90-degree rotary motion using an internal pin/cam mechanism. It is designed for clamping applications where the arm must rotate away from the workpiece for easy loading and unloading. This model features a 2″ bore and a total stroke of 3.03″, with a left-hand (counterclockwise) swing direction and magnetic position sensing.

See photos for details.

Part No: EFCL-5077-3EM
Type: Pneumatic Twist Clamp Cylinder
Condition: Used
2″ Bore
3.03″ Total Stroke
1.54″ Rotary Stroke
1.5″ Clamp Stroke
Left-Hand Swing Direction
Magnetic Position Sensing
Front and Rear Threaded Mounting
1/2-20 Female Threaded Rod
2 x 1/4″ NPT Ports
Max Pressure: 140 PSI
Temperature Range: 15°F to 160°F

Please message us with any questions.
