SOLD!

BELL & GOSSETT C209628 Series E90 Circulating Pump 0.75HP 1725RPM 115/230V USED

Name: BELL & GOSSETT C209628 Series E90 Circulating Pump 0.75HP 1725RPM 115/230V USED
Brand: BELL & GOSSETT
SKU: IGAM3250006
Price: 750.0 USD
Availability: InStock

$750.00

Availability:

1 in stock

BRAND: BELL & GOSSETT MODEL: C209628 CONDITION: used

SKU: IGAM3250006 Weight: 65 lbs Shipping Calculated at Checkout

1 in stock

Make an offer

Overview

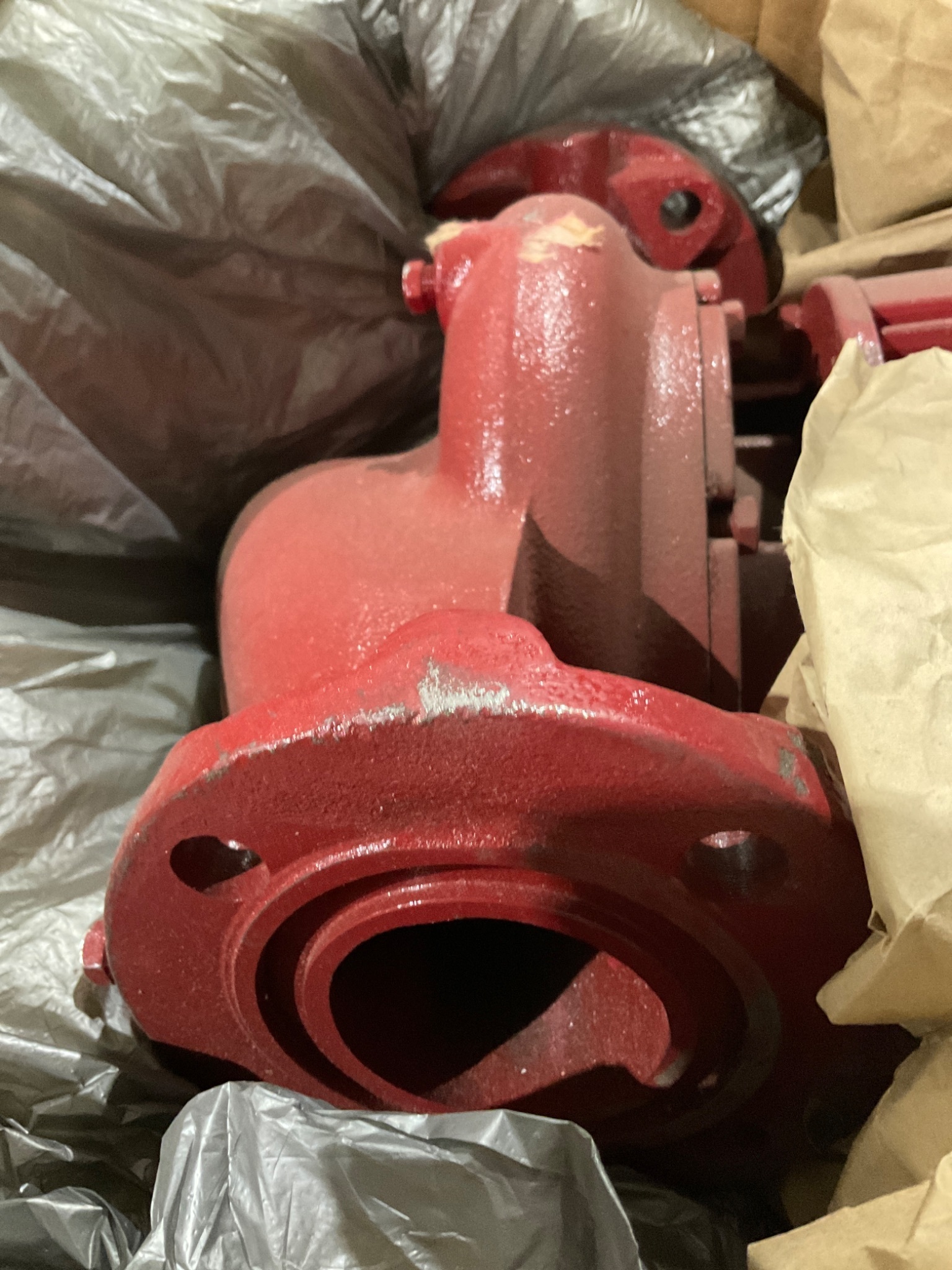

This listing is for a USED Bell & Gossett C209628 Series E90. Close-coupled circulating pump designed for hydronic heating and cooling systems, operating with a 0.75 HP motor at 1725 RPM and dual-voltage single-phase input, supporting continuous fluid circulation in HVAC and process piping applications.

Description
Tags

Specification Table

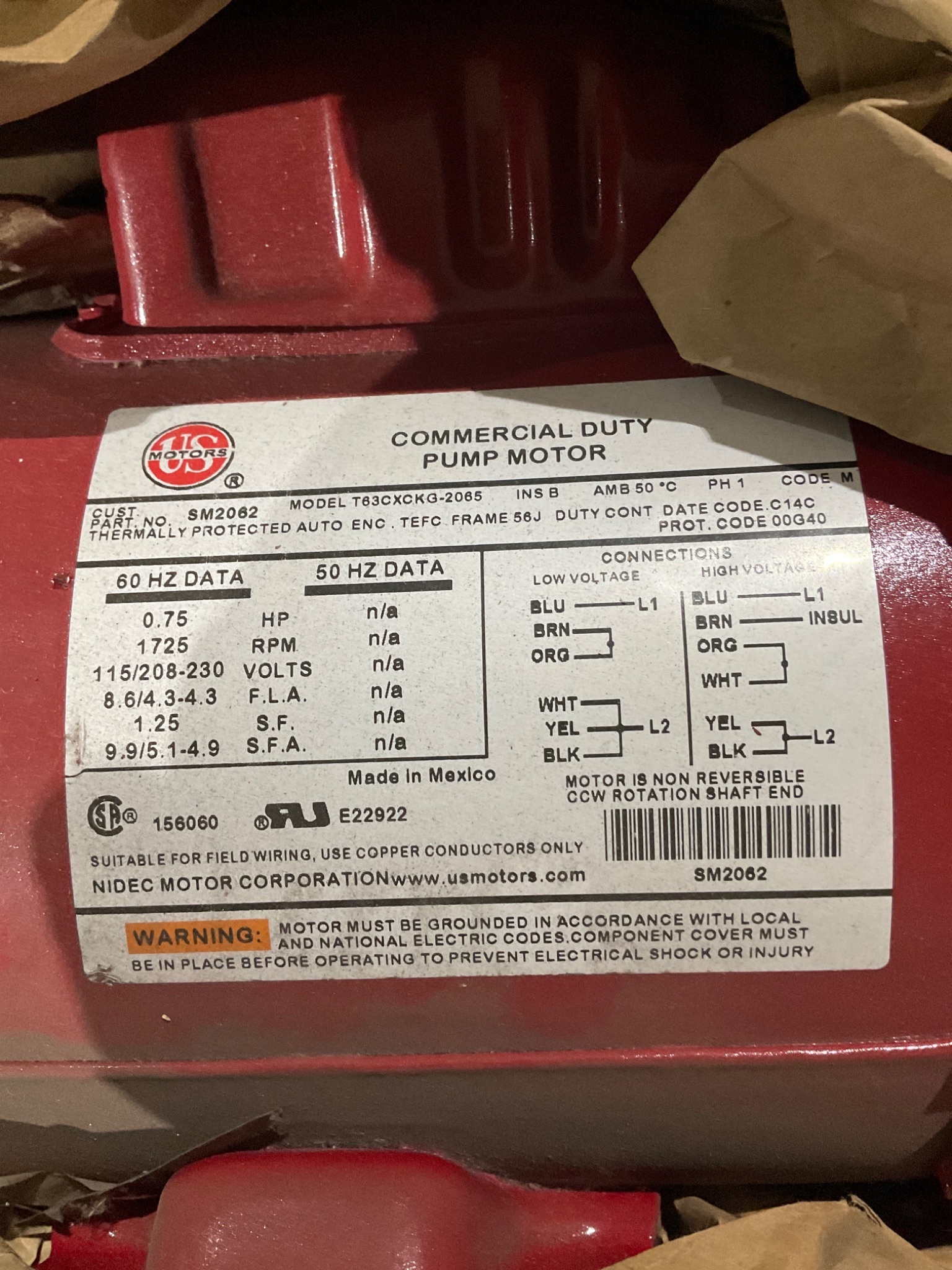

Manufacturer: Bell & Gossett (Xylem) Model/Series: Series E90 Part Number: C209628 Condition: USED YOM: n/a Pump Type: Close-coupled Centrifugal Circulating Pump Motor Type: AC Induction Motor (Single Phase) Horsepower: 0.75 HP Speed: 1725 RPM Voltage: 115 / 208-230 VAC Frequency: 60 Hz Full Load Current: 8.6 / 4.3-4.0 A Service Factor: 1.25 SF Amps: 9.9 / 5.1-4.9 A Enclosure: TEFC (Totally Enclosed Fan Cooled) Duty: Continuous Mounting: Base / inline mount Connection Type: Flanged piping connections
