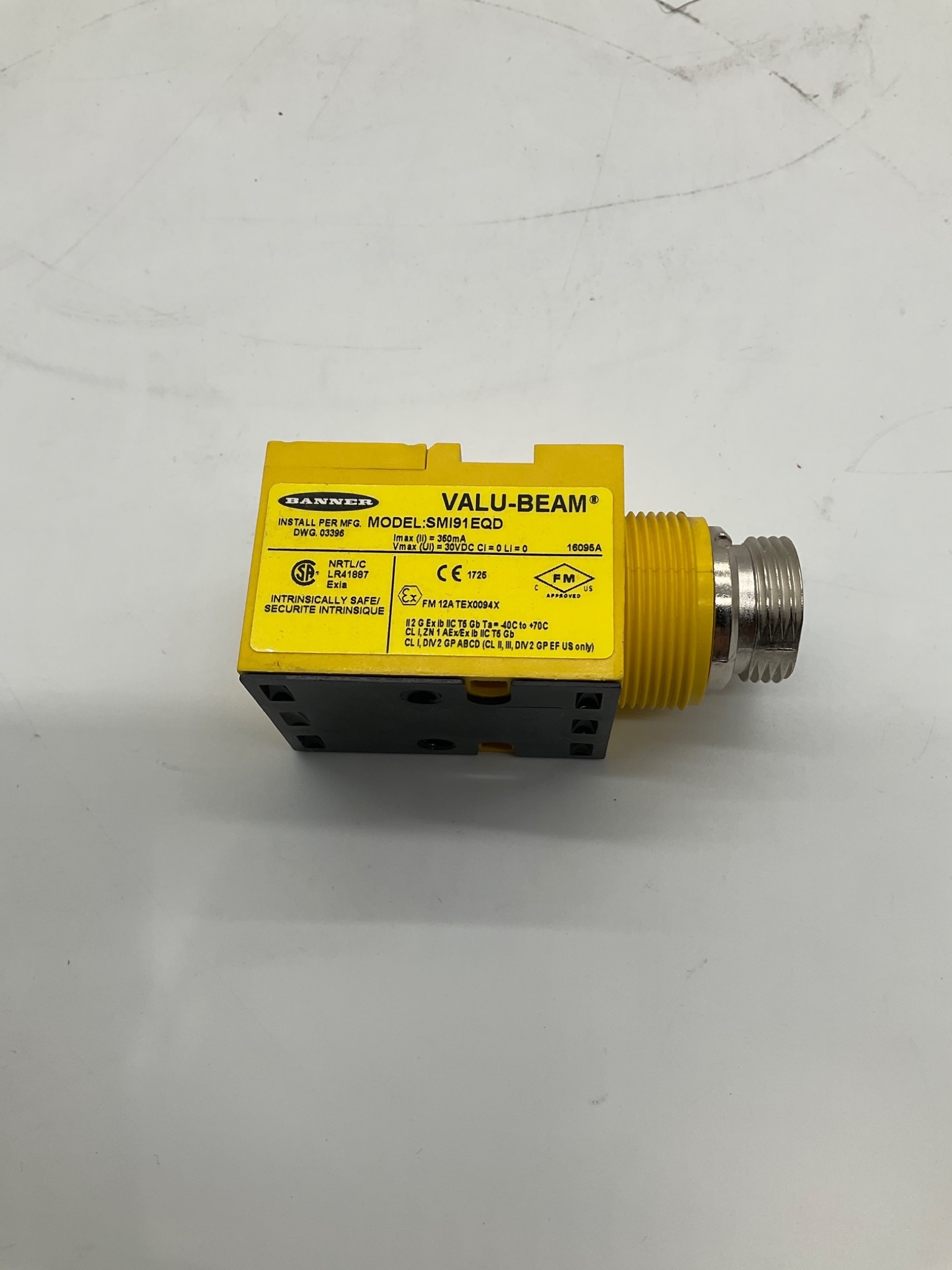

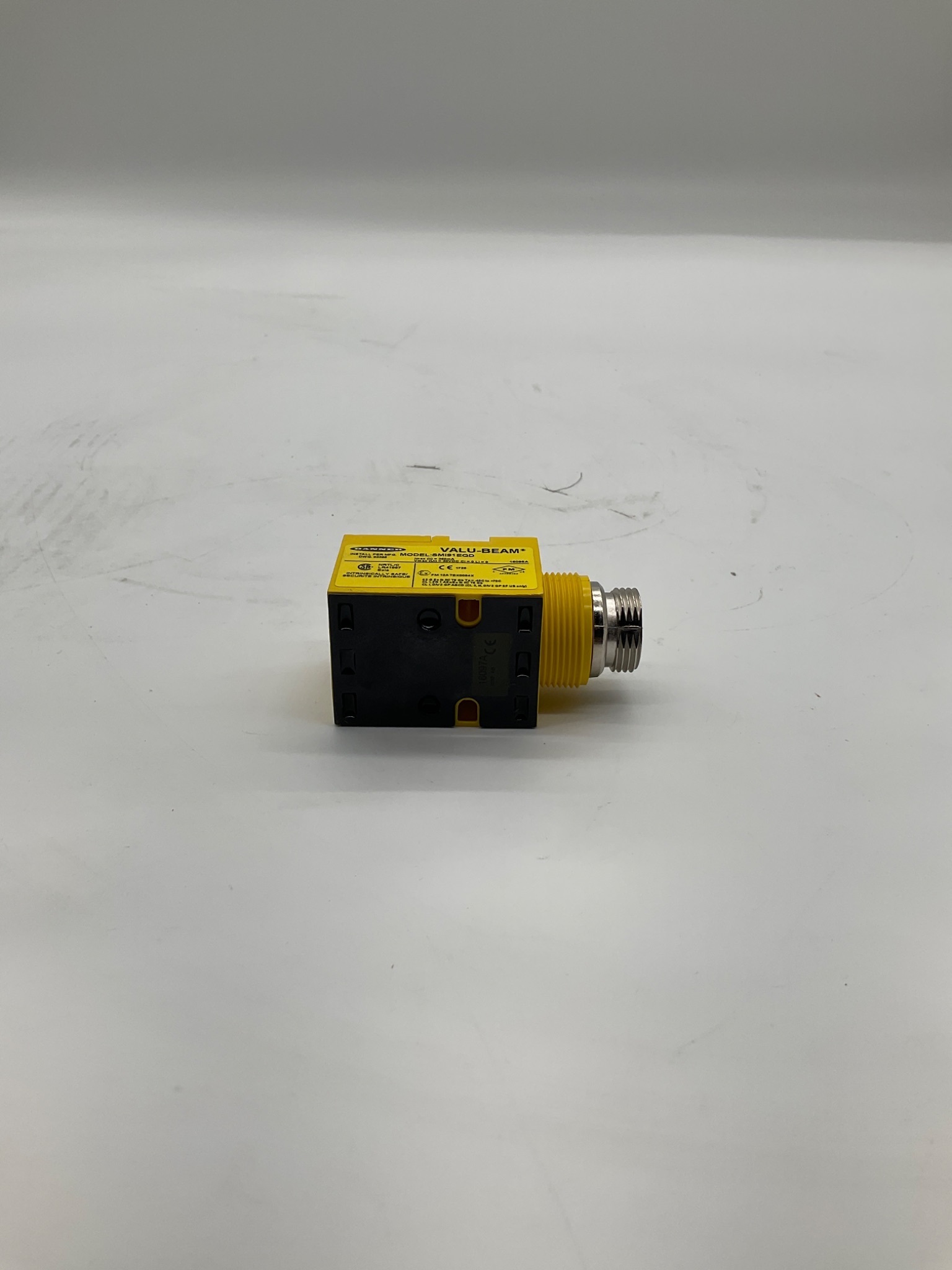

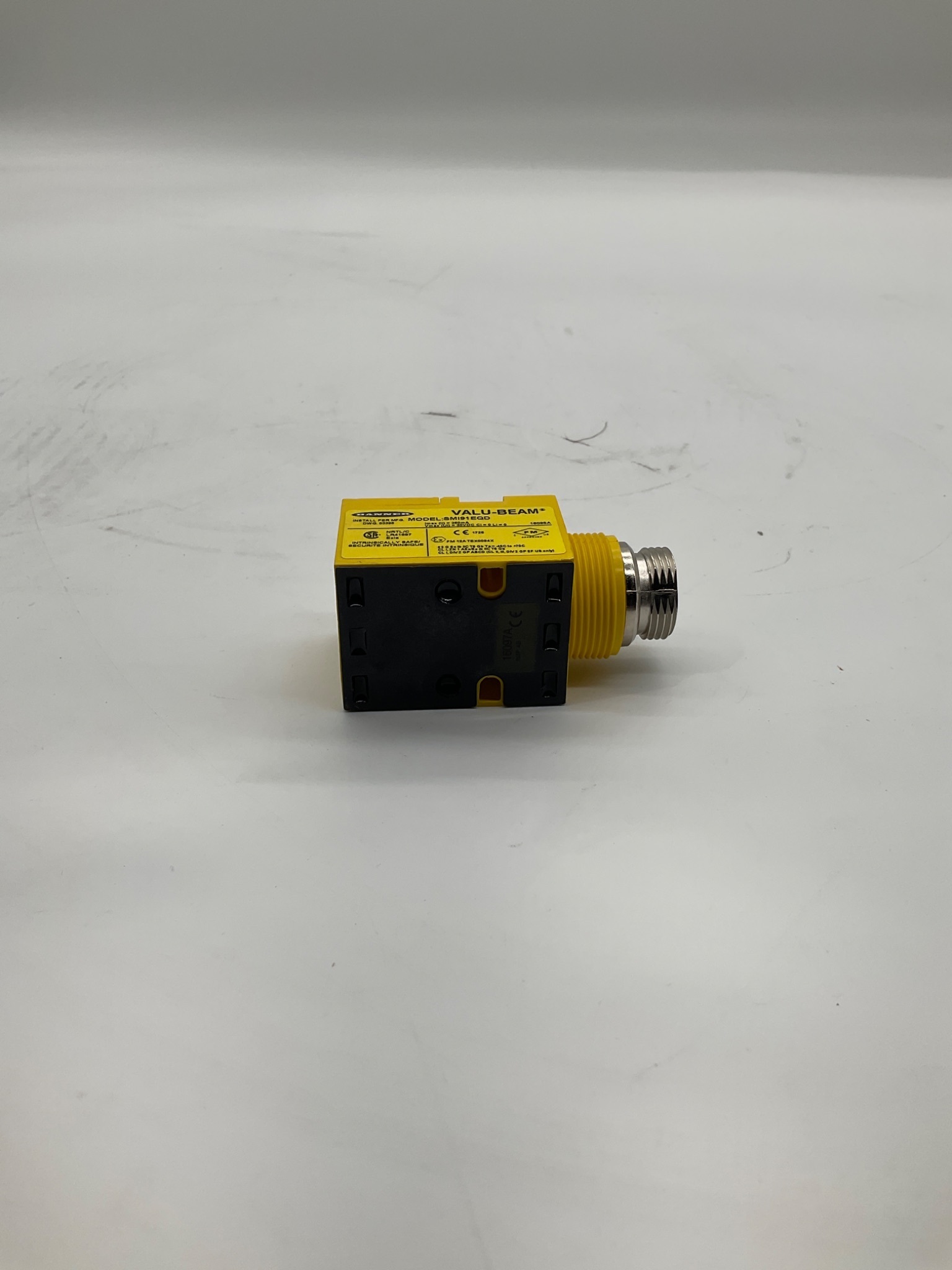

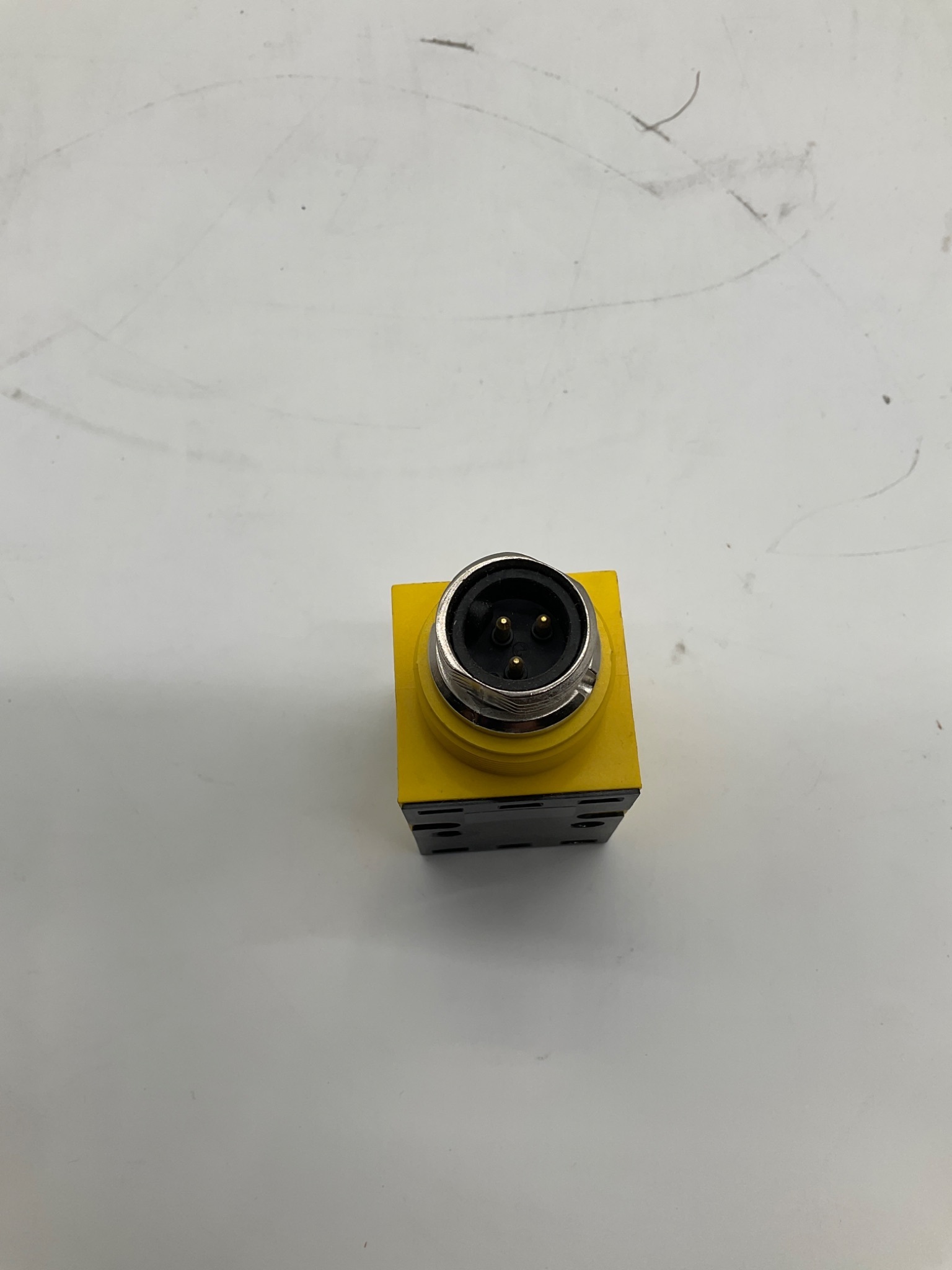

Banner SMI91EQD Valu-Beam Intrinsically Safe Photoelectric Sensor NEW

Specification Table

Manufacturer: Banner Engineering Series: VALU-BEAM Part Number: SMI91EQD Banner ID Number: 25688 Condition: NEW Device Type: Photoelectric Sensor Operating Principle: Modulated Infrared Photoelectric Sensing Housing Style: Rectangular Right-Angle Connection Type: Quick Disconnect (QD) Power Supply: 10-30 VDC Maximum Supply Voltage (Ui): 30 VDC Maximum Input Current (Ii): 350 mA Output Configuration: NPN Open Collector Output Rating: 150 mA Maximum Response Time: 1 ms Indicator: Output Status LED Repeatability: 1 ms Housing Material: Thermoplastic Polyester Environmental Protection: NEMA 6 IEC IP67 Hazardous Location Approvals: FM Approved ATEX Approved CSA Certified ATEX Marking: II 2 G Ex ib IIC T6 Gb Ta -40C to +70C II 2 D Ex ib IIIC T85C Db Operating Temperature: -40°C to +70°C Connection Size: M12 Quick Disconnect Sensing Technology: Infrared Photoelectric Threaded Connector: Nickel-Plated Brass Certifications: CE CSA FM ATEX Country of Manufacture: USA
