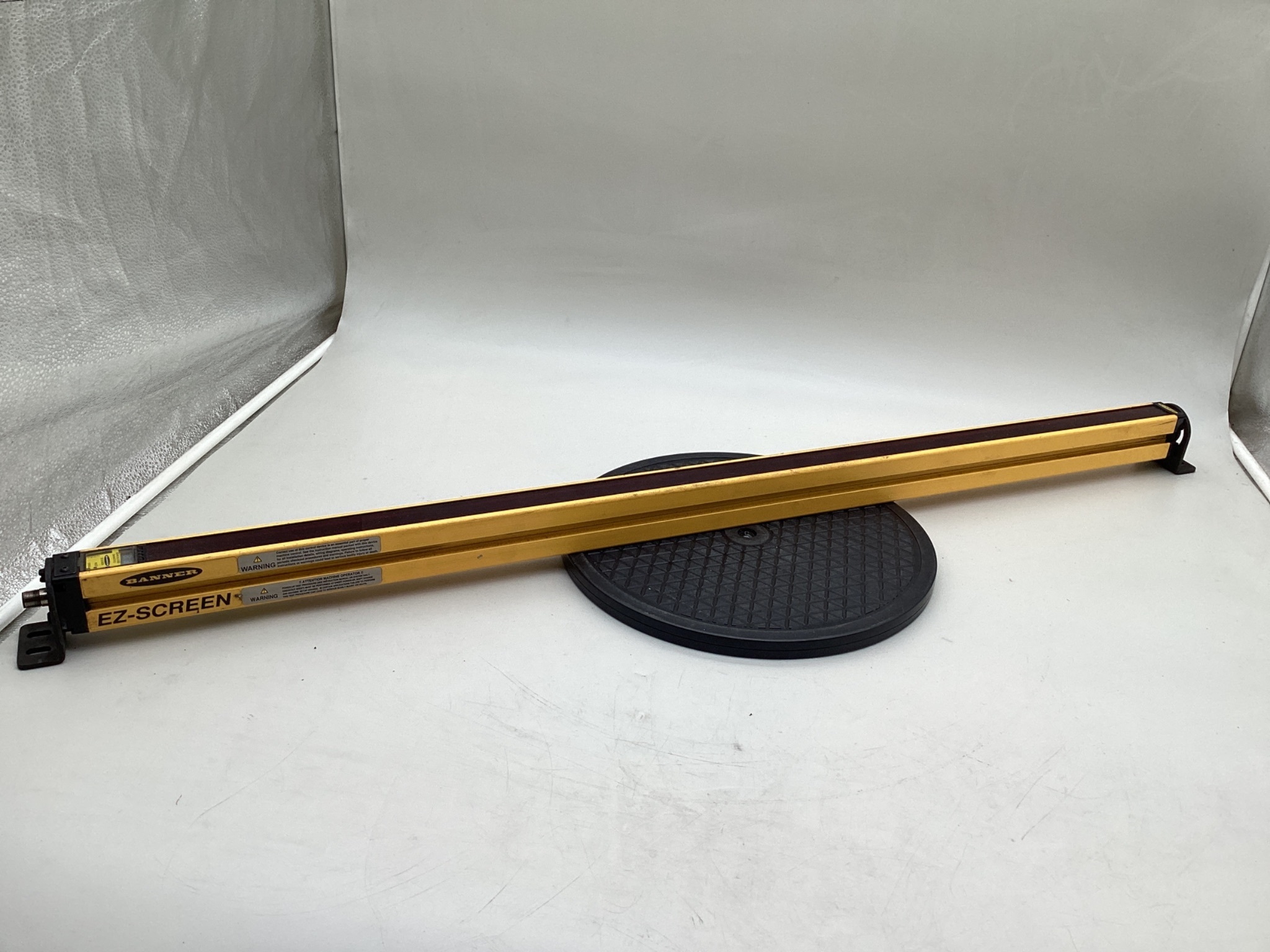

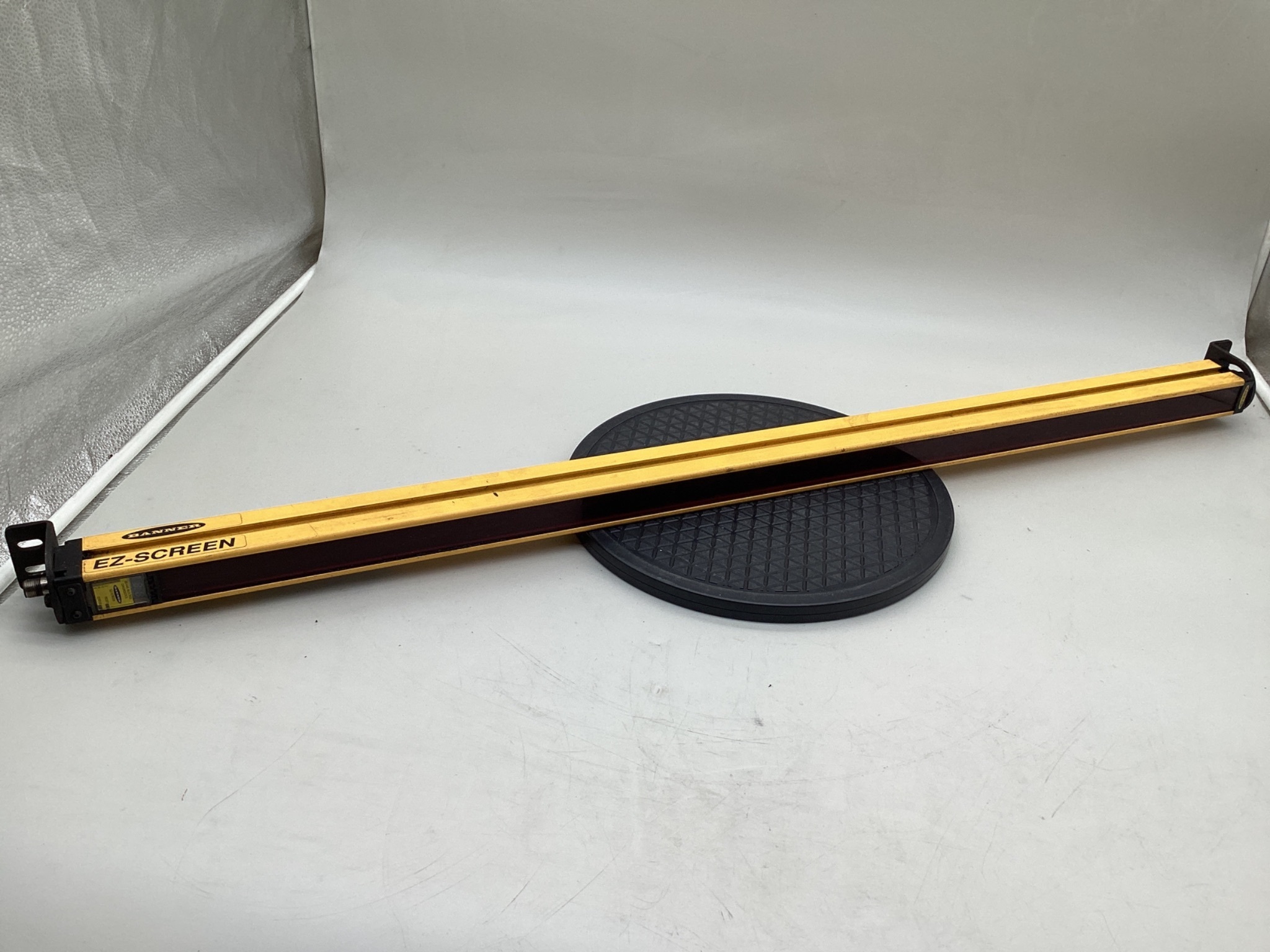

Banner SLSR30-900Q8 EZ-SCREEN LS 900mm Safety Light Curtain Receiver USED

Specification Table

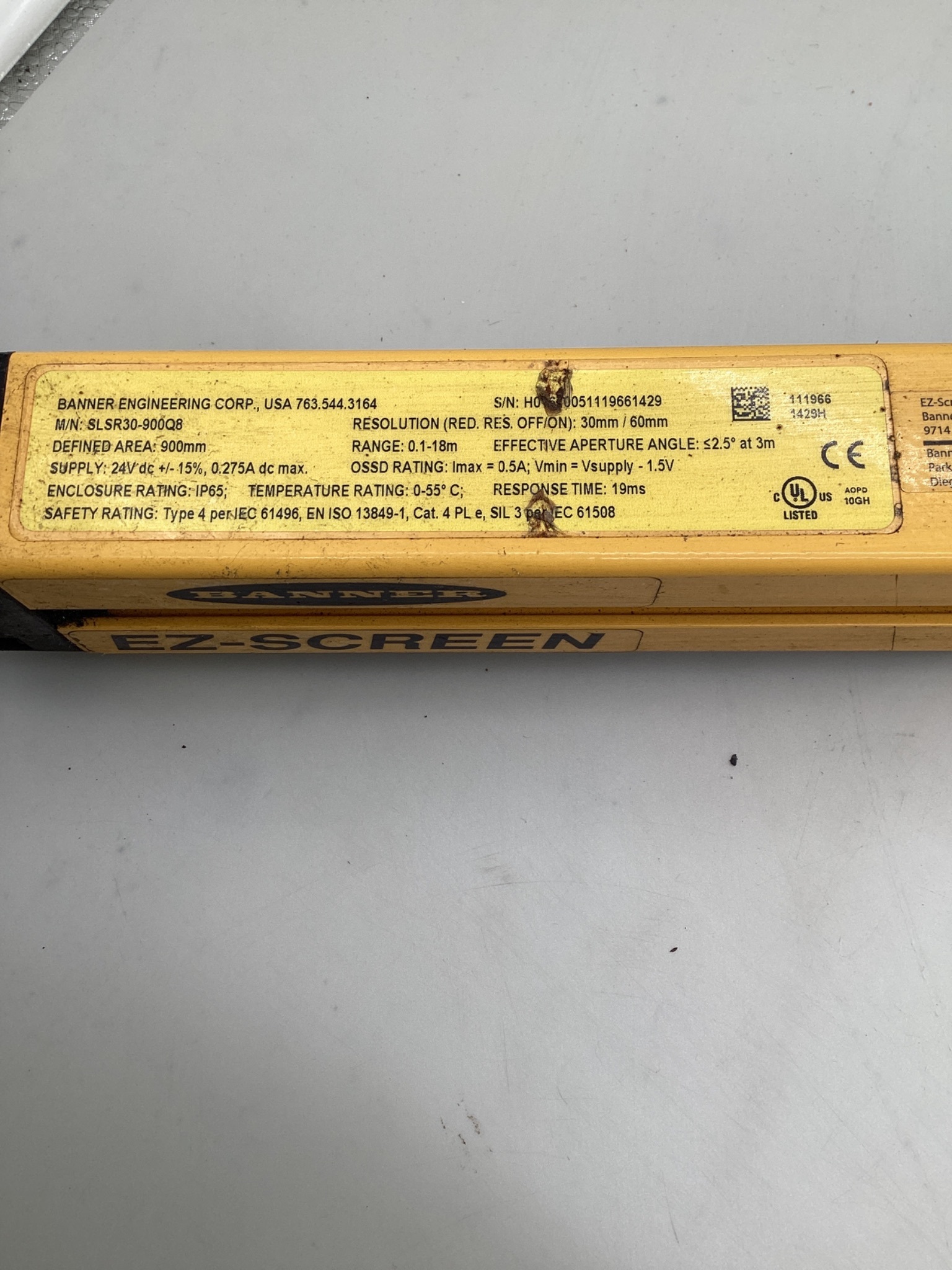

IDENTIFICATION Manufacturer: Banner Engineering Corp. Product Family: EZ-SCREEN LS Model: SLSR30-900Q8 Product Type: Safety Light Curtain Receiver Model ID: 111966 Serial Number: H0134051119661429 Condition: USED YOM: n/a   SENSING Defined Area: 900 mm Standard Resolution: 30 mm Reduced Resolution: 60 mm Operating Range: 0.1 to 18 m Effective Aperture Angle: ≤2.5° at 3 m Response Time: 19 ms   ELECTRICAL Supply Voltage: 24 VDC ±15% Maximum Supply Current: 275 mA DC   SAFETY OUTPUTS Output Type: OSSD Maximum OSSD Current: 0.5 A Minimum OSSD Output Voltage: Supply Voltage - 1.5 V   ENVIRONMENTAL Enclosure Rating: IP65 Operating Temperature: 0°C to 55°C   SAFETY RATINGS Safety Type: Type 4 per IEC 61496 Performance Level: Category 4, PL e SIL Rating: SIL 3 per IEC 61508   CERTIFICATIONS UL Listed: Yes CE Mark: Present
