Banner 86941 DELSE-51D Safety Light Curtain Cordset 0.3m NEW

Specification Table

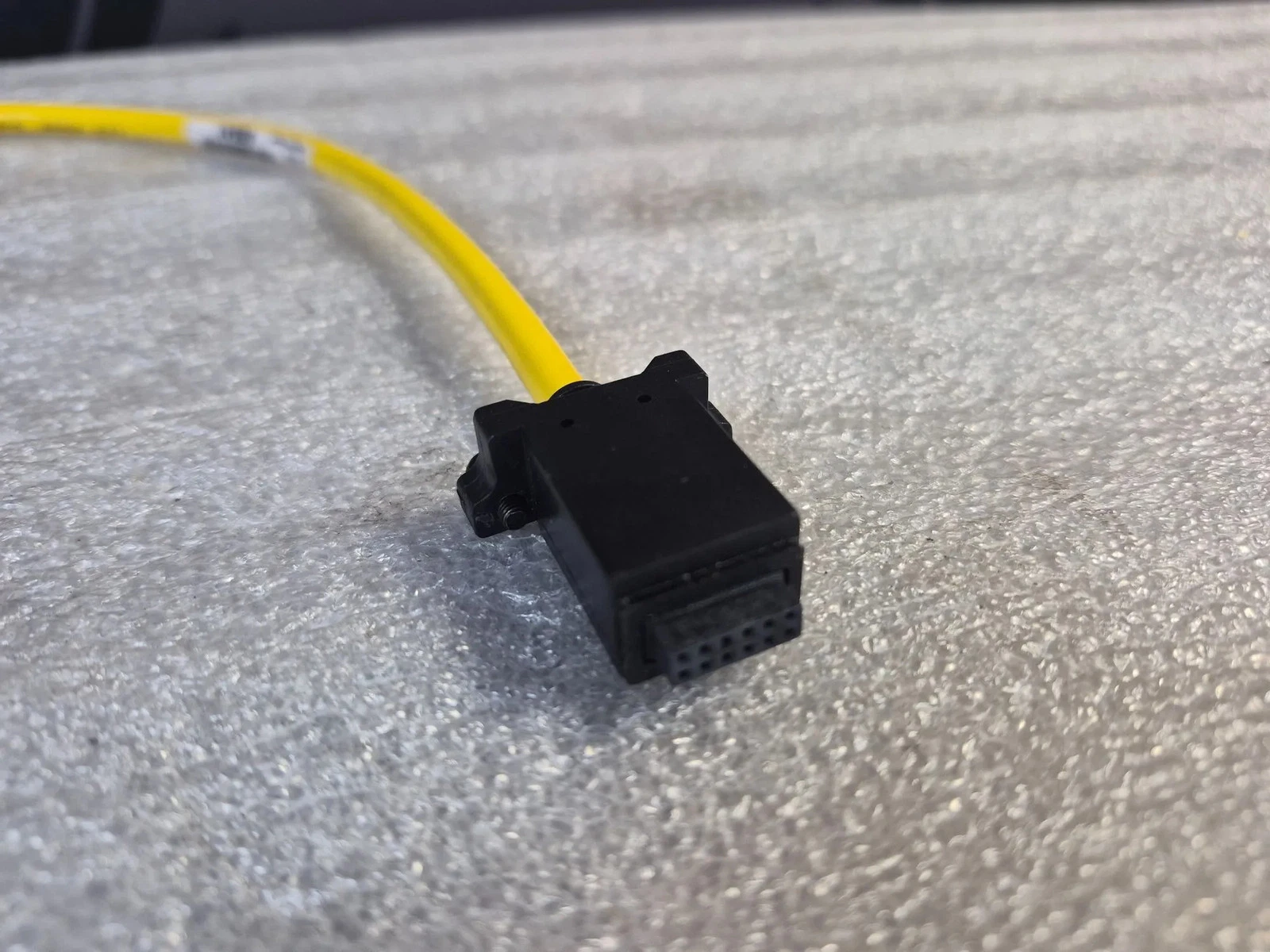

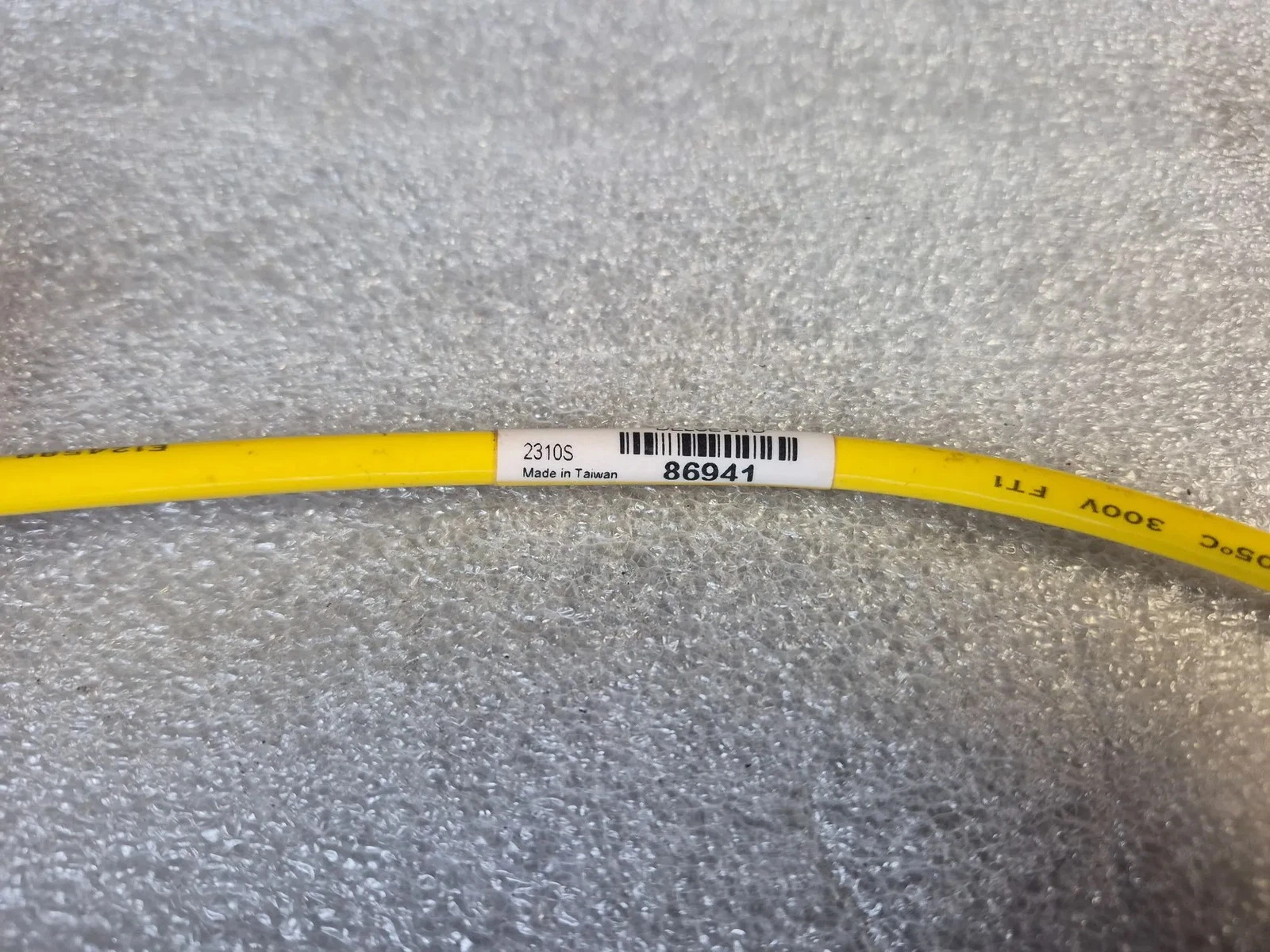

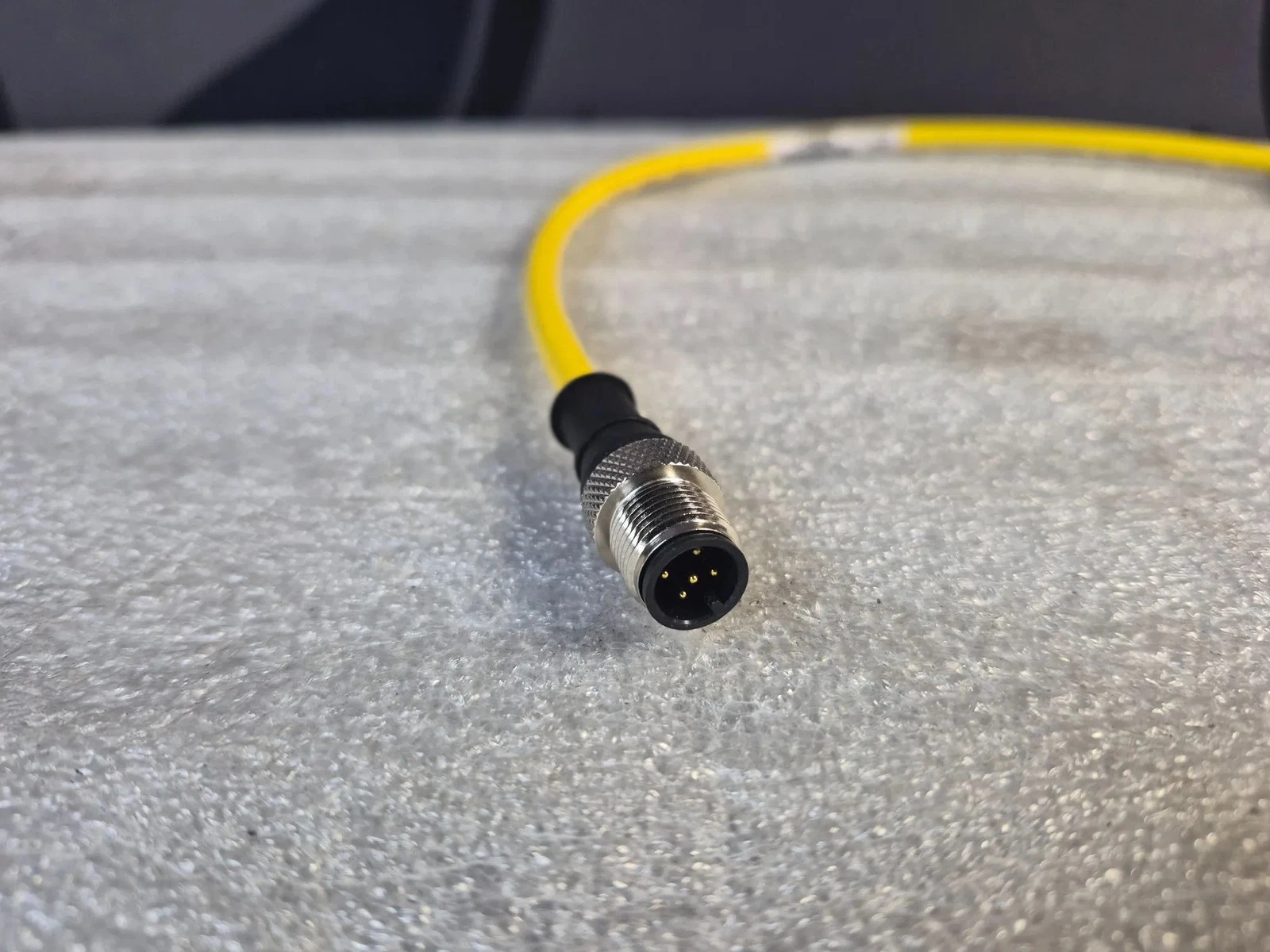

IDENTIFICATION Manufacturer: Banner Engineering Part Number: 86941 Model / Designation: DELSE-51D Product Type: Safety Light Curtain Cordset Application: Safety Accessory Condition: NEW YOM: n/a Country of Manufacture: Taiwan   CABLE CONFIGURATION Cordset Type: Double-Ended Cable Length: 0.3 m Number of Conductors: 5 Wire Size: 22 AWG Outside Cable Diameter: 5.92 mm Jacket Material: PVC Jacket Color: Yellow   CONNECTOR 1 Connector Type: LS-Custom Gender: Female Number of Contacts: 12 Orientation: Straight Overmold Material: PVC Overmold Color: Black   CONNECTOR 2 Connector Type: M12 Gender: Male Number of Contacts: 5 Key Code: A Orientation: Straight Coupling: Threaded Coupling Nut Material: Nickel-Plated Brass Body Size: Standard Overmold Material: PUR Overmold Color: Black   ELECTRICAL Supply Voltage Rating: 30 VAC/DC Current Rating: 2 A   ENVIRONMENTAL IP Rating: IP67 Minimum Temperature: -40°C Maximum Temperature: 70°C Washdown Rated: No Chemical Resistant: No Oil / Grease Resistant: No
