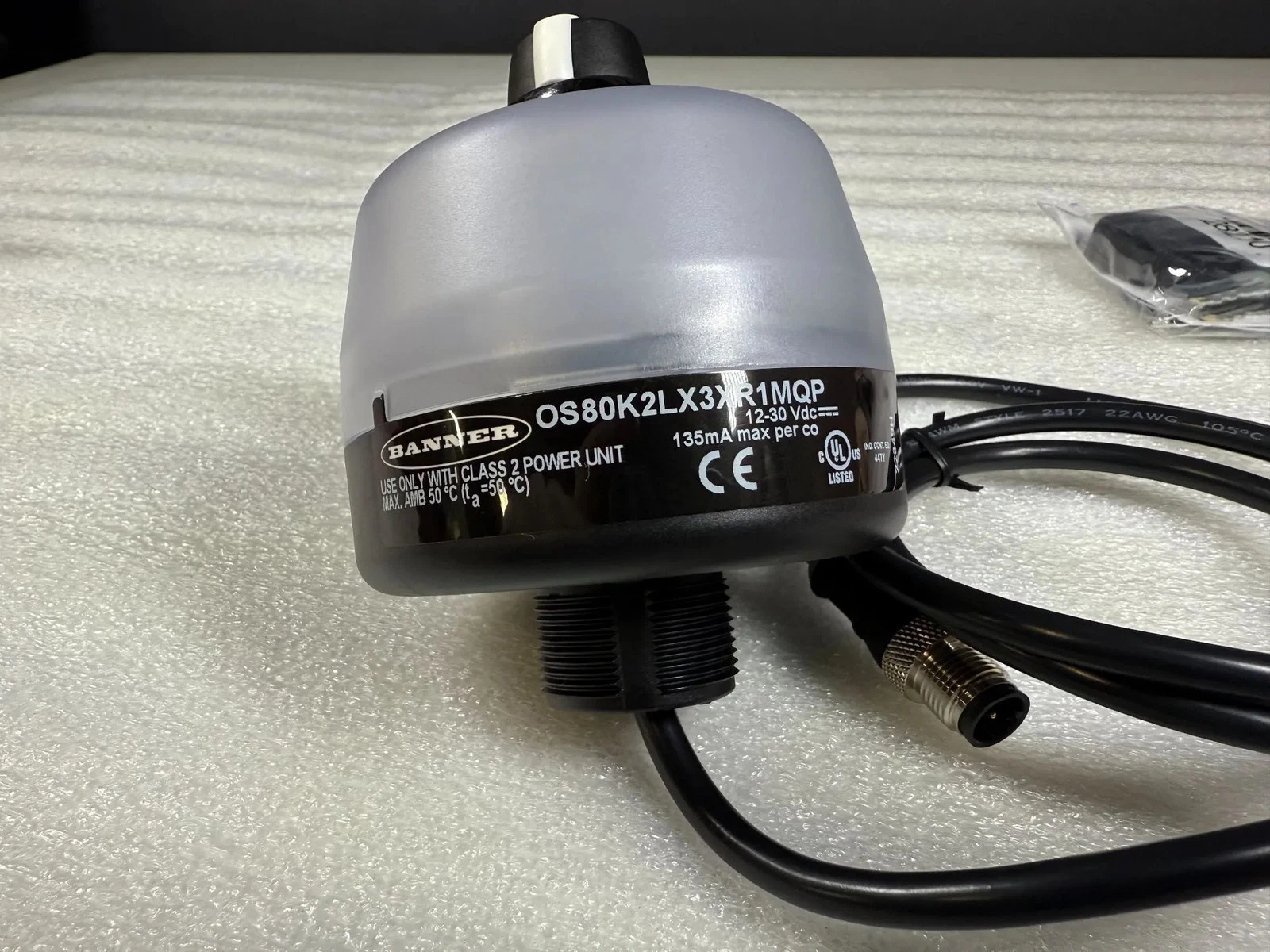

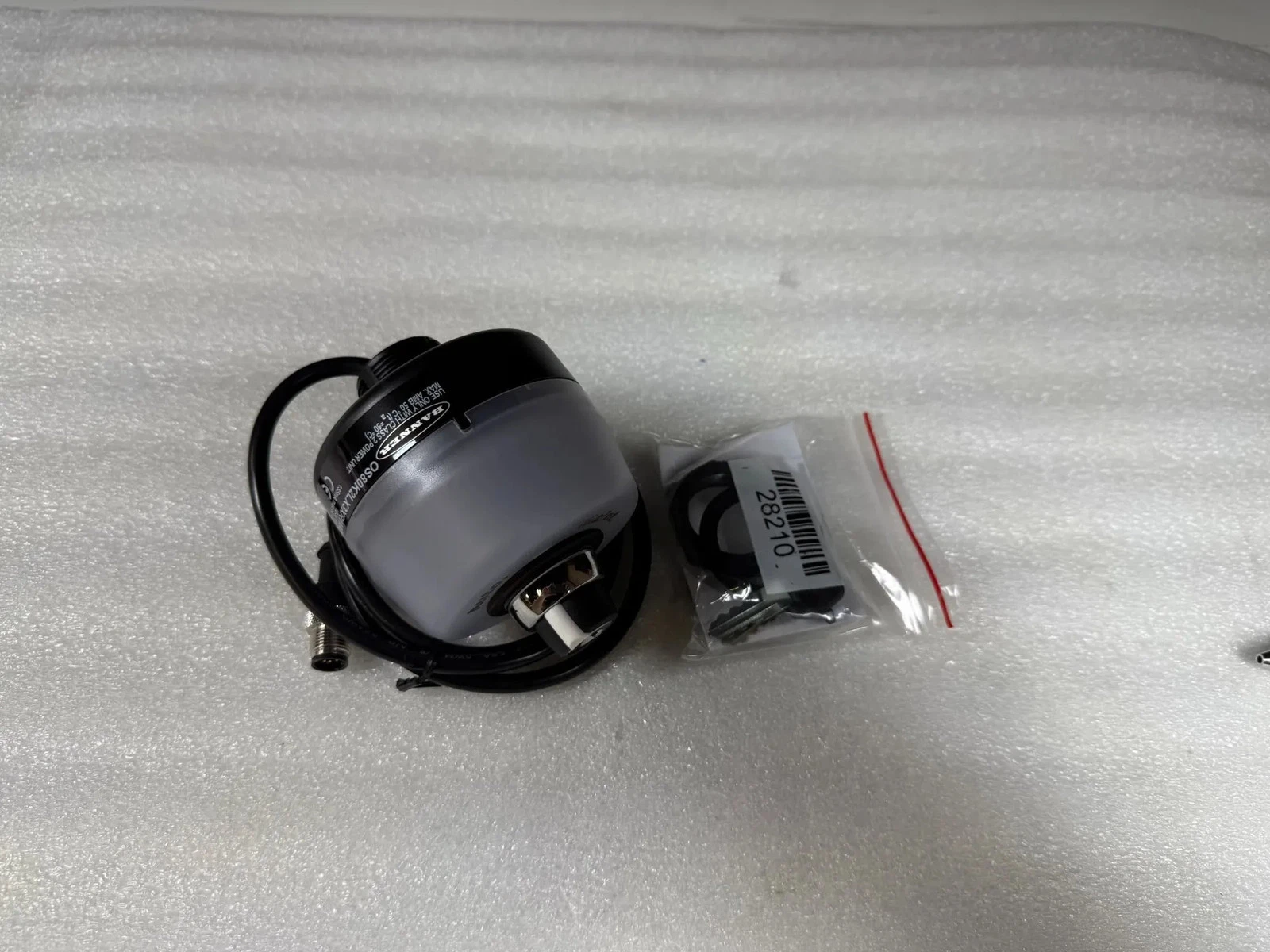

BANNER OS80K2LX3XR1MQP OS80 2-Position Key Switch NEW

Specification Table

IDENTIFICATION Manufacturer: Banner Engineering Banner Part Number: 812885 Model / Part Number: OS80K2LX3XR1MQP Product Family: OS80 Product Type: Illuminated Key Selector Switch Condition: NEW YOM: n/a OPERATOR / CONTROL Operator Type: Key Operated Selector Number of Positions: 2 Switching Action: On-Off Position 1: Auto Position 2: Maint Contact Configuration: 1 NO Output Type: PNP Output Function: Normally Open INDICATION Visual Indication: Illuminated Indication Color: Red Light Technology: LED Illuminated Housing Size: 80 mm ELECTRICAL Supply Voltage: 12-30 VDC Supply Current: 135 mA per Color Output Rating, 12-24 VDC: 4 A Output Rating, 30 VDC: 2.6 A Output Response Time: 50 ms Power-Up Delay: 300 ms Supply Protection: Reverse Polarity / Transient Voltage SERVICE LIFE Electrical Life: 1 Million Cycles Mechanical Life: 1 Million Cycles CONNECTION Connection Type: Pigtail Quick Disconnect Connector: 5-Pin M12 Cable Length: 1 m Cable Type: PVC Pin 1 / Brown: +VDC Pin 2 / White: PNP Input Pin 3 / Blue: 0 VDC Pin 4 / Black: PNP Output Pin 5 / Gray: Not Used INSTALLATION Mounting: Panel Threaded Base: M30 x 1.5 Maximum Mounting Torque: 4.5 N·m / 40 in-lbf Operator Interface: Front Panel Electrical Interface: Rear CONSTRUCTION Housing Material: Polycarbonate Selector Switch Material: Polyamide Housing Configuration: 80 mm Lighted Key Operator: Metal / Polymer ENVIRONMENTAL Protection Rating: IP40 Operating Temperature: -25 to +55 °C Relative Humidity: 45-85% RH Condensation: None Storage Temperature: -40 to +70 °C APPROVALS / MARKINGS CE: Yes cULus: Listed
