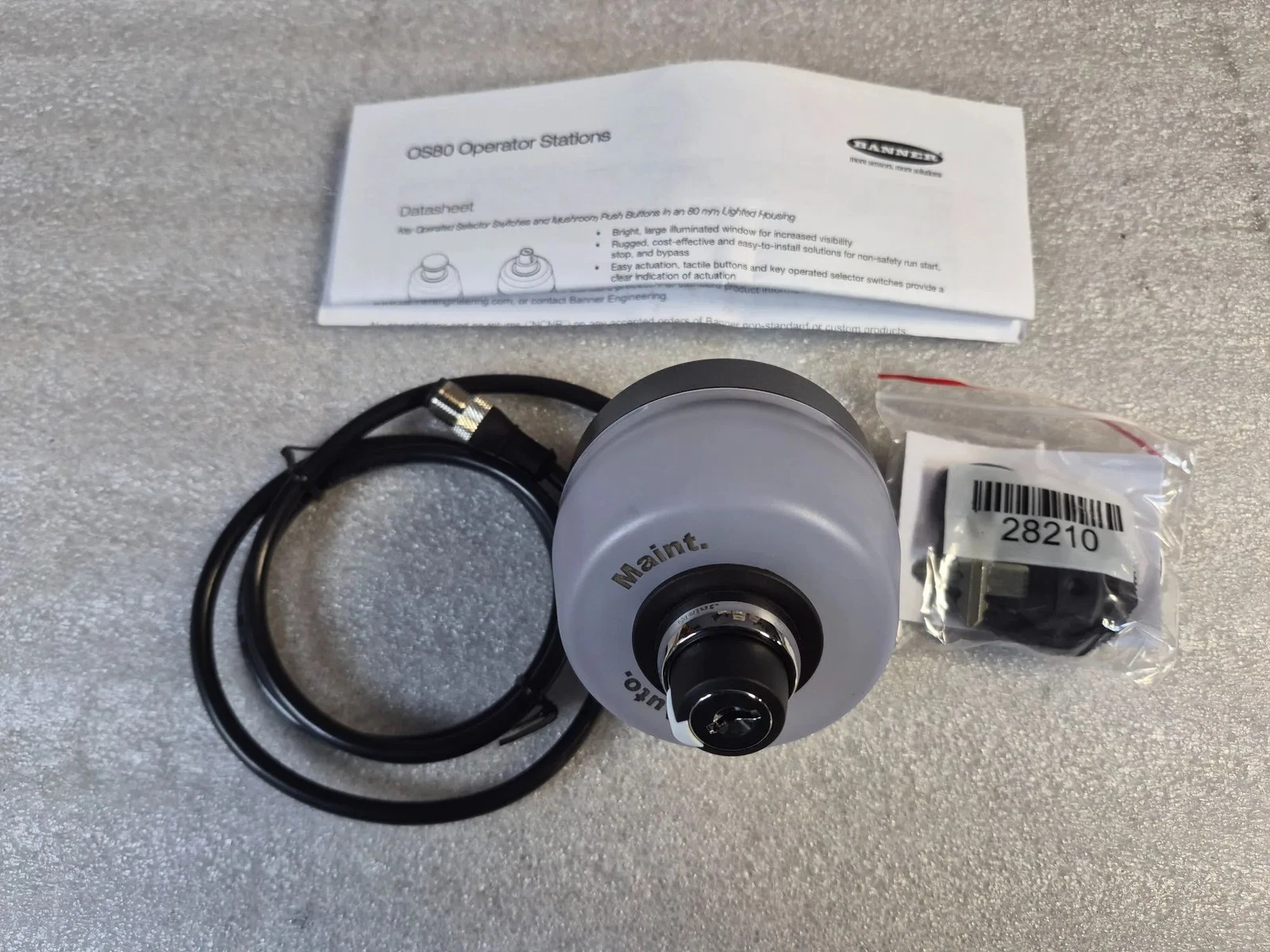

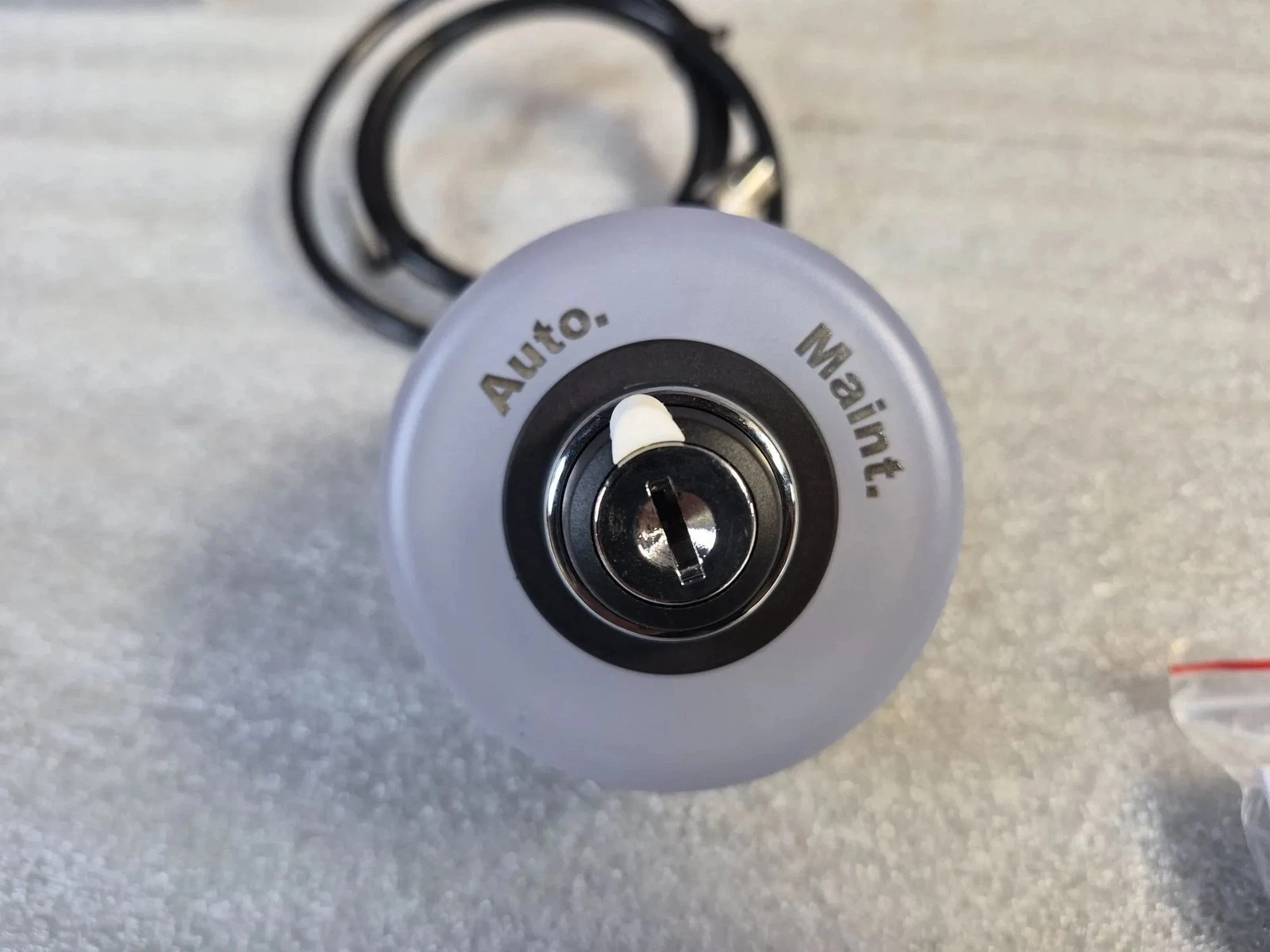

Banner 812885 OS80K2LX3XR1MQP Illuminated Keyed Operator Station NEW

Specification Table

IDENTIFICATION Manufacturer: Banner Engineering Part Number: 812885 Model / Designation: OS80K2LX3XR1MQP Series: OS80 Product Type: Illuminated Keyed Operator Station Condition: NEW YOM: n/a   OPERATOR CONFIGURATION Operator Type: Keyed Selector Switch Number of Positions: 2 Switch Action: On-Off Operator Marking: Auto / Maint. Housing Diameter: 80 mm Illumination Color: Red   ELECTRICAL / OUTPUT Supply Voltage: 12 to 30 VDC Output Type: PNP Contact Function: 1 Normally Open Output Rating at 12-24 VDC: 4 A Output Rating at 30 VDC: 2.6 A Output Response Time: 50 ms Power-Up Delay: 300 ms   CONNECTION Connection Type: Pigtail Quick Disconnect Cable Length: 1 m (40 in.) Connector Type: M12 Number of Pins: 5 Connector Thread: M12 x 1   CONSTRUCTION Housing Material: Polycarbonate Selector Material: Polyamide Mounting Thread: M30 x 1.5 Maximum Mounting Torque: 4.5 N·m (40 in-lbf) Environmental Rating: IP40   OPERATING CONDITIONS Operating Temperature: -25°C to +55°C Relative Humidity: 45% to 85%, Non-Condensing Storage Temperature: -40°C to +70°C   SERVICE LIFE Electrical Life: 1 Million Cycles Mechanical Life: 1 Million Cycles   COMPLIANCE cULus: Listed CE: Marked
