Banner 79657 CSF-M12F51M12M41 M12 Y Splitter Cordset NEW
Banner 79657 CSF-M12F51M12M41 M12 Y Splitter Cordset NEW - Image 2
Banner 79657 CSF-M12F51M12M41 M12 Y Splitter Cordset NEW - Image 3
Banner 79657 CSF-M12F51M12M41 M12 Y Splitter Cordset NEW - Image 4

SOLD!

Banner 79657 CSF-M12F51M12M41 M12 Y Splitter Cordset NEW

$30.00
Availability:

34 in stock
BRAND: BANNER MODEL: 79657 CONDITION: New - Open Box
SKU: IGAM3220559 Weight: 1 lbs Shipping Calculated at Checkout

34 in stock

Make an offer

Overview

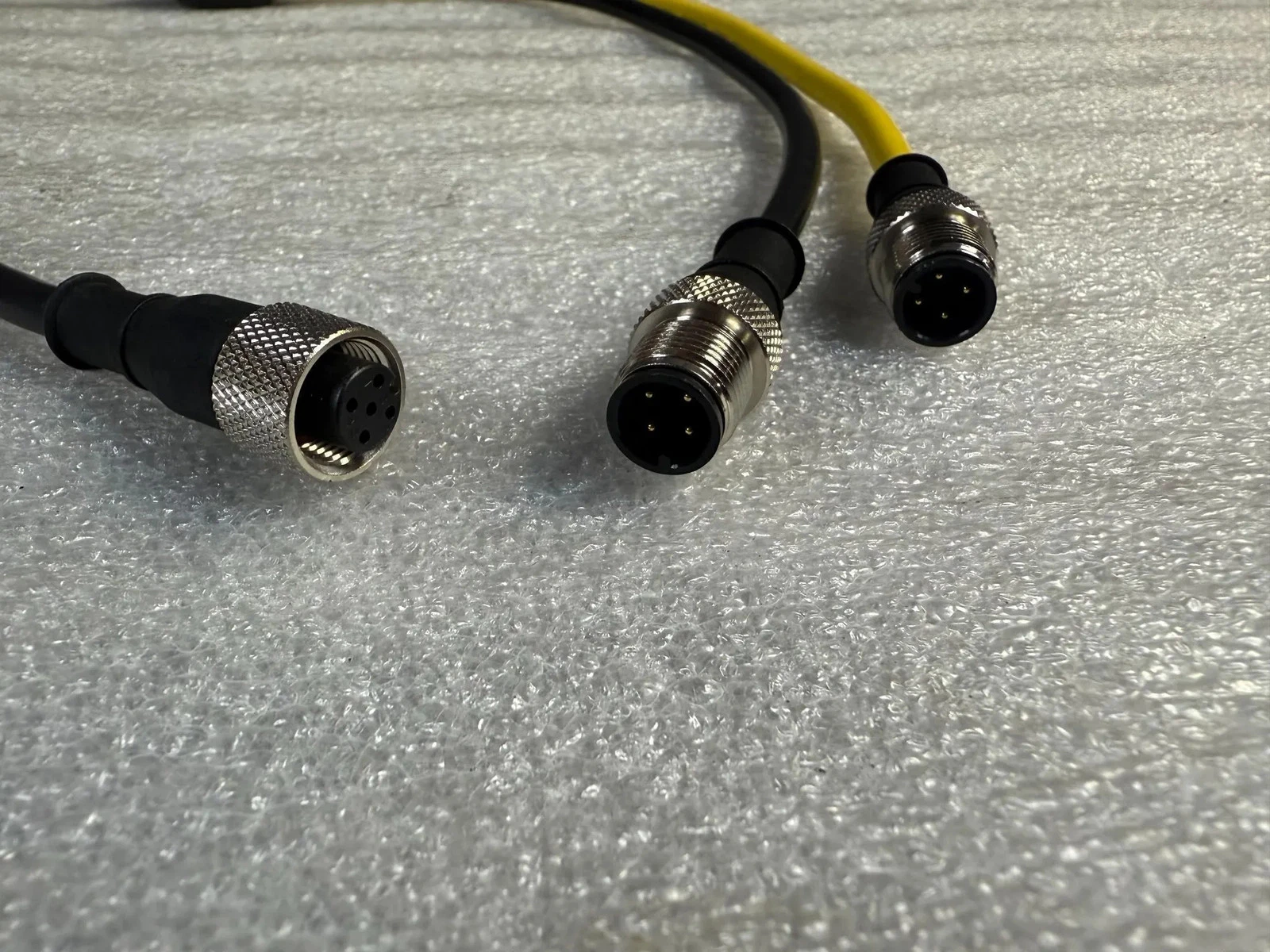

This listing is for a NEW Banner 79657, model CSF-M12F51M12M41. This safety light curtain splitter cordset provides a Y-style connection between one 5-pin M12 female connection and two 4-pin M12 male connections for compatible industrial automation and safety systems. The cordset is non-shielded, IP67 rated, operates up to 250 VAC/DC and 4 A, and incorporates 0.3 m trunk and branch cable lengths.

Specification Table

IDENTIFICATION Manufacturer: Banner Engineering Part Number: 79657 Model / Designation: CSF-M12F51M12M41 Reference Number: 806240 Product Type: Safety Light Curtain Splitter Cordset Condition: NEW YOM: n/a   CABLE CONFIGURATION Cordset Type: Y-Splitter Number of Ends: 3 Number of Branches: 2 Wiring Configuration: Combiner Shielding: No Shield Cable Jacket Material: PVC Splitter Overmold Material: PUR Splitter Overmold Color: Black   TRUNK CONNECTION Connector Type: M12 Gender: Female Number of Contacts: 5 Orientation: Straight Cable Length: 0.30 m   BRANCH CONNECTIONS Connector Type: M12 Number of Connectors: 2 Gender: Male Contacts Per Connector: 4 Orientation: Straight Branch Length: 0.30 m Each Key Code: Not specified   ELECTRICAL Voltage Rating: 250 VAC/DC Current Rating: 4.0 A Wire Size: 22 AWG Non-Shielded: Yes   ENVIRONMENTAL IP Rating: IP67 Minimum Temperature: -40°C Maximum Temperature: 105°C Washdown Rated: No Oil / Grease Resistant: No   APPROVALS CE: Marked
▸ Key Features:
• M12 splitter cable with 1 female trunk and 2 male branch connectors

• 5-pin configuration for industrial sensor and automation systems

• IP68 rated for protection against dust and water ingress
• Black PVC jacket with one yellow branch cable for easy identification
• 22 AWG cable for reliable signal and power transmission
• Compact Y-style splitter design for efficient wiring layouts
▸ Applications:
• Industrial automation and control systems

• Sensor and actuator connectivity

• Machine building and OEM equipment integration
• PLC and I/O device wiring setups
• Applications requiring signal splitting to multiple devices
▸ Alternative Model Numbers:
806240

CSF-M12F51M12M41-806240

Banner CSF Series Splitter

79657

CSF-M12F51M12M41 Cable Assembly
▸ Common Misspellings or Phrasing:
Banner splitter cable M12

CSFM12F51M12M41

Banner M12 Y cable

Banner 806240 cable

M12 splitter cordset Banner
