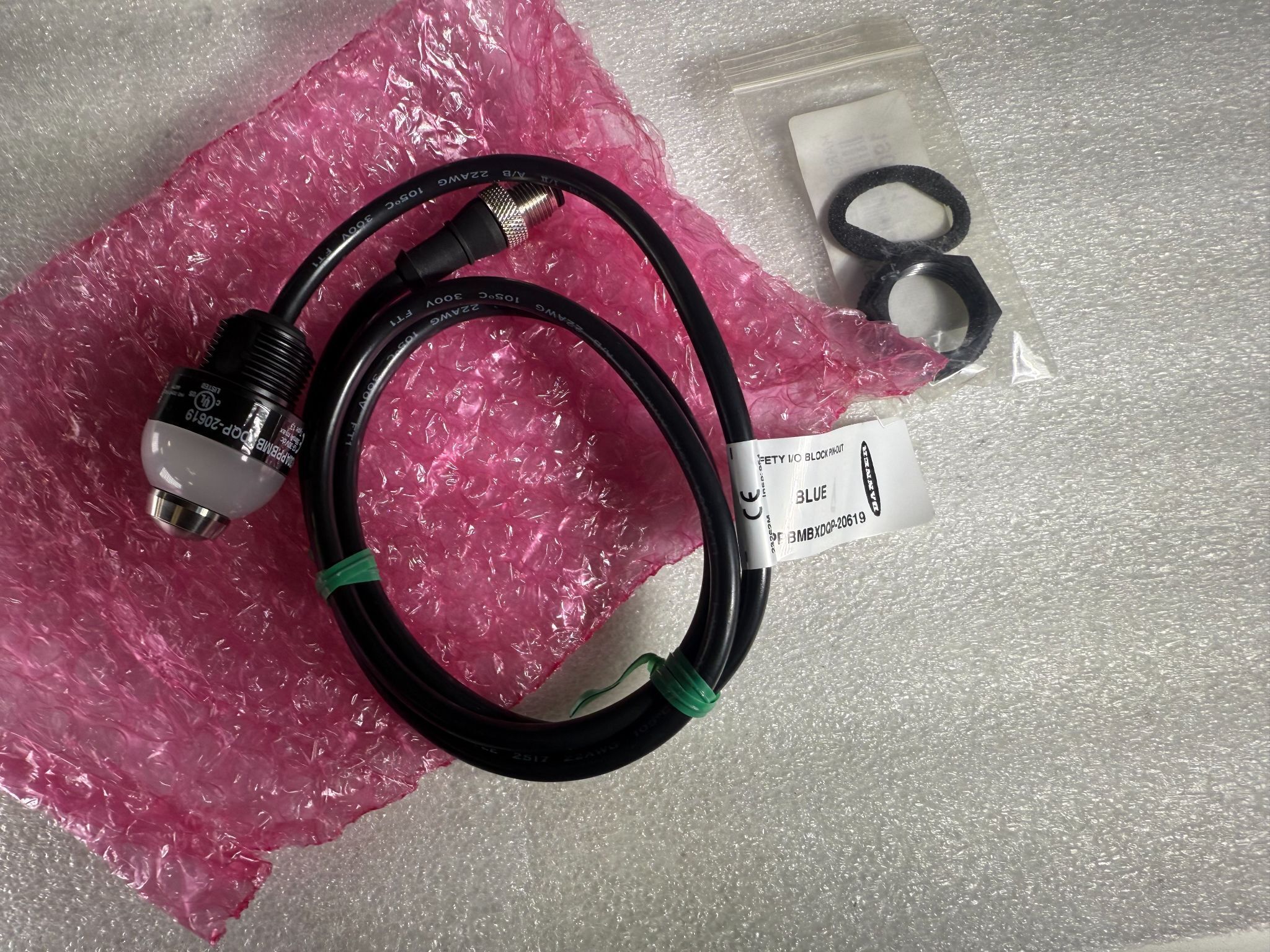

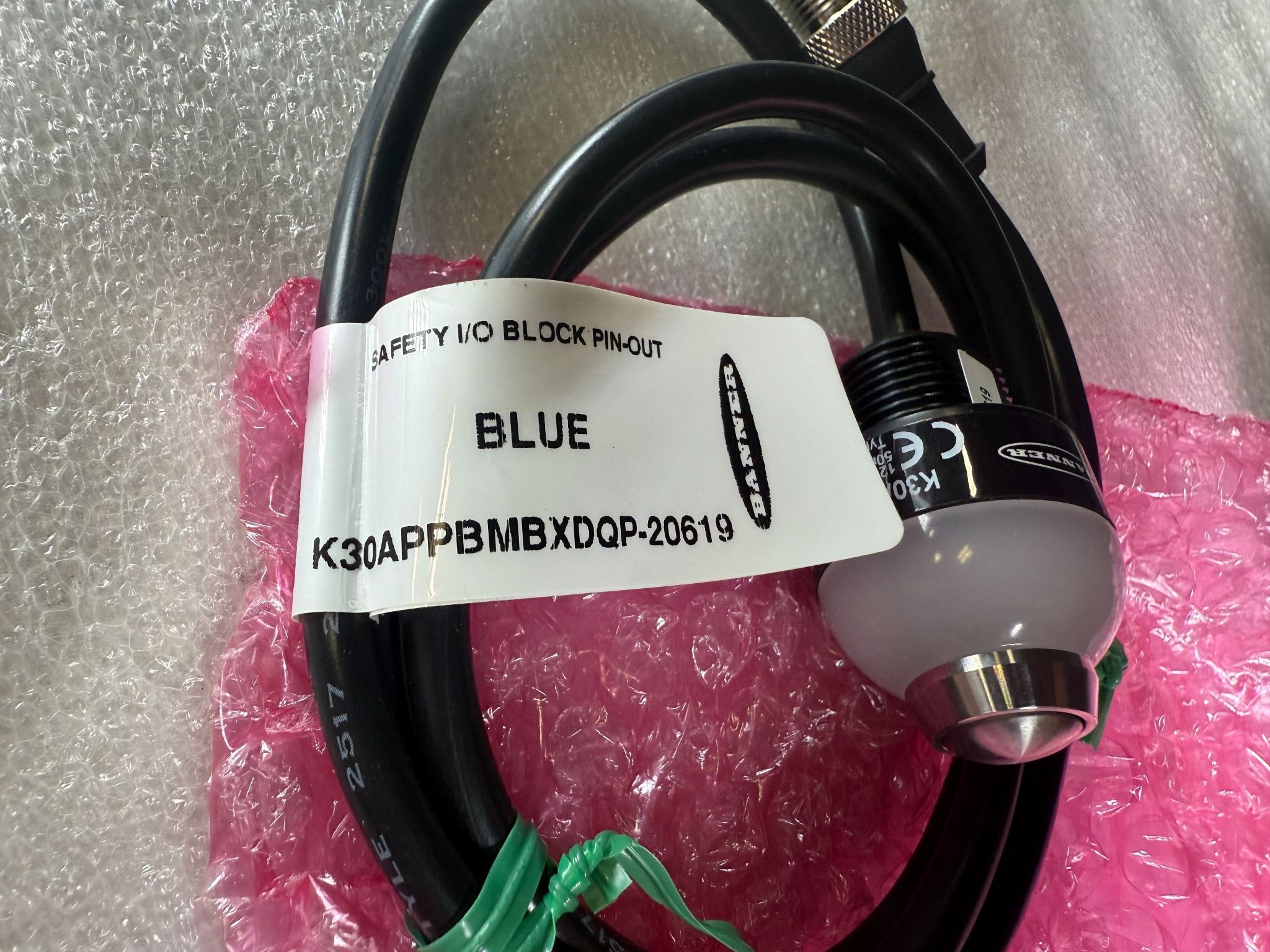

Banner 20619 K30APPBMBXDQP-20619 Blue K30 Pick-to-Light Sensor NEW

Specification Table

IDENTIFICATION Manufacturer: Banner Engineering Part Number: 20619 Model / Type: K30APPBMBXDQP-20619 Product Family: EZ-LIGHT K30 Product Type: Pick-to-Light Sensor Condition: NEW YOM: n/a Country of Assembly: Mexico   OPERATOR / INDICATION Operator Type: Pushbutton Operator Function: User Input Visual Indication: Integrated Indication Color: Blue Light Technology: LED Indicator Configuration: Illuminated Dome   ELECTRICAL Supply Voltage: 12-30 VDC Maximum Supply Current: 50 mA Maximum Load: 150 mA ON-State Voltage, 10 mA: <0.5 VDC ON-State Voltage, 150 mA: <1.0 VDC OFF-State Leakage Current: <10 µA @ 30 VDC Output Response Time: 1 ms ON / OFF Input Impedance: 10 kOhm Input High: >8.0 V   PROTECTION Reverse Polarity Protection: Yes Transient Voltage Protection: Yes Output Overload Protection: Yes Output Short Circuit Protect: Yes False Pulse Protection: Power-Up   CONNECTION / WIRING Connection Type: Quick Disconnect Connector Type: M12 Connector Gender: Male Cable Configuration: Integral Conductor Size: 22 AWG Cable Rating: 300 V   ENVIRONMENTAL Protection Rating: IP65 Enclosure Rating: Type 13 Operating Temperature: -40 to +50 °C Relative Humidity: 90% Max. @ 50 °C Condensation: Non-Condensing Storage Temperature: -40 to +70 °C   CONSTRUCTION Base Material: Polycarbonate Dome Material: Polycarbonate Pushbutton Material: Thermoplastic Housing Configuration: Compact / Self-Contained   APPROVALS / MARKINGS CE: Yes UL: Marked
