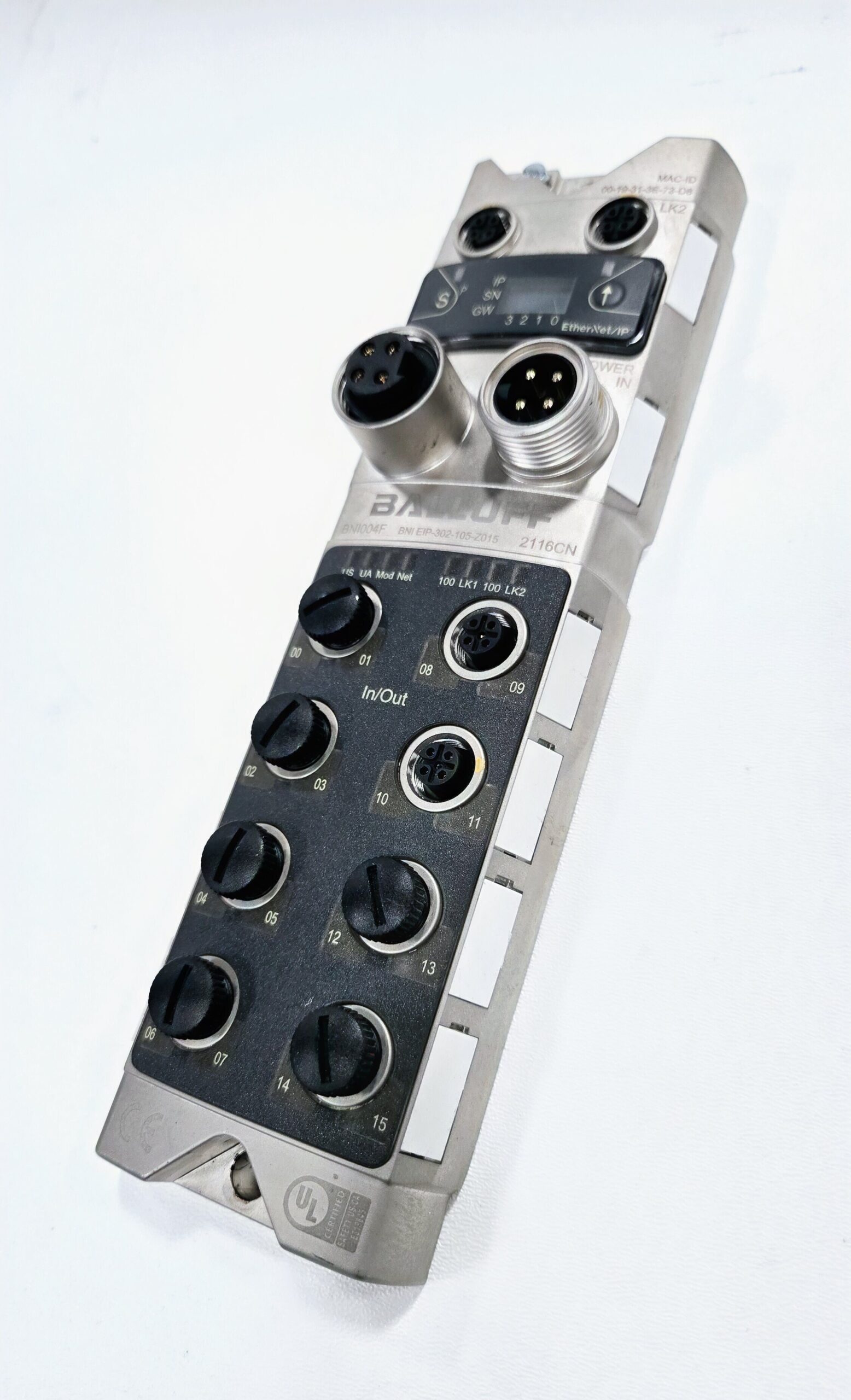

Specification Table
Manufacturer: BALLUFF
Model/Series: BNI EIP-302 Series
Part Number: BNI004F / BNI EIP-302-105-Z015 2116CN
Condition: USED
YOM: n/a
Module Type: Distributed I/O Module
Communication Protocol: EtherNet/IP
Supply Voltage: 24 VDC
Connection Type: M12 field I/O ports and Ethernet interface
Port Configuration: Multi-channel (labeled 00–15)
Configuration Interface: Integrated IP/SN/GW selector with display
Mounting: Machine-mounted field I/O block
Function: Networked sensor and actuator communication
Product Specifications
-

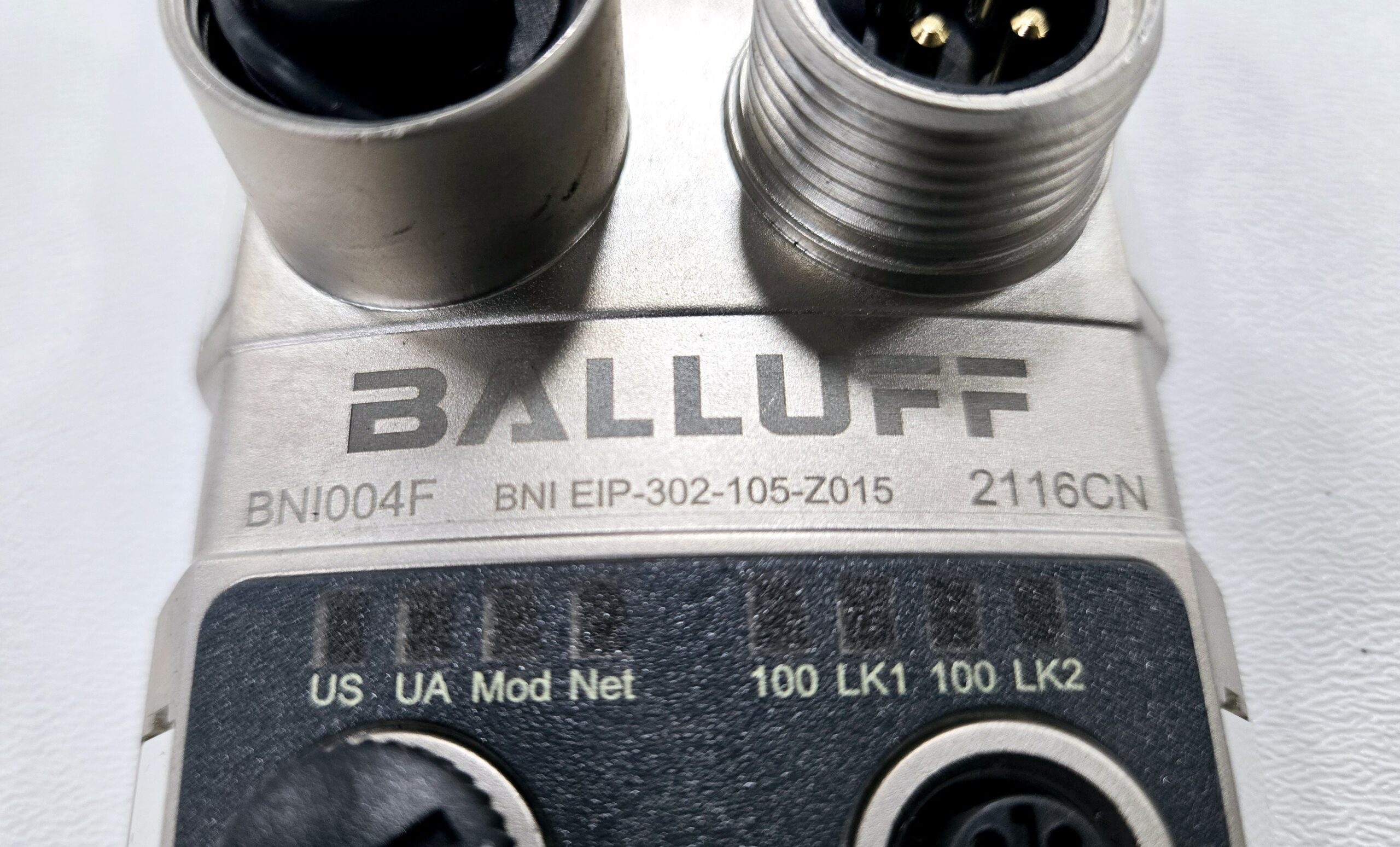

Model Number: BNI004F
-
Part Number: BNI EIP-302-105-Z015
-
ID Code: 2116CN
-
Protocol: Ethernet/IP
-
I/O Configuration: Typically 16 configurable I/O ports (model dependent)
-
Voltage Supply: 24 V DC
-
Connection Type: M12 connectors for power and I/O
-
Enclosure Rating: IP67 (dust-tight and water immersion resistant)
-
Mounting: Direct machine or DIN rail mounting
Key Features
-
Ethernet/IP communication for fast and standardized fieldbus integration
-
Modular I/O configuration simplifies installation and maintenance
-
IP67 protection for use in wet, dusty, and rugged environments
-
Compact form factor ideal for machine-level I/O decentralization
-
Diagnostic LEDs for power, status, and channel-level feedback
Applications
-
Machine automation and control systems
-
I/O expansion in PLC-based industrial networks
-
Assembly and material handling equipment
-
Robotics and packaging lines
-
Factory floor sensor and actuator integration
Alternative model numbers include: BNI EIP-302-105, BNI004F 2116CN, Balluff Ethernet/IP I/O Module, BNI004F-Z015, Balluff BNI 2116CN
Common misspellings include: BNI004-F, BNI EIP302105Z015, BNI004F 2116CNZ, BALLUF BNI004F, BNI-004F EIP-302-105
