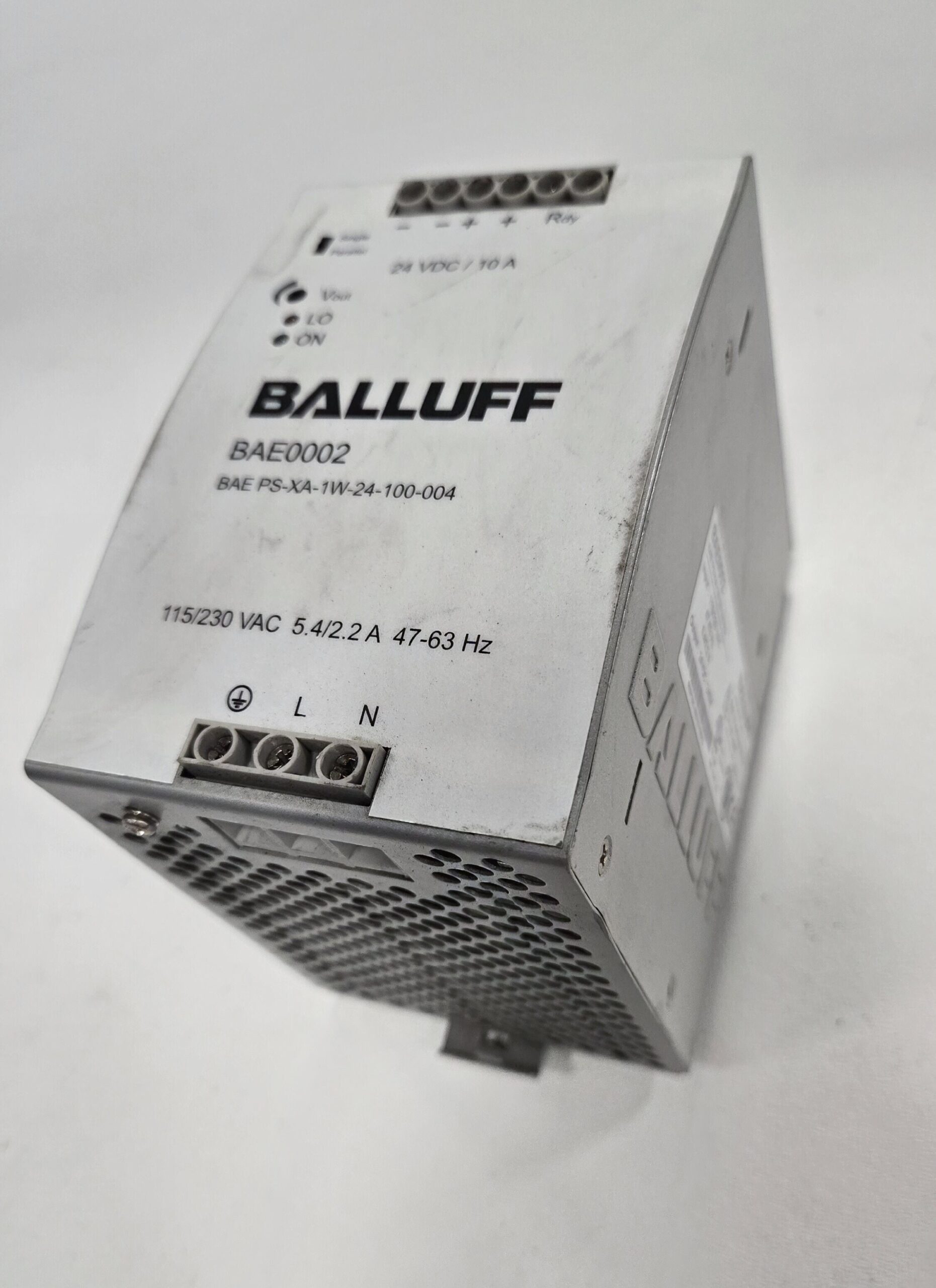

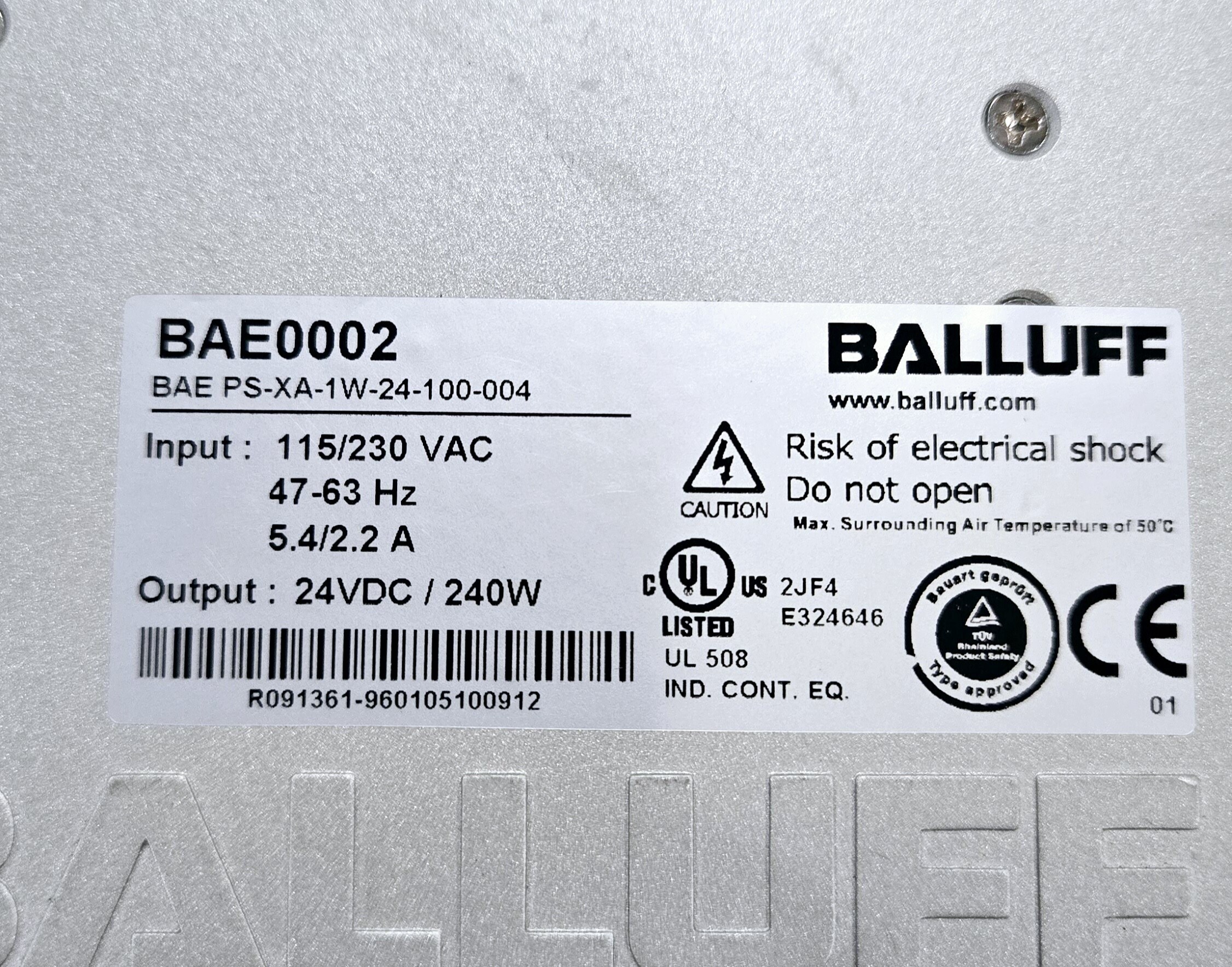

BALLUFF BAE0002 BAE PS-XA-1W-24-100-004 24VDC Power Supply USED

Specification Table

IDENTIFICATION Manufacturer: Balluff Order Code: BAE0002 Model: BAE PS-XA-1W-24-100-004 Series: Standard Device Type: Switching Power Supply Condition: USED   INPUT DATA Input Voltage: 90...132 VAC Input Voltage: 180...264 VAC Input Voltage: 210...375 VDC Nominal Input: 115 / 230 VAC Frequency: 47...63 Hz Input Current: 5.4 A @ 115 VAC Input Current: 2.2 A @ 230 VAC Input Fuse: T6.3 A Inrush Current: ≤30 A @ 115 VAC Inrush Current: ≤60 A @ 230 VAC   OUTPUT DATA Output Voltage: 24 VDC Output Capacity: 240 W Rated Output Current: 10 A Output Voltage Tolerance: +1% Voltage Adjustment Range: 22.5...28.5 VDC   PERFORMANCE DATA Efficiency: 89% Typical Hold-Up Time: ≥25 ms @ 115 VAC Hold-Up Time: ≥30 ms @ 230 VAC Load Regulation: ±1% Single Supply Load Regulation: ±5% Parallel Operation Voltage Control: 1% Switching Frequency: 40 kHz Turn-On Time: 1 s Max Residual Ripple: 100 mV Max   PROTECTION Protection Class: I Short Circuit Protection: Forward Characteristic Over Temperature Protection: Yes Input/Output Insulation Voltage: 3000 VAC Isolation Resistance: ≥100 MOhm   INDICATIONS DC LOW Indicator: Present DC ON Indicator: Present   MECHANICAL Housing Material: Metal Mounting Style: DIN Rail Dimensions: 83.5 x 124.5 x 116.6 mm Weight: 1.38 kg   ENVIRONMENTAL Operating Temperature: -40°C to +70°C Storage Temperature: -40°C to +85°C Relative Humidity: 20% to 95% Non-Condensing IP Rating: IP20 Cooling Method: Free Convection   CERTIFICATIONS CE Marked: Yes CCC Approved: Yes cULus Listed: Yes WEEE Compliant: Yes   APPLICATION DATA Industrial Automation: Yes Machine Control Systems: Yes PLC Power Distribution: Yes Sensor Networks: Yes Manufacturing Equipment: Yes Process Control Systems: Yes
