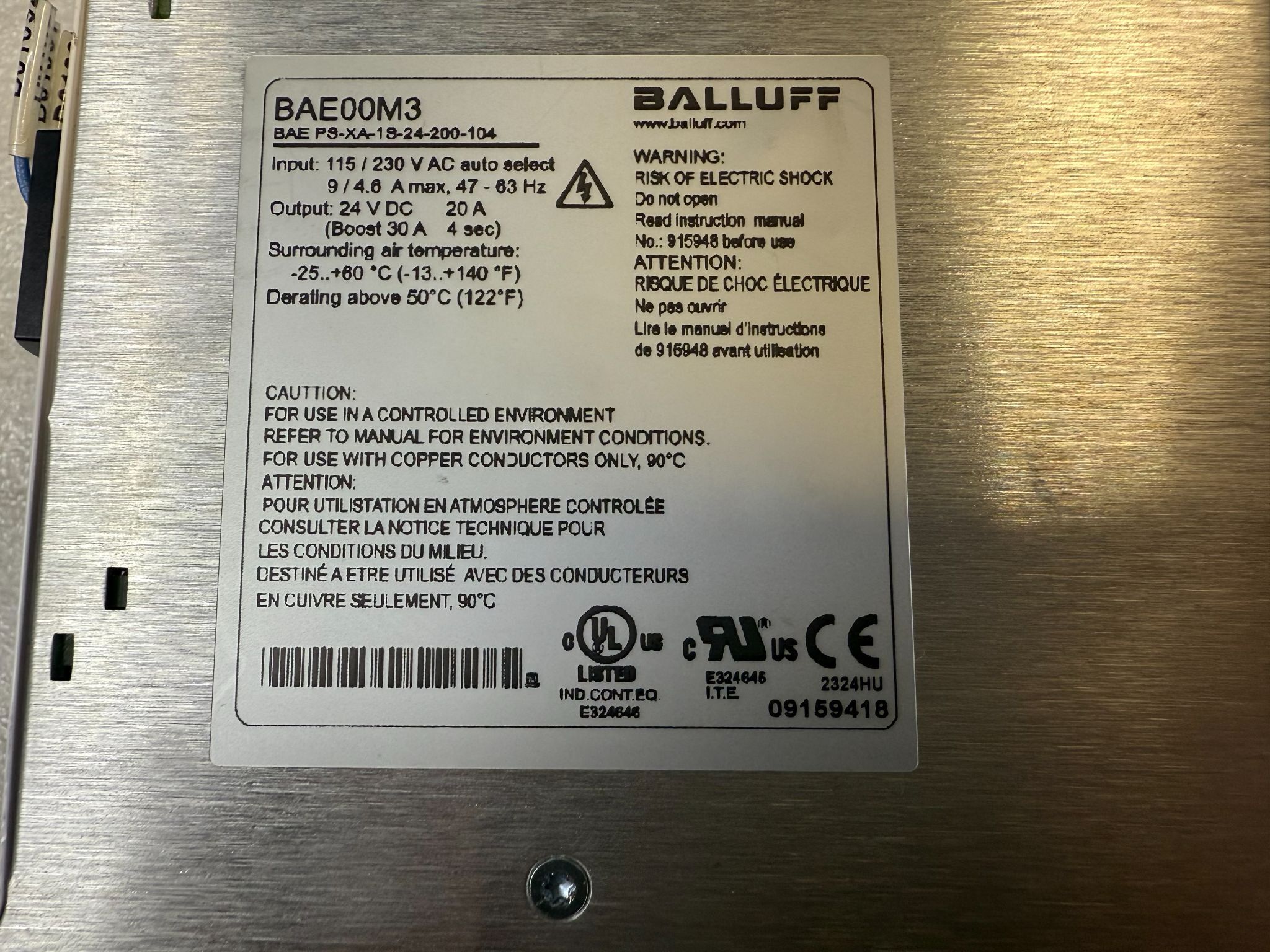

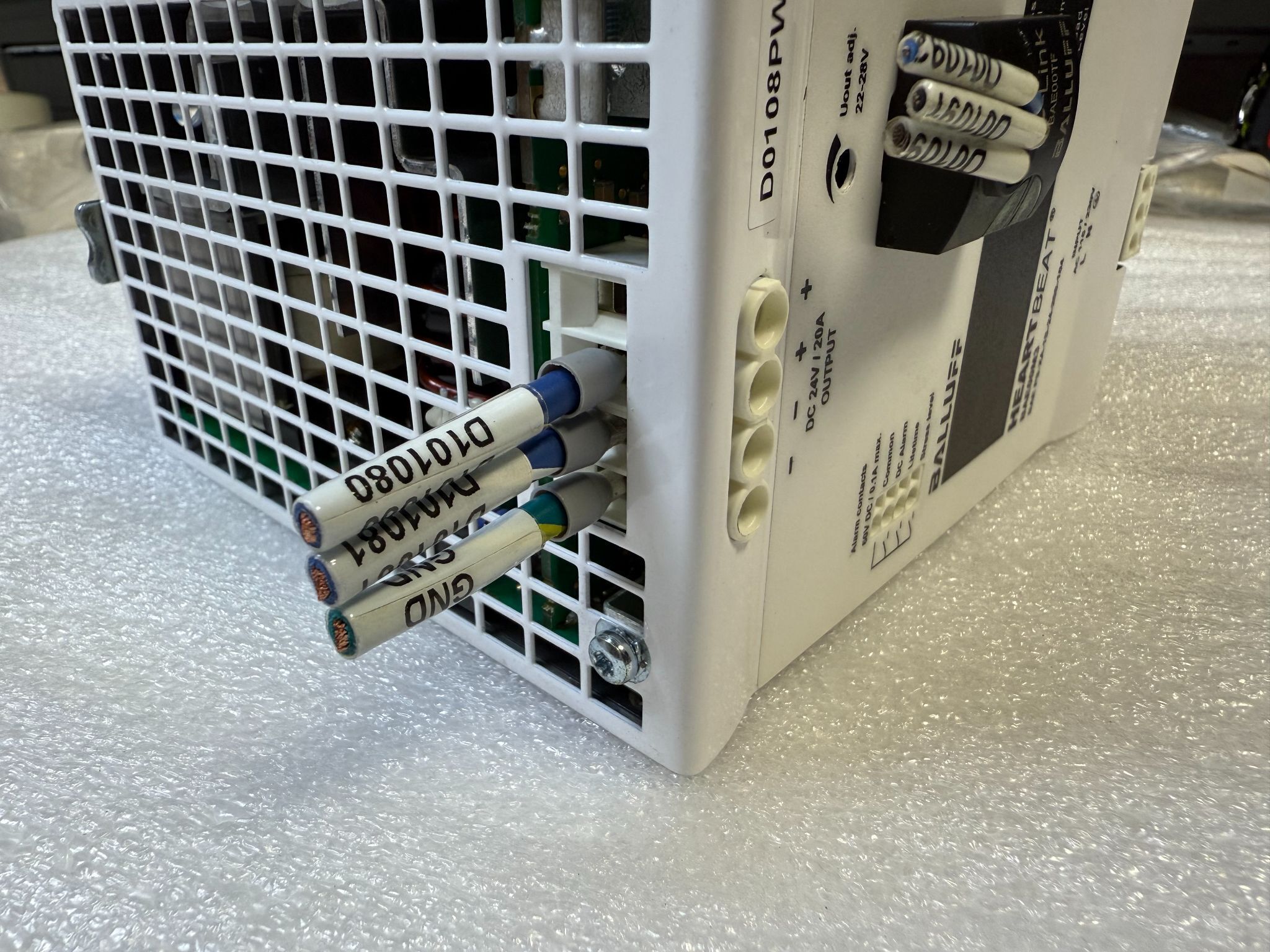

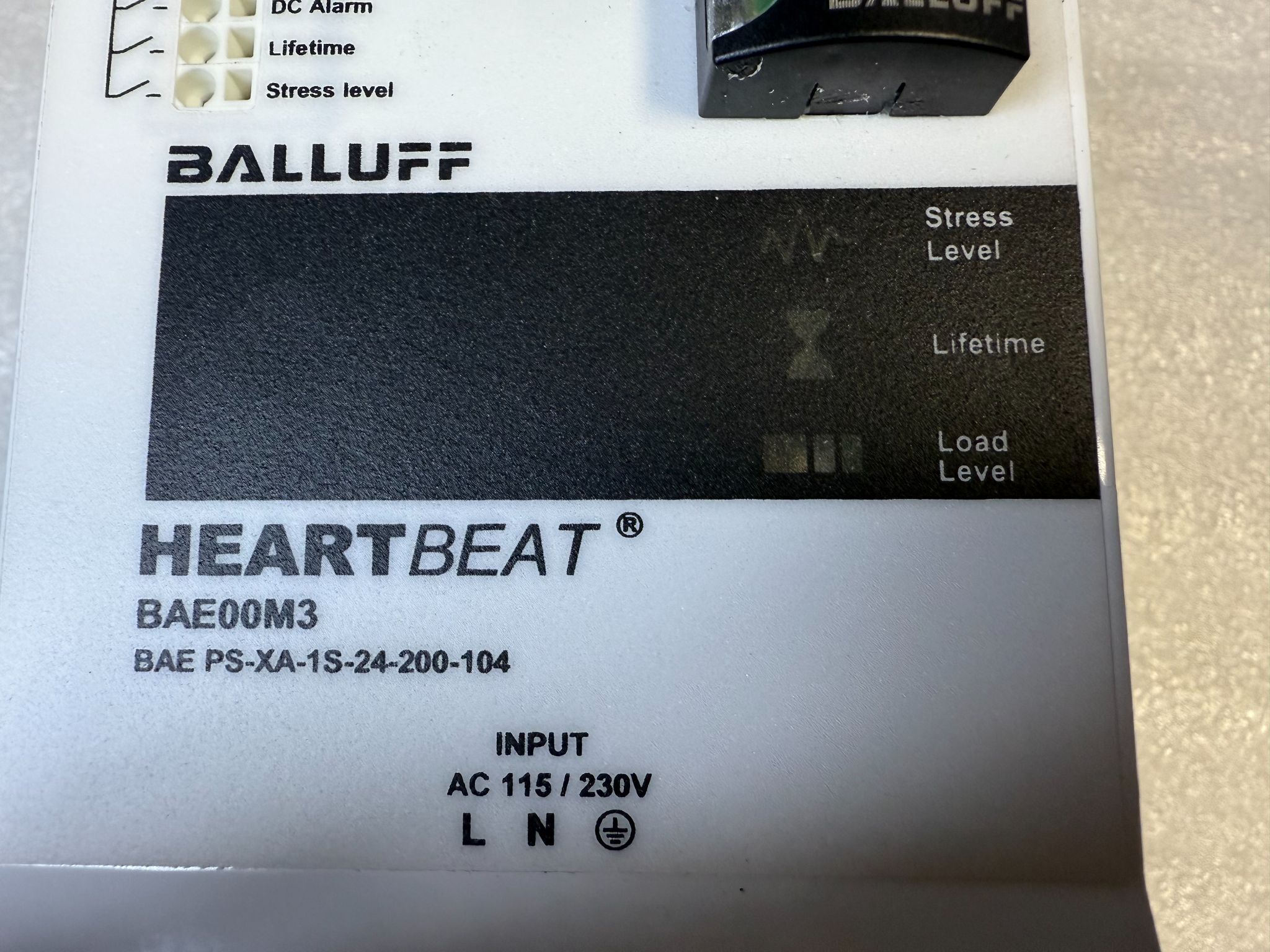

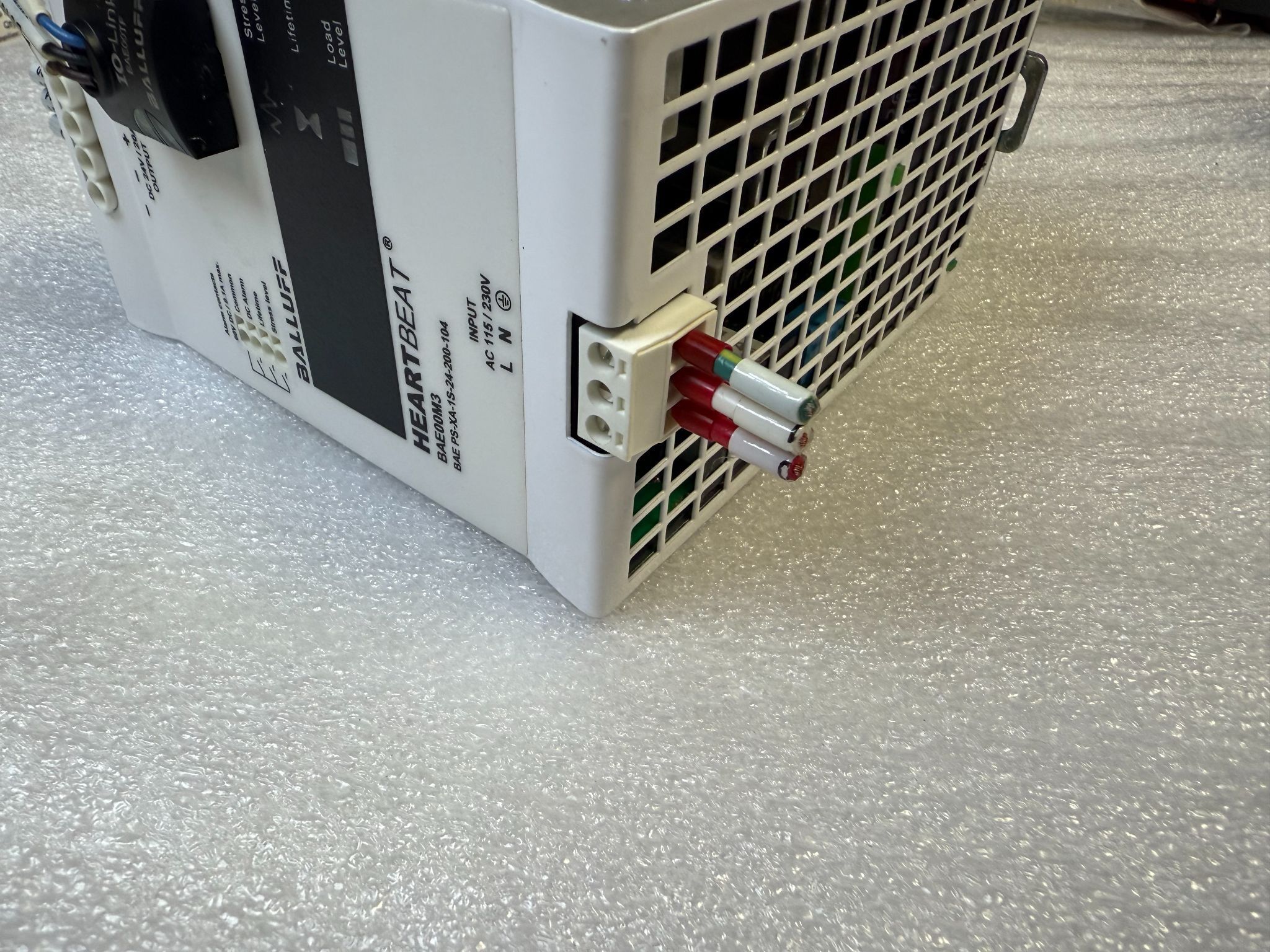

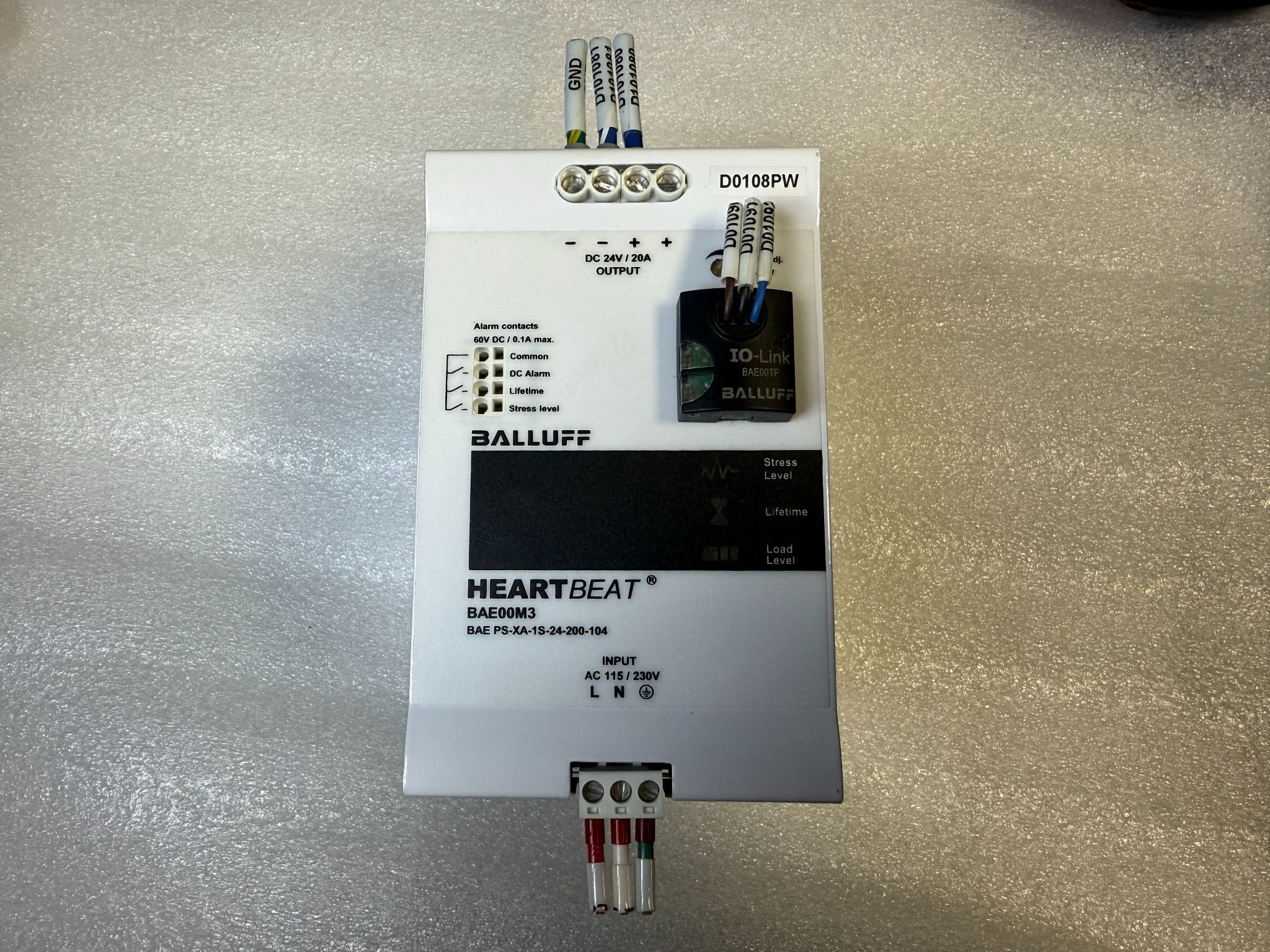

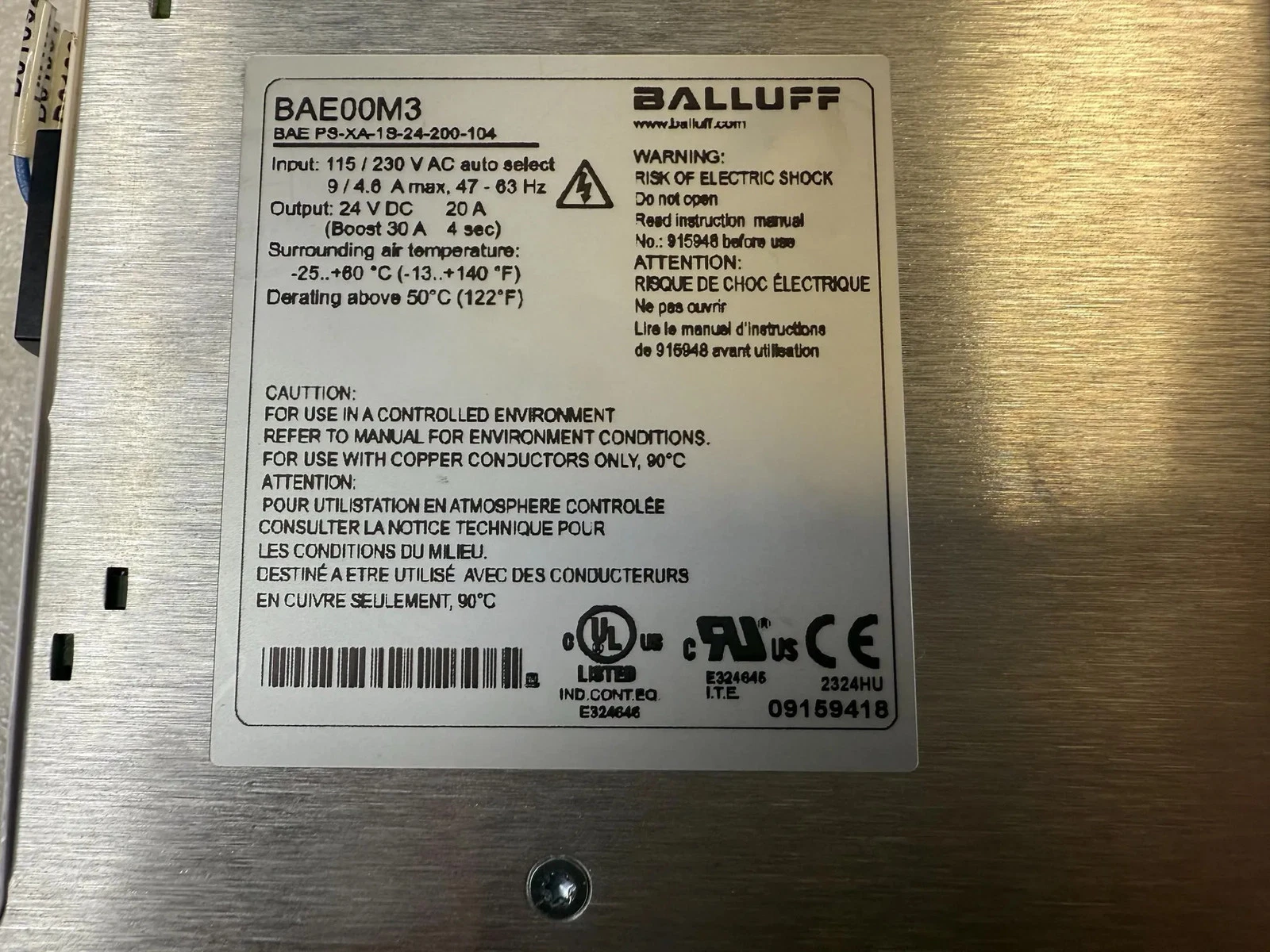

BALLUFF BAE00M3 BAE PS-XA-1S-24-200-104 24VDC Switching Power Supply USED

Specification Table

IDENTIFICATION Manufacturer: Balluff Order Code: BAE00M3 Model: BAE PS-XA-1S-24-200-104 Product Line: HEARTBEAT Device Type: Switching Power Supply Condition: USED INPUT DATA Input Voltage: 90...132 VAC Input Voltage: 198...264 VAC Nominal Input: 115 / 230 VAC Auto Select Frequency: 47...63 Hz Rated Input Current: 9.0 A @ 115 VAC Rated Input Current: 4.6 A @ 230 VAC Inrush Current: ≤15 A @ 115 VAC Inrush Current: ≤20 A @ 230 VAC OUTPUT DATA Output Voltage: 24 VDC Output Voltage Tolerance: ±1% Output Current: 20 A Output Rating: 480 W Output Capacity Maximum: 720 W Power Boost: 150% Boost Current: 30 A Boost Duration: 4 Seconds PERFORMANCE DATA Efficiency: 94% Typical Hold-Up Time: ≥25 ms @ 115 VAC Hold-Up Time: ≥30 ms @ 230 VAC Residual Ripple: 50 mVpp / 10 mVrms Voltage Control: ±0.5% Load Regulation: ±0.5% Switching Frequency: 115 kHz Turn-On Time: 1 s Max PROTECTION Short Circuit Protection: Continuous Input Fuse: T12 A Internal Insulation Voltage: 3000 VAC Isolation Resistance: ≥100 MOhm Protection Class: I DIAGNOSTICS Display Indicators: Load Level Display Indicators: Lifetime Display Indicators: Stress Level Alarm Output: Potential-Free Contact DC Alarm Contact: Present ENVIRONMENTAL Operating Temperature: -25°C to +60°C Storage Temperature: -25°C to +85°C Relative Humidity: 5% to 95% Non-Condensing IP Rating: IP20 Cooling Method: Free Convection MECHANICAL Housing Material: Aluminum Mounting Style: DIN Rail Dimensions: 79 x 127 x 139 mm Weight: 1.10 kg CERTIFICATIONS CE Marked: Yes cULus Listed: Yes WEEE Compliant: Yes APPLICATION DATA Industrial Automation: Yes Machine Control Systems: Yes PLC Power Distribution: Yes Sensor Networks: Yes Manufacturing Equipment: Yes Process Control Systems: Yes
