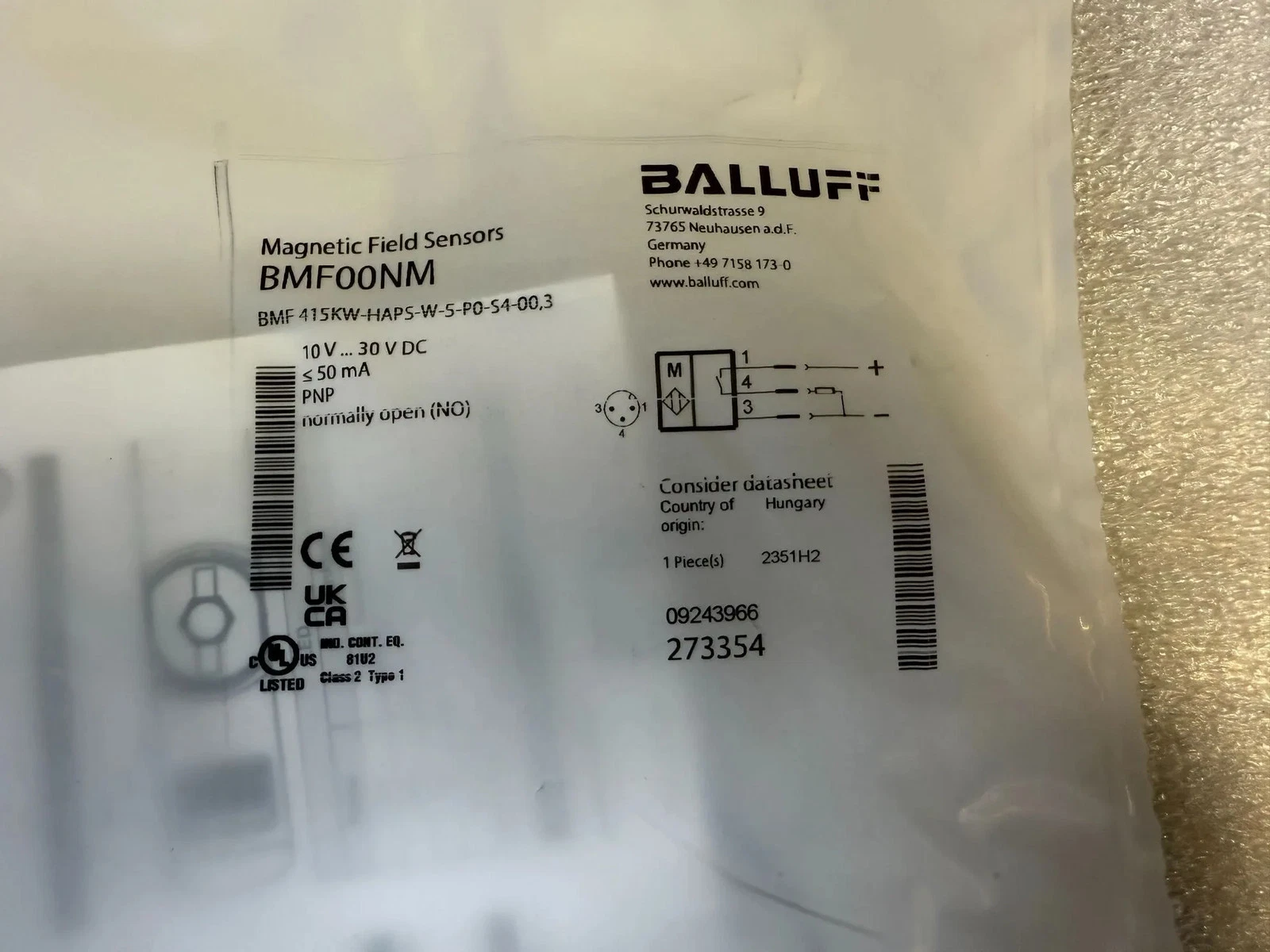

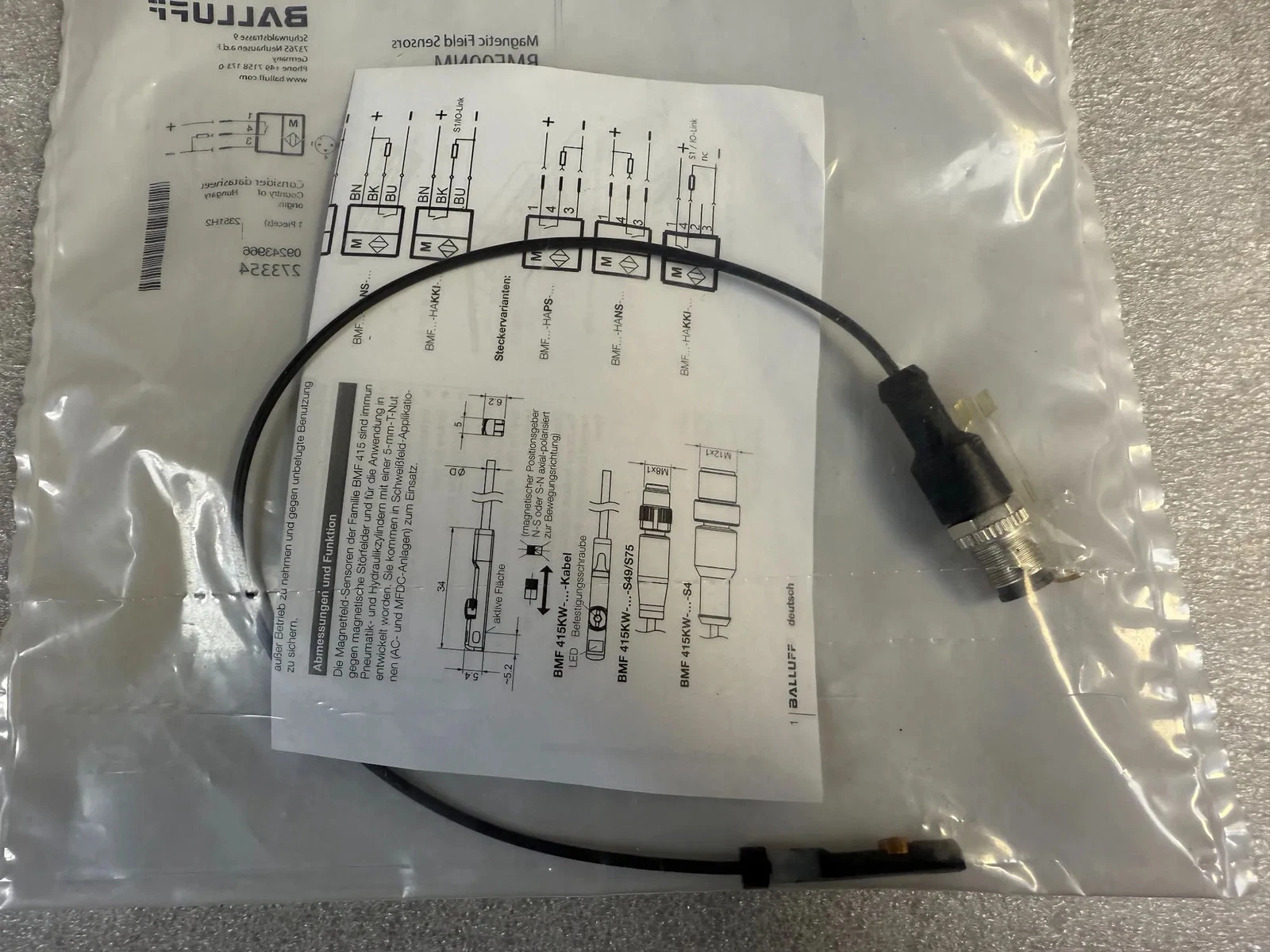

BALLUFF BMF00NM BMF 415KW-HAPS-W-5-P0-S4-00,3 Magnetic Field Sensor NEW

Specification Table

IDENTIFICATION Manufacturer: Balluff Part Number: BMF00NM Model: BMF 415KW-HAPS-W-5-P0-S4-00,3 Material Number: 273354 Device Type: Magnetic Field Sensor Condition: NEW Country of Origin: Hungary FUNCTION Principle of Operation: Magnetic Field Sensor Application: Pneumatic Cylinders with T-Slot Output Type: PNP Normally Open (NO) ELECTRICAL Operating Voltage: 10-30 VDC Rated Operating Voltage: 24 VDC Rated Operating Current: 50 mA No Load Current: 18 mA Max Rated Insulation Voltage: 75 VDC Residual Current: 10 µA Max Short Circuit Protection: Yes Polarity Reversal Protection: Yes SWITCHING DATA Assured Switching Field Strength: 5.2 kA/m Rated Switching Field Strength: 4.8 kA/m Interference Suppression Time: 600 ms Load Capacitance: 1.5 µF Max CONNECTION DATA Connector Type: M12x1 Male Connector Configuration: 3-Pin A-Coded Cable Length: 300 mm Cable Diameter: 2.4 mm Conductor Count: 3 Conductor Cross Section: 0.10 mm² CONSTRUCTION Housing Material: PA 12 Sensing Surface Material: PA 12 Cable Jacket Material: TPU Cable Jacket Feature: Welding Spark Resistant Housing Dimensions: 5 x 6.4 x 34 mm MOUNTING DATA Mounting Style: T-Slot Installation Method: Top Mount Cylinder Compatibility: T-Slot Pneumatic Cylinders INDICATIONS Power Indicator: Green LED Function Indicator: Yellow LED Error Indicator: Red LED ENVIRONMENTAL Protection Rating: IP67 Operating Temperature: 0°C to 80°C Storage Temperature: -25°C to 70°C Humidity Range: 15% to 95% Non-Condensing CERTIFICATIONS CE Marked: Yes UKCA Marked: Yes cULus Listed: Yes APPLICATION DATA Pneumatic Cylinders: Yes Industrial Automation: Yes Machine Position Sensing: Yes Packaging Equipment: Yes Material Handling Systems: Yes Production Machinery: Yes
