Balance Technology VR-50SA Vibration Monitoring and Correction System USED

Specification Table

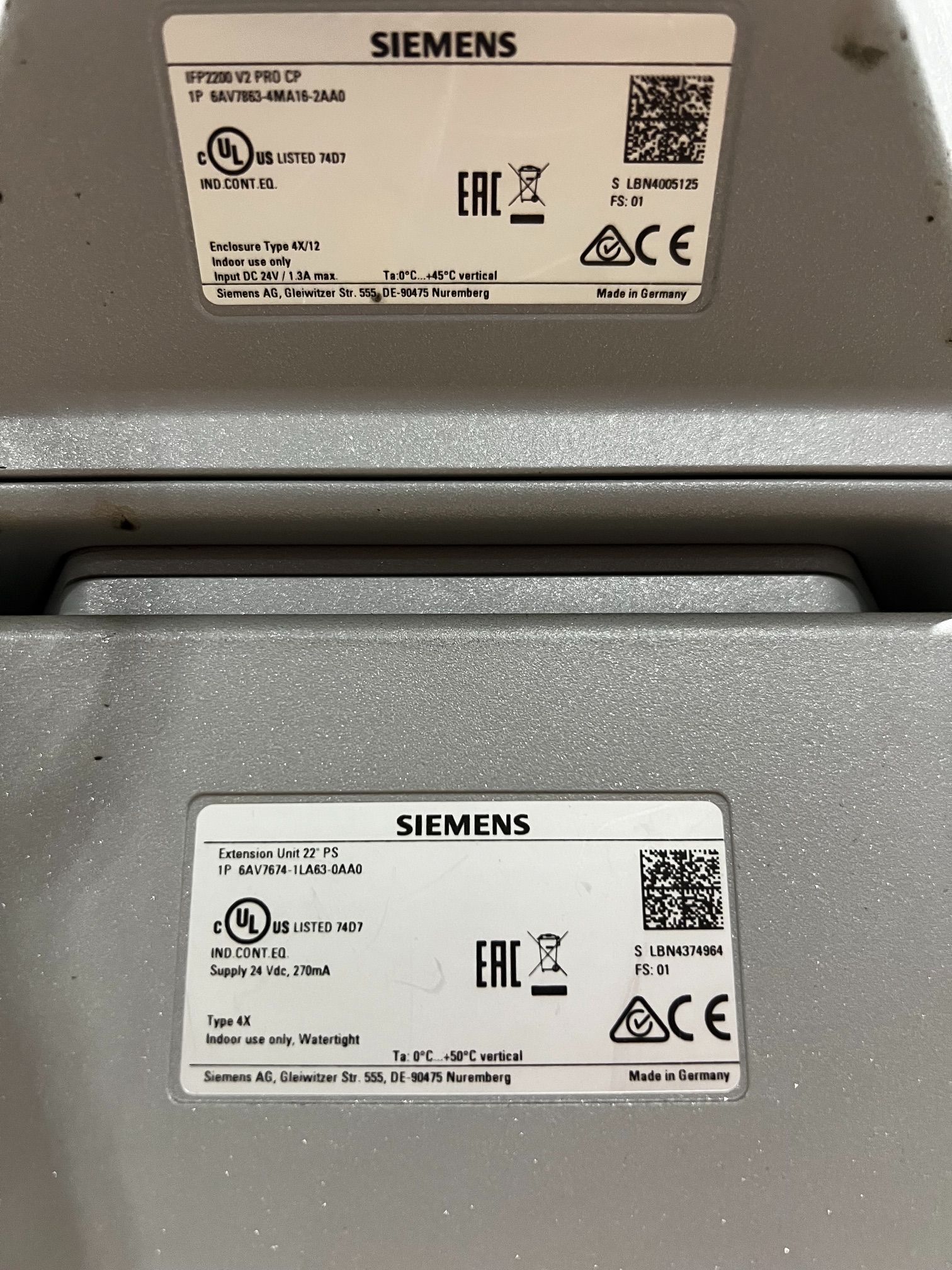

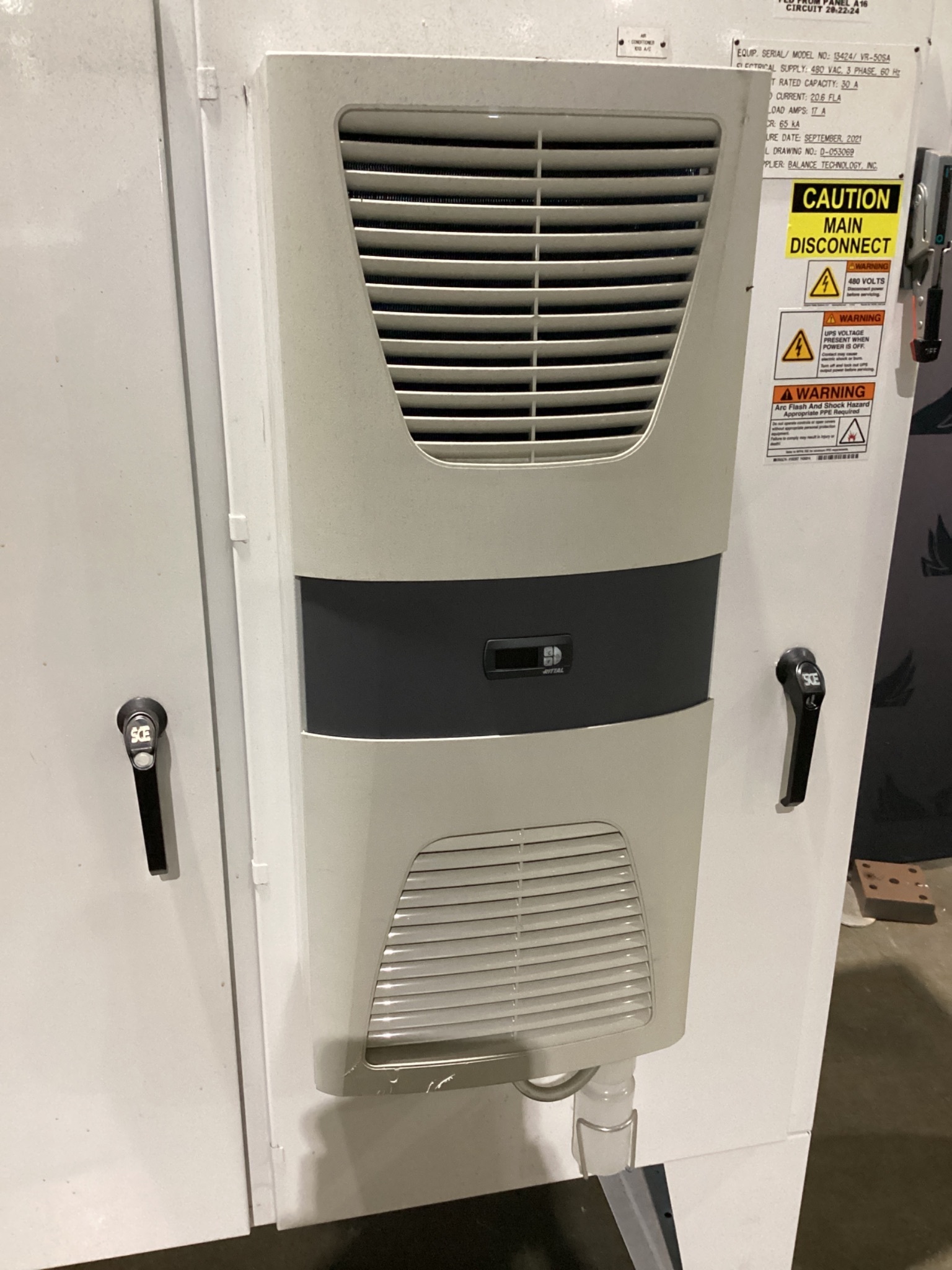

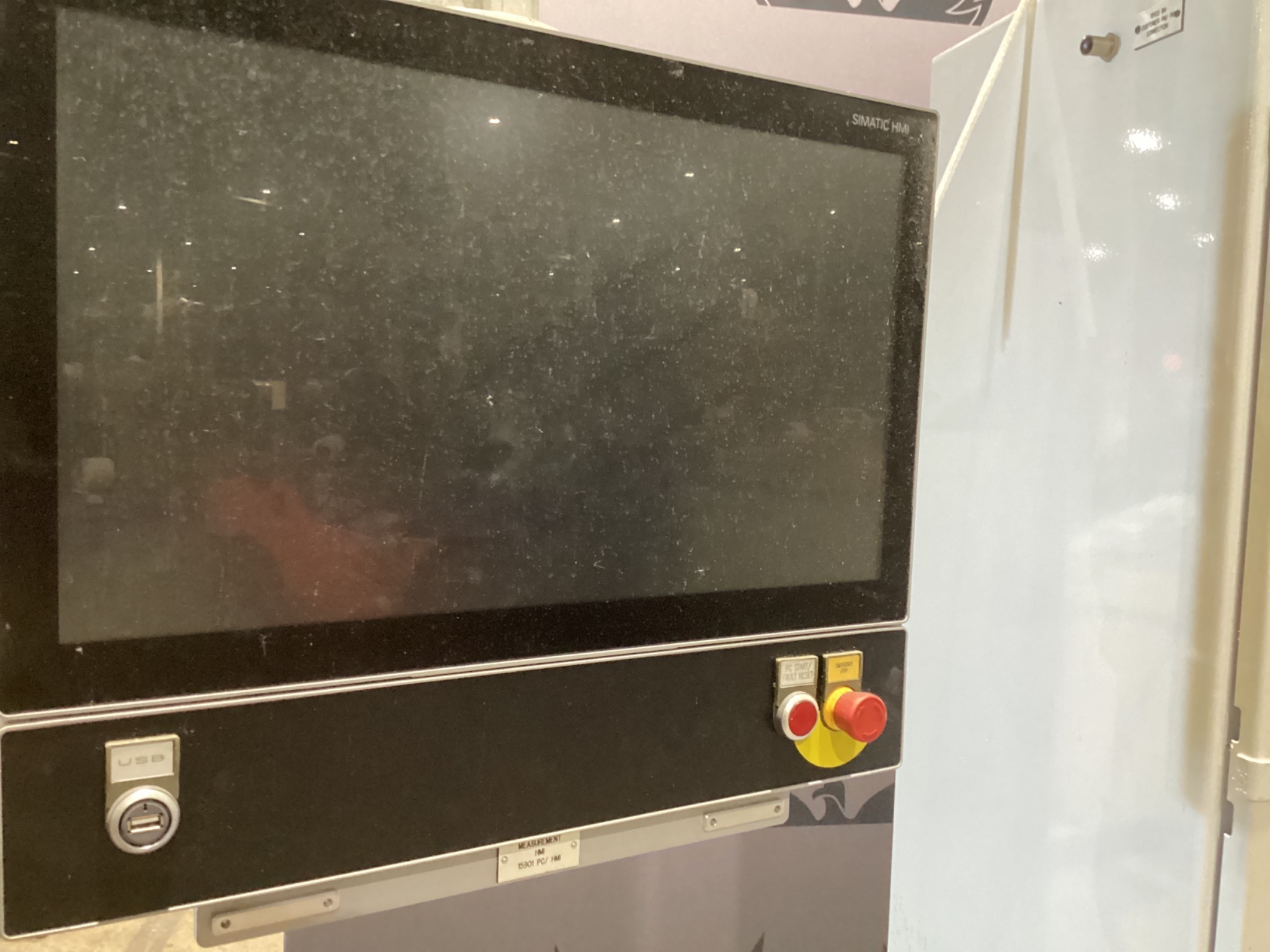

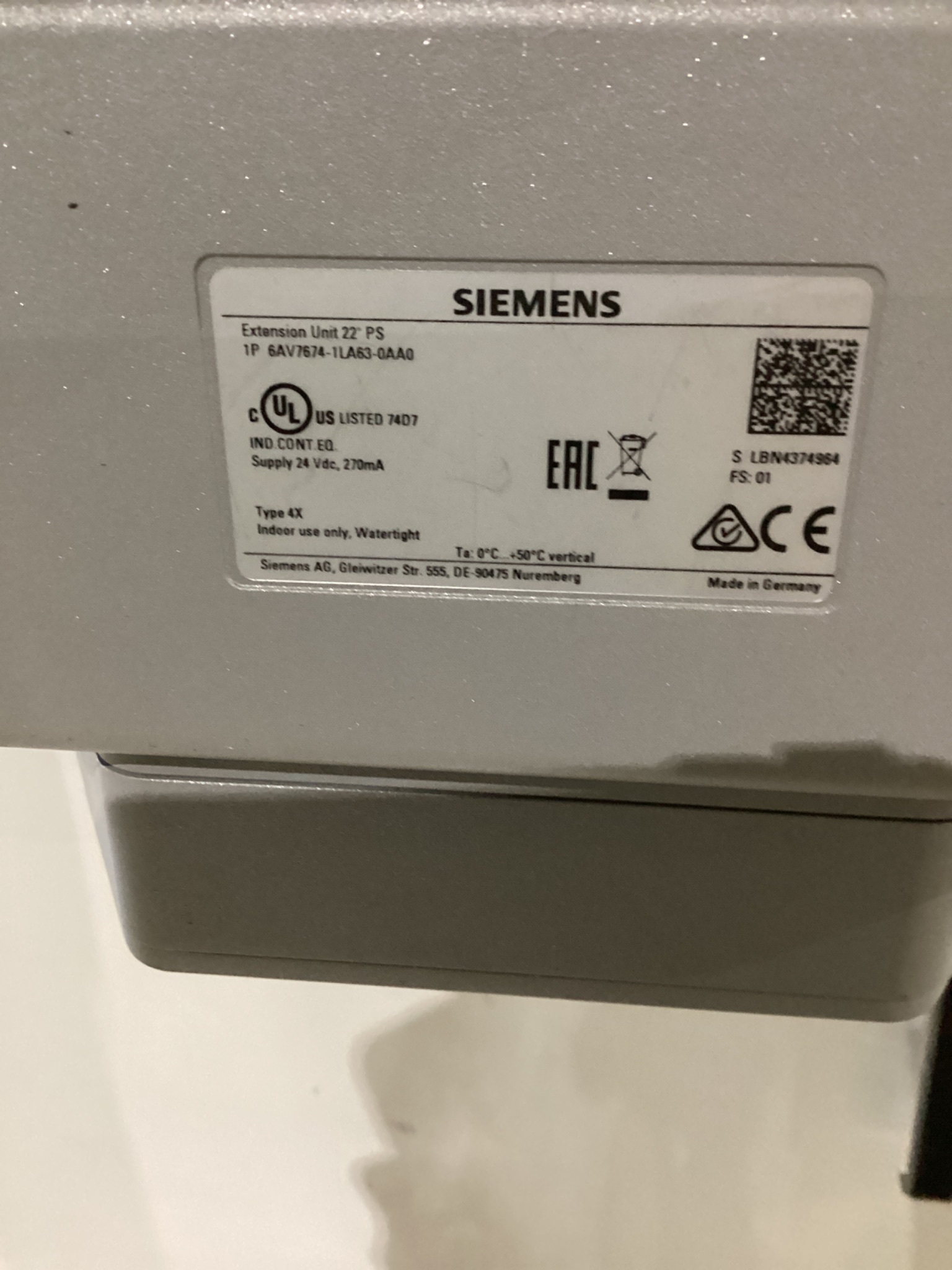

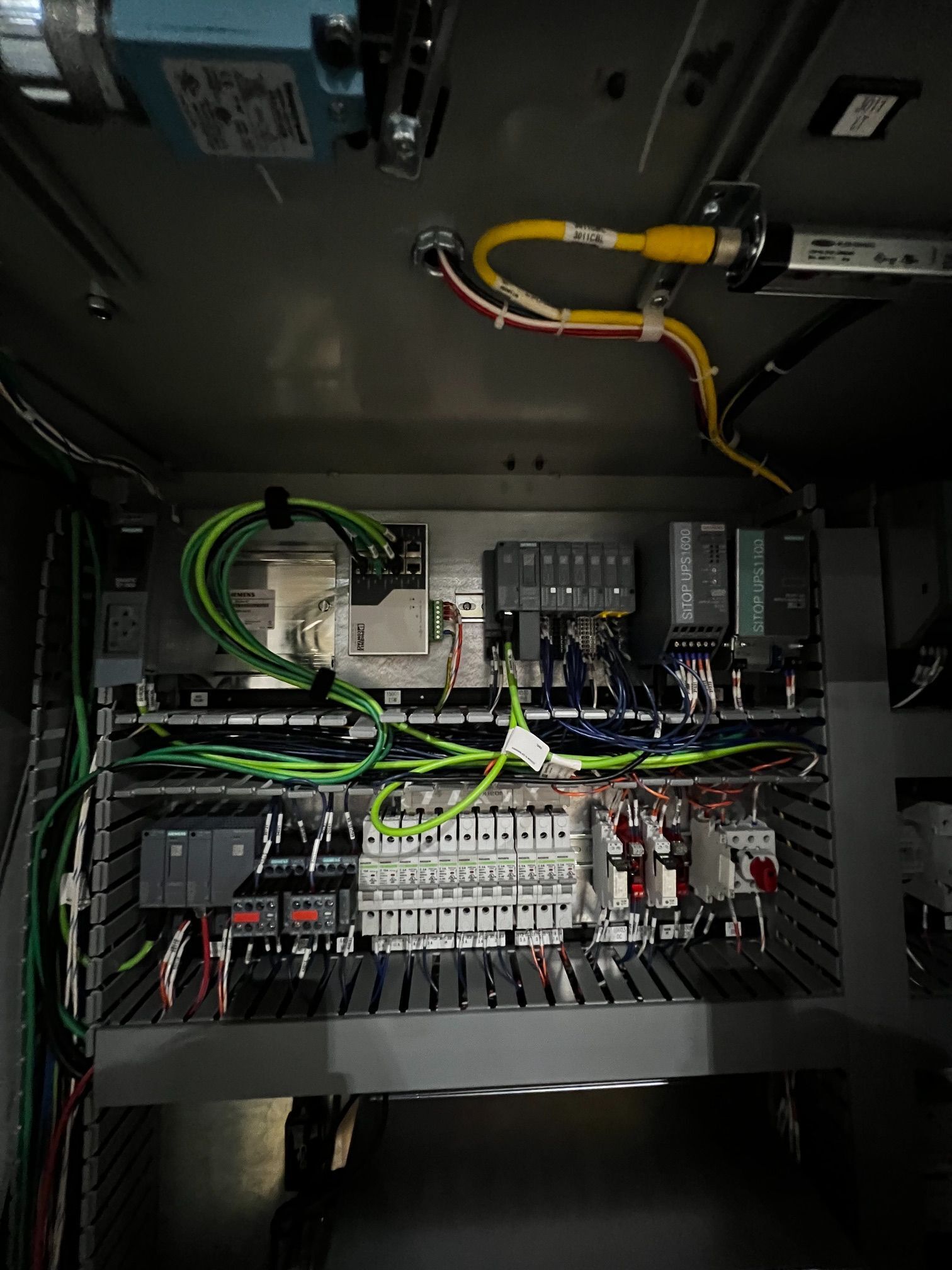

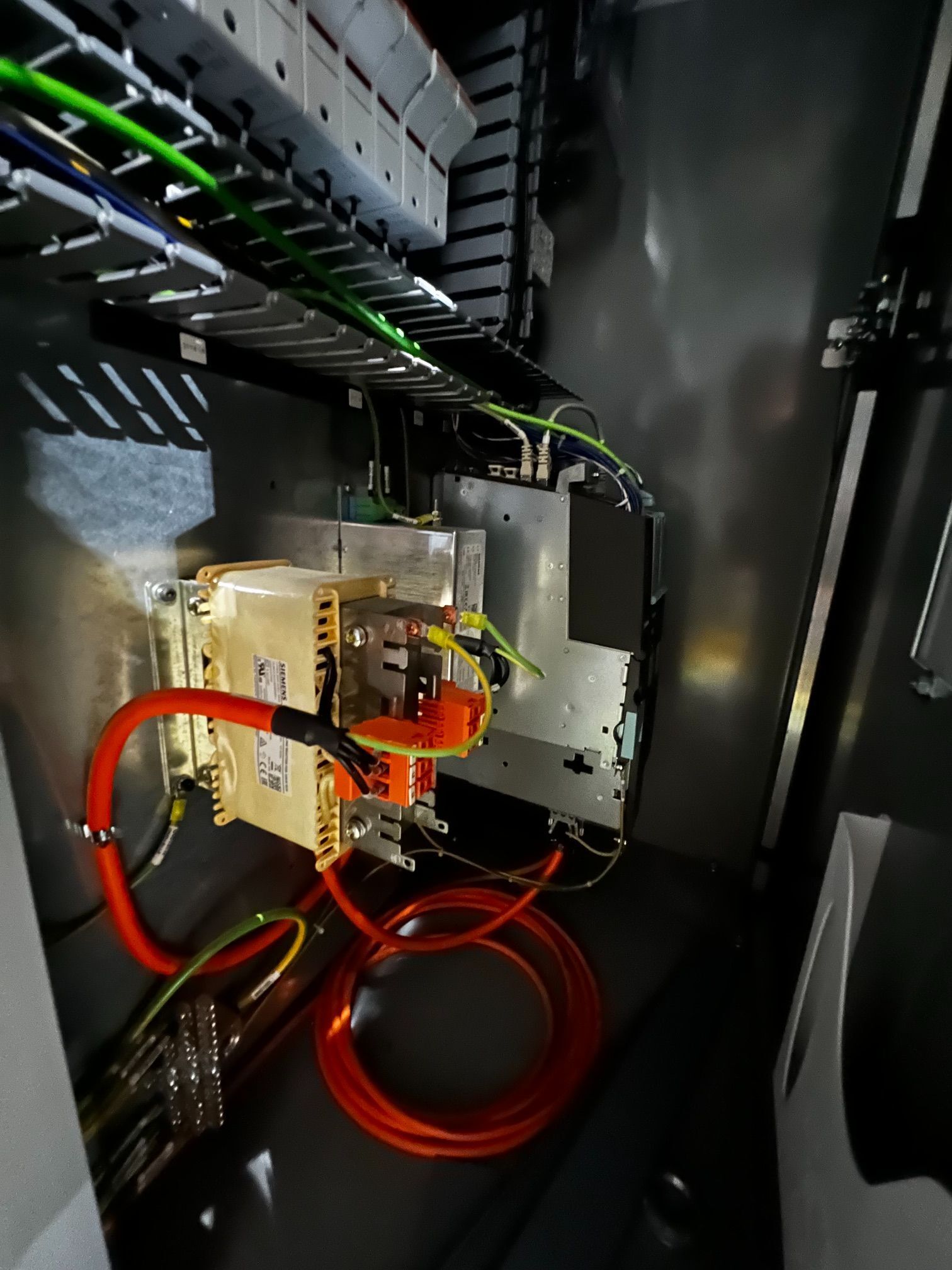

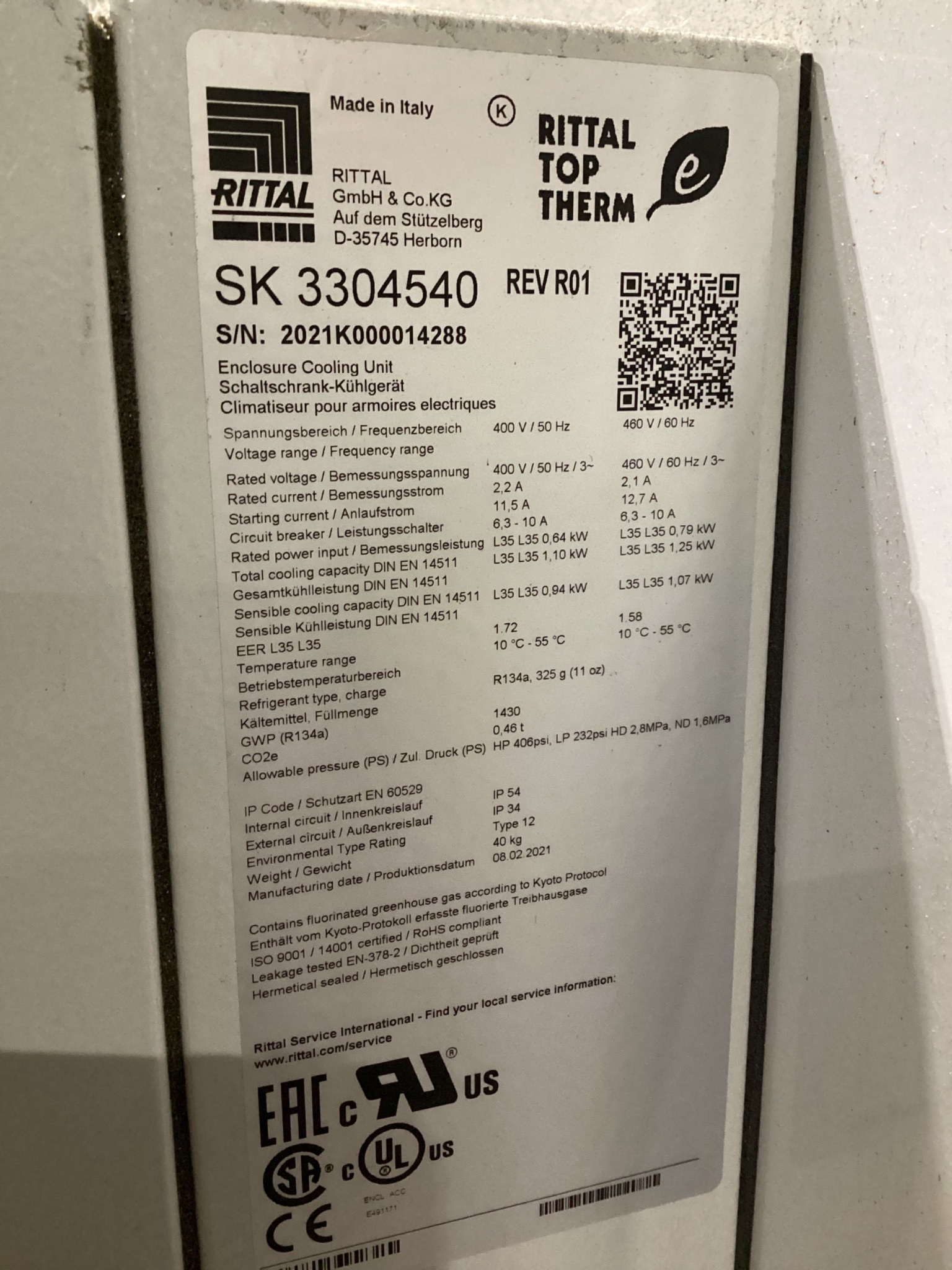

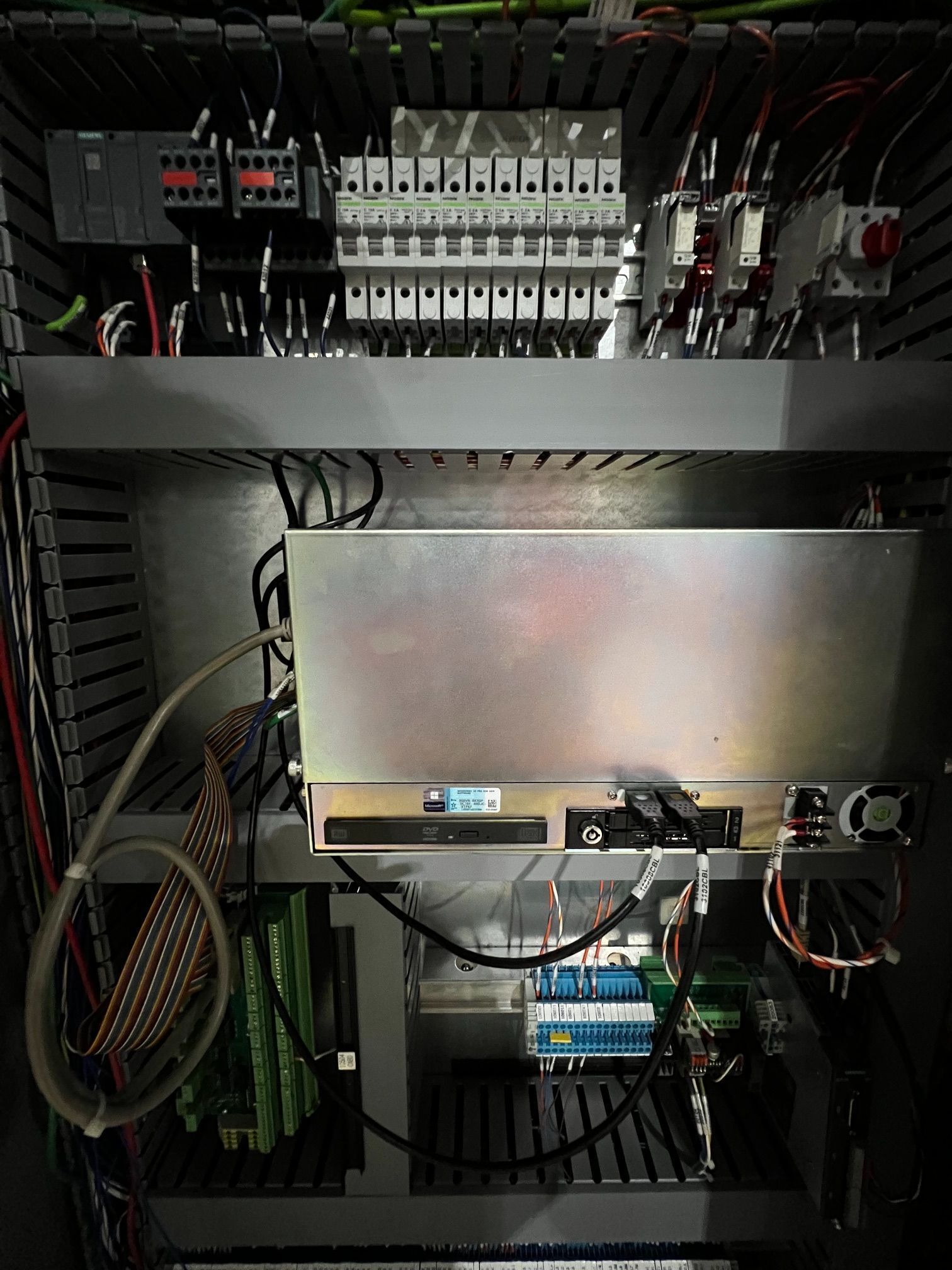

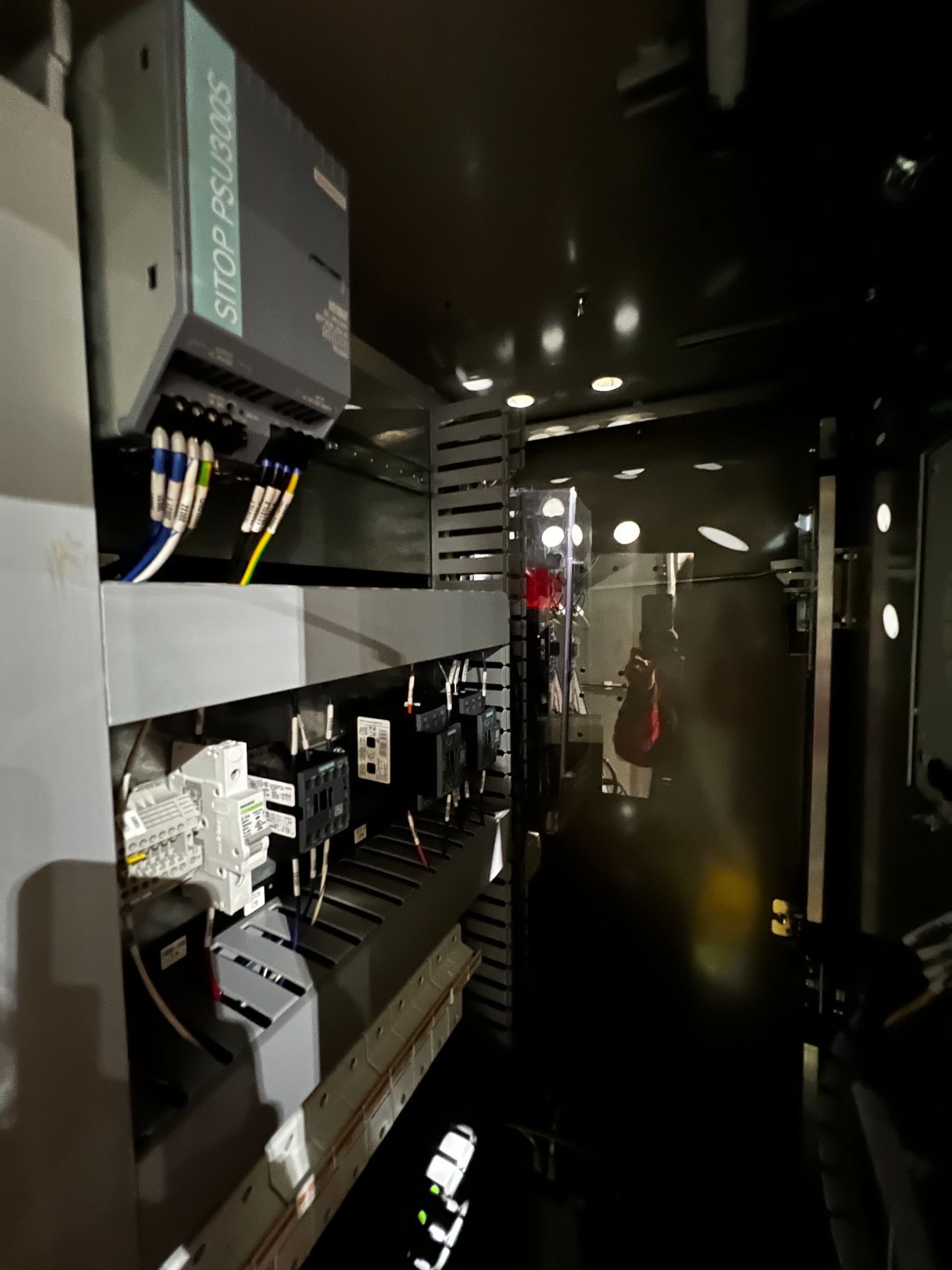

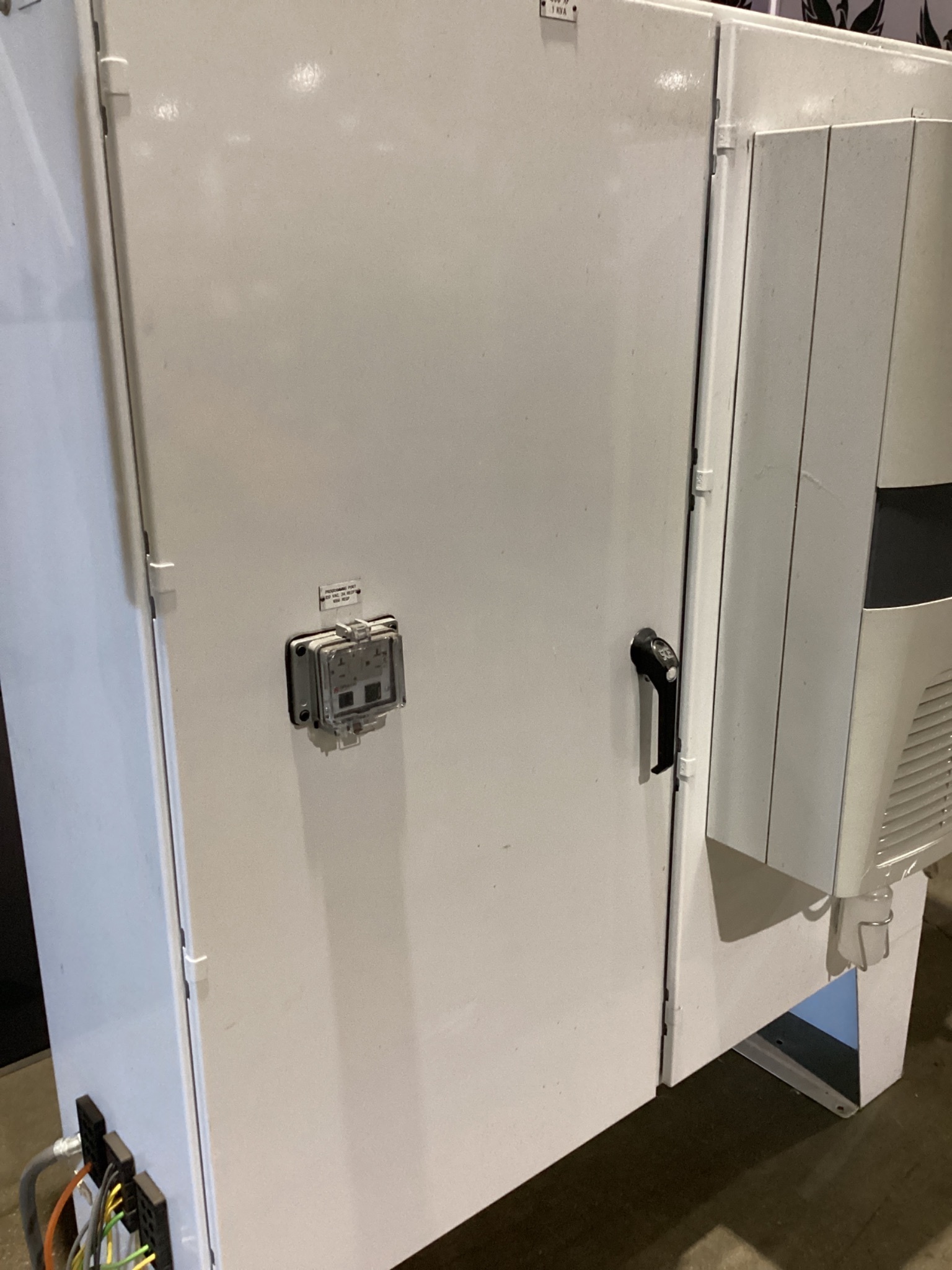

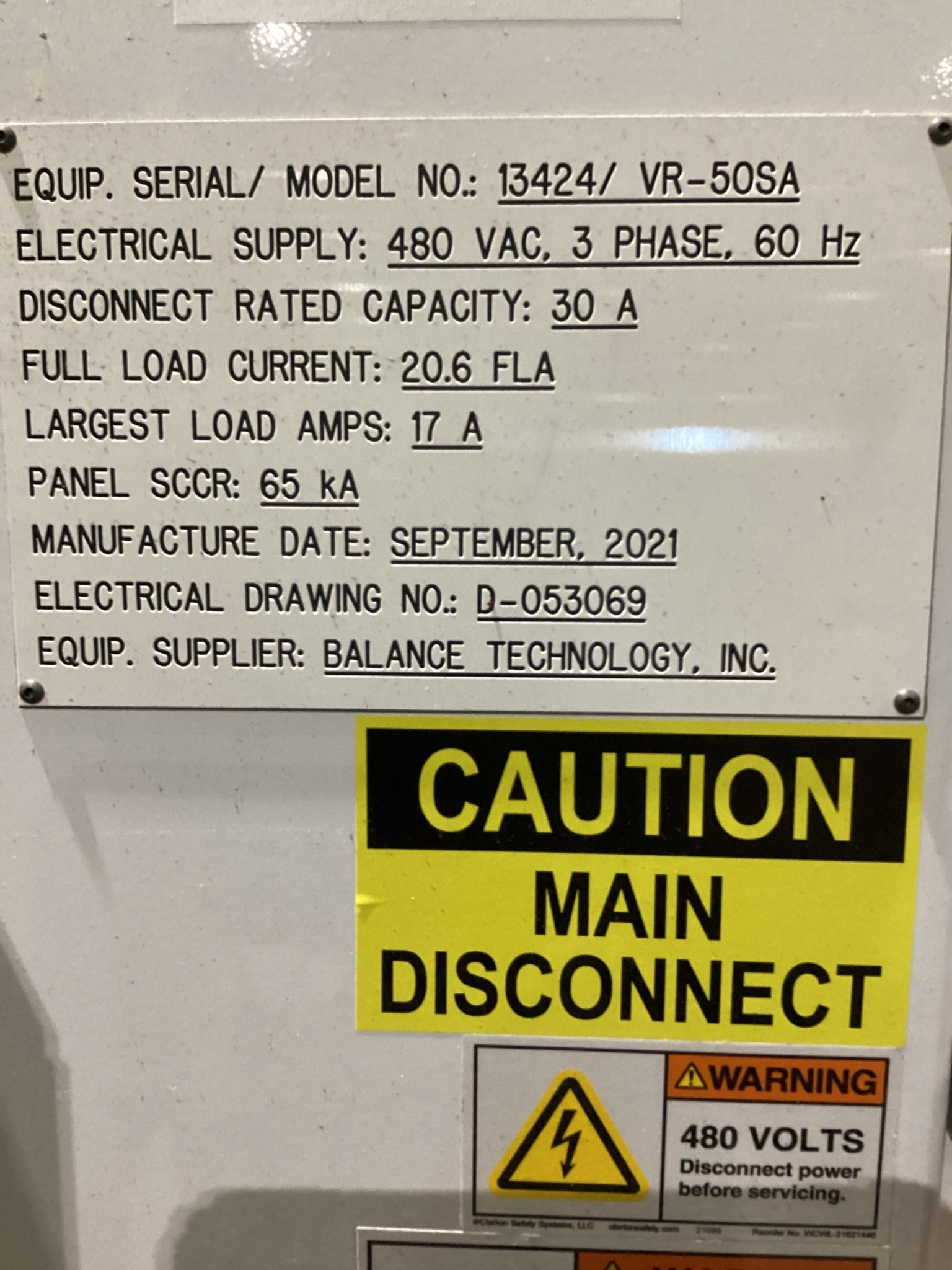

Manufacturer: Balance Technology, Inc. Model: VR-50SA Condition: USED YOM: 2021   Product Type: Vibration Monitoring and Correction System Function: Machine Vibration Monitoring and Compensation   System Configuration: Integrated Industrial System   Electrical Supply: 480 VAC Phase Configuration: 3 Phase Frequency: 60 Hz   Disconnect Rated Capacity: 30 A Full Load Current: 20.6 FLA Largest Load Current: 17 A   Panel SCCR: 65 kA   Industrial PC: Siemens IPC277D V2 PRO CP PC Part Number: 6AV7863-4MA16-2AA0   Operator Interface: Siemens SIMATIC HMI Display Configuration: 22" Extension Unit PS HMI Part Number: 6AV7674-1LA63-0AA0   Display Type: Touchscreen   Control Platform: Siemens ET 200SP   Power Protection: Siemens SITOP UPS1600 Power Protection: Siemens SITOP UPS1100   Industrial Ethernet: Present   Control Transformer: Present   Input Voltage: 24 VDC Maximum Input Current: 1.3 A   Extension Supply Voltage: 24 VDC Extension Current: 270 mA   Enclosure Rating: Type 4X / Type 12   Front USB Port: Present Emergency Stop: Present Reset Pushbutton: Present   Enclosure Cooling Unit: Rittal TopTherm Cooling Unit Part Number: SK 3304540   Cooling Unit Voltage: 460 VAC Cooling Unit Frequency: 60 Hz Cooling Unit Phase: 3 Phase Cooling Unit Current: 2.1 A   Cooling Capacity: 1.07 kW   Refrigerant Type: R134a Refrigerant Charge: 325 g (11 oz)   Cooling Unit Weight: 40 kg Cooling Unit Weight: 88.2 lb   Machine-Mounted Assembly: Present   Manufacture Date: September 2021    Equipment Serial Number: 13424 Electrical Drawing Number: D-053069
