ATLAS COPCO 8434 2301 32 AC Node 21.5 Value Pro + FCC HMI USED

Name: ATLAS COPCO 8434 2301 32 AC Node 21.5 Value Pro + FCC HMI USED
Brand: ATLAS COPCO
SKU: IGAM3010064
Price: 742.5 USD
Availability: InStock

Availability:

1 in stock

BRAND: ATLAS COPCO MODEL: 8434 2301 32 CONDITION: Used

SKU: IGAM3010064 Weight: 20 lbs Shipping Calculated at Checkout

1 in stock

Make an offer

Overview

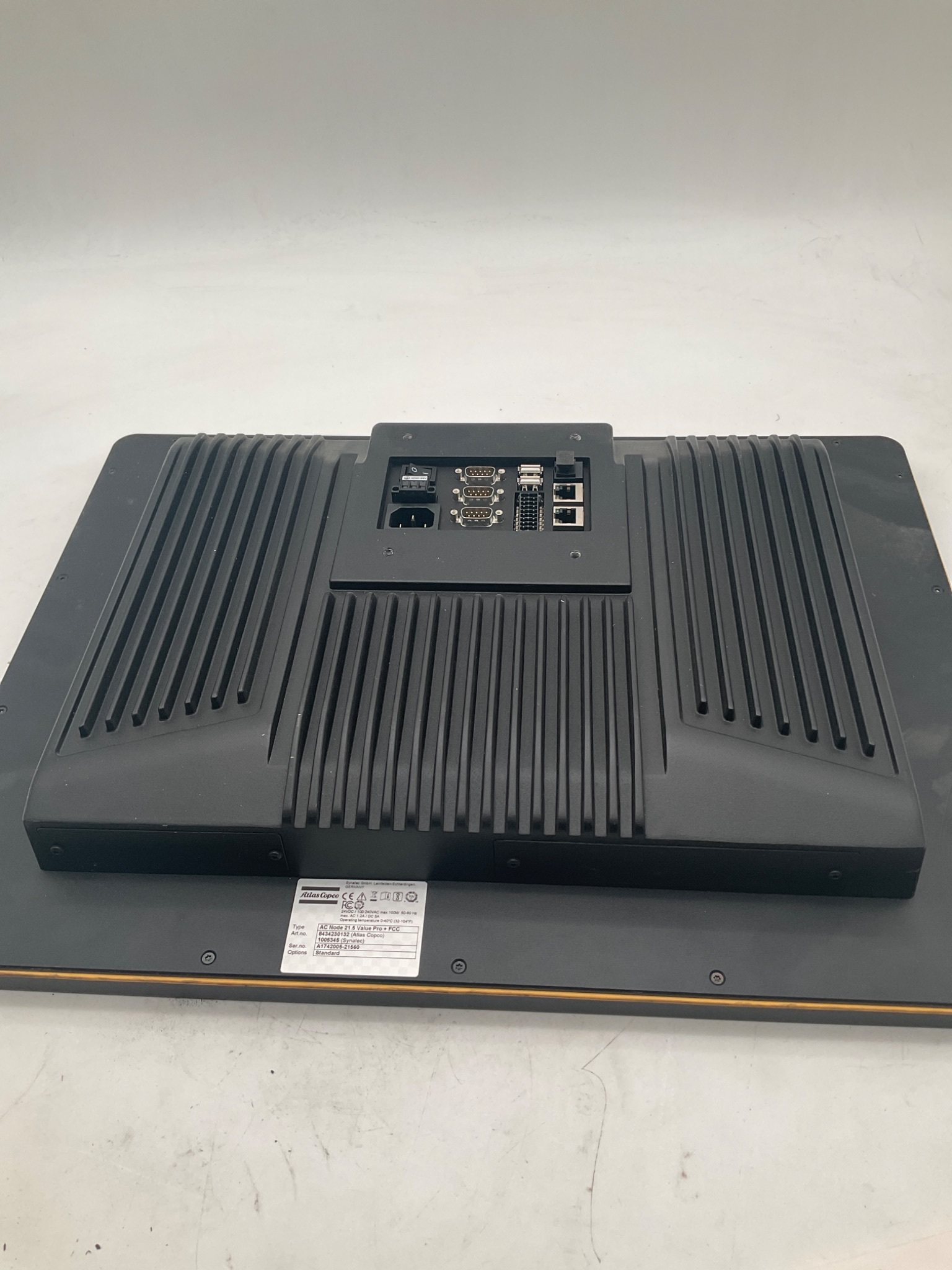

This listing is for a USED Atlas Copco 8434230132 AC Node 21.5 Value Pro + FCC HMI. The operator interface features a 21.5 in. touchscreen display, integrated industrial communications interfaces, multiple serial ports, Ethernet connectivity, USB ports, and digital I/O for assembly automation and production control applications. The unit supports both 24 VDC and 100-240 VAC power input configurations.

Description
Tags

Specification Table

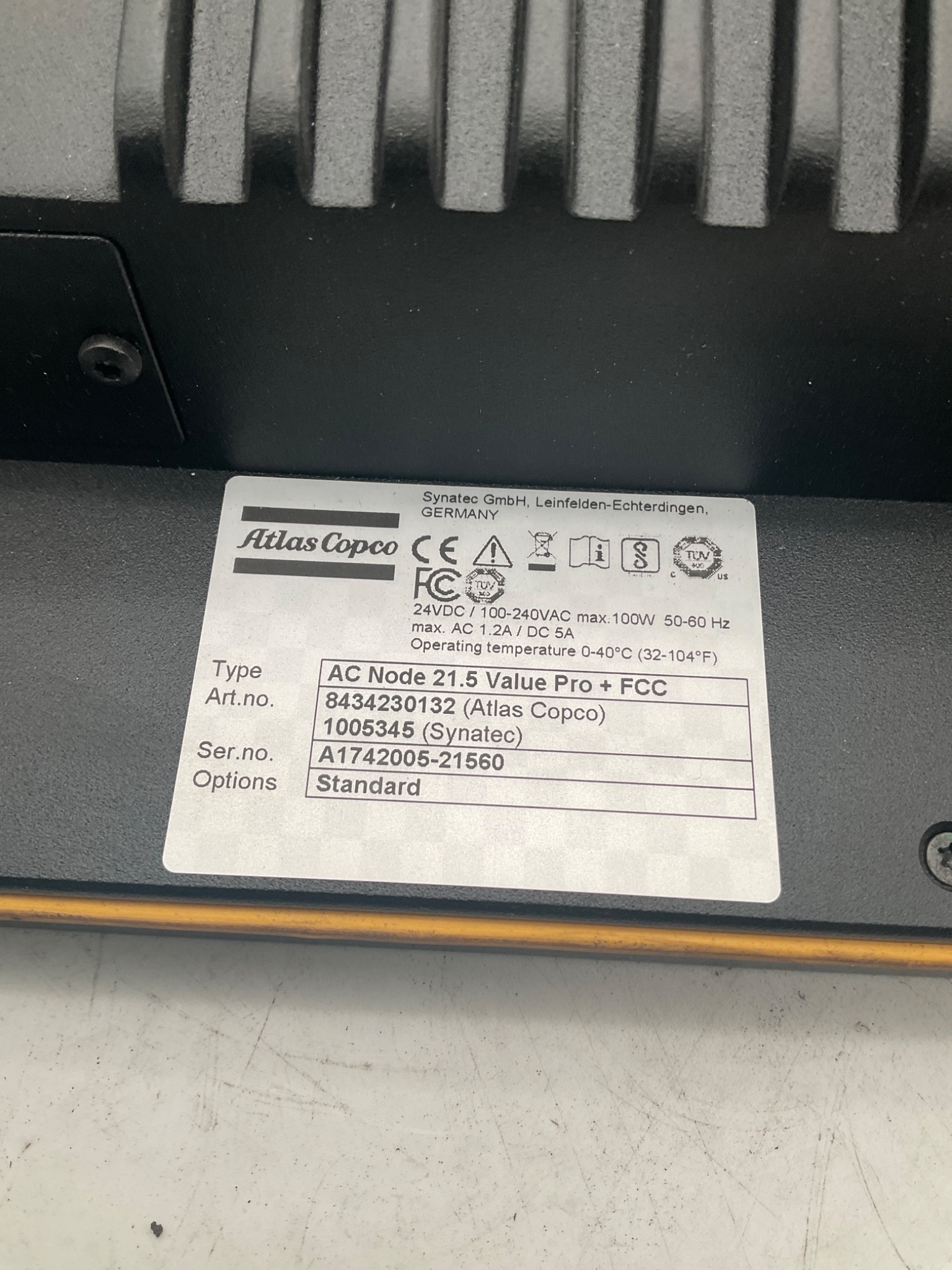

IDENTIFICATION Manufacturer: Atlas Copco OEM Manufacturer: Synatec GmbH Model: AC Node 21.5 Value Pro + FCC Atlas Copco Part Number: 8434230132 Synatec Part Number: 1005345 Serial Number: A1742005-21560 Condition: USED Country of Manufacture: Germany DISPLAY DATA Display Size: 21.5 in. Display Type: Touchscreen HMI Operator Interface: Integrated POWER DATA Input Voltage: 24 VDC Input Voltage: 100-240 VAC Frequency: 50/60 Hz Maximum Power Consumption: 100 W Maximum AC Current: 1.2 A Maximum DC Current: 5 A COMMUNICATIONS Ethernet Ports: 2 USB Ports: 2 Serial Ports: 3 Digital I/O Terminal Block: Installed ENVIRONMENTAL Operating Temperature: 0°C to 40°C Operating Temperature: 32°F to 104°F CONSTRUCTION Panel Configuration: Operator Interface Panel Housing Style: Industrial HMI Enclosure Front Interface: Touchscreen Rear Cooling Fins: Integrated CERTIFICATIONS CE Marked: Yes FCC Marked: Yes TUV Certified: Yes APPLICATION DATA Assembly Automation: Yes Production Monitoring: Yes Machine Interface: Yes Industrial Control Systems: Yes Manufacturing Workstations: Yes Operator Visualization: Yes

▸ Key Features:

• Part of the Atlas Copco Assembly Control Node series for industrial assembly processes
• 21.5-inch industrial HMI display for operator interaction and process control
• Robust design and high-performance components for demanding production environments
• Supports both 24VDC and 100–240VAC operation (max 100W)

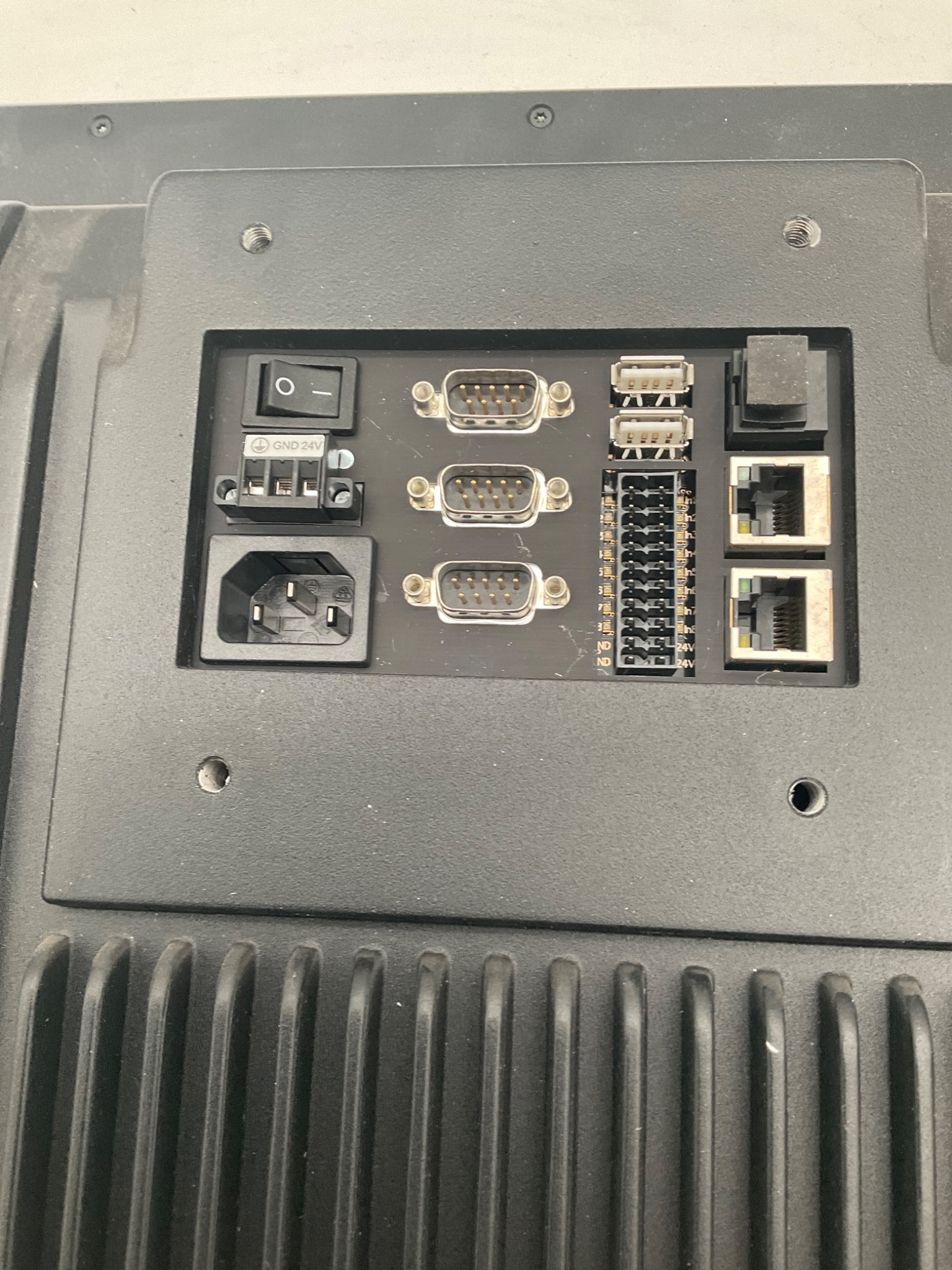

• Multiple communication ports including serial, USB, and Ethernet
• Engineered for error-proofing, fastening system monitoring, and production data handling
• Suitable for integration with Atlas Copco tool controllers and automation platforms

▸ Applications:

• Industrial assembly line monitoring and control
• Error-proofing systems in high-volume manufacturing
• Integration with smart fastening and torque systems
• Automotive, aerospace, and precision assembly environments
• HMI interface for automated production stations
• Data visualization and operator guidance for assembly workflows

▸ Alternative Model Numbers:

AC Node 21.5 Value Pro
AC Node 21.5 Value Pro+ FCC
8434230131
8434230132
AC Node 21.5 Basic / Value / Performance (same product family)

▸ Common Misspellings or Phrasing:

Atlas Copco ACNode 21.5
AC Node 21.5 FCC Pro
Atlas Copco 21.5 HMI
AC 21.5 Node Panel
Atlas Copco ValuePro HMI
