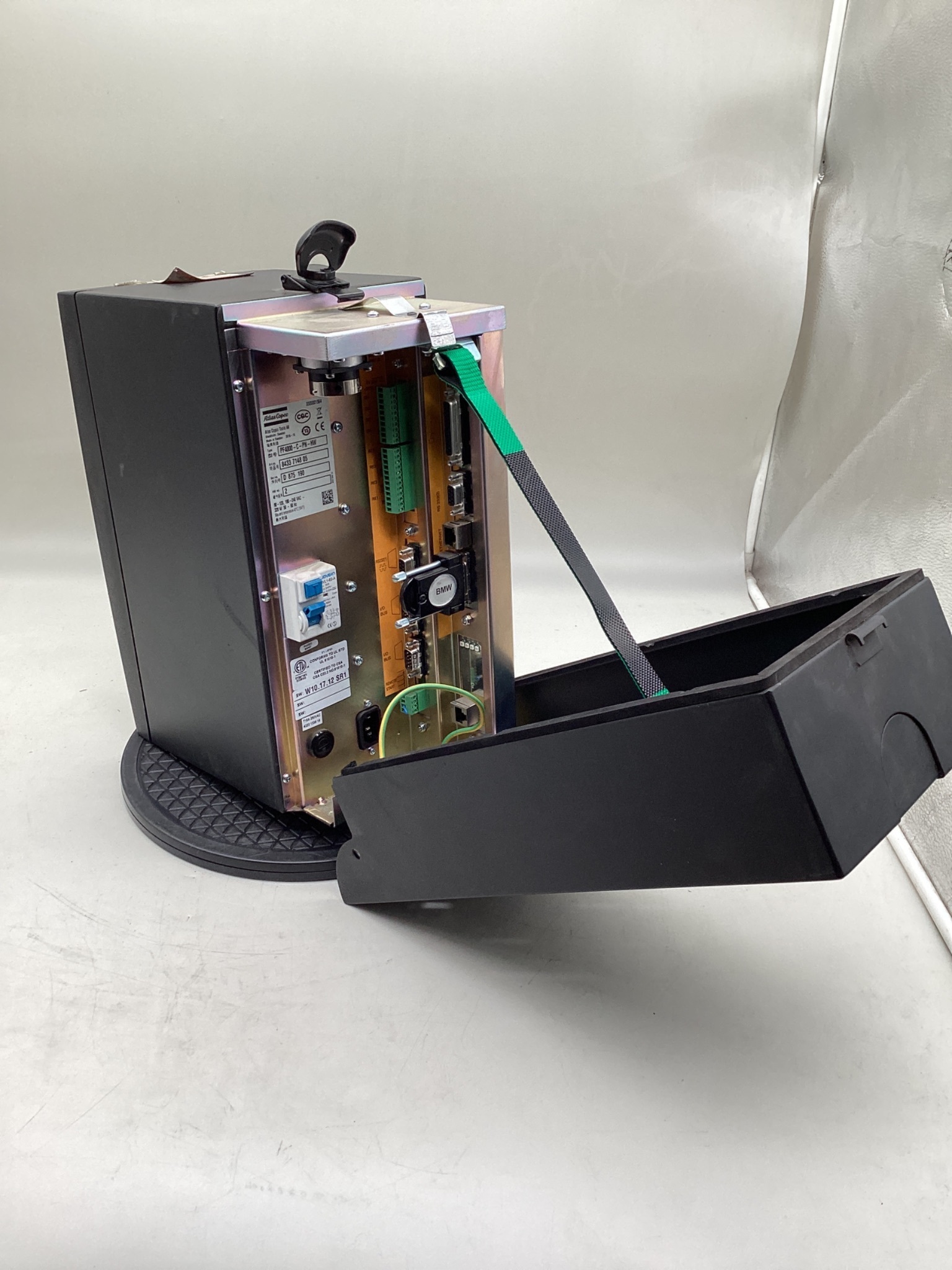

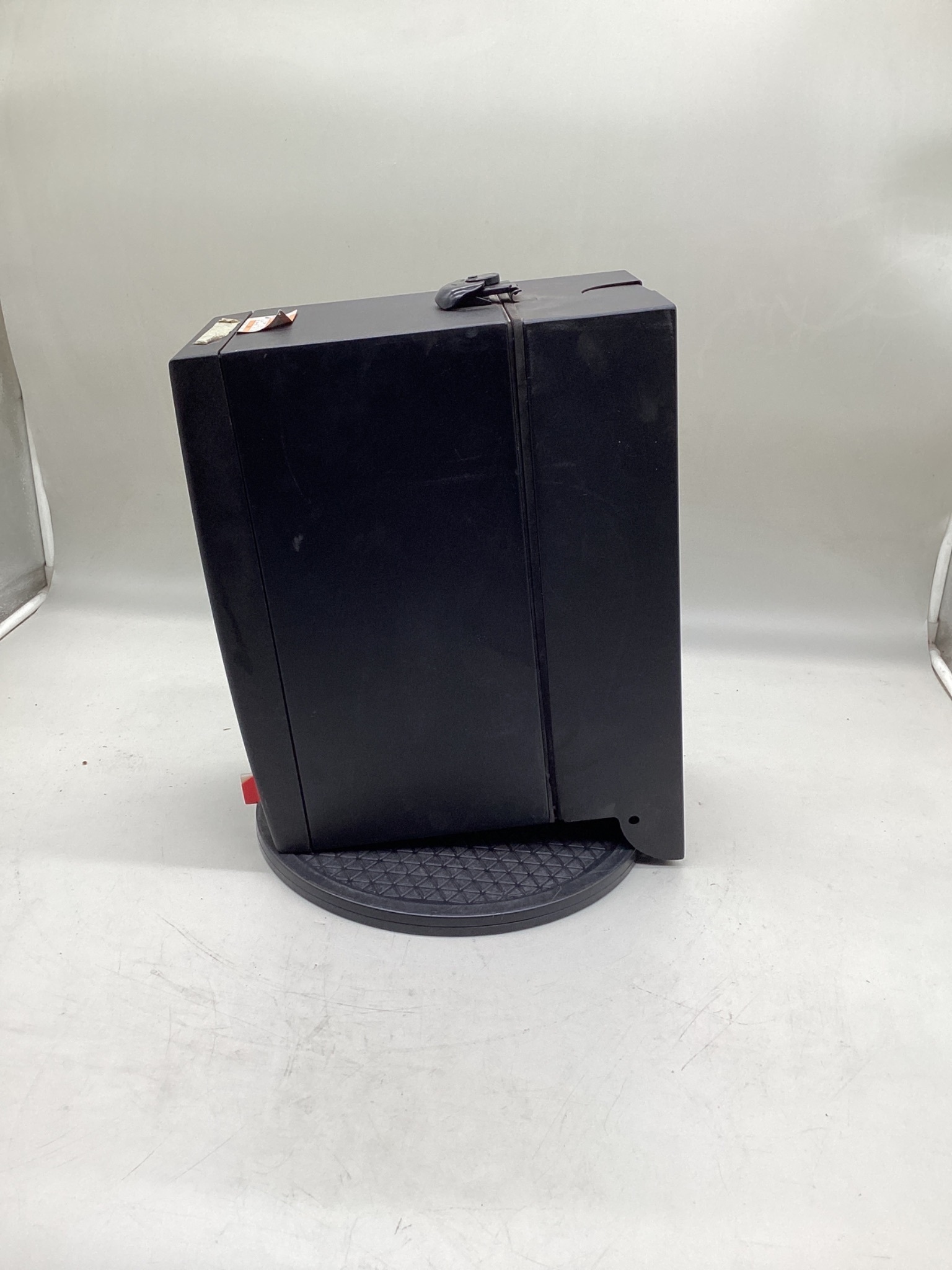

Atlas Copco 8433 7148 05 / PF4000-C-PN-HW Power Focus 4000 Controller USED

Specification Table

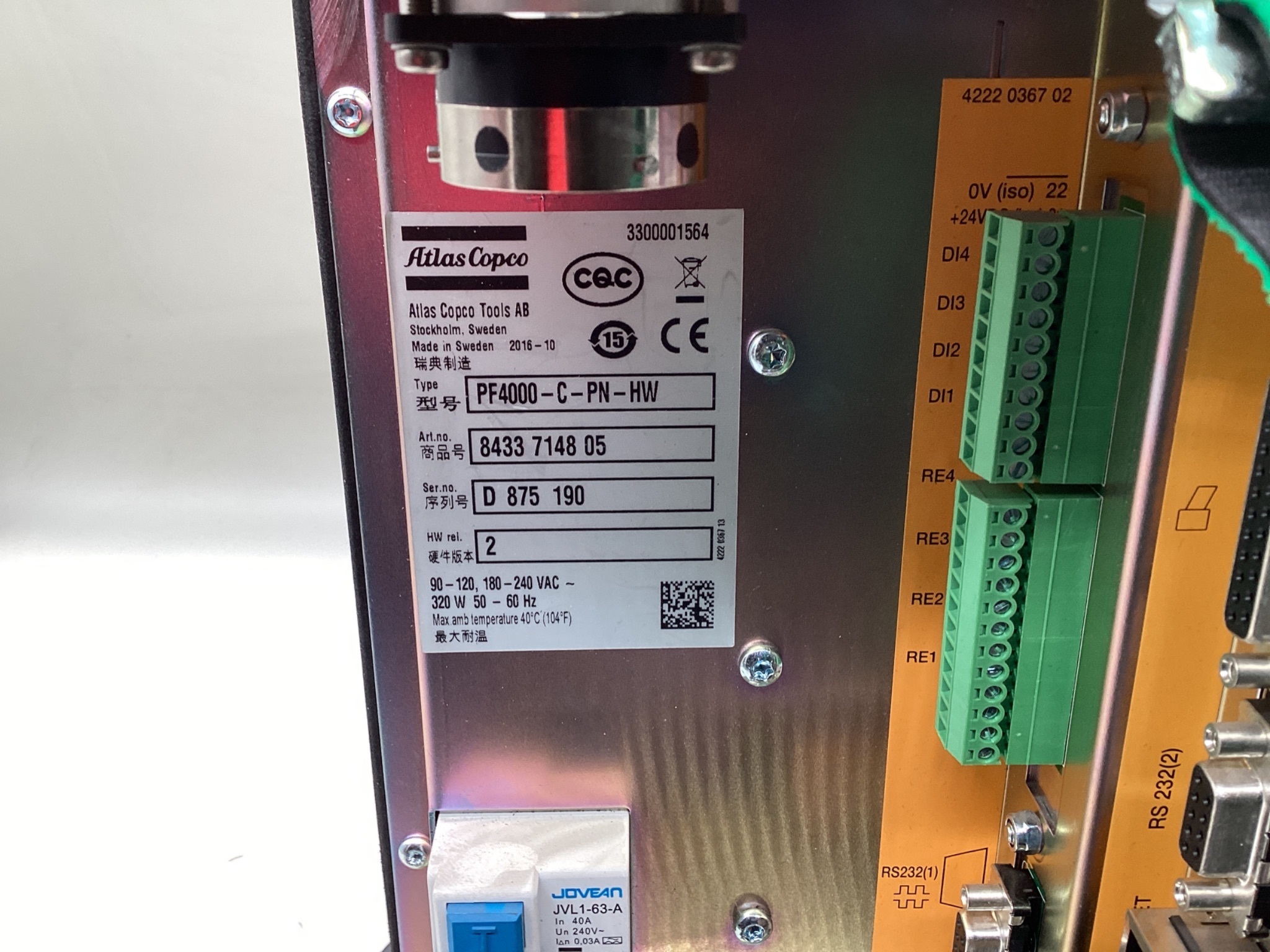

IDENTIFICATION Manufacturer: Atlas Copco Tools AB Product Family: Power Focus 4000 Model / Type: PF4000-C-PN-HW Part Number: 8433 7148 05 Serial Number: D 875 190 Hardware Revision: 2 Product Type: Tightening controller Condition: USED YOM: 2016 Country of Manufacture: Sweden   FASTENING / CONTROL Control Platform: Power Focus 4000 Primary Function: Electric tightening control Fastening Process Control: Integrated Tightening Result Monitoring: Integrated Tool Control: Electronic   ELECTRICAL Input Voltage Range 1: 90-120 VAC Input Voltage Range 2: 180-240 VAC Input Frequency: 50-60 Hz Power Rating: 320 W Maximum Ambient Temperature: 40°C / 104°F   NETWORK / COMMUNICATION Industrial Network: PROFINET PROFINET Configuration: Integrated Serial Communications: RS-232 RS-232 Channels: 2 Serial Interface Type: DB-style   DIGITAL I/O Digital Inputs: 4 Digital Input Designations: DI1 / DI2 / DI3 / DI4 Digital I/O Supply: 24 VDC isolated Relay Outputs: 4 Relay Designations: RE1 / RE2 / RE3 / RE4 Relay Contact Arrangement: NO / C / NC   OPERATOR INTERFACE Display: Integrated digital display Keypad: Integrated Function Key: Present Parameter Adjustment Keys: Present Navigation / Enter Key: Present Main Power Disconnect: Integrated rotary switch   PROTECTION Main Circuit Breaker: Jovean JVL1-63-A Circuit Breaker Poles: 2 Circuit Breaker Current Rating: 40 A Circuit Breaker Voltage Rating: 240 V Residual Current Rating: 0.03 A   CONSTRUCTION / INSTALLATION Configuration: Enclosed industrial controller Service Access: Hinged enclosure Installation: Fixed Internal Terminal Connections: Pluggable Internal Communications Panel: Integrated   APPROVALS CQC: Approved CE: Yes
