Atlas Copco 8433 7100 05 / PF4000-C-HW Power Focus 4000 Controller USED

Specification Table

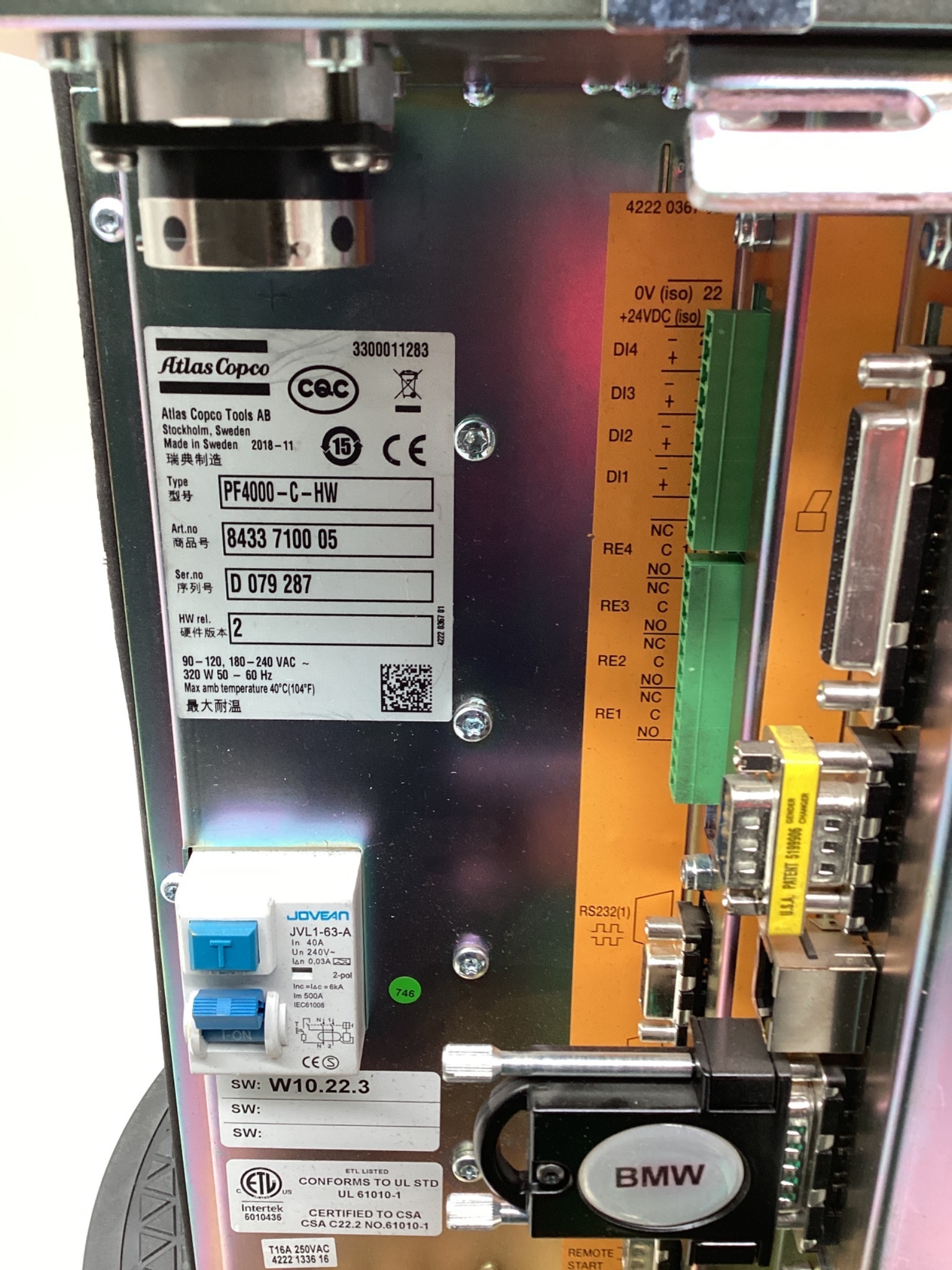

IDENTIFICATION Manufacturer: Atlas Copco Tools AB Product Family: Power Focus 4000 Model / Type: PF4000-C-HW Part Number: 8433 7100 05 Serial Number: D 079 287 Hardware Revision: 2 Product Type: Tightening controller Condition: USED YOM: 2018 Country of Manufacture: Sweden   ELECTRICAL Input Voltage Range 1: 90-120 VAC Input Voltage Range 2: 180-240 VAC Input Frequency: 50-60 Hz Power Rating: 320 W Maximum Ambient Temperature: 40°C   CONTROL / OPERATOR INTERFACE Operator Interface: Integrated Display: Digital display Keypad: Integrated Main Disconnect: Integrated Tightening Control: Power Focus 4000   DIGITAL I/O Digital Inputs: 4 Digital Input Designations: DI1 / DI2 / DI3 / DI4 Digital I/O Supply: 24 VDC isolated Relay Outputs: 4 Relay Designations: RE1 / RE2 / RE3 / RE4 Relay Contacts: NO / C / NC   COMMUNICATIONS / INTERFACE Serial Communications: RS-232 RS-232 Interface: DB-style connector External Interface Connectors: Multiple Remote Start Interface: Present   PROTECTION Main Circuit Breaker: Jovean JVL1-63-A Circuit Breaker Poles: 2 Circuit Breaker Rated Current: 40 A Circuit Breaker Rated Voltage: 240 V Residual Current Rating: 0.03 A   CONSTRUCTION / INSTALLATION Configuration: Enclosed industrial controller Service Access: Hinged Installation: Fixed Maximum Ambient Temperature: 40°C   APPROVALS ETL: Listed CE: Yes CQC: Yes UL Standard: UL 61010-1 CSA Standard: CSA C22.2 No. 61010-1
