ASCO V0431 1/4″ Quick Exhaust Shuttle Valve 5-125 PSI NEW

Name: ASCO V0431 1/4″ Quick Exhaust Shuttle Valve 5-125 PSI NEW
Brand: ASCO
SKU: IGAM4330066
Price: 30 USD
Availability: InStock

$30.00

Availability:

2 in stock

BRAND: ASCO MODEL: V0431 CONDITION: New

SKU: IGAM4330066 Weight: 2 lbs Shipping Calculated at Checkout

2 in stock

Make an offer

Overview

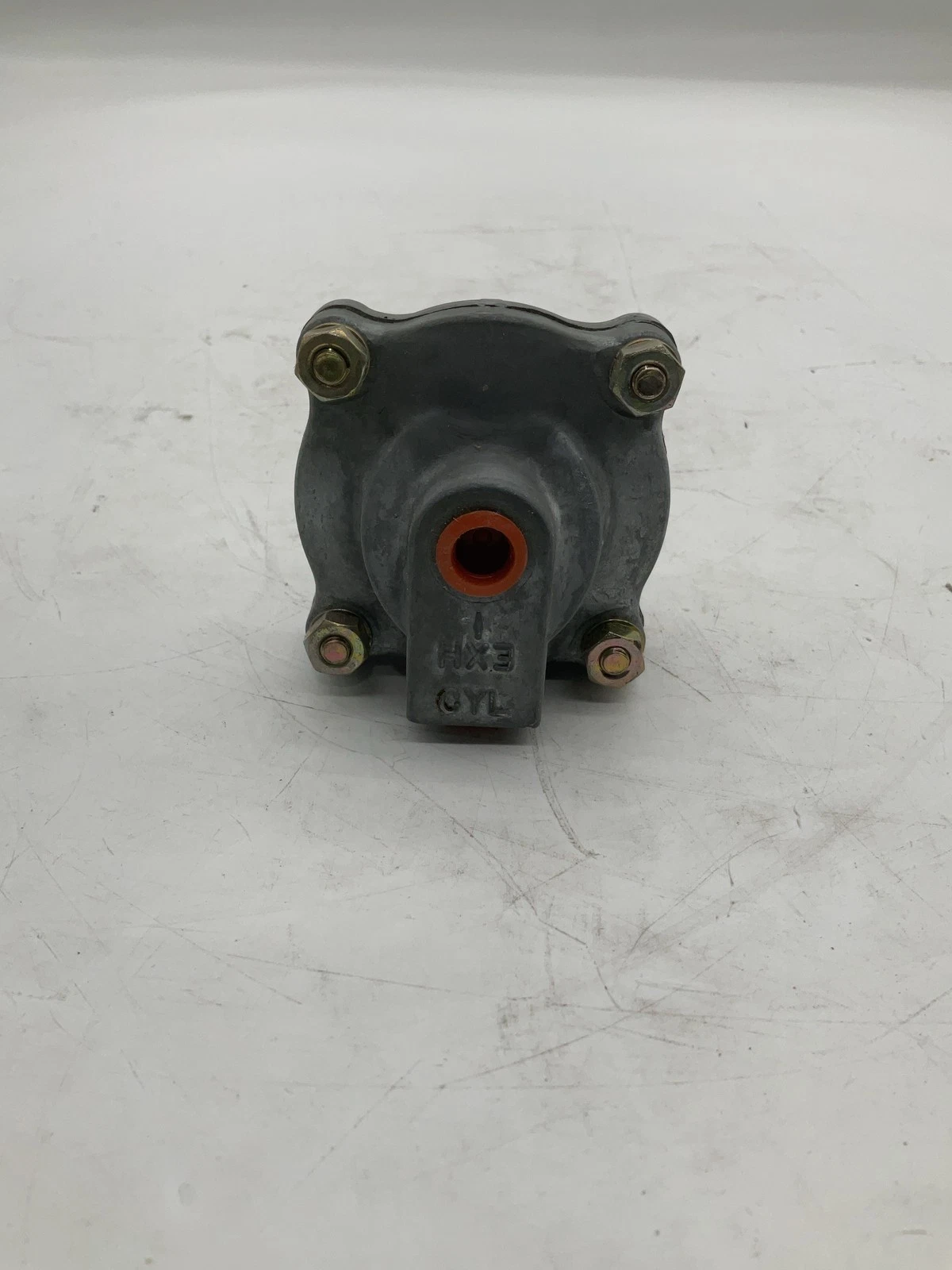

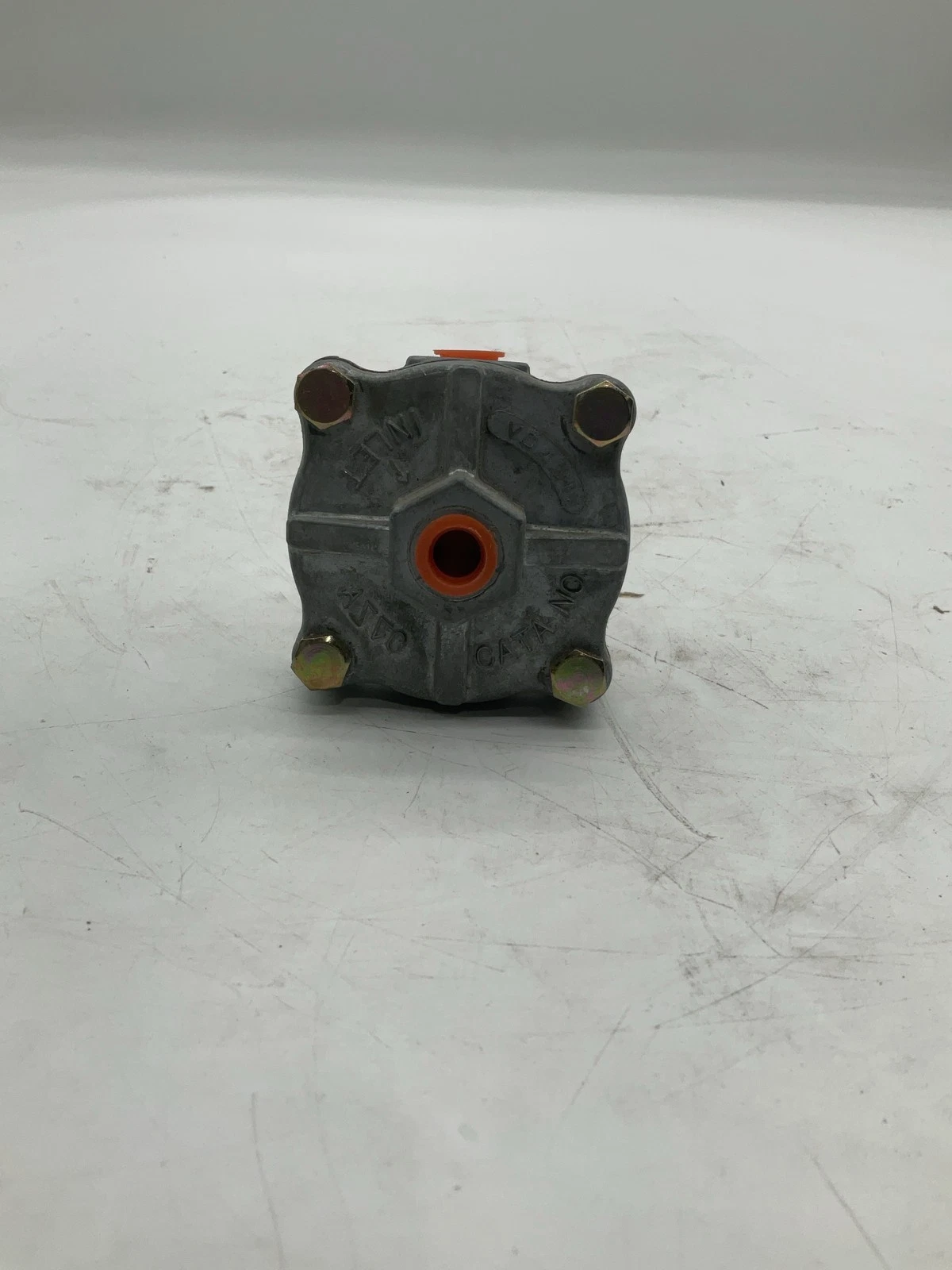

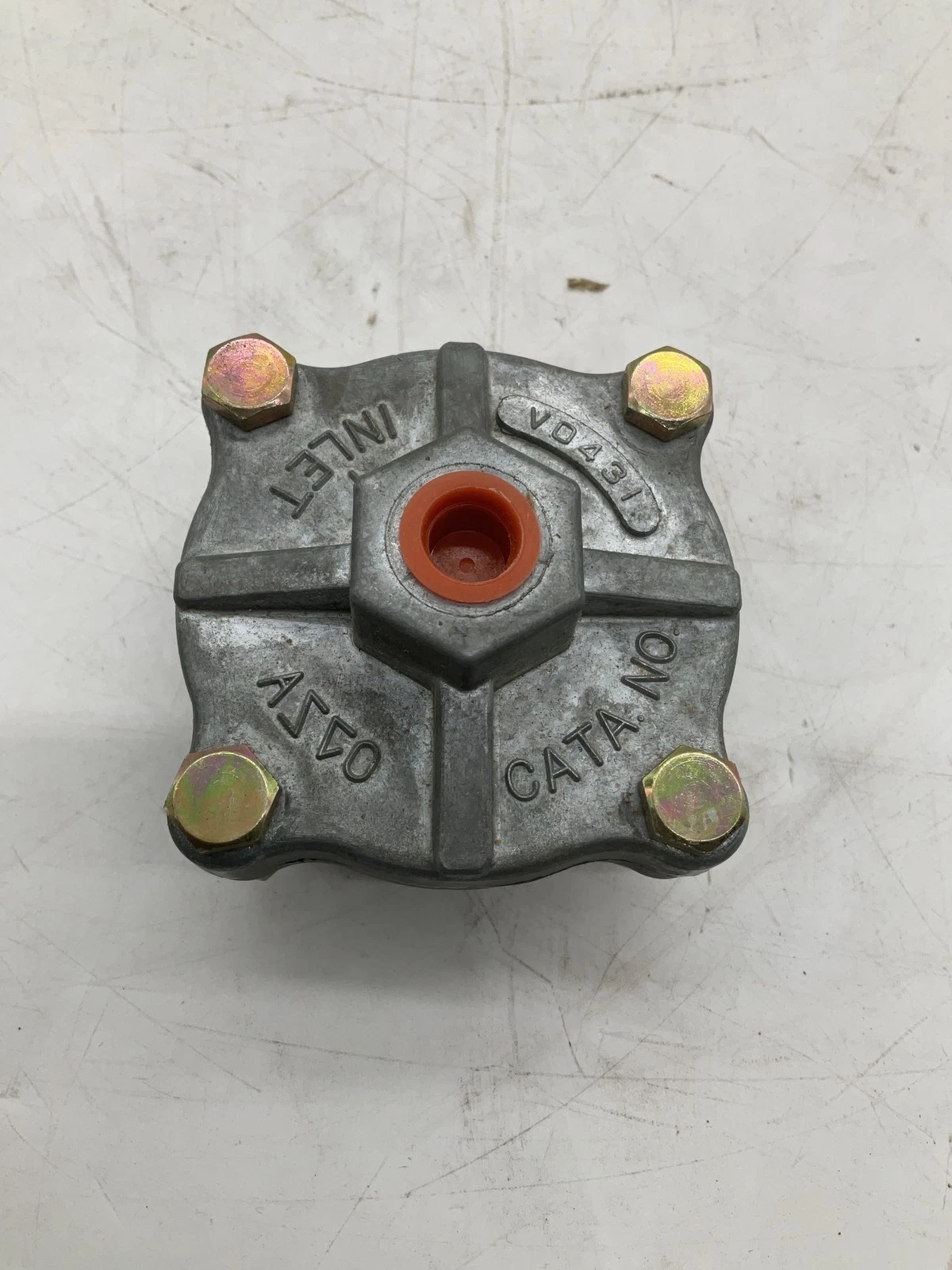

This listing is for a NEW ASCO V0431. This compact three-port pneumatic valve provides quick exhaust of compressed-air circuits and can also function as a shuttle valve. The 1/4″ configuration features a die-cast zinc body, NBR seat, 5 PSI opening pressure, and 125 PSI maximum operating pressure differential.

Description
Tags

Specification Table

IDENTIFICATION Manufacturer: ASCO Product Line: Red-Hat Part Number: V0431 OEM Catalog Number: V043 001 Product Type: Quick Exhaust / Shuttle Valve Serial Number: S 48329 Condition: NEW YOM: n/a PNEUMATIC CONFIGURATION Valve Configuration: 3-Port Primary Function: Quick Exhaust / Shuttle Service Media: Air Maximum Operating Pressure ΔP: 125 PSI (8.6 bar) Opening Pressure: 5 PSI (0.35 bar) Ambient Temperature Range: -4°F to 125°F (-20°C to 52°C) FLOW Pressure-to-Cylinder Cv: 2.0 Cylinder-to-Exhaust Cv: 2.0 Pressure-to-Cylinder Kv: 1.7 Cylinder-to-Exhaust Kv: 1.7 CONNECTIONS Pipe Size: 1/4 in. Connection Standard: NPT Number of Ports: 3 Inlet Connection: 1/4" NPT Cylinder Connection: 1/4" NPT Exhaust Connection: 1/4" NPT CONSTRUCTION Body Material: Die-Cast Zinc Bonnet Material: Die-Cast Zinc Seat Material: NBR Construction Reference: 1 INSTALLATION Mounting Orientation: Any Position
