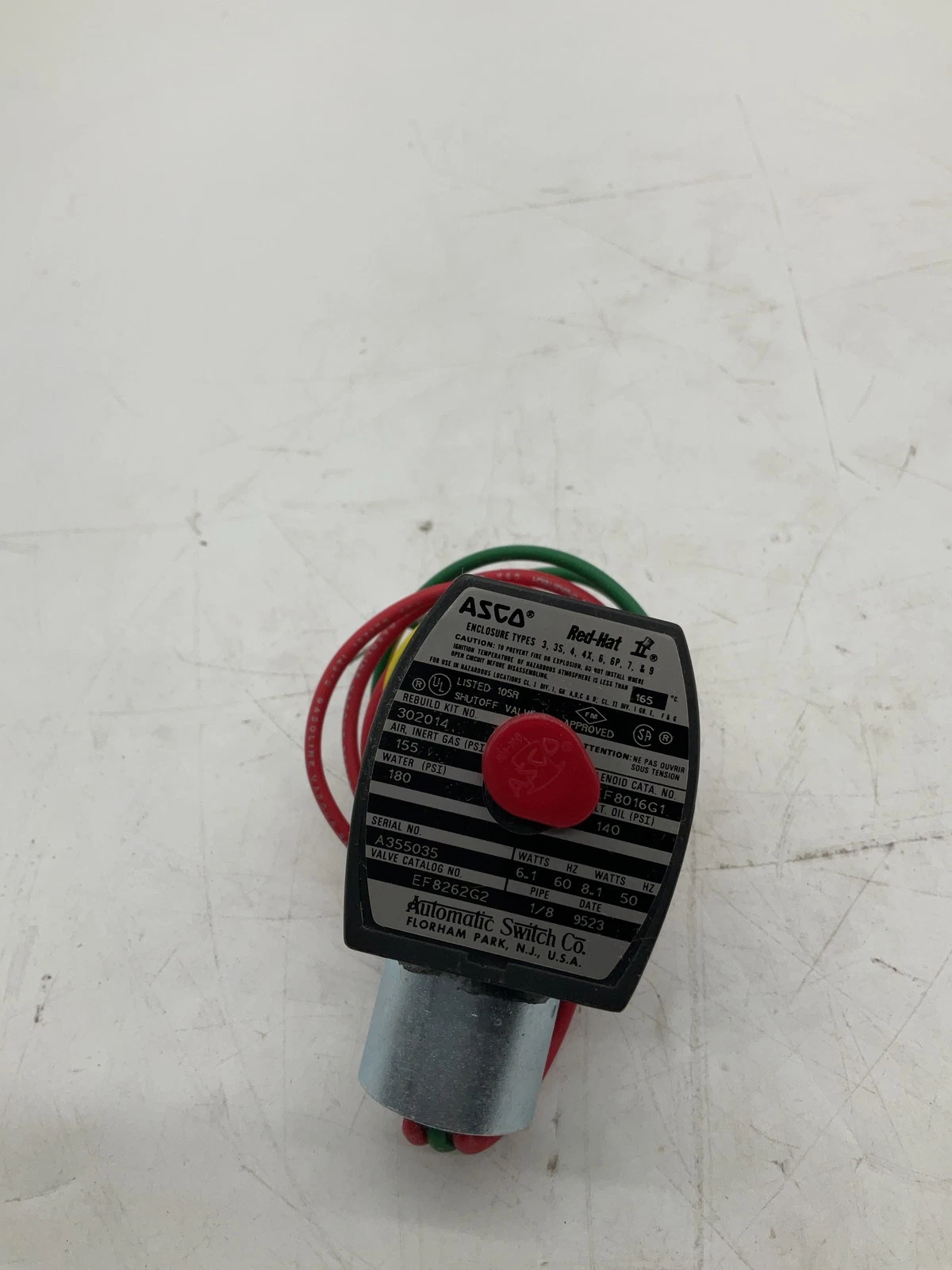

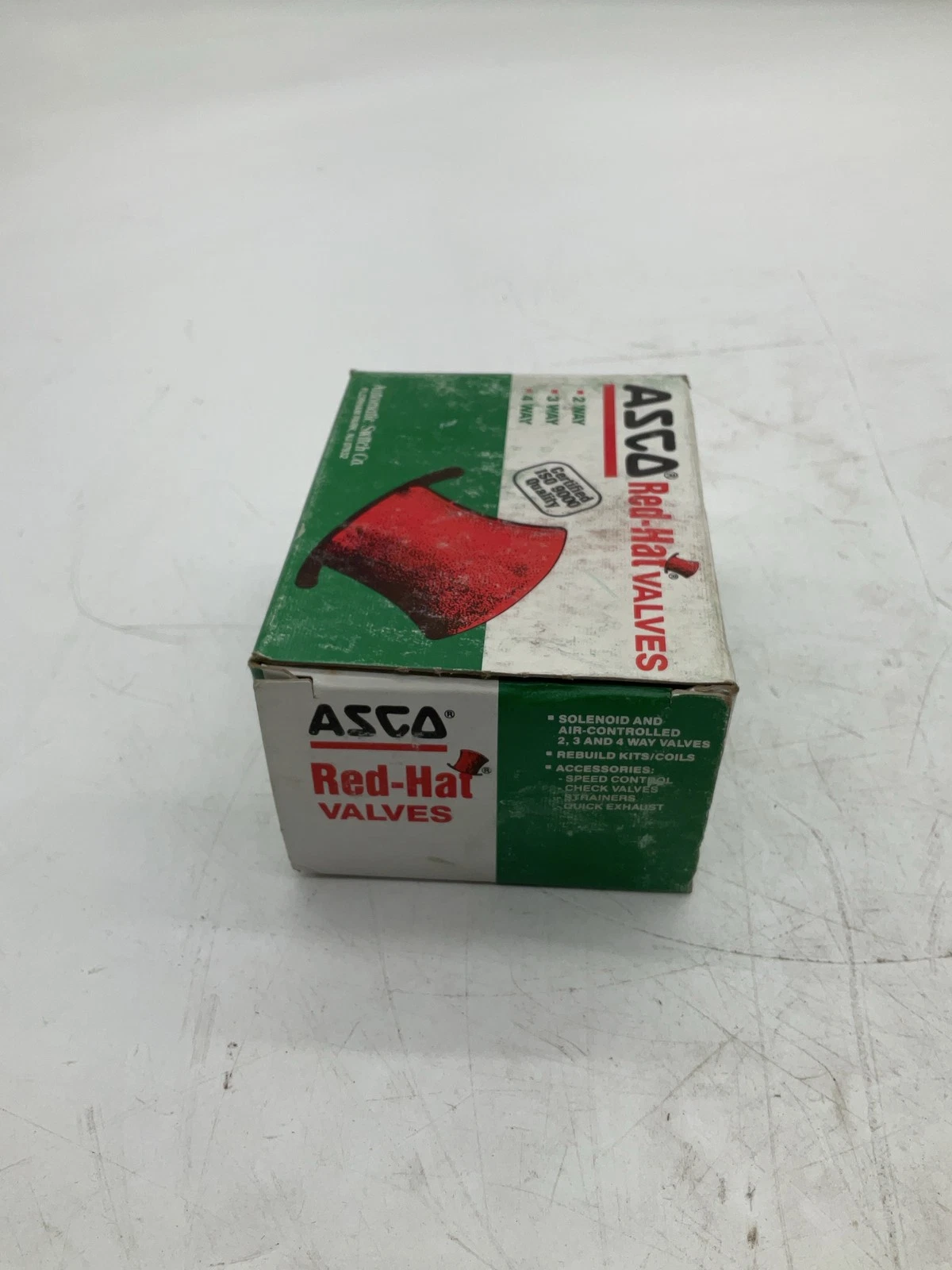

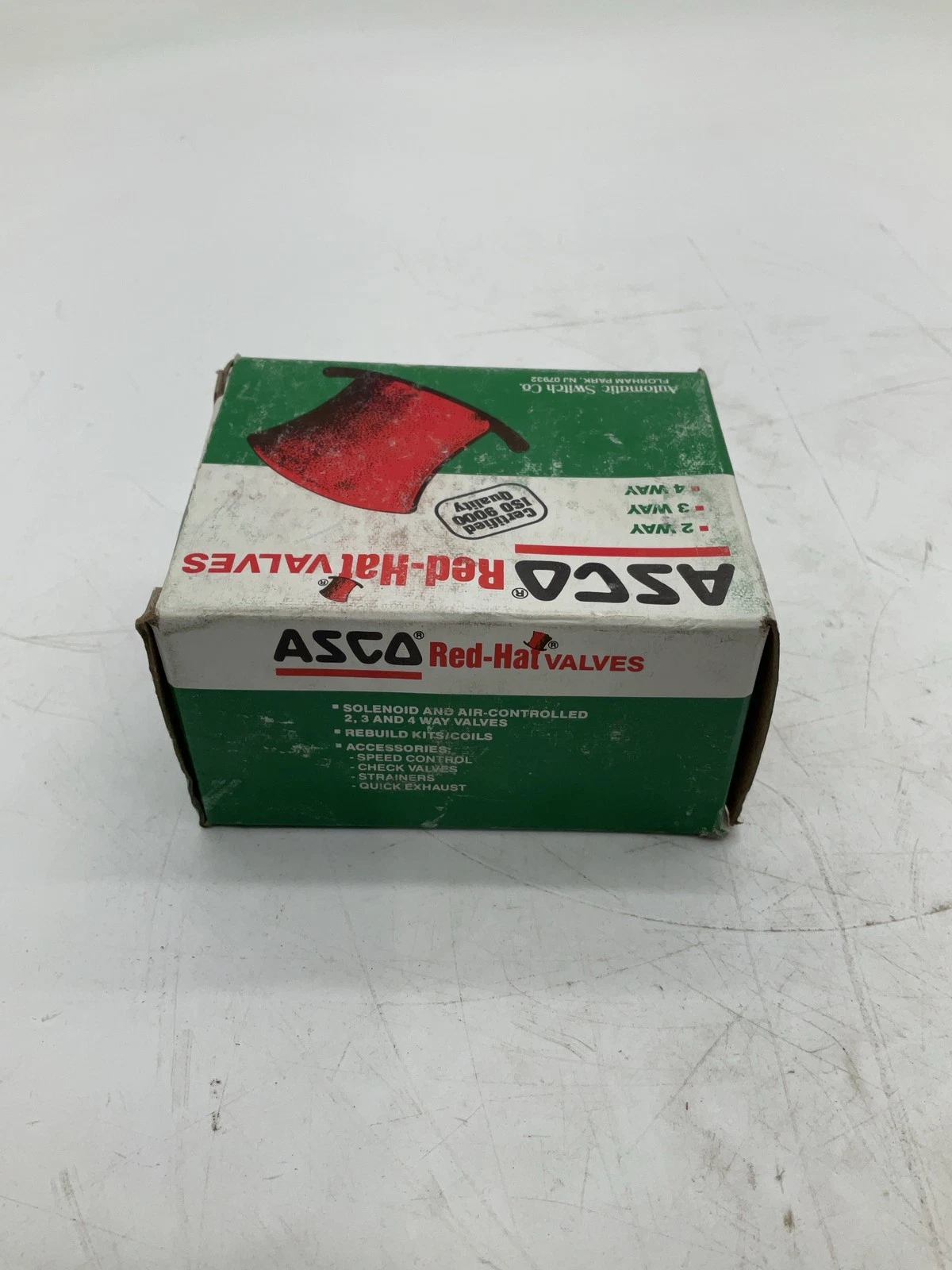

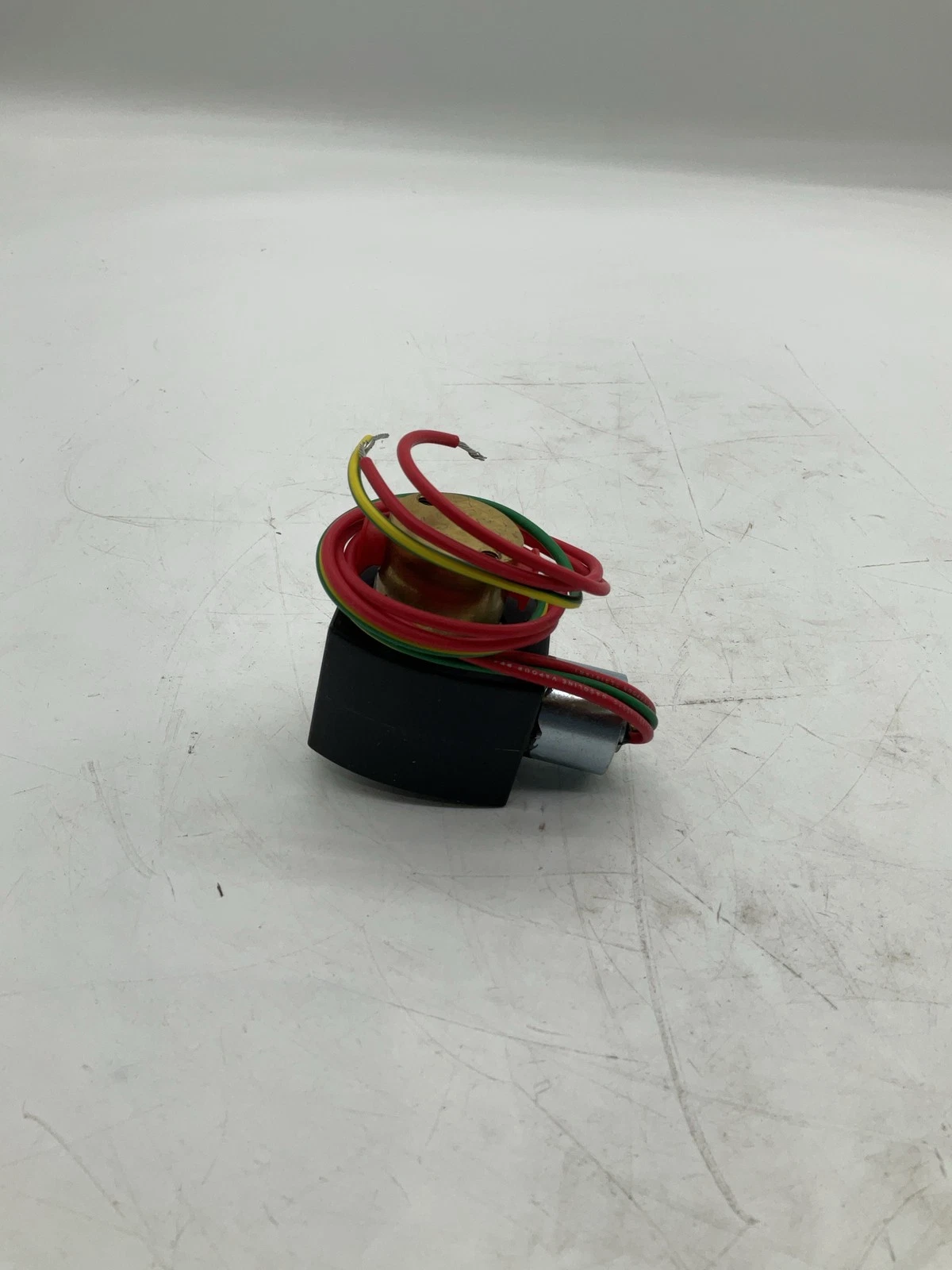

ASCO EF8262G2 1/8″ Red-Hat Solenoid Valve 120V NEW

Specification Table

IDENTIFICATION

Manufacturer: ASCO

Manufacturer Name: Automatic Switch Co.

Product Line: Red-Hat

Valve Catalog Number: EF8262G2

Product Type: Solenoid Valve

Condition: NEW

YOM: n/a

VALVE CONFIGURATION

Pipe Size: 1/8 in.

Service Media: Air / Inert Gas / Water

Valve Function: Shutoff

Port Thread: Not specified

Orifice Size: Not specified

PRESSURE

Air / Inert Gas Rating: 155 PSI

Water Rating: 180 PSI

Light Oil Rating: 140 PSI

ELECTRICAL

Coil Voltage / Frequency: 120 VAC / 60 Hz;

110 VAC / 50 Hz

Power Consumption: 6.1 W at 60 Hz;

8.1 W at 50 Hz

Electrical Connection: Wire Leads

ENCLOSURE / ENVIRONMENT

Solenoid Enclosure: Red-Hat II

Enclosure Types: 3, 3S, 4, 4X, 6, 6P,

7, 9

Maximum Ambient Temperature: 165°F

SERVICE / MAINTENANCE

Rebuild Kit Number: 3020

Solenoid Catalog Number: 21806C1

APPROVALS

UL: Listed

FM: Approved

CSA: Marked
