API Schmidt-Bretten SIGMA 90V SAV Plate Heat Exchanger USED

$10,000.00
Availability:

1 in stock
BRAND: API Schmidt-Bretten MODEL: SIGMA 90V SAV CONDITION: used
SKU: IGAM4390012 Weight: 999 lbs Freight (Item Must Ship Freight)

1 in stock

Make an offer
Get Shipping Quote

Overview

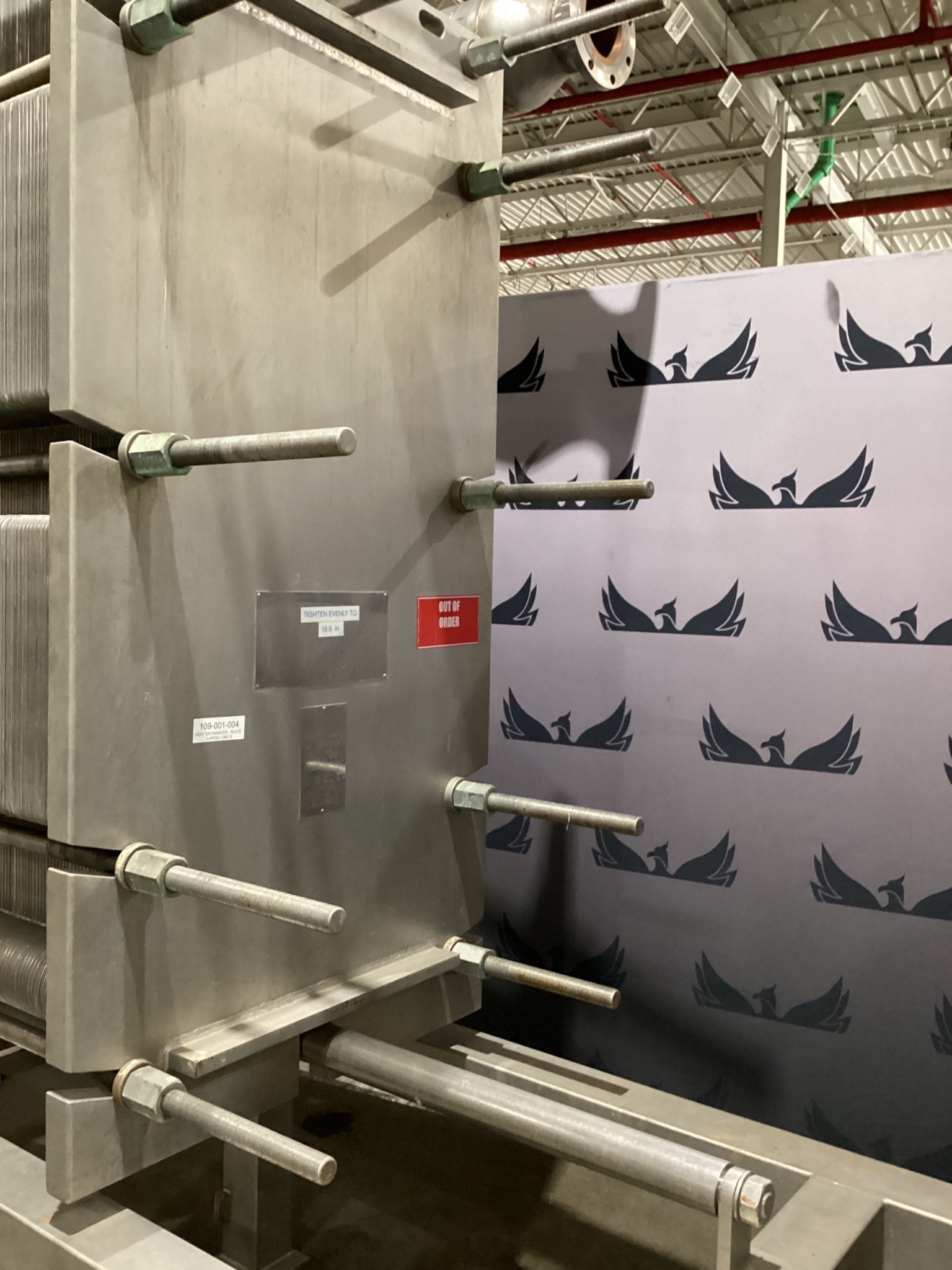

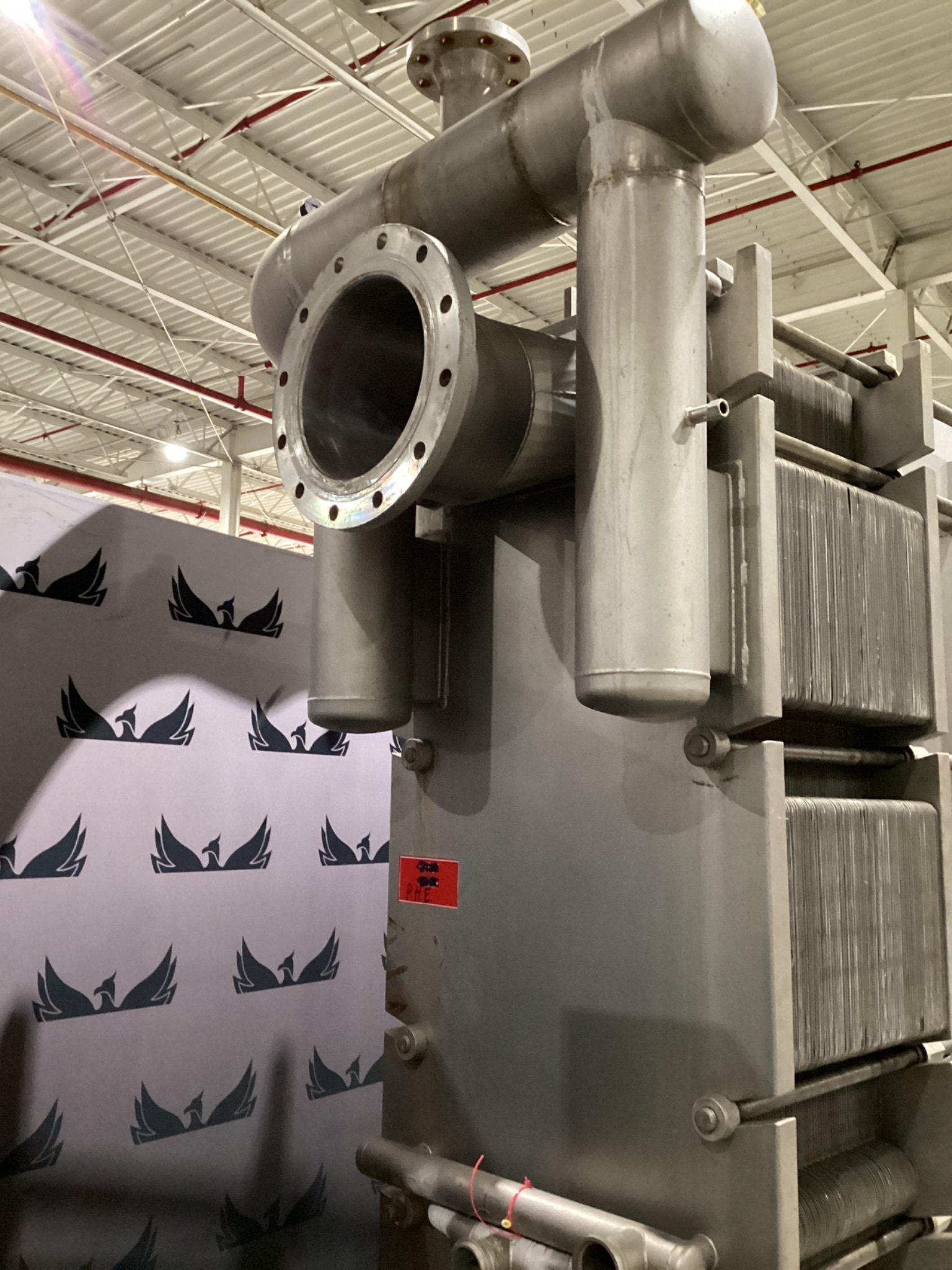

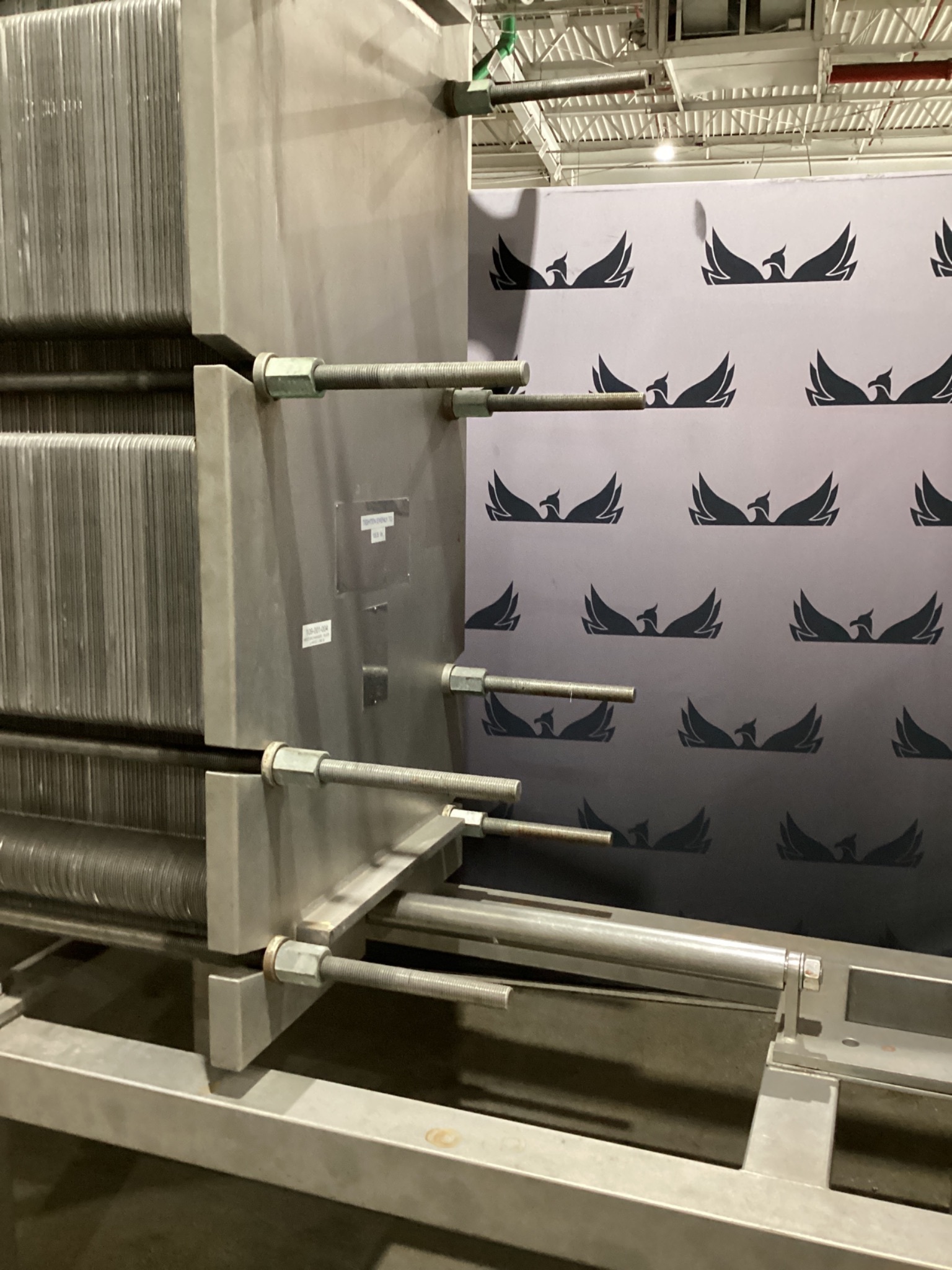

This listing is for a USED API Schmidt-Bretten SIGMA 90V SAV plate heat exchanger. The gasketed plate configuration transfers heat between two separate process-fluid circuits through a compressed plate pack, allowing service access through the movable frame plate. Both pressure chambers are rated for allowable operating pressure from 0.7 to 1 bar and temperatures up to 120°C.

Specification Table

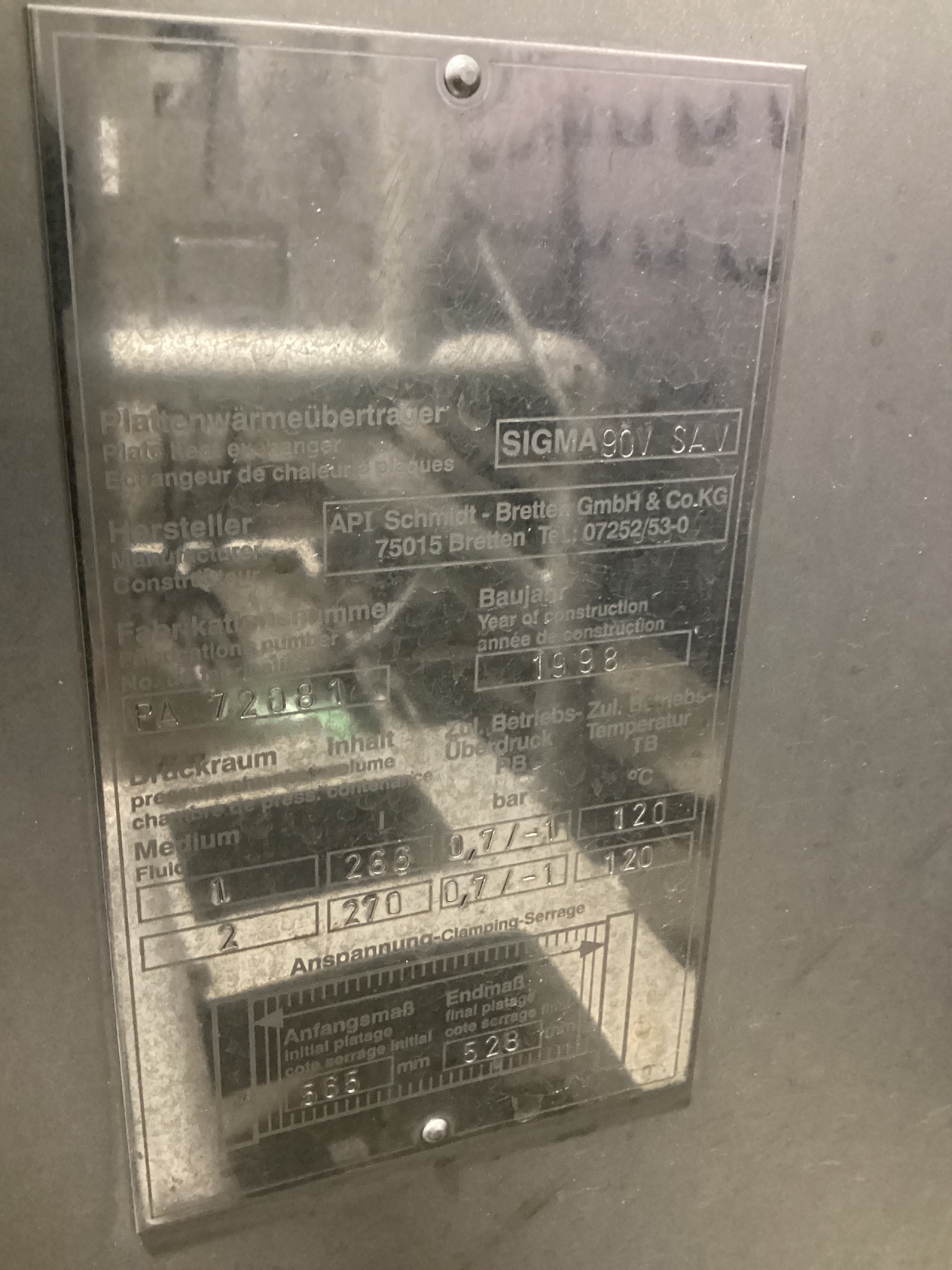

IDENTIFICATION Manufacturer: API Schmidt-Bretten GmbH & Co. KG Product Family: SIGMA Model / Type: SIGMA 90V SAV Serial Number: PA 72081 Product Type: Plate heat exchanger Condition: USED YOM: 1998   HEAT EXCHANGER CONFIGURATION Heat Exchanger Type: Gasketed plate Heat Transfer Method: Indirect plate-to-plate Process Circuits: 2 Pressure Chambers: 2 Plate Pack: Removable / compressible Frame Configuration: Fixed and movable pressure plates   PRESSURE CHAMBER 1 Chamber Volume: 266 L Allowable Operating Pressure: 0.7 to 1 bar Allowable Operating Temperature: 120°C Process Medium: Not specified   PRESSURE CHAMBER 2 Chamber Volume: 270 L Allowable Operating Pressure: 0.7 to 1 bar Allowable Operating Temperature: 120°C Process Medium: Not specified   PLATE PACK / CLAMPING Initial Clamping Dimension: 565 mm Final Clamping Dimension: 528 mm Clamping Method: Threaded tie-bolt compression   FRAME / INSTALLATION Frame Construction: Floor-standing Support Configuration: Integrated base frame Plate-Pack Support: Horizontal carrier structure Clamping Hardware: Threaded tie rods and nuts Installation: Fixed floor installation
