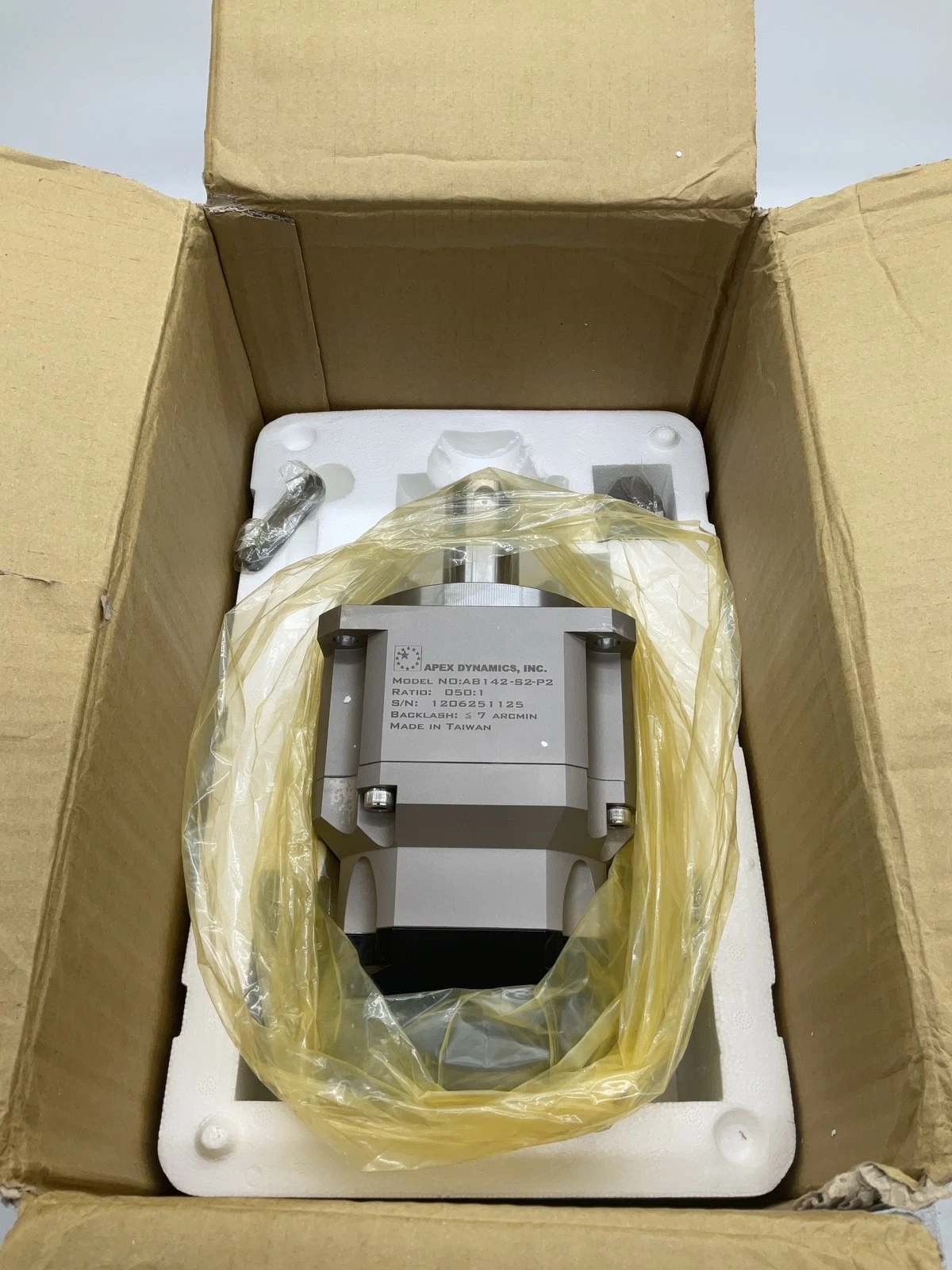

APEX DYNAMICS AB142-050-S2-P2 Planetary Gearbox 50:1 Ratio NEW

Specification Table

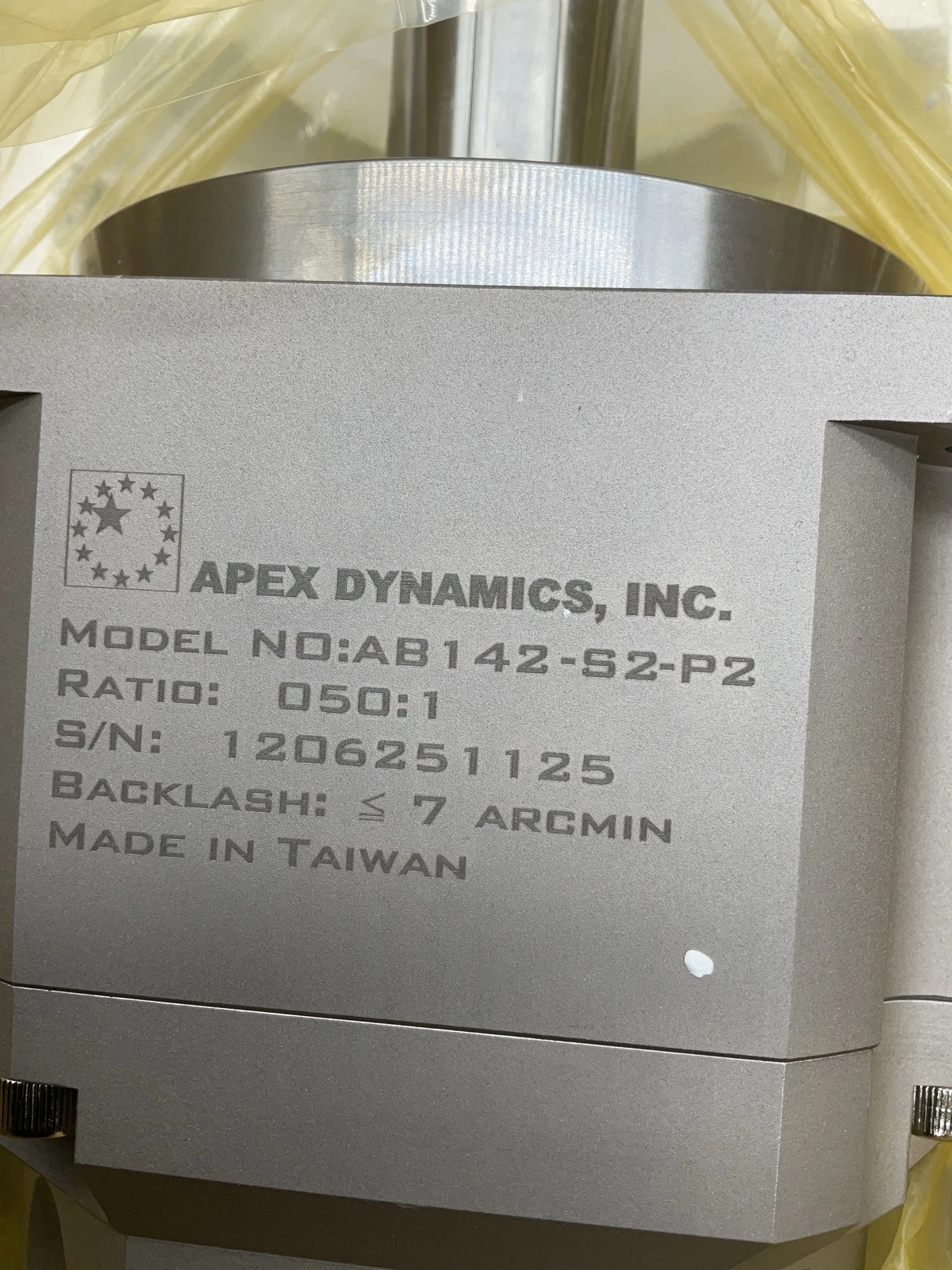

IDENTIFICATION Manufacturer: Apex Dynamics, Inc. Series: AB Model: AB142-050-S2-P2 Serial Number: 1206251125 Condition: NEW Country of Origin: Taiwan GEARBOX Gearbox Type: Planetary Gearbox Configuration: Inline Stage: 2 Stage Reduction Ratio: 50:1 Output Shaft: Keyed (S2) PERFORMANCE Backlash Classification: P2 Standard Backlash Backlash: ≤ 7 Arcmin Nominal Output Torque: 310 Nm Emergency Stop Torque: 930 Nm Maximum Radial Load: 6,700 N Maximum Axial Load: 3,350 N Torsional Rigidity: 14 Nm/arcmin Efficiency: ≥ 92% INPUT Nominal Input Speed: 3,000 RPM Maximum Input Speed: 6,000 RPM CONSTRUCTION Protection Rating: IP65 Lubrication: Synthetic Lubrication Mounting Position: All Directions ENVIRONMENTAL Operating Temperature: -10°C to +90°C SERVICE LIFE Rated Service Life: 20,000 Hours
