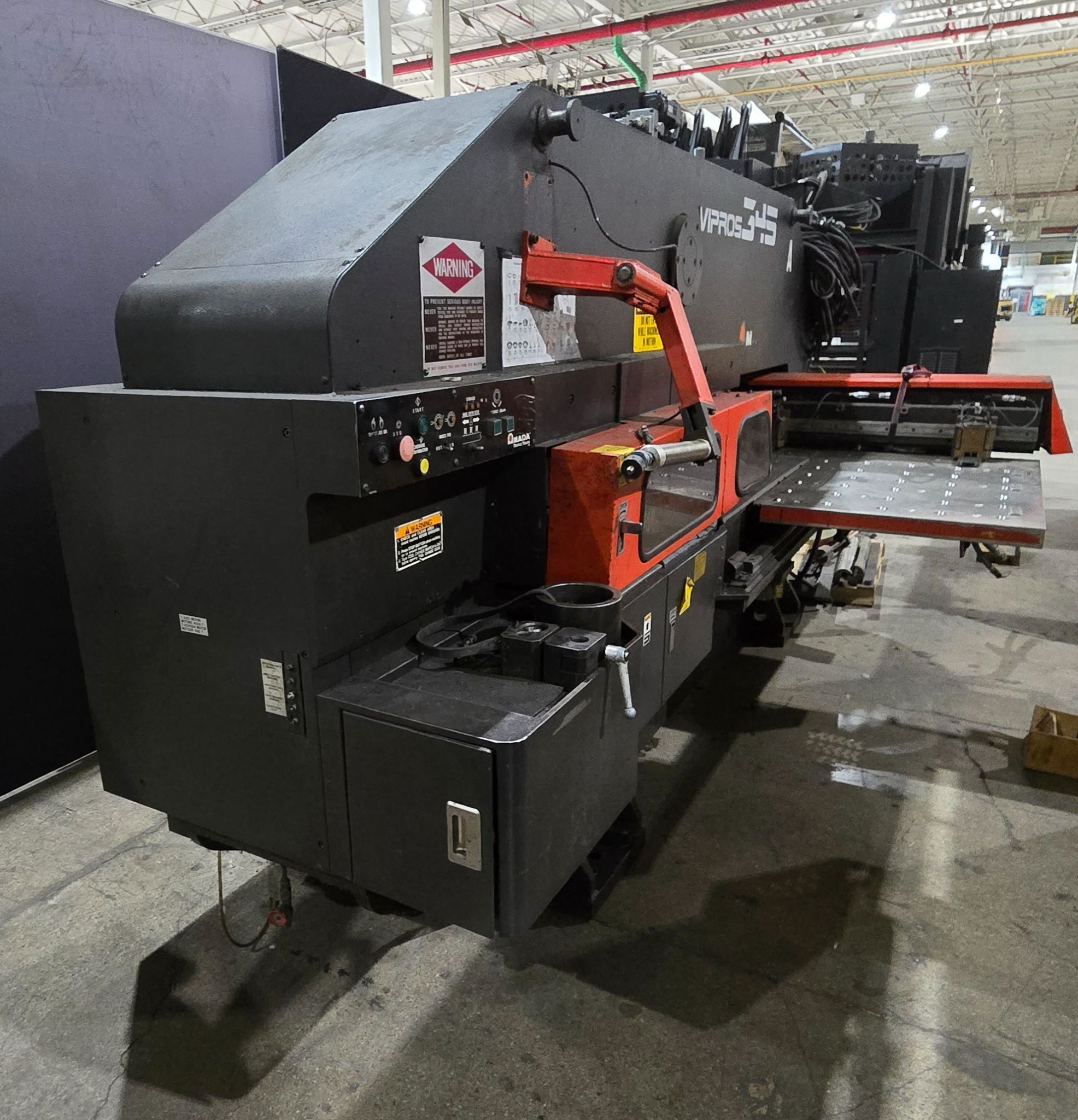

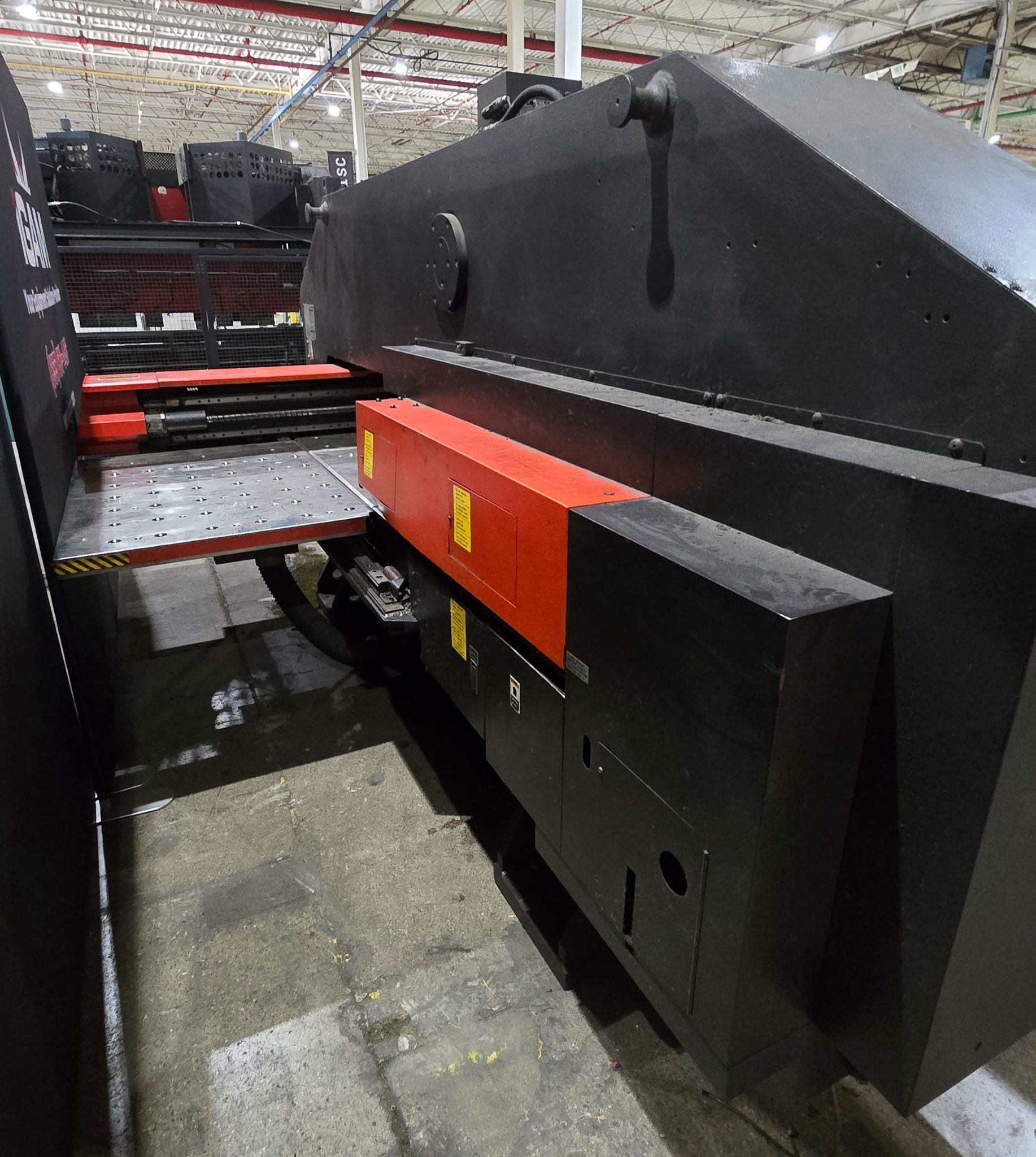

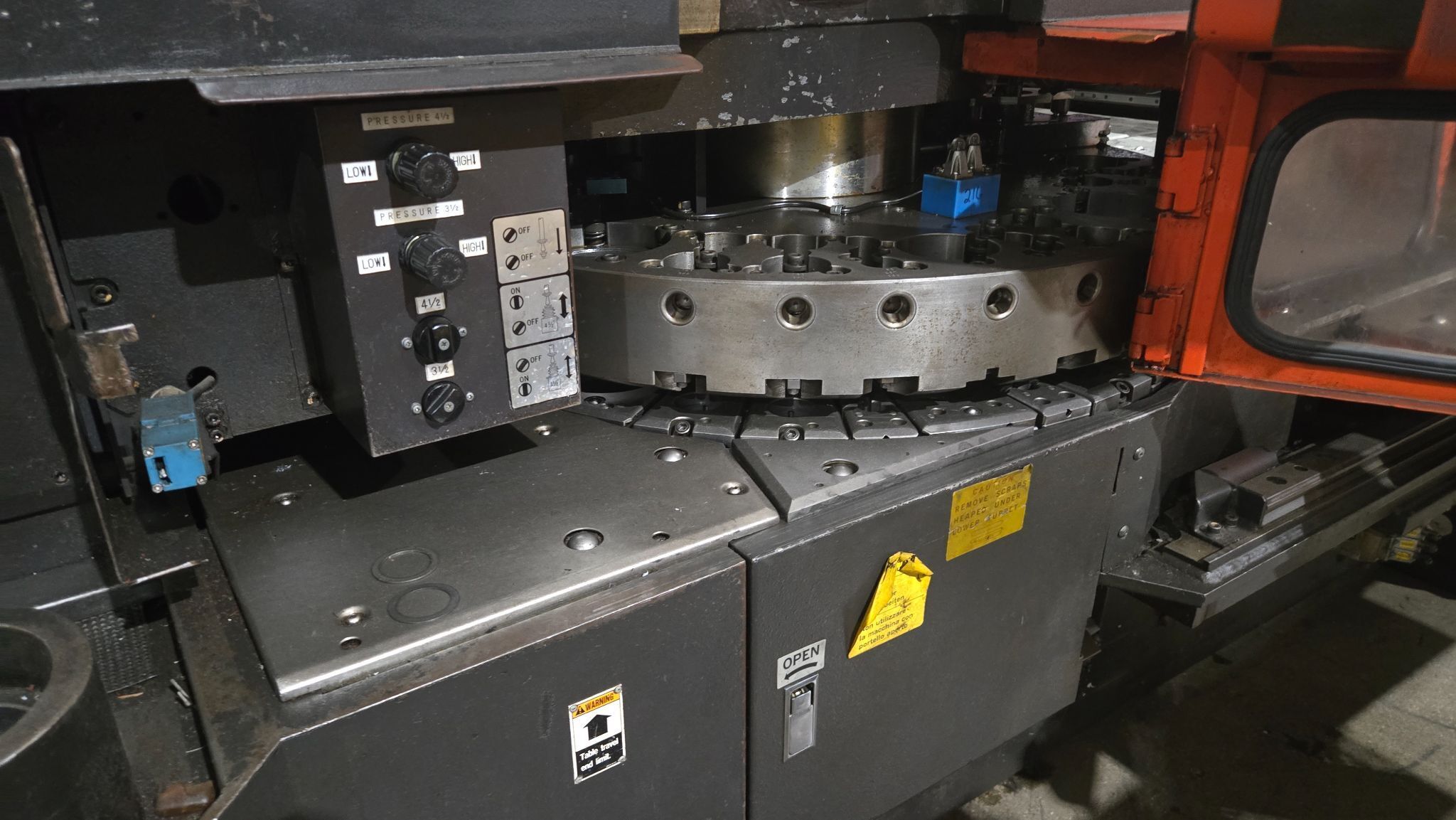

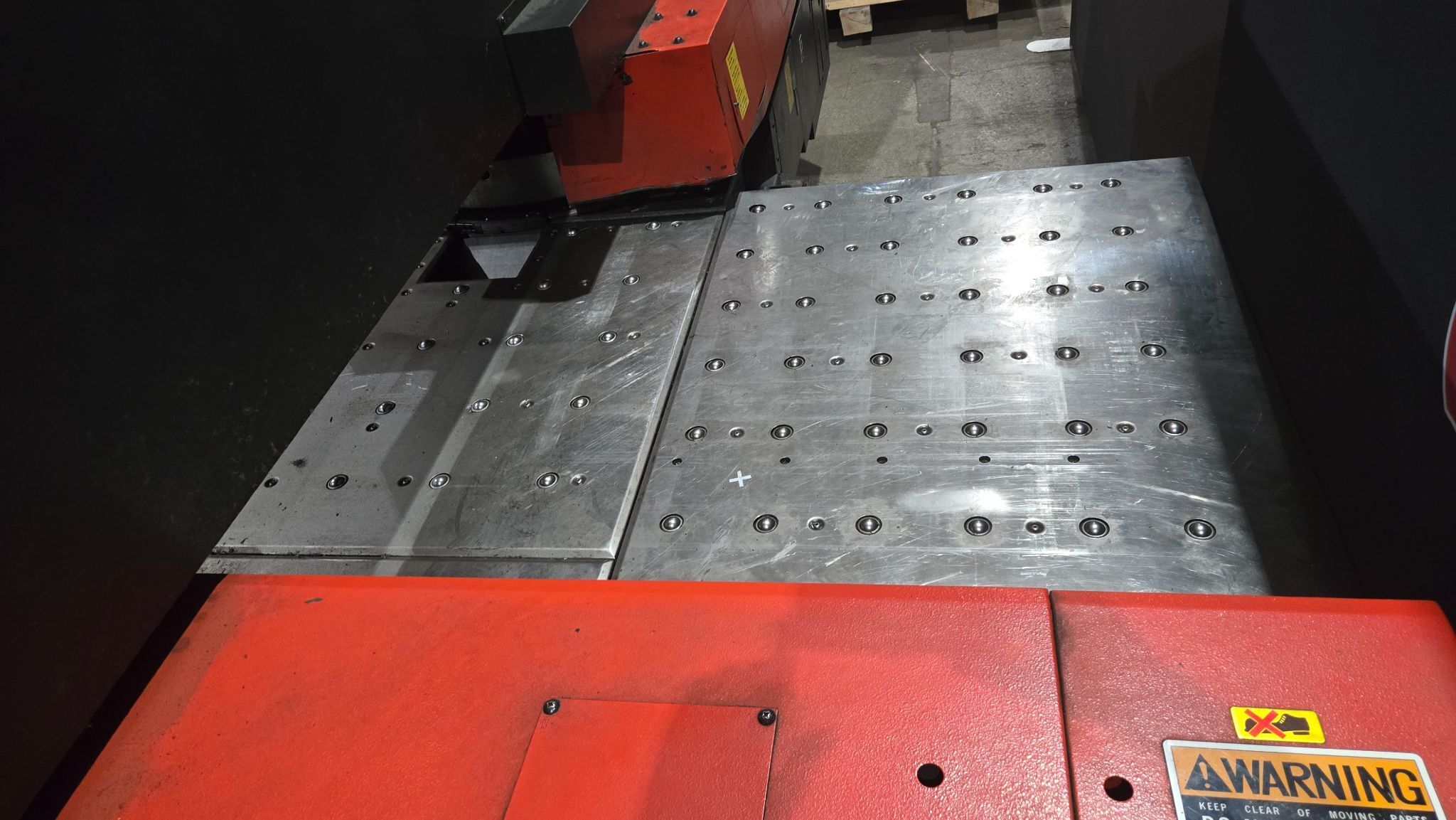

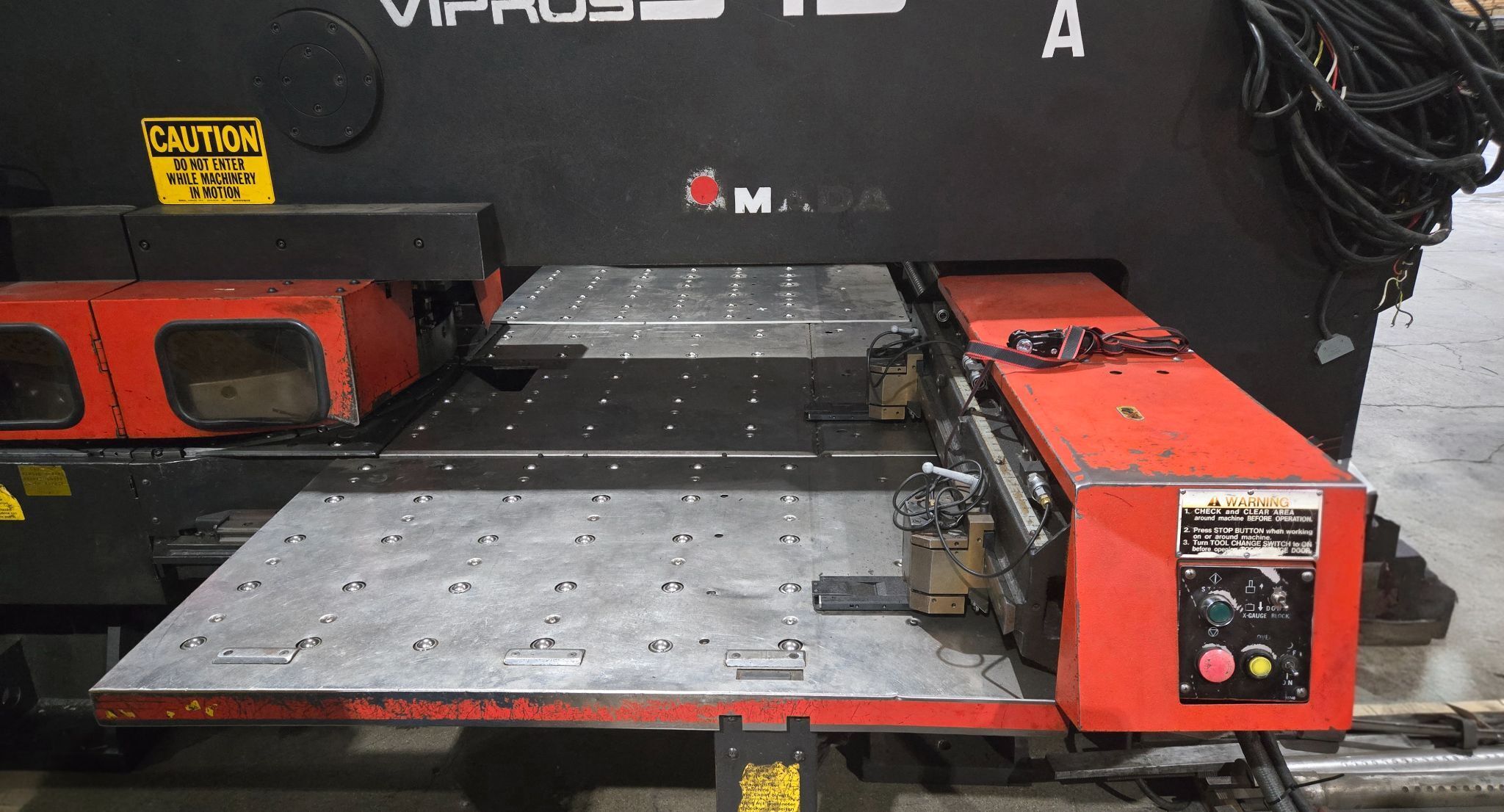

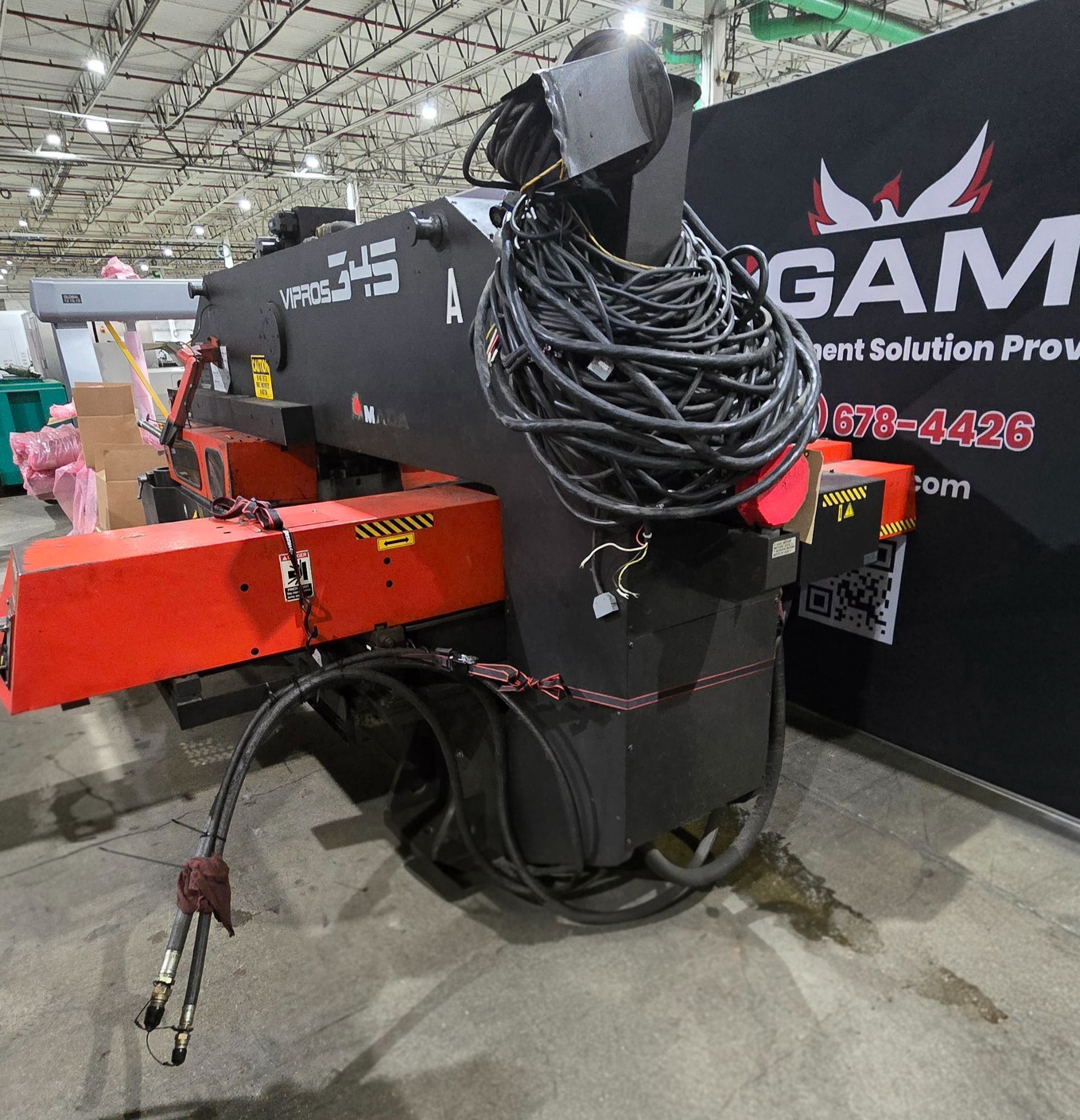

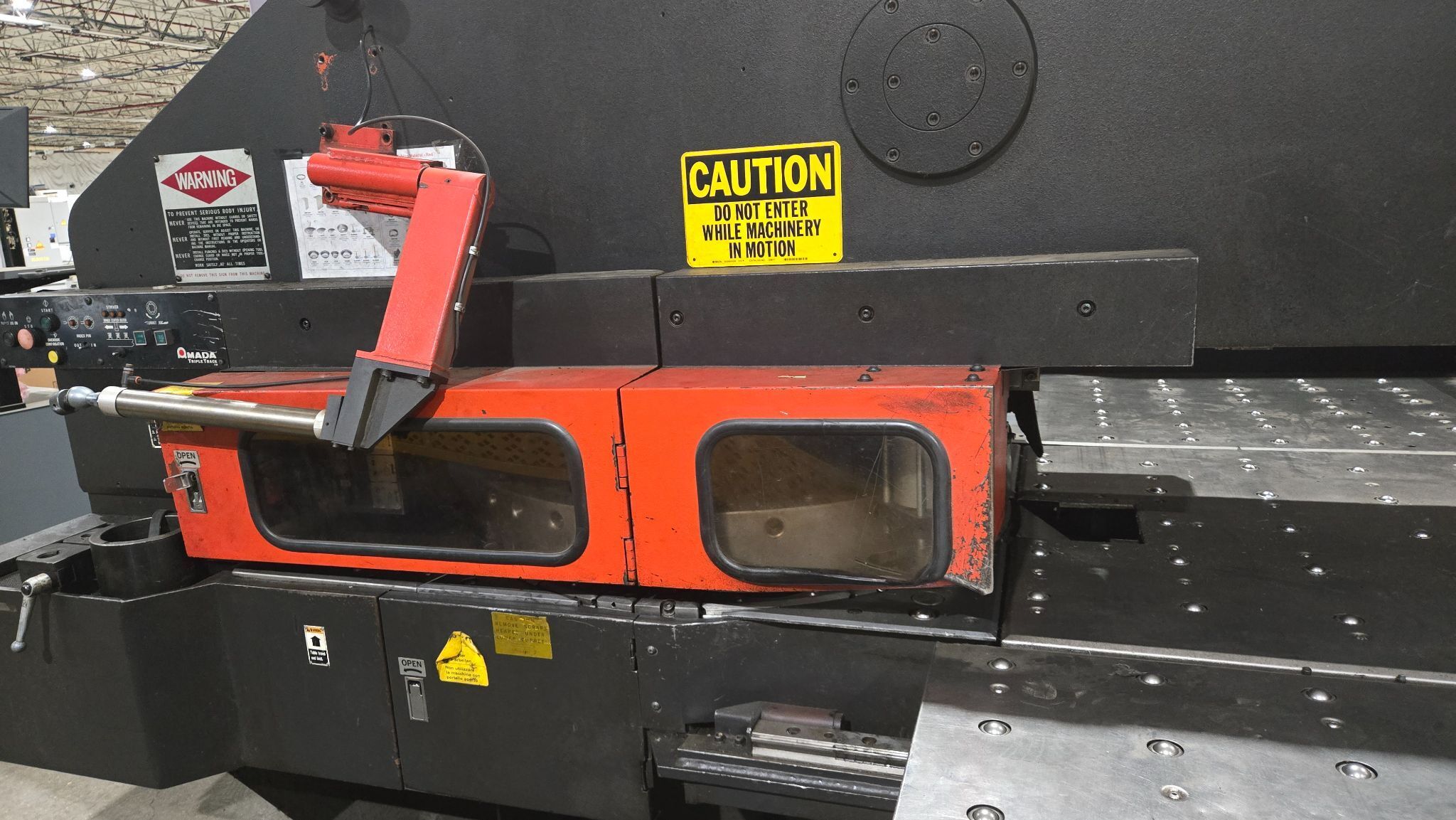

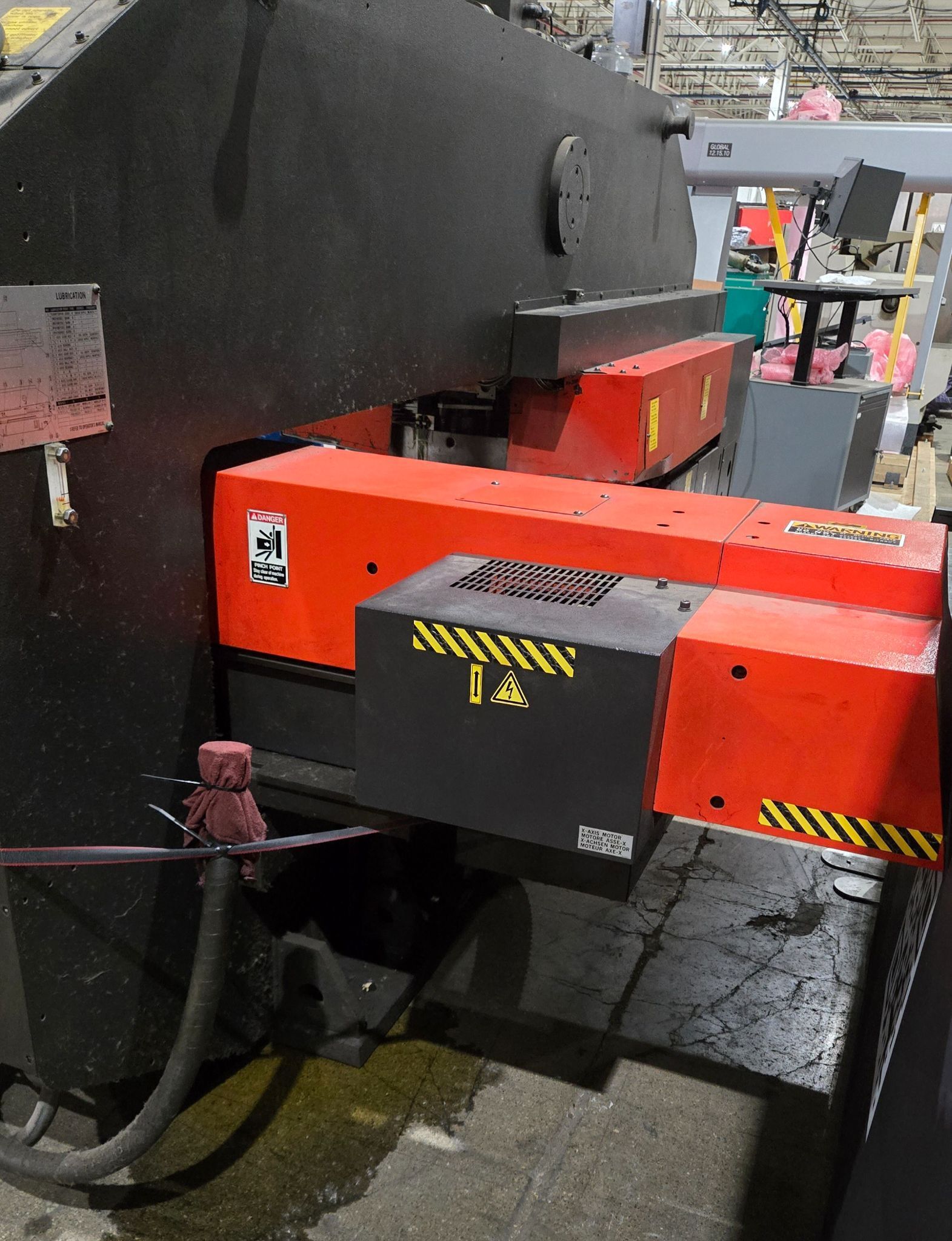

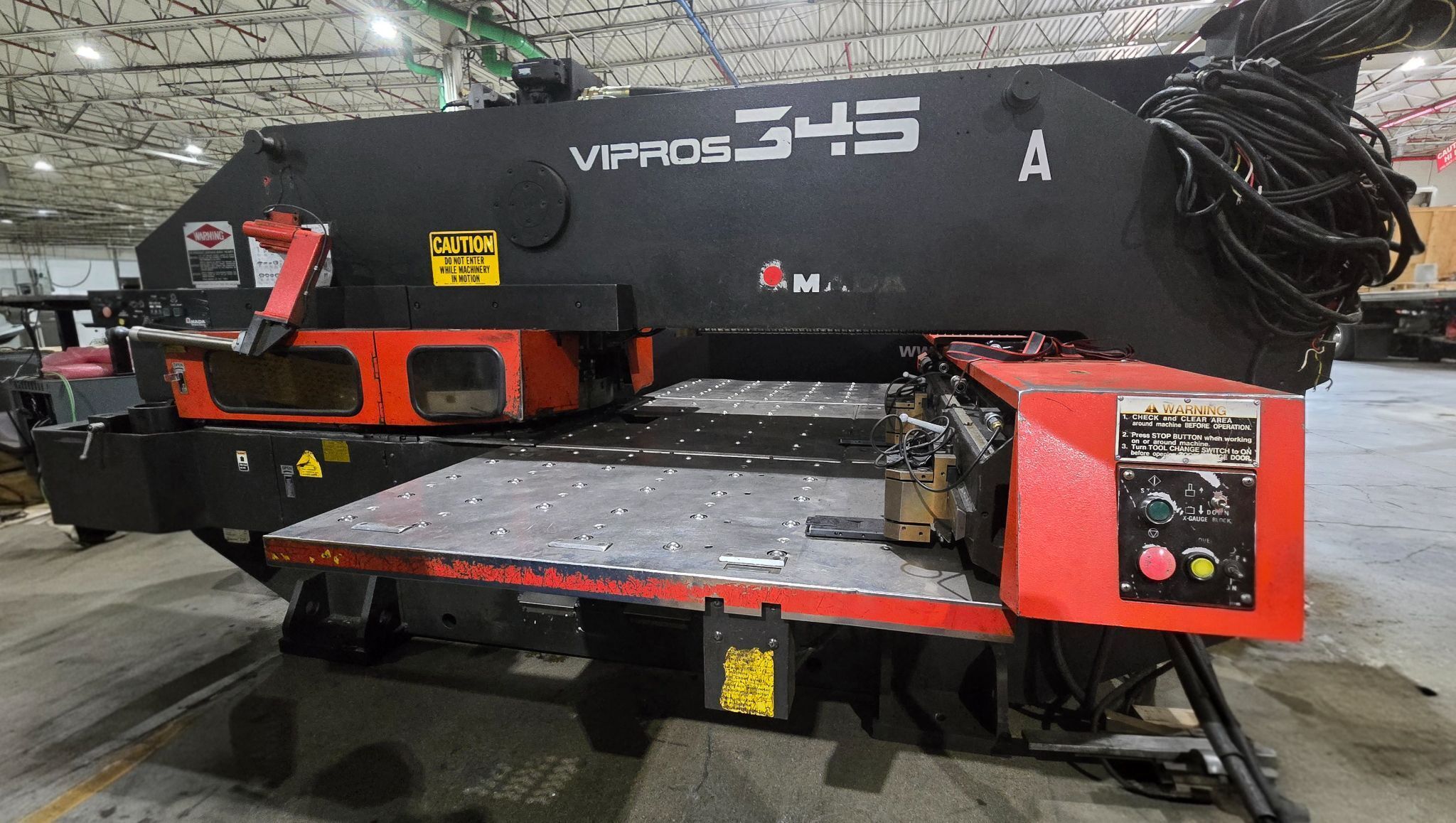

Amada VIPROS 345 CNC Turret Punch Press with AMADAN-OP-C & Yuken Hydraulic Unit USED

Specification Table

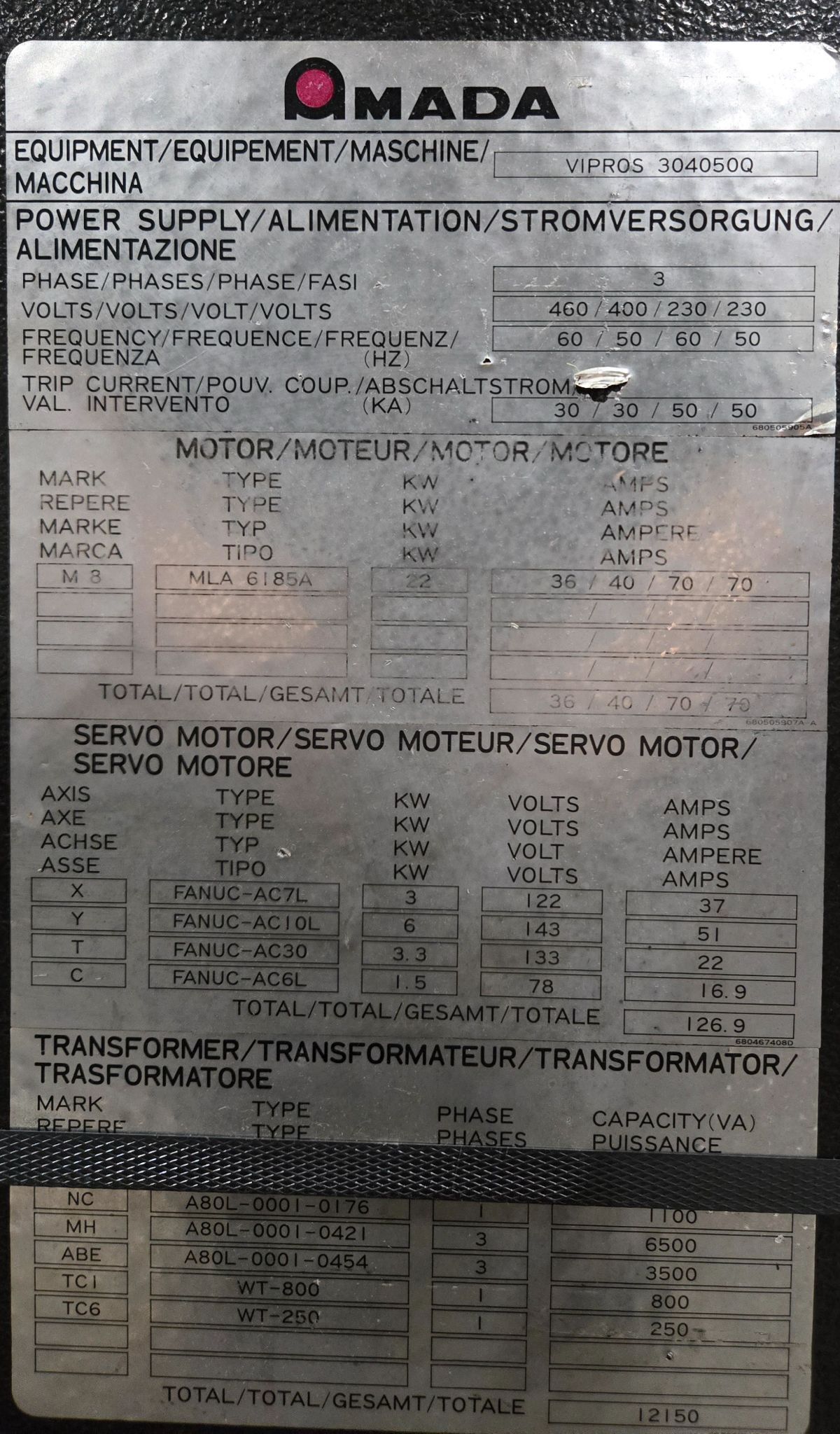

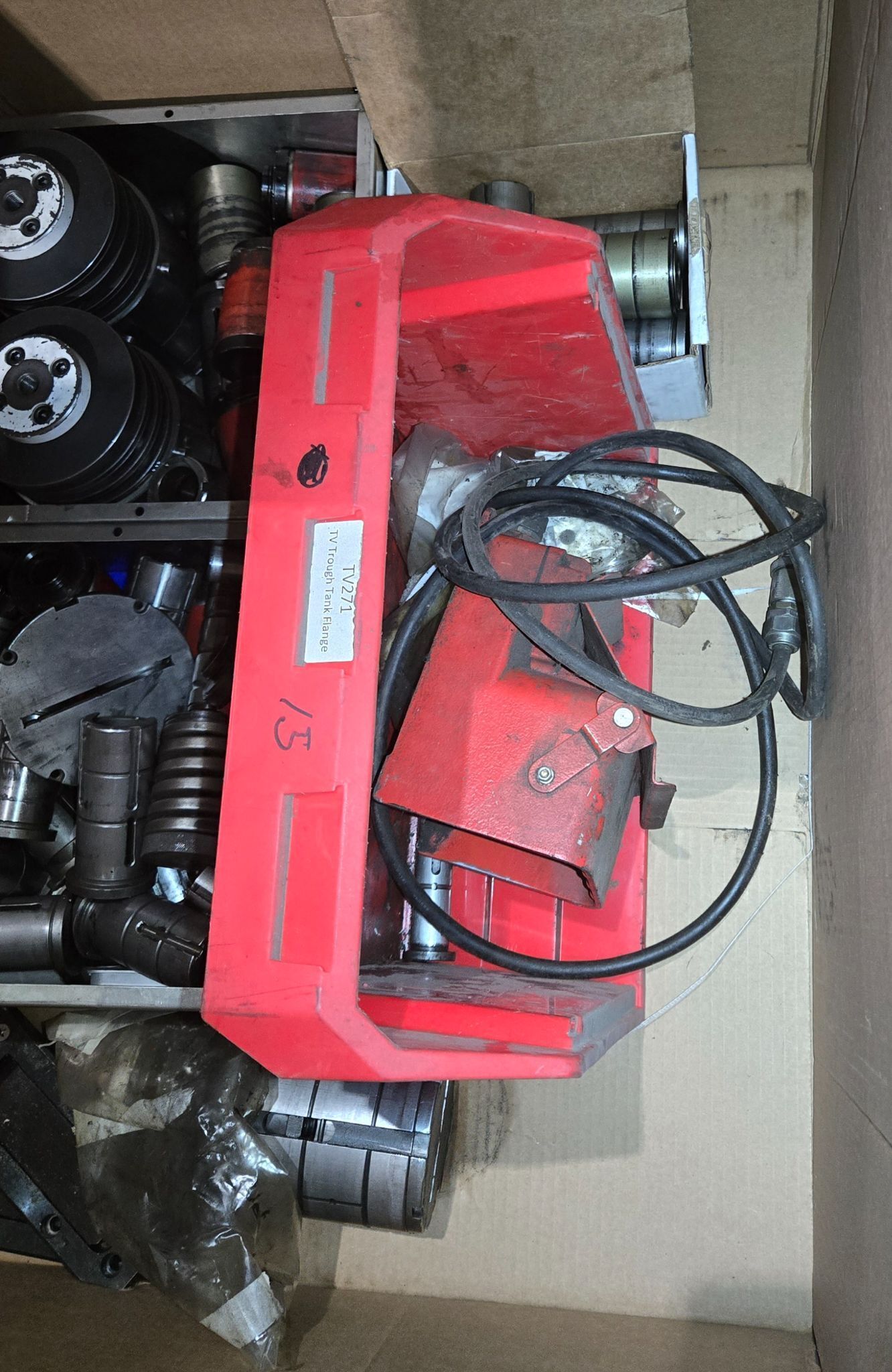

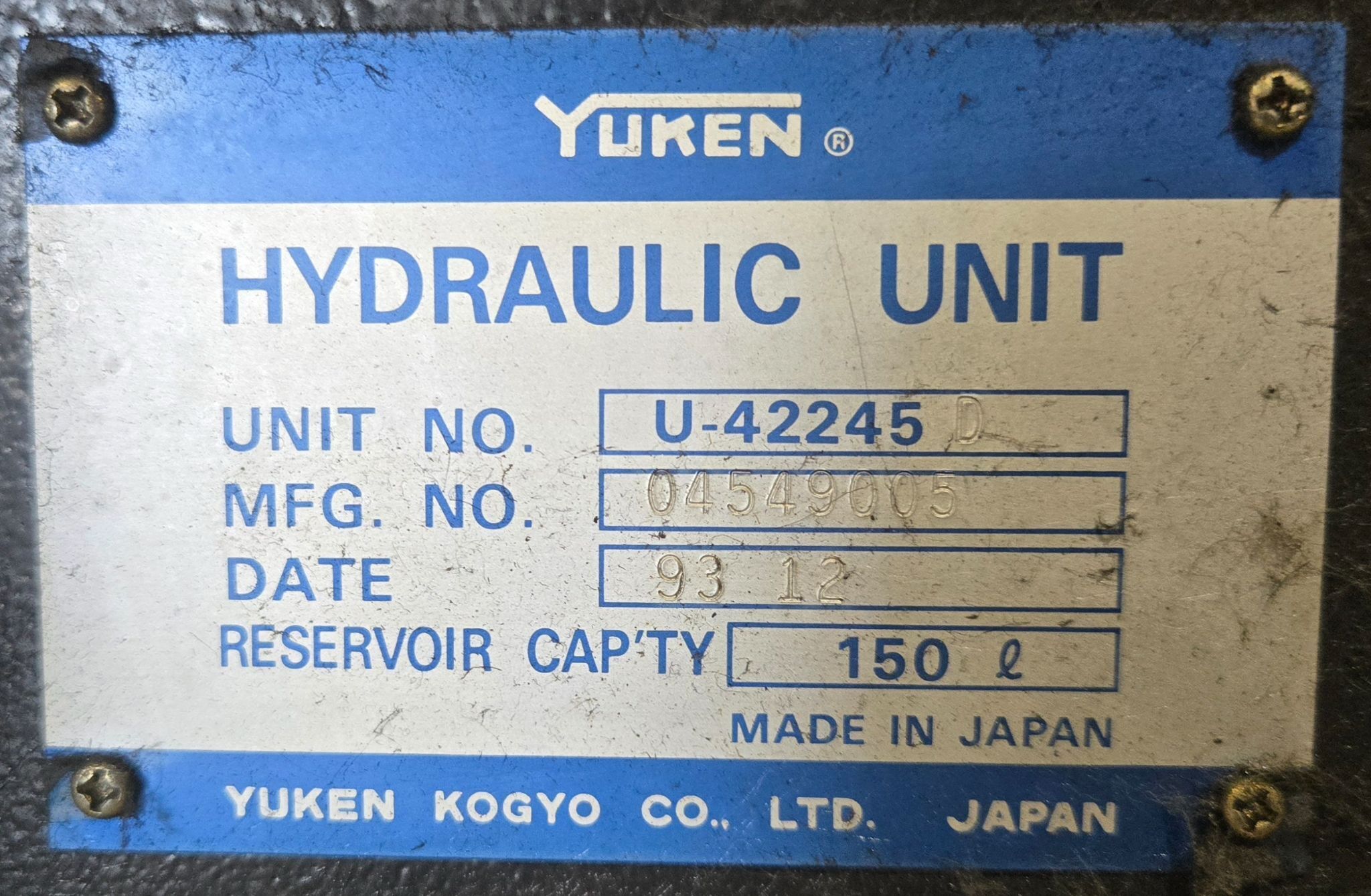

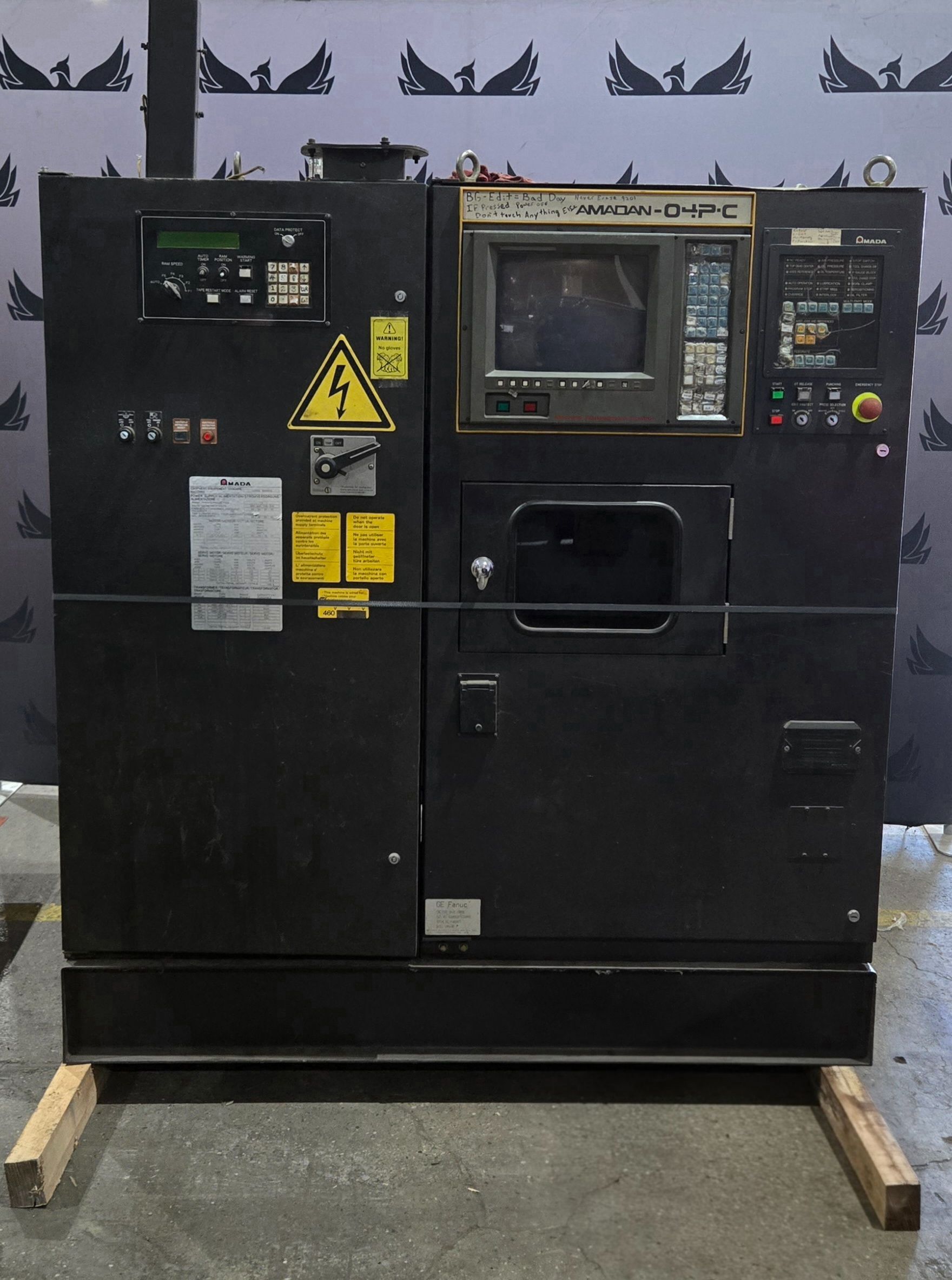

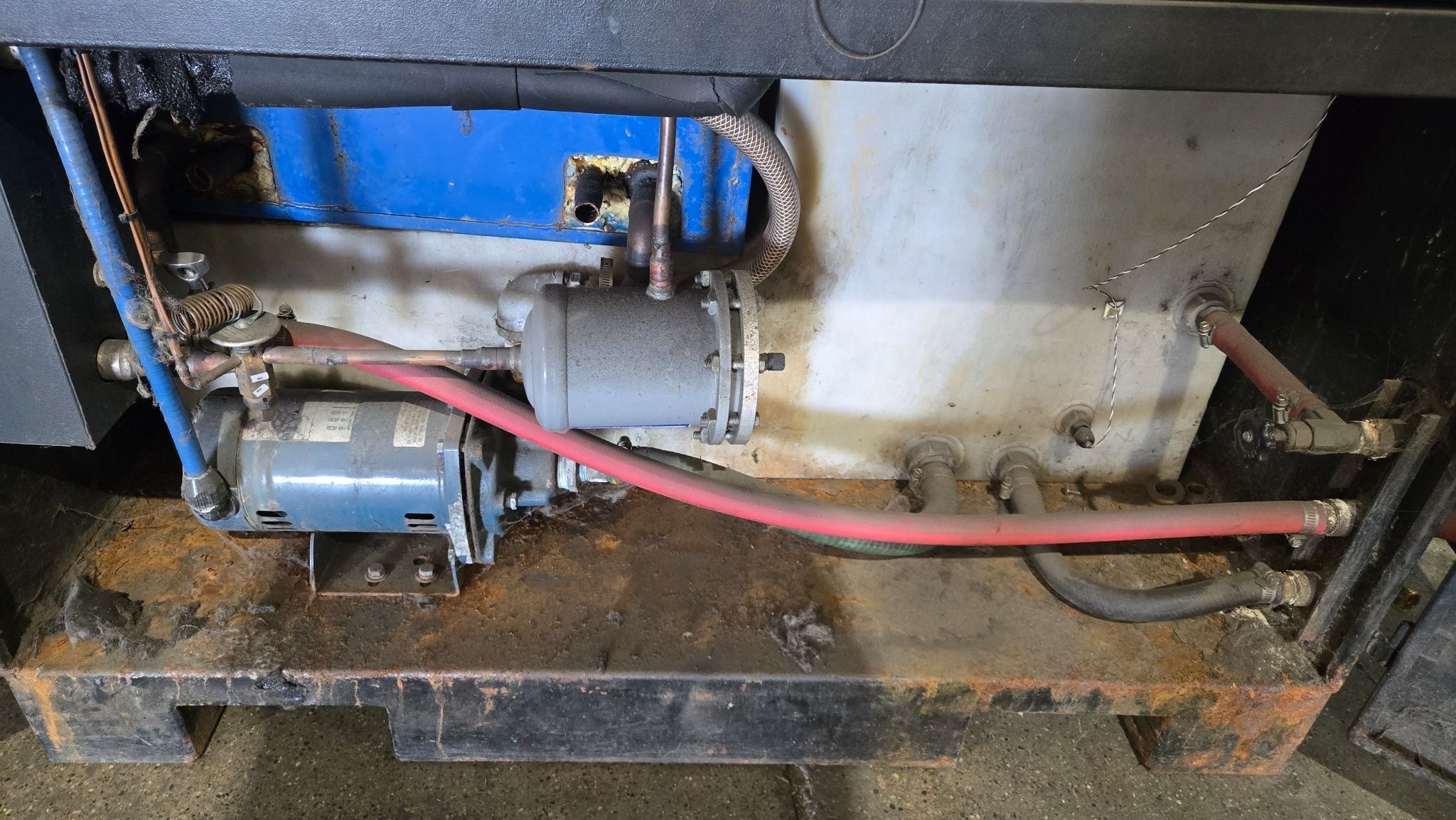

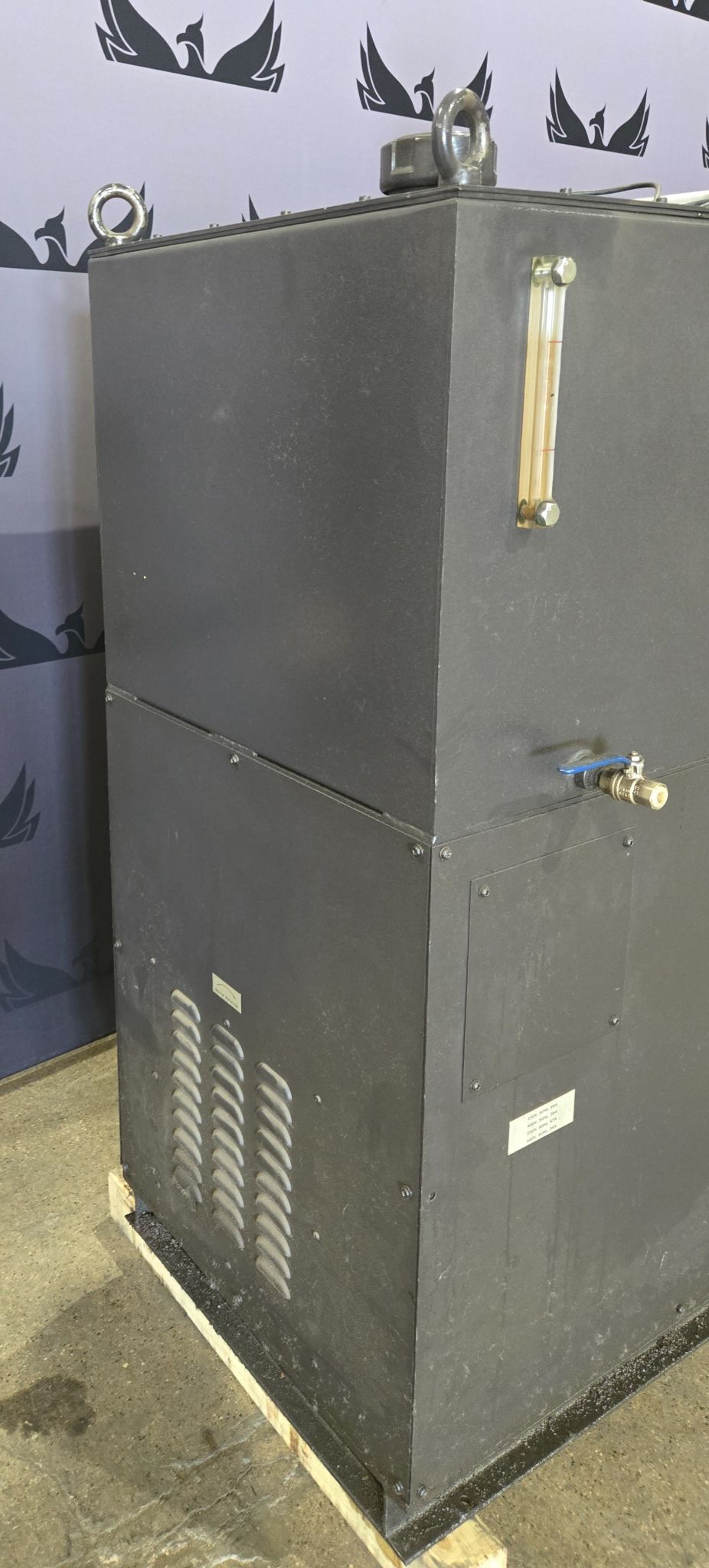

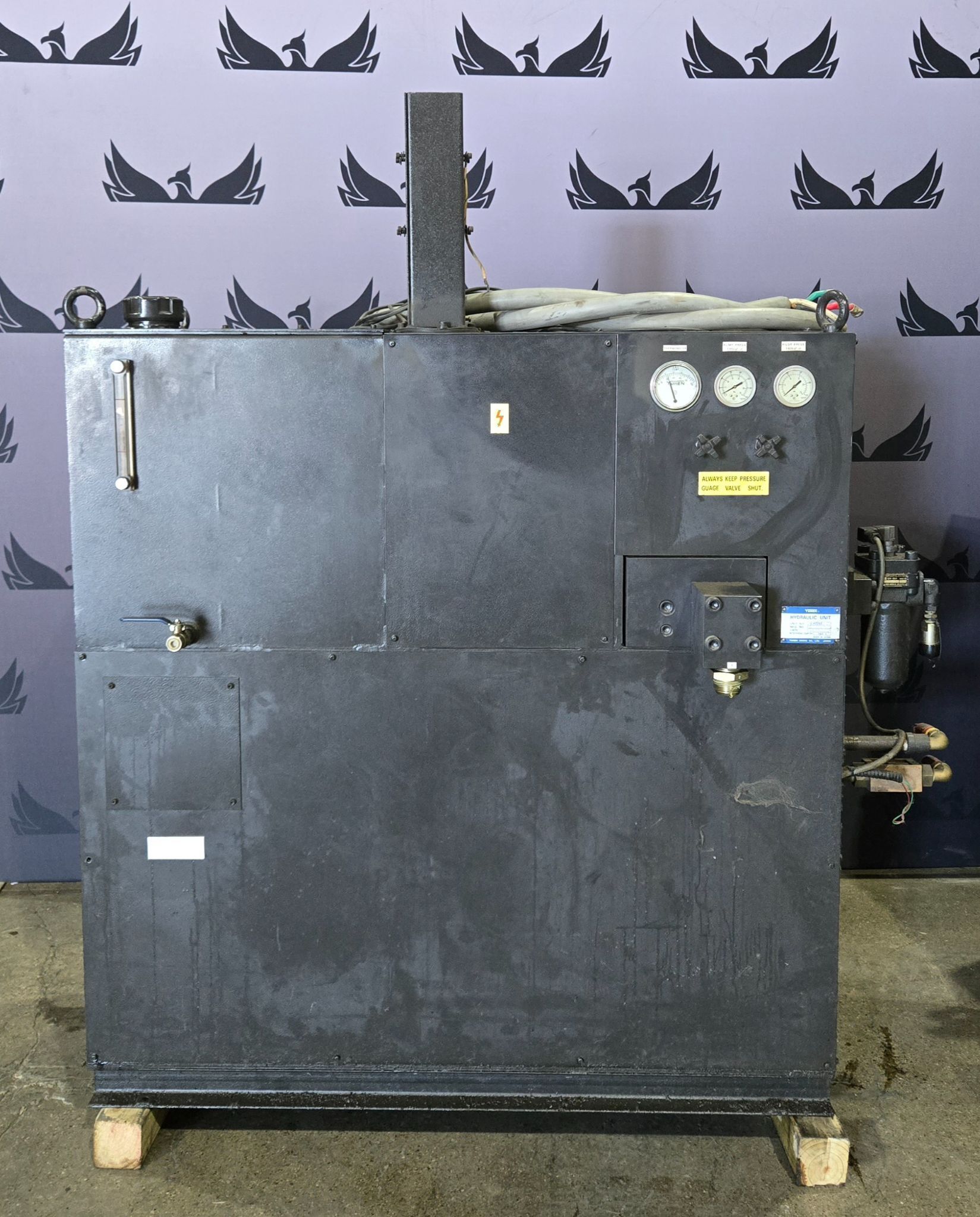

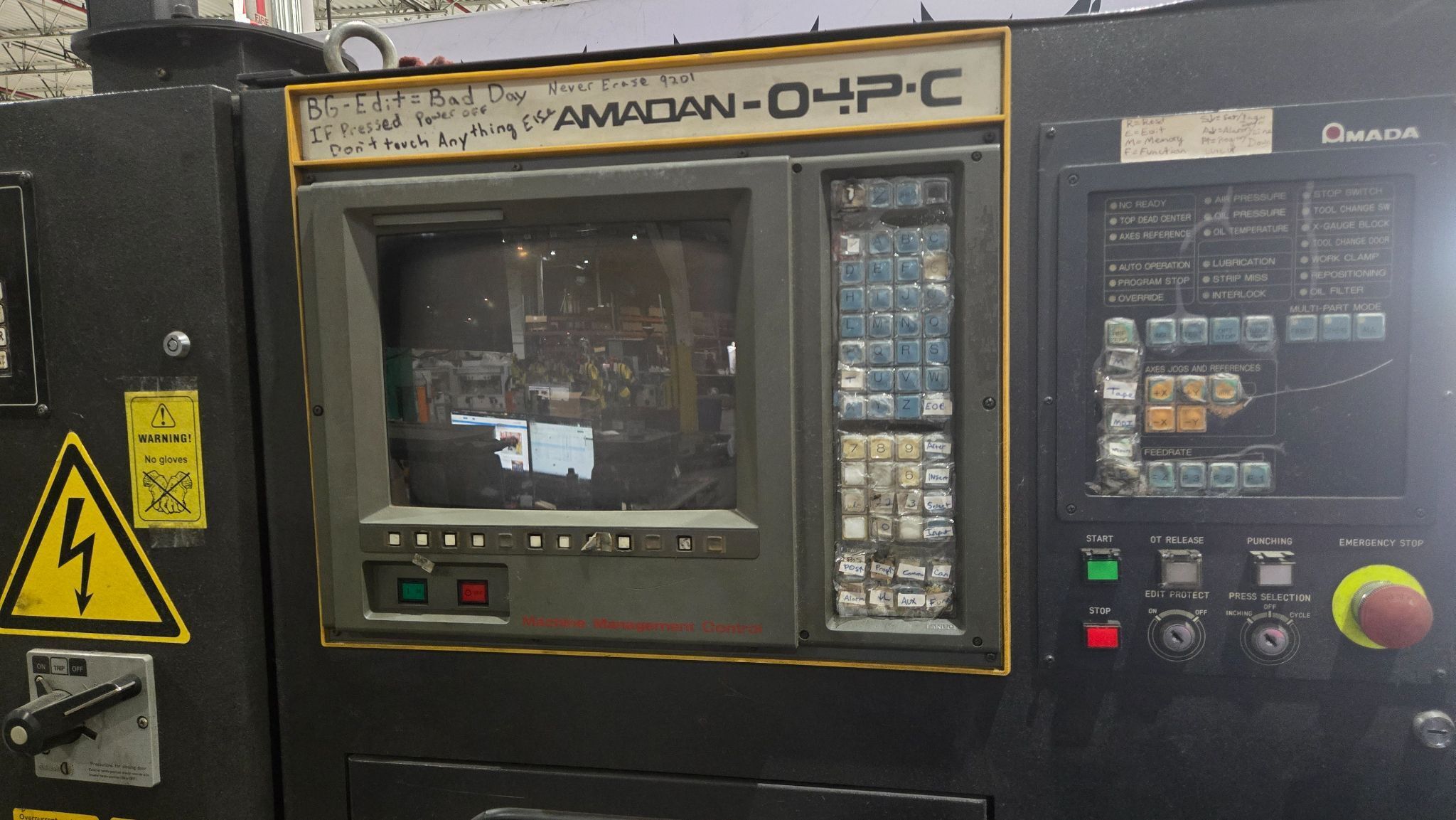

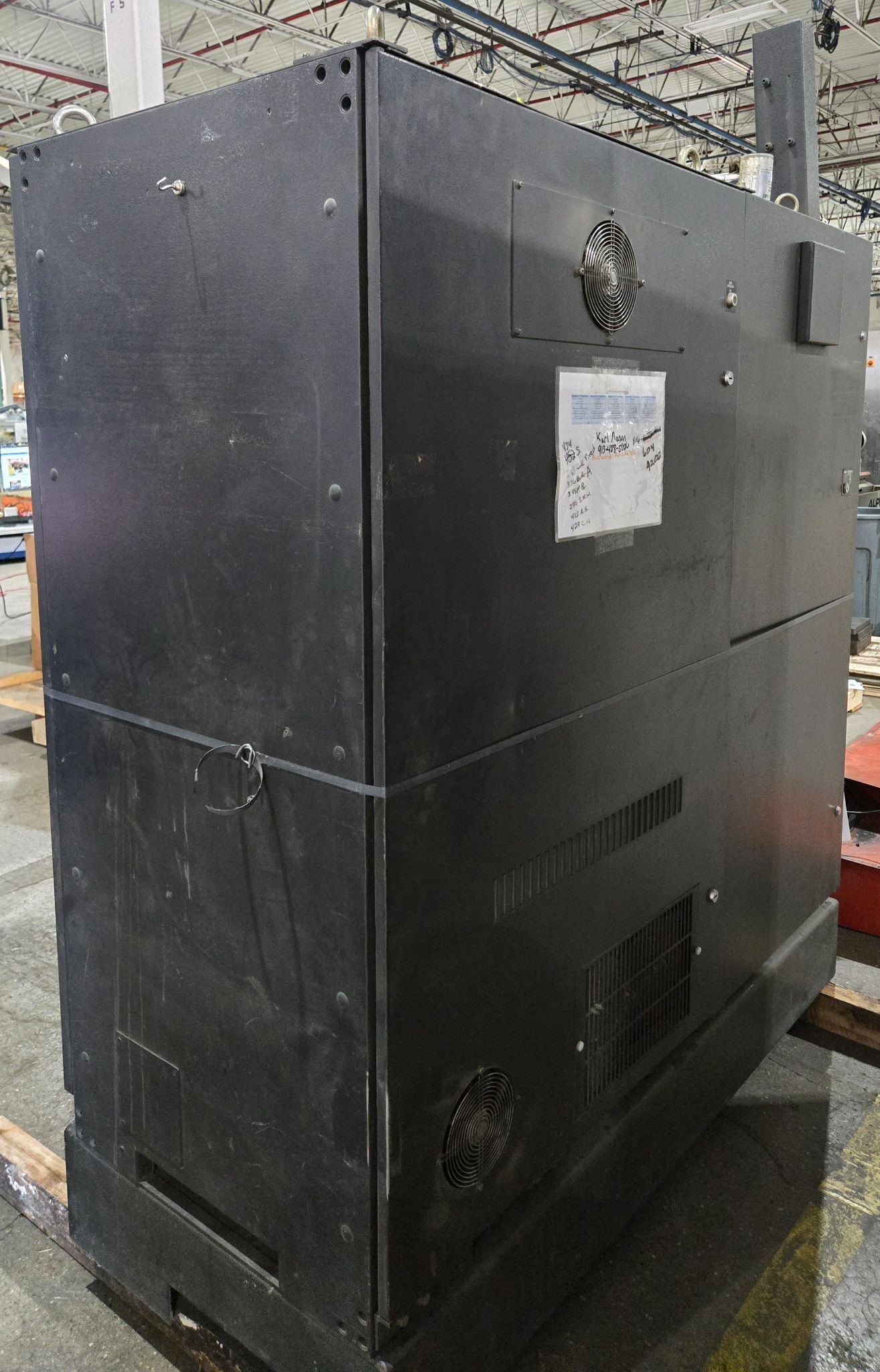

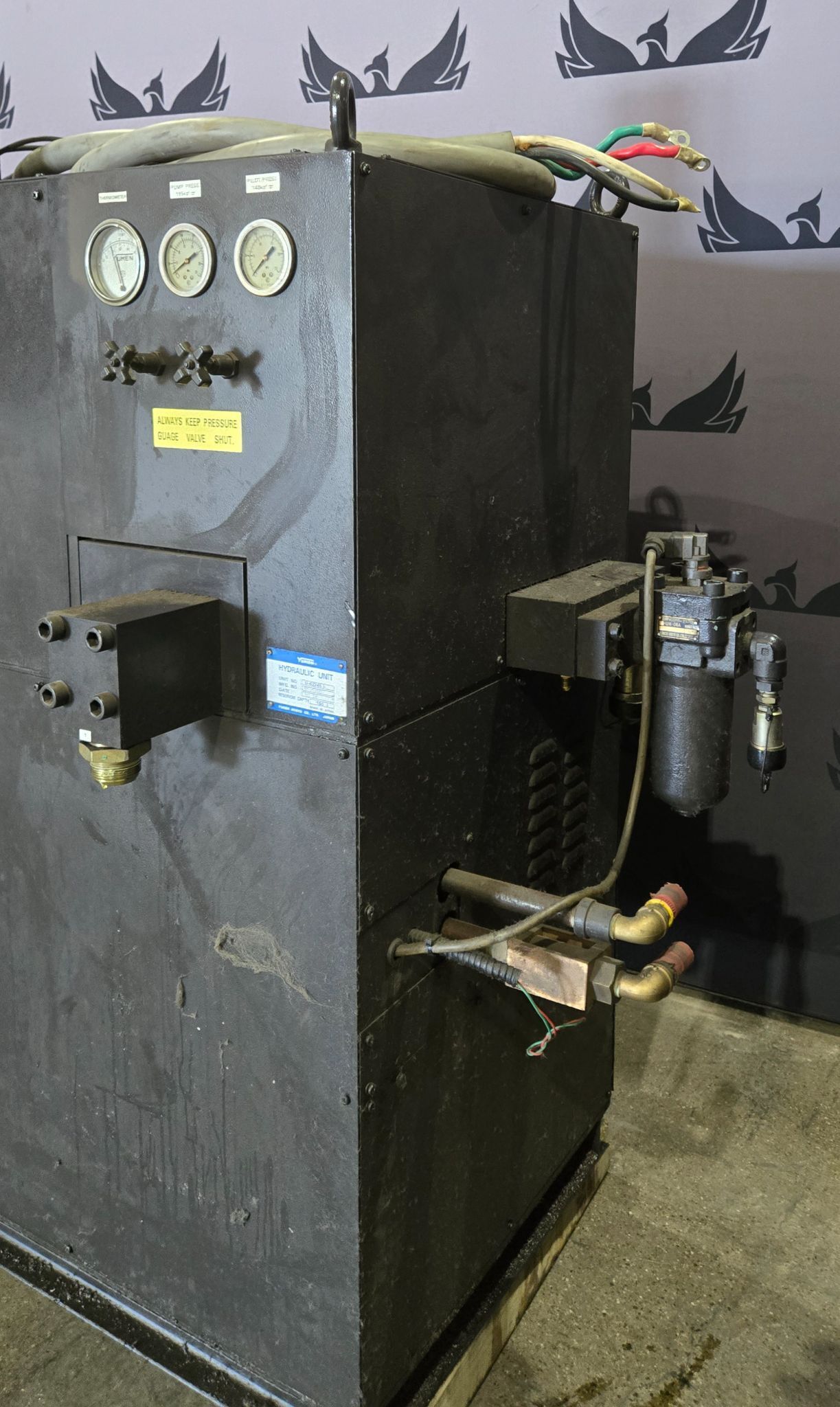

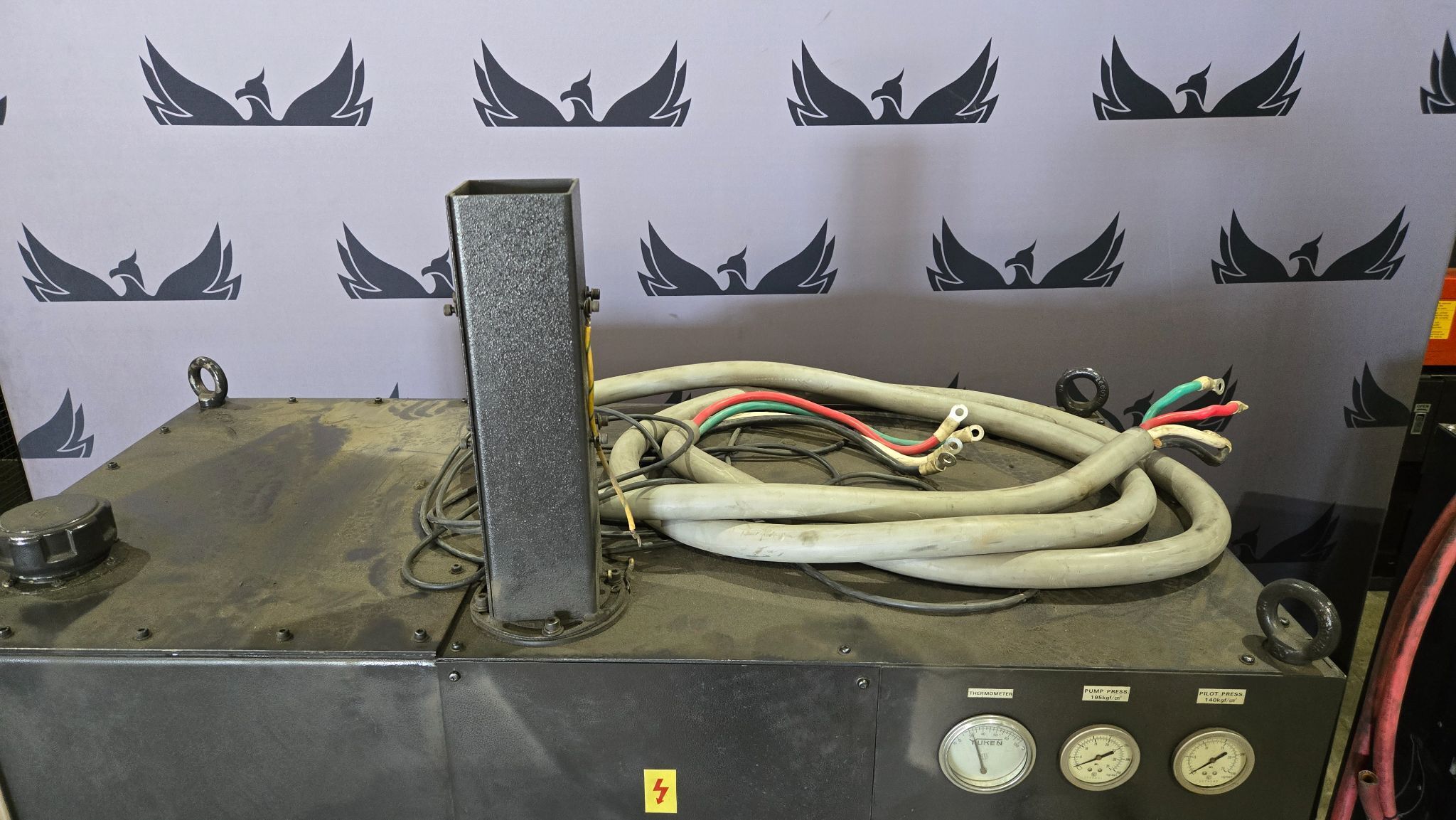

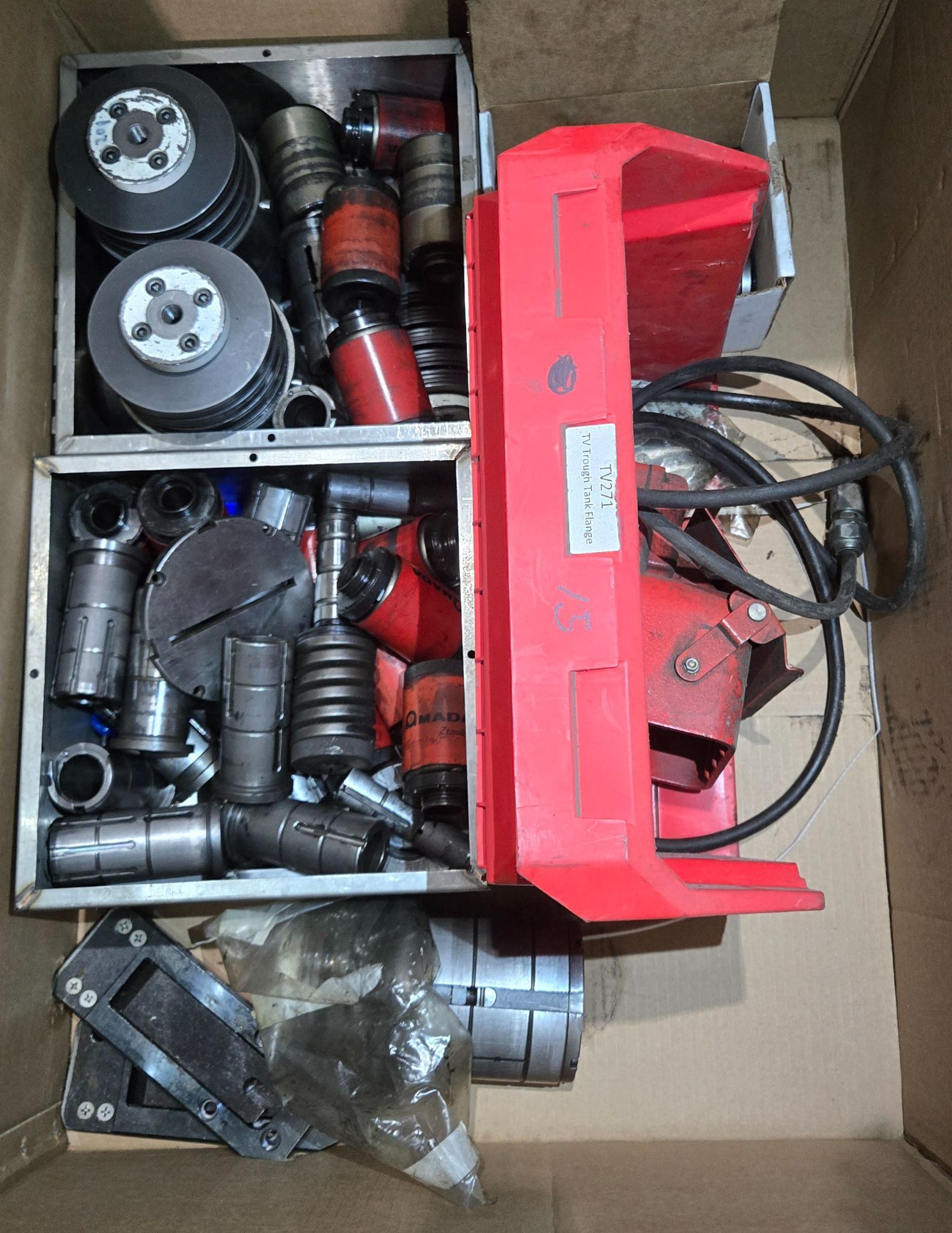

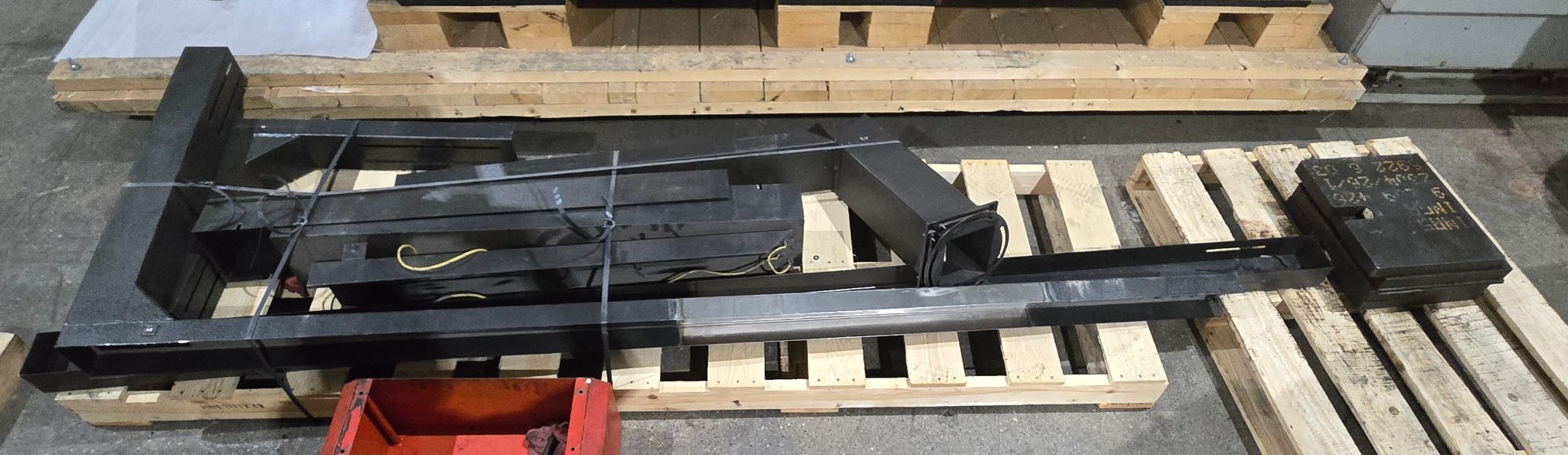

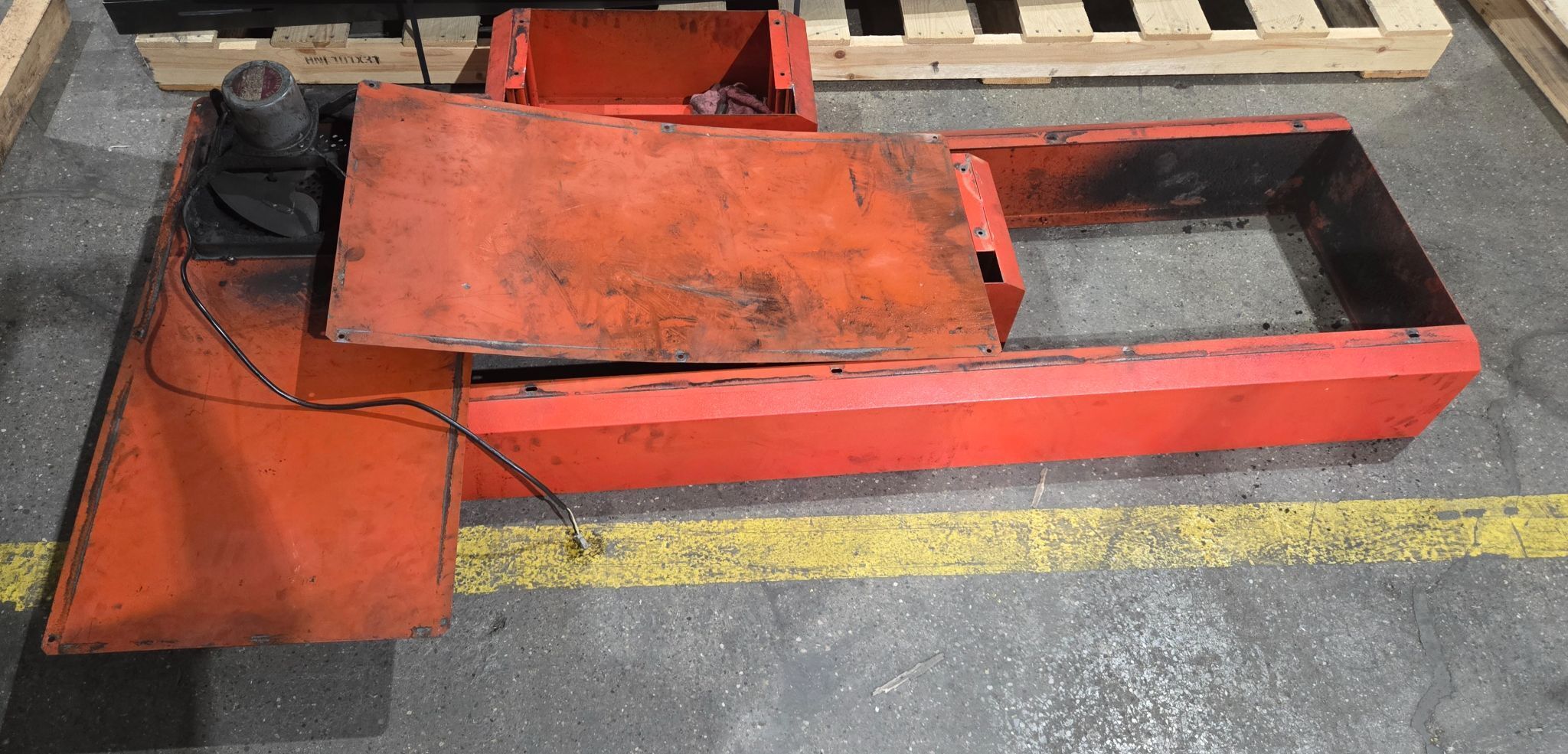

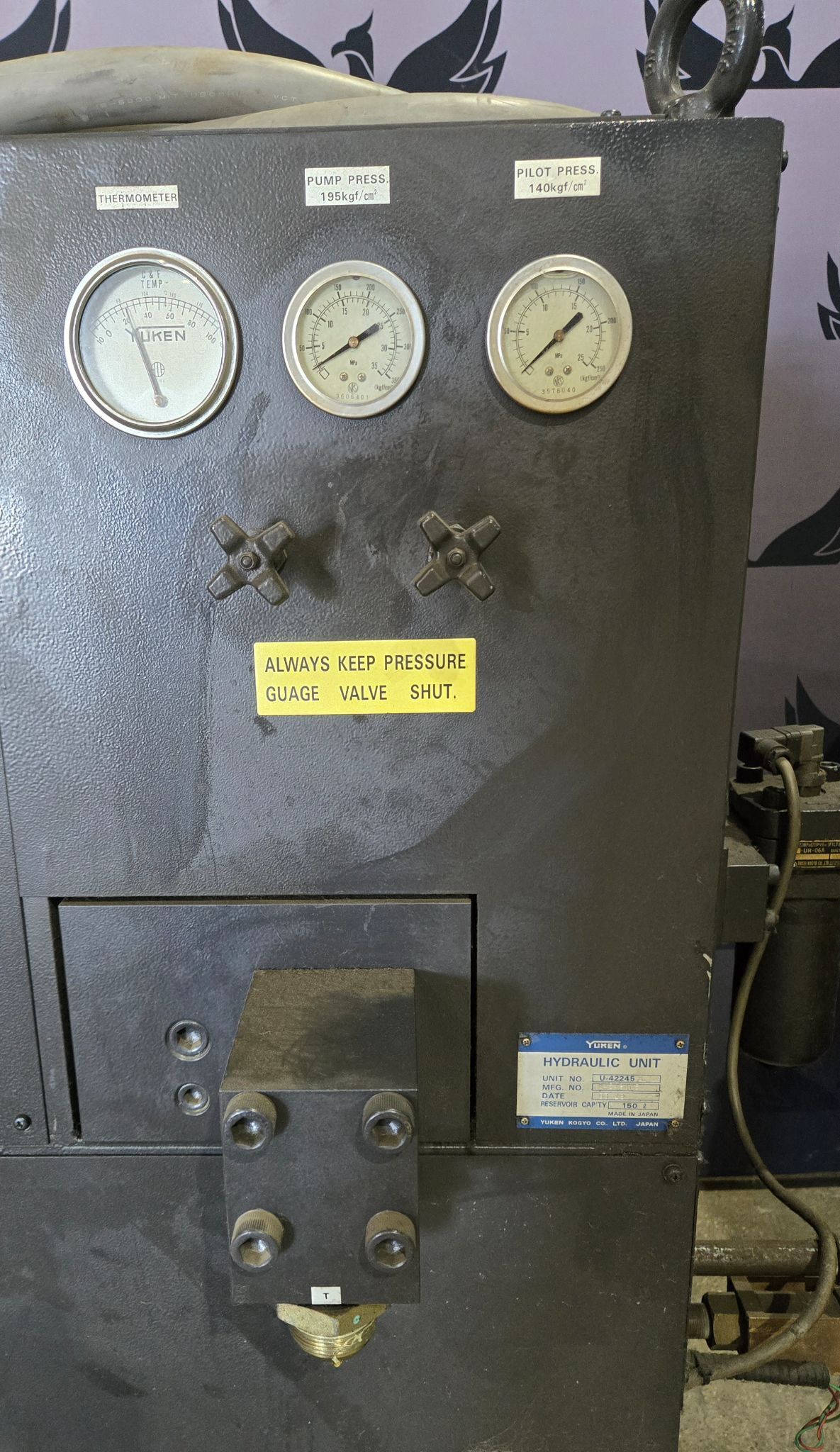

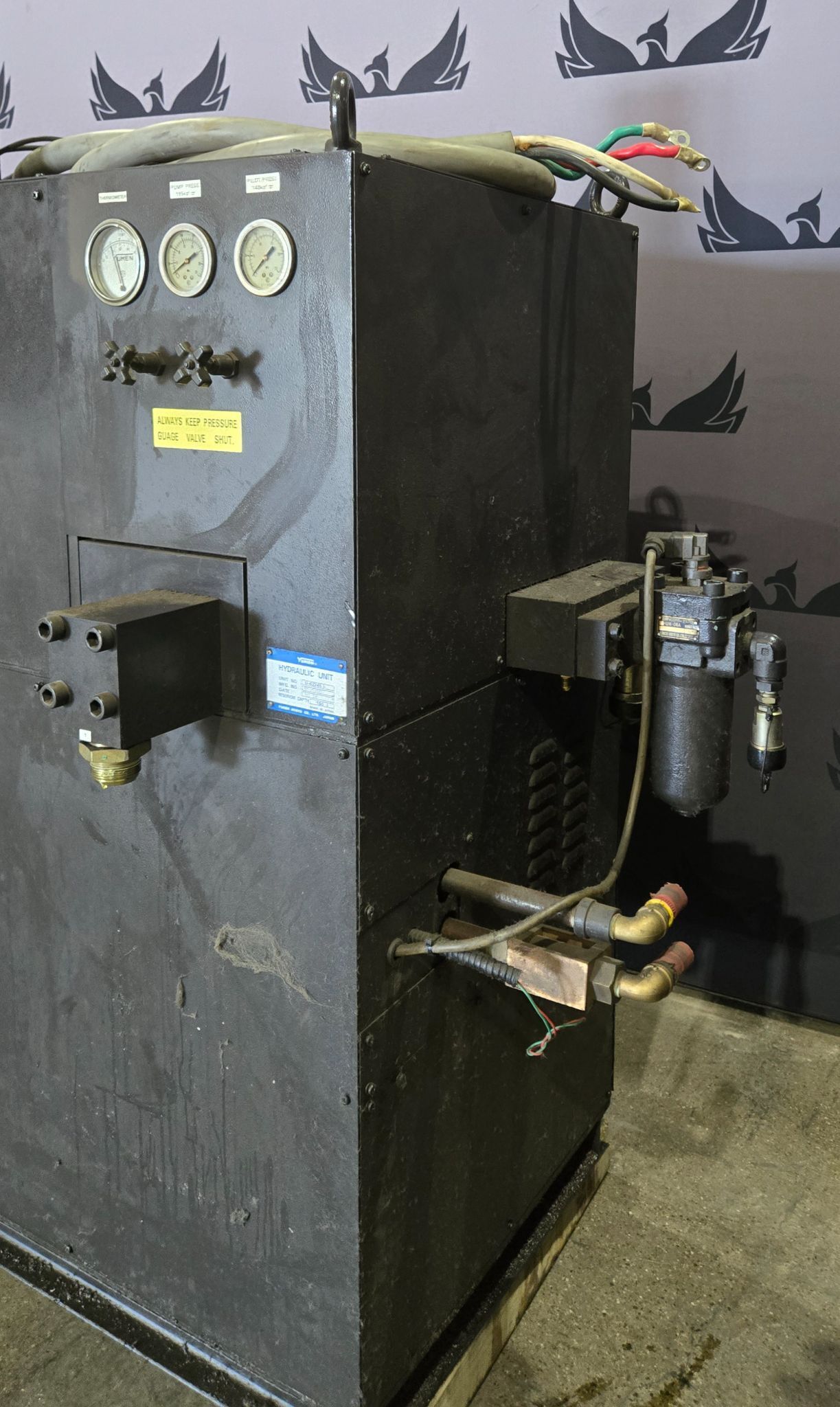

Manufacturer: Amada Series: VIPROS Model: 345 Additional Model ID: VIPROS 304050Q Condition: USED YOM: n/a Equipment Type: CNC Turret Punch Press Control System: AMADAN-OP-C Power Supply: Phase: 3 Voltage: 460 / 400 / 230 / 230 V Frequency: 60 / 50 / 60 / 50 Hz Interrupt Current Rating: 30 kA / 30 kA / 50 kA / 50 kA Main Motor: Designation: M3 Current (FLA): 36 / 40 / 70 / 70 A Servo Motors: X Axis: FANUC AC Servo, 3 kW, 122 V, 37 A Y Axis: FANUC AC Servo, 6 kW, 143 V, 51 A T Axis: FANUC AC Servo, 3.3 kW, 133 V, 22 A C Axis: FANUC AC Servo, 1.5 kW, 78 V, 16.9 A Total Servo Current: 126.9 A Transformer Ratings: NC: 1100 VA MH: 6500 VA ABE: 3500 VA TC1: 800 VA TC6: 250 VA Total Transformer Capacity: 12150 VA Hydraulic Unit: Manufacturer: Yuken Kogyo Co., Ltd. Unit Number: U-42245 Manufacturing Number: 0454005 Date: 1993-12 Reservoir Capacity: 150 L Included Components: Main Punch Press Unit Control Cabinet Hydraulic Power Unit (Yuken) Support Frame / Handling Components Assorted Turret Tooling and Punch Holders (quantity not specified)
