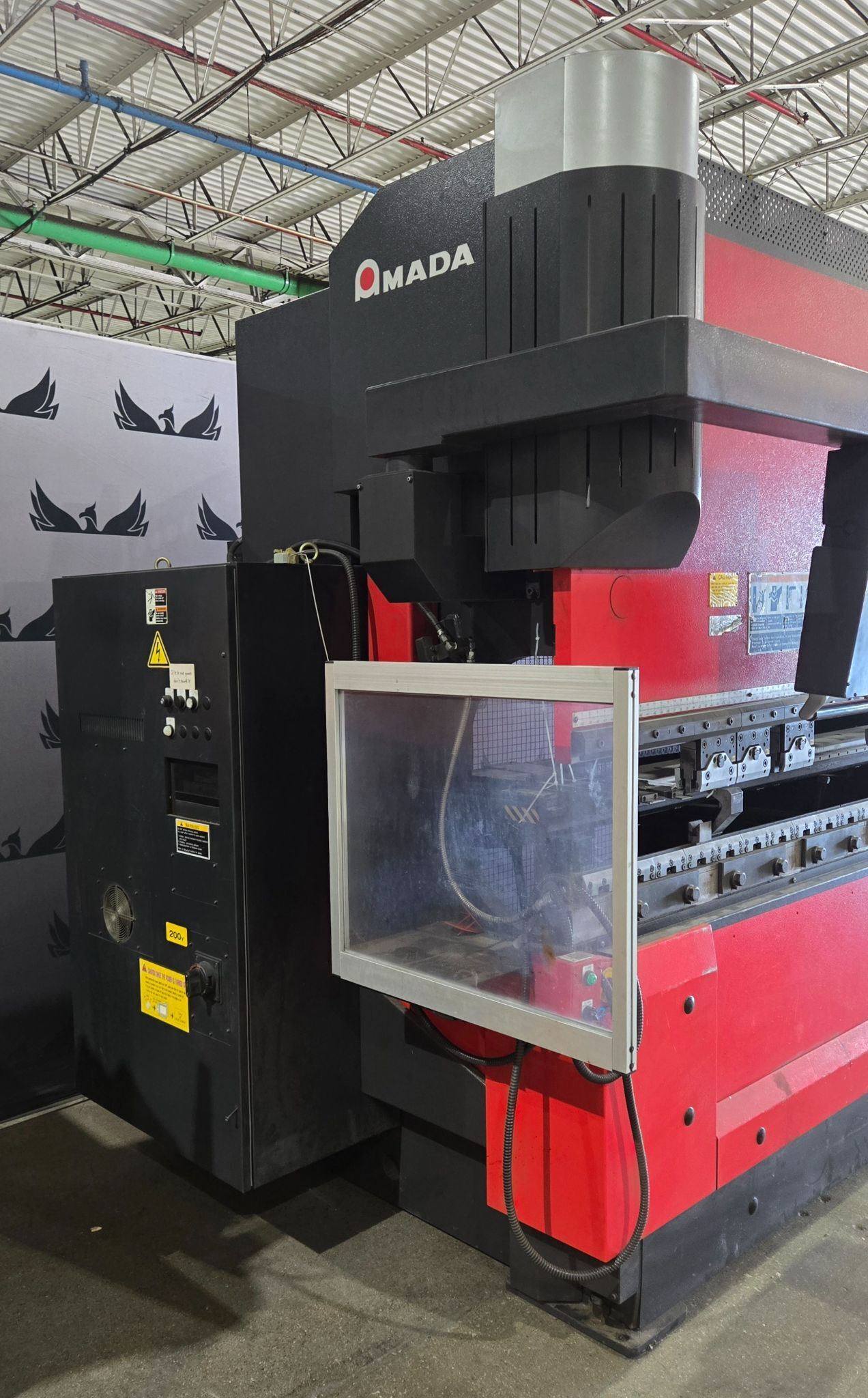

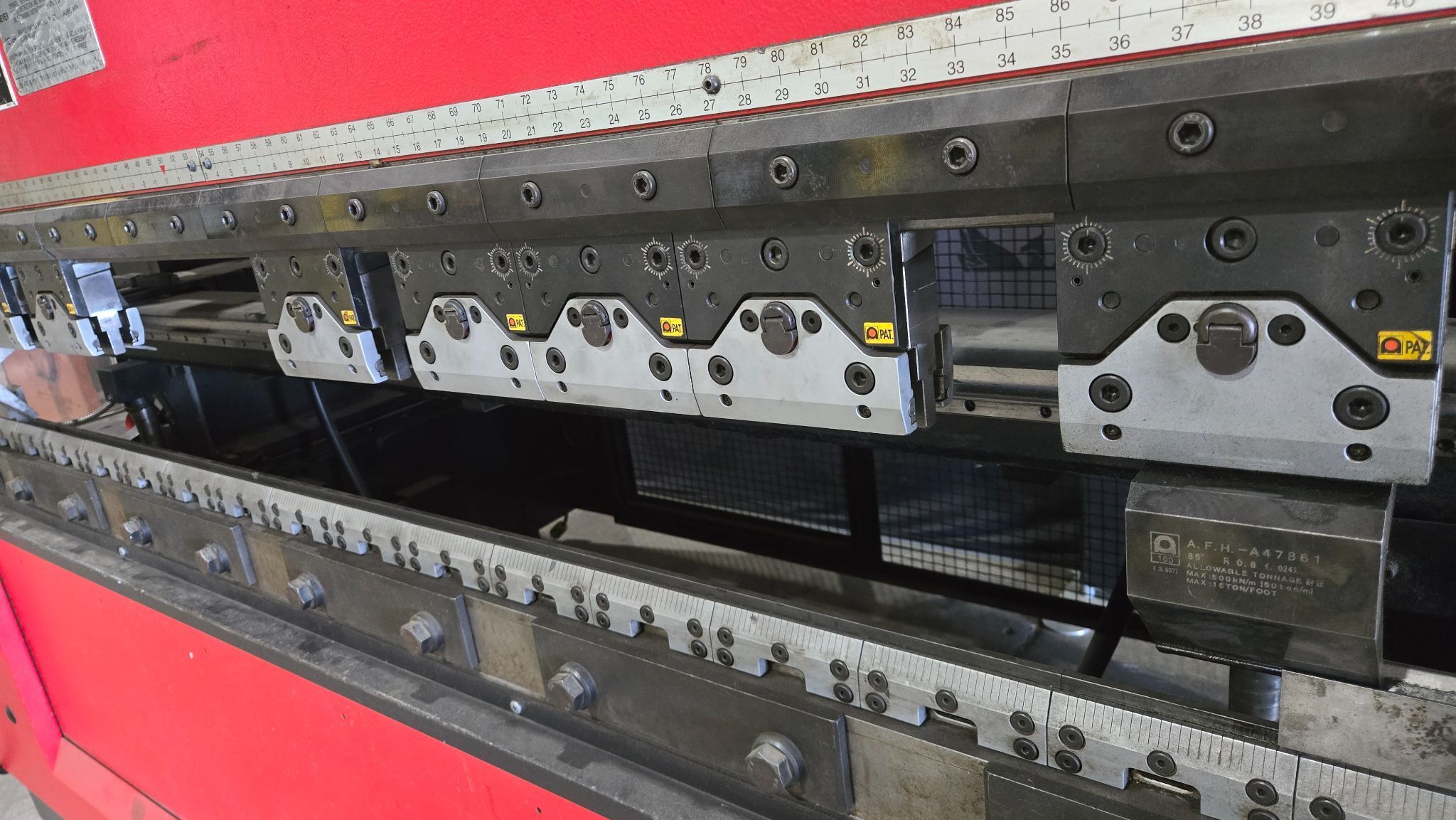

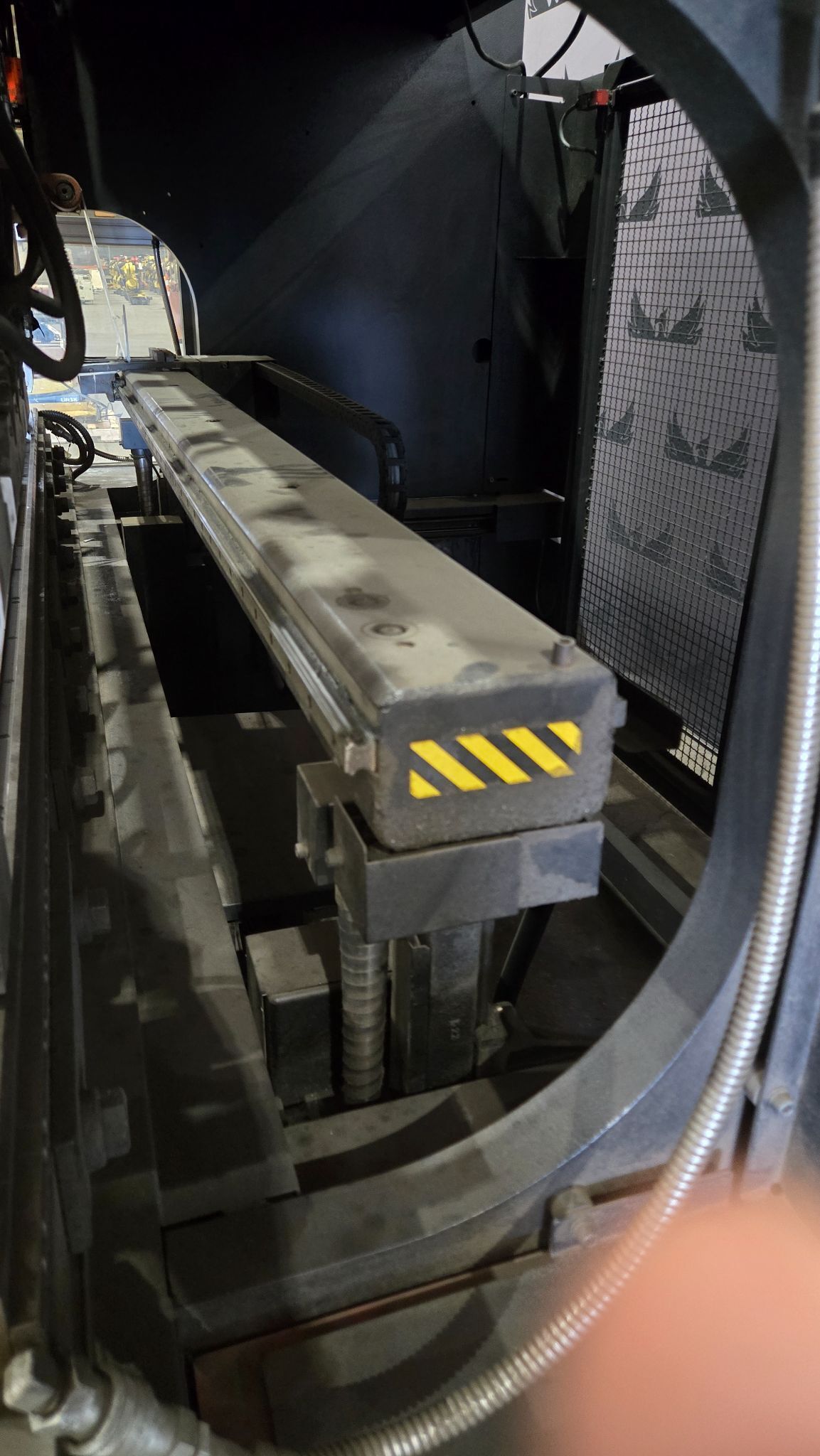

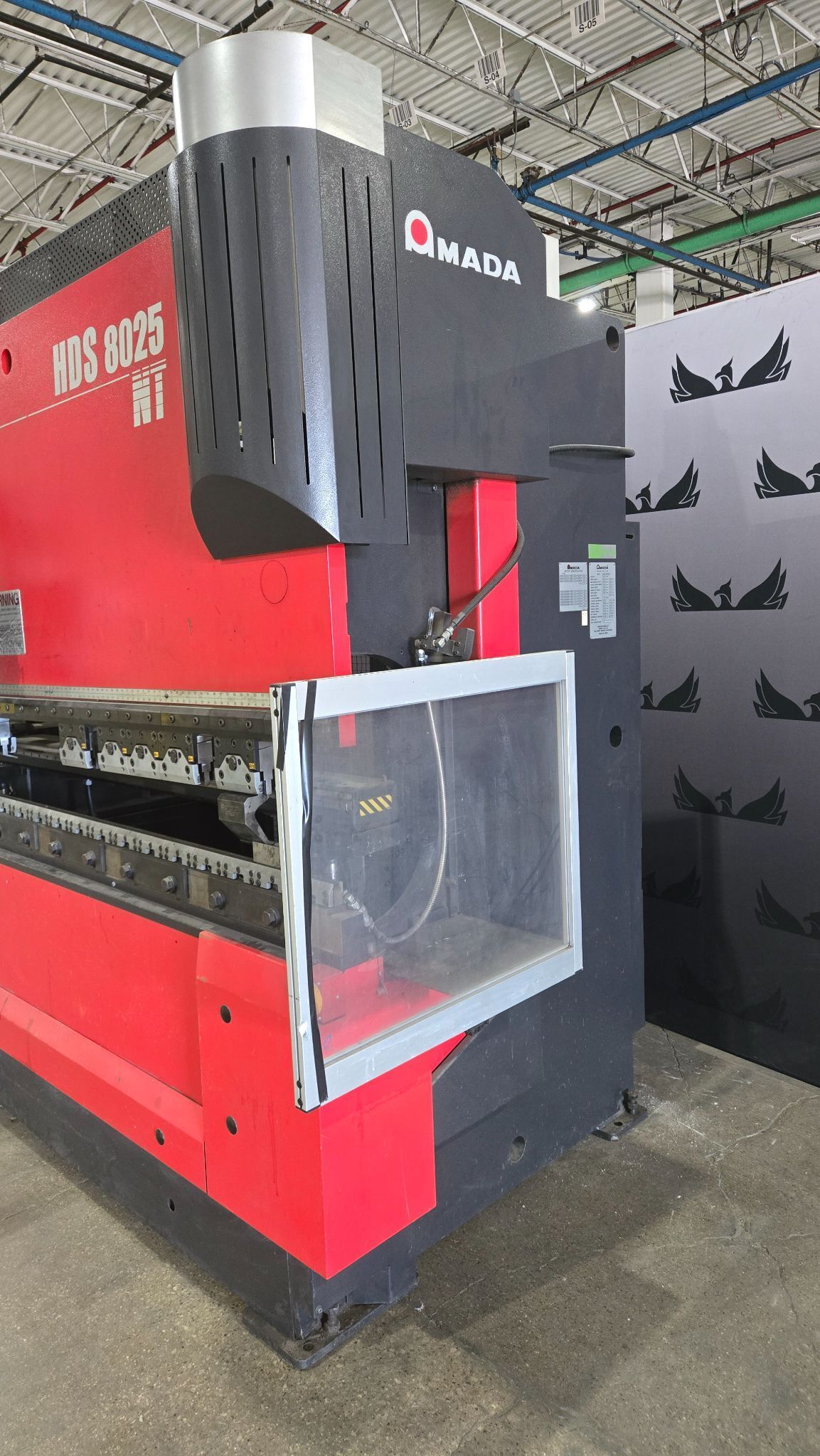

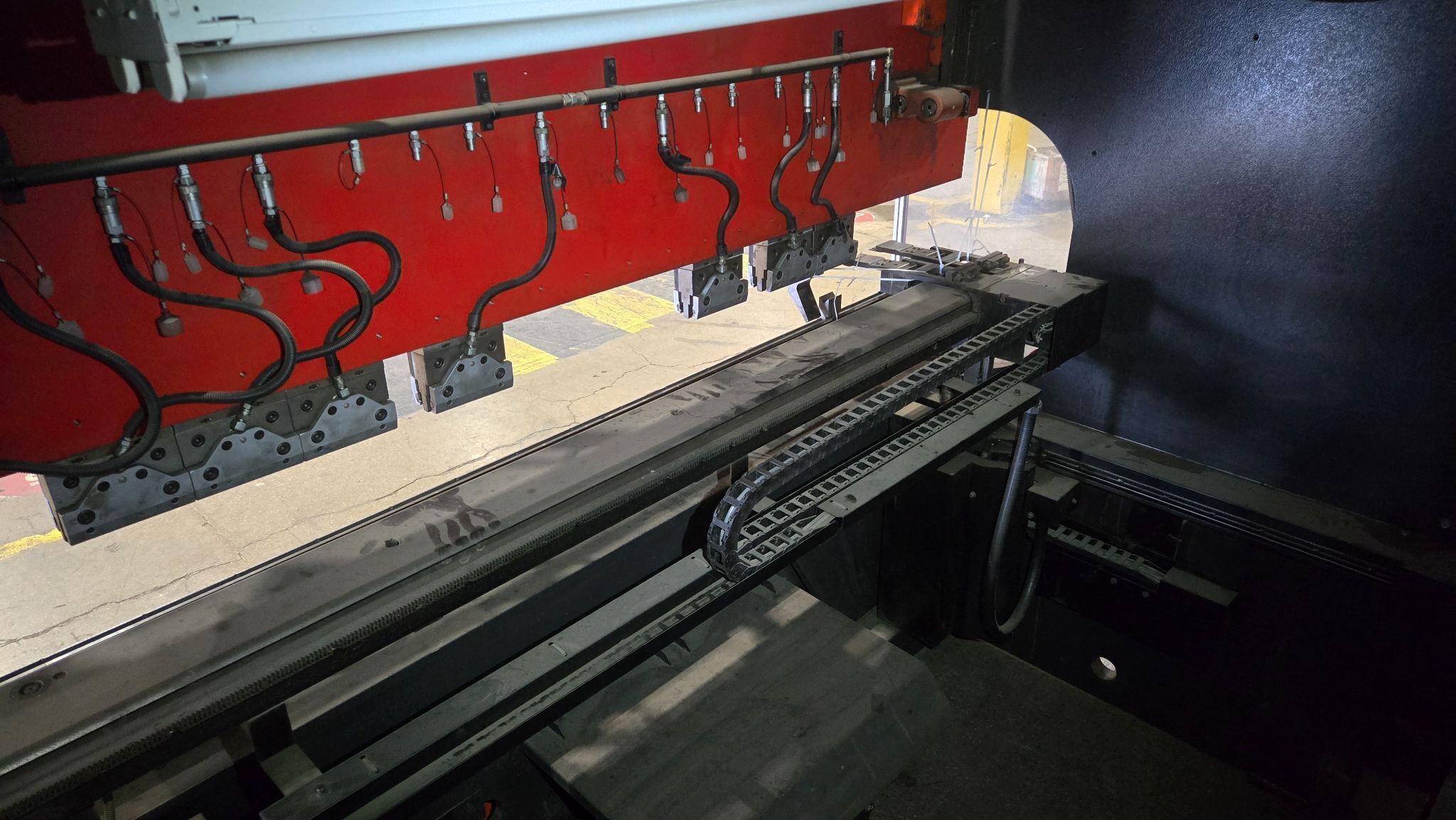

Amada HDS-8025NT CNC Press Brake 80 Ton 102.4″ with AMNC & Tooling USED

Specification Table

Tonnage	80 T
Overall Length	2,500 mm
Stroke	200 mm
# Axis	8

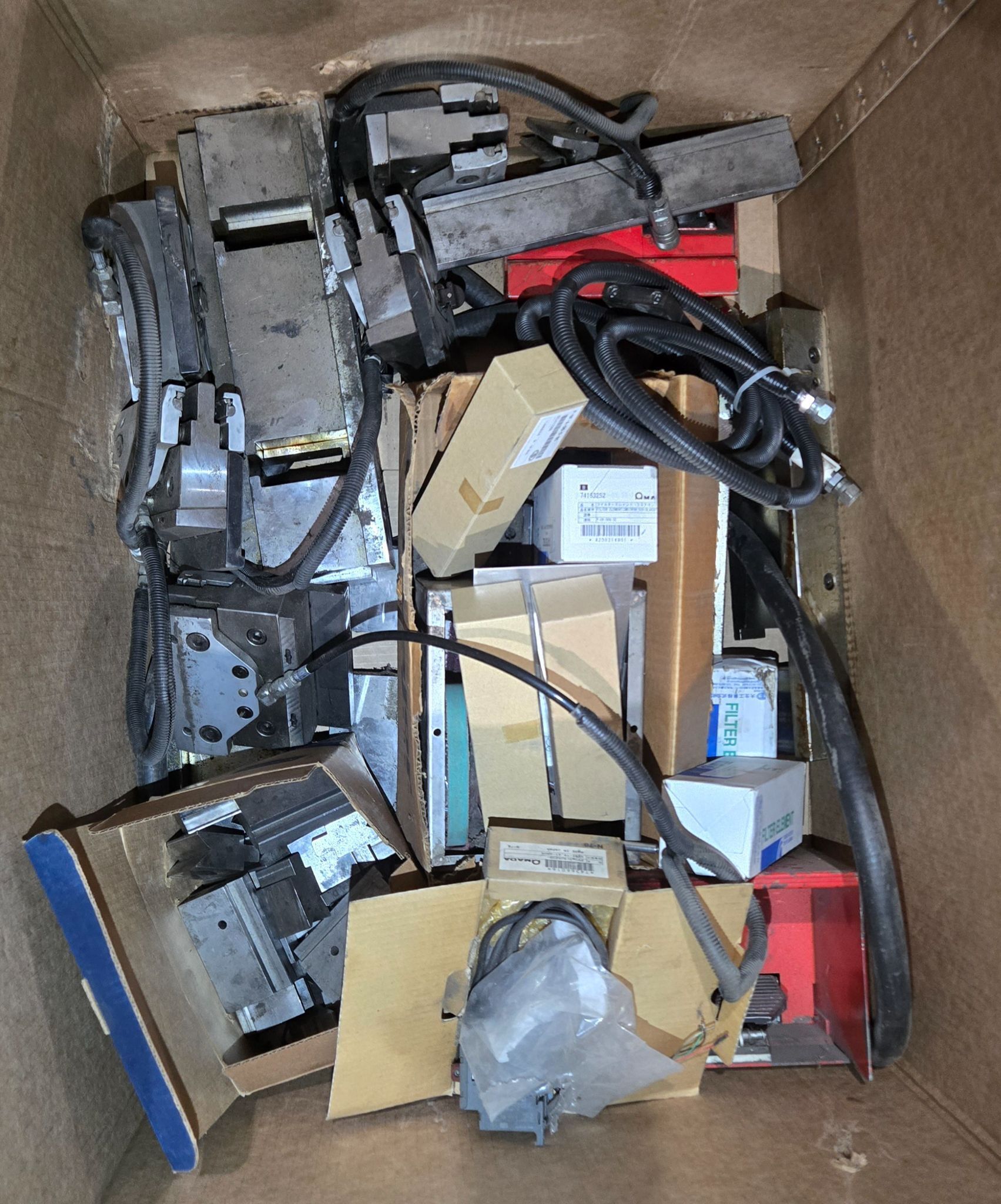

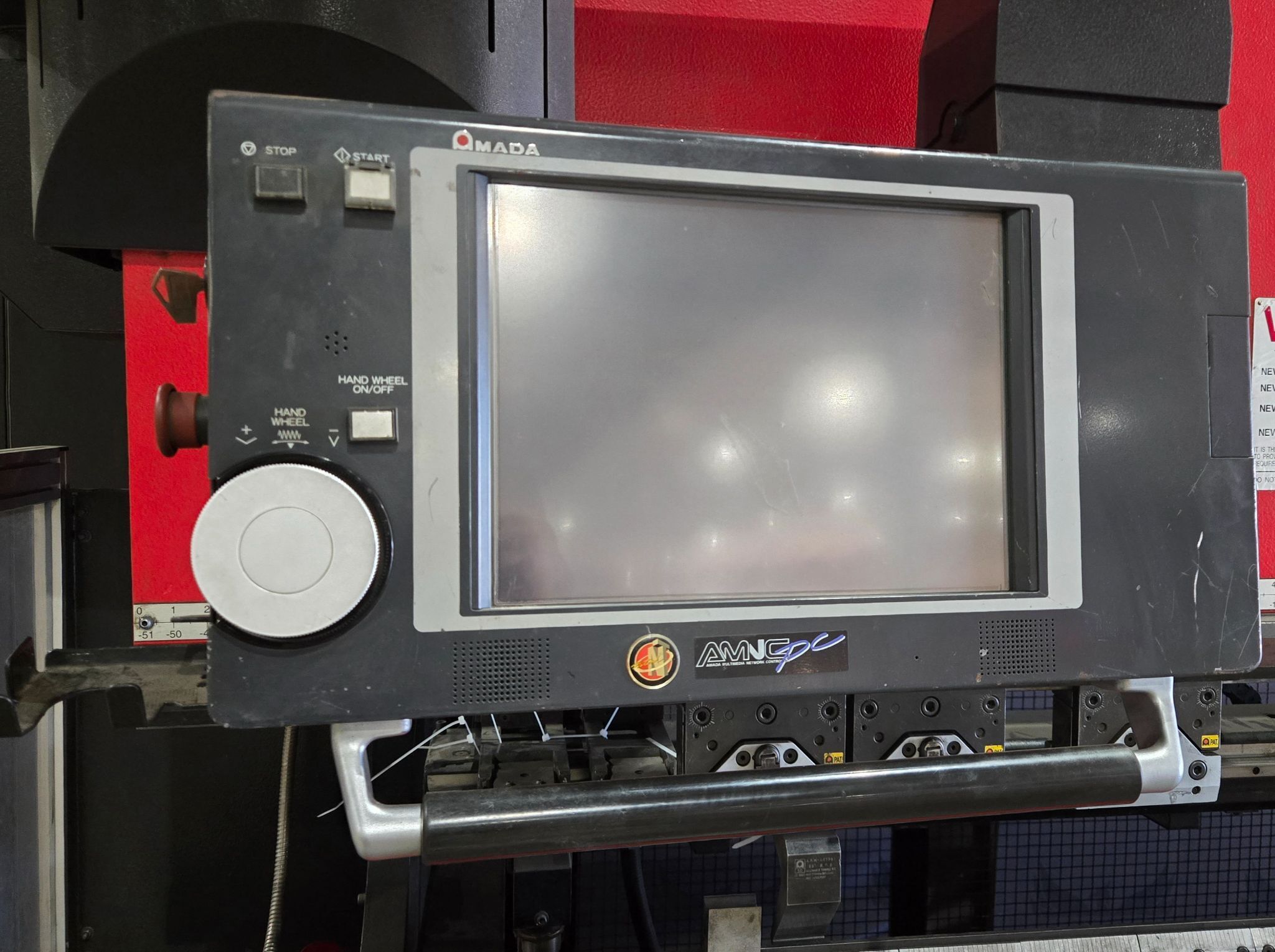

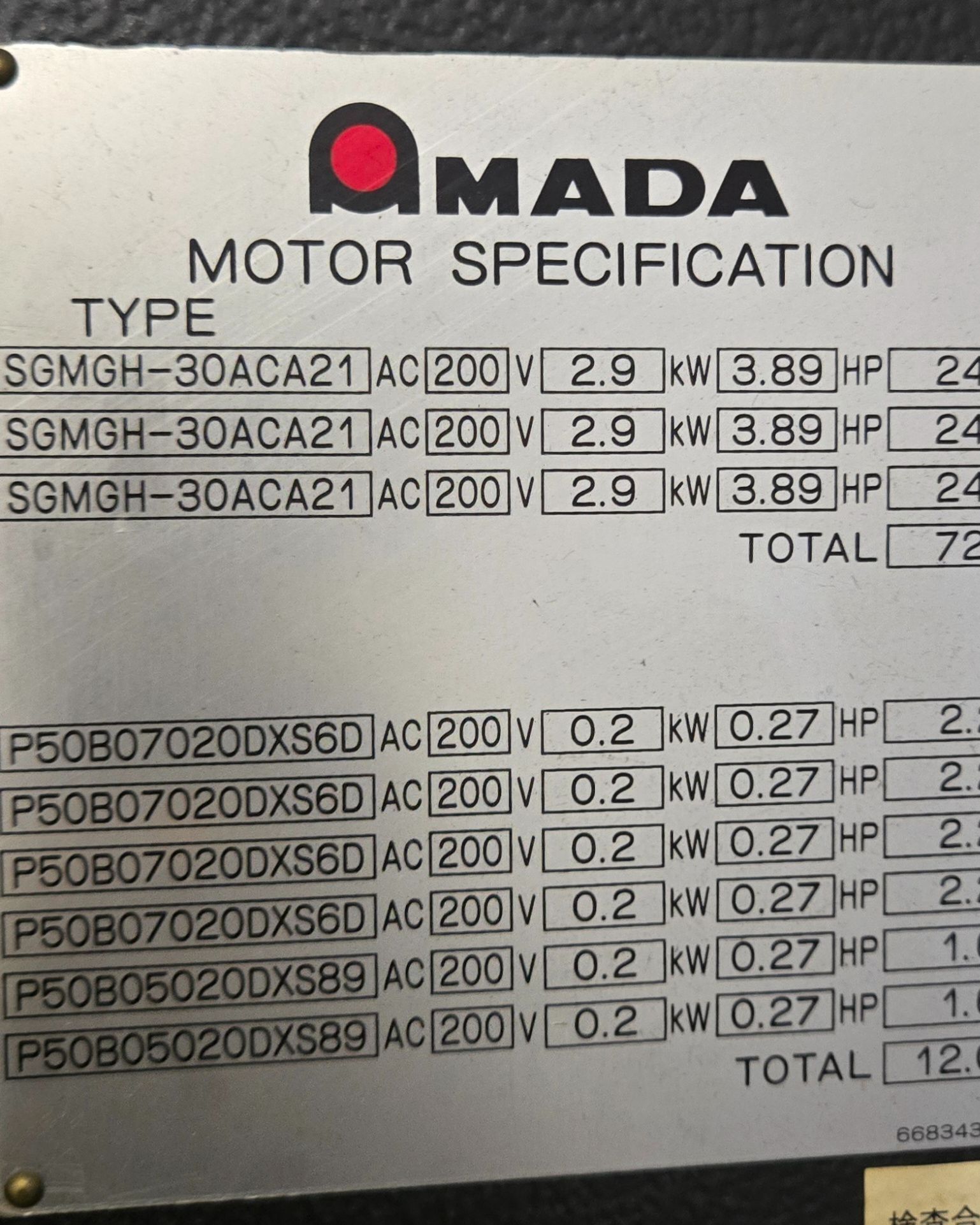

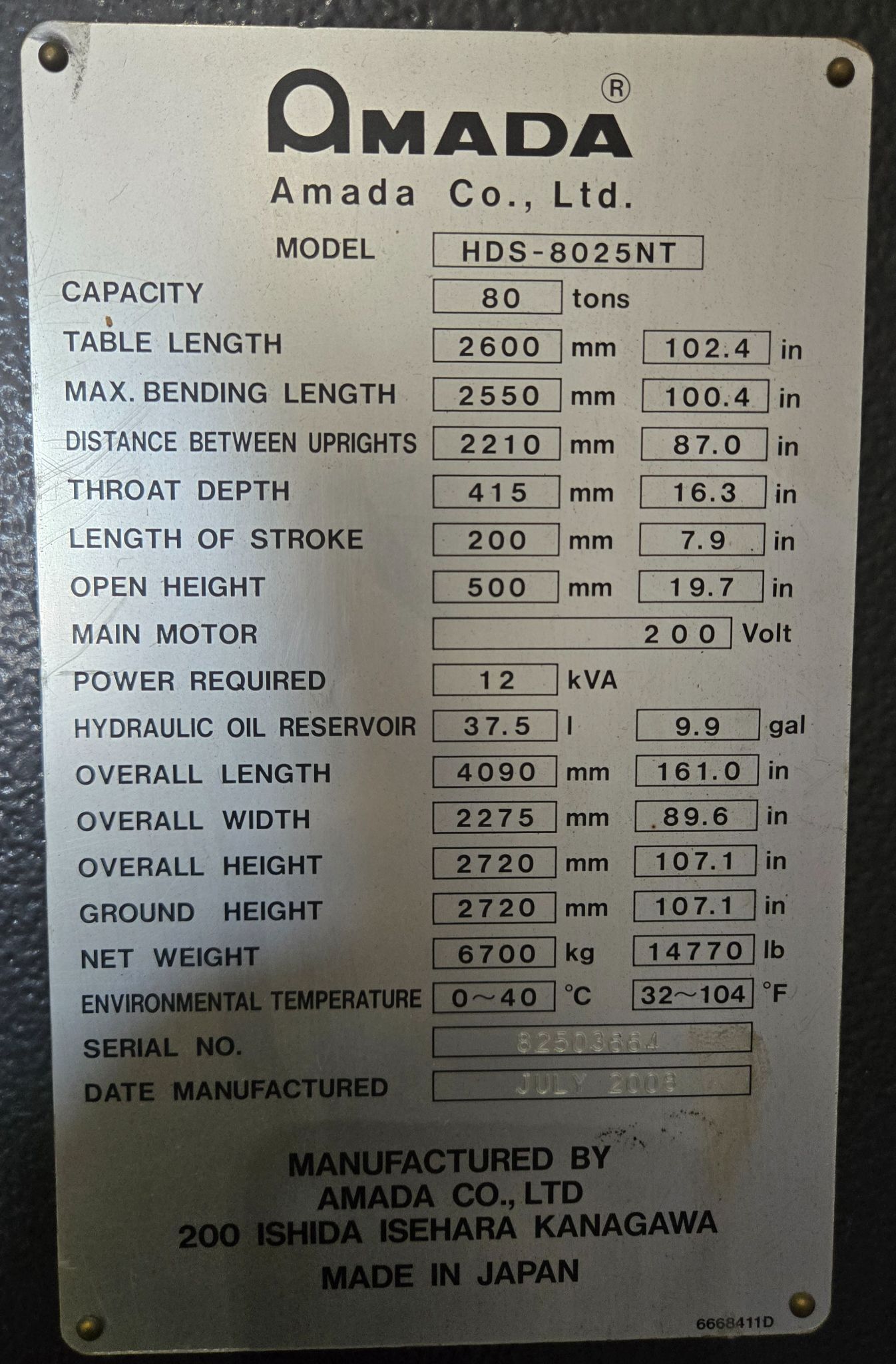

Manufacturer: Amada Model: HDS-8025NT Condition: USED YOM: 2008 Equipment Type: CNC Hydraulic Press Brake Capacity: 80 tons Table Length: 2600 mm (102.4 in) Max Bending Length: 2550 mm (100.4 in) Distance Between Uprights: 2210 mm (87.0 in) Throat Depth: 415 mm (16.3 in) Stroke Length: 200 mm (7.9 in) Open Height: 500 mm (19.7 in) Main Motor Voltage: 200 V Power Requirement: 12 kVA Hydraulic Oil Reservoir: 37.5 L (9.9 gal) Overall Dimensions: Length: 4090 mm (161.0 in) Width: 2275 mm (89.6 in) Height: 2720 mm (107.1 in) Net Weight: 6700 kg (14770 lb) Operating Temperature Range: 0–40 °C (32–104 °F) Control System: AMNC Servo Motors: Model: SGMGH-30ACA21 Quantity: Multiple (axis motors) Power Rating: 2.9 kW (3.89 HP each) Voltage: 200 V AC Auxiliary Motors: Model: P50B07020DXS6D / P50B05020DXS89 Power Rating: 0.2 kW (0.27 HP each) Voltage: 200 V AC Included Components: Assorted Tooling and Components
