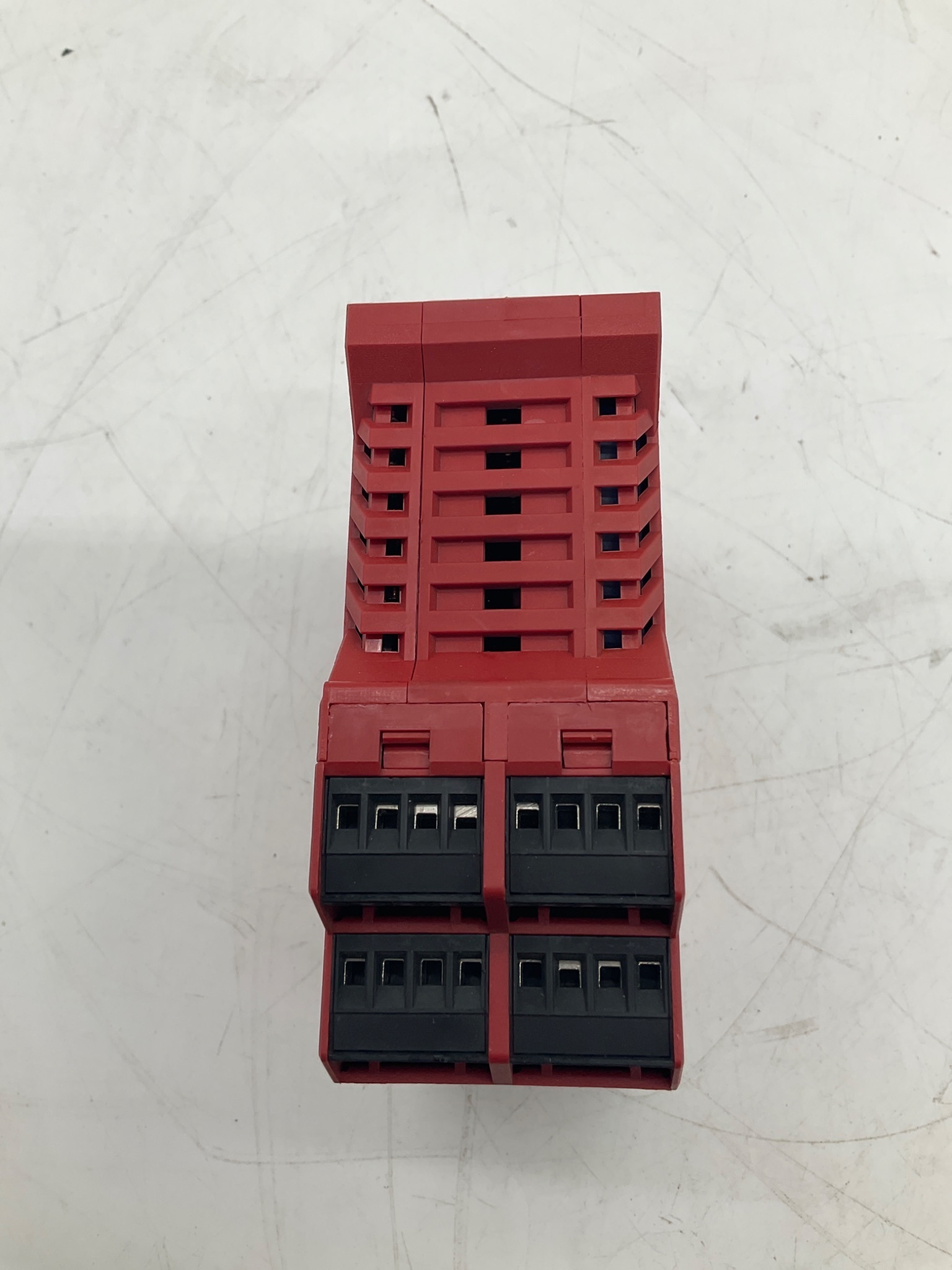

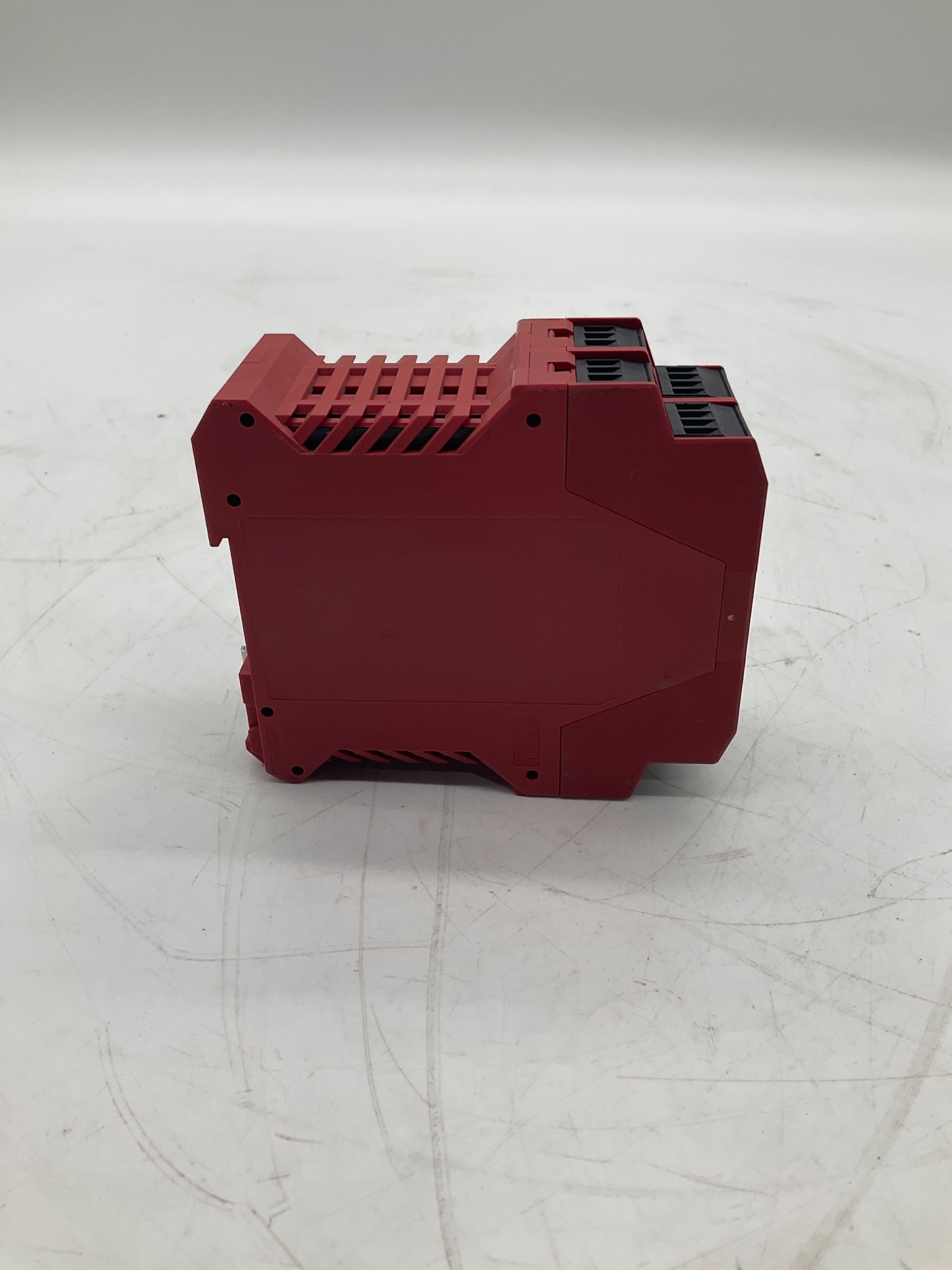

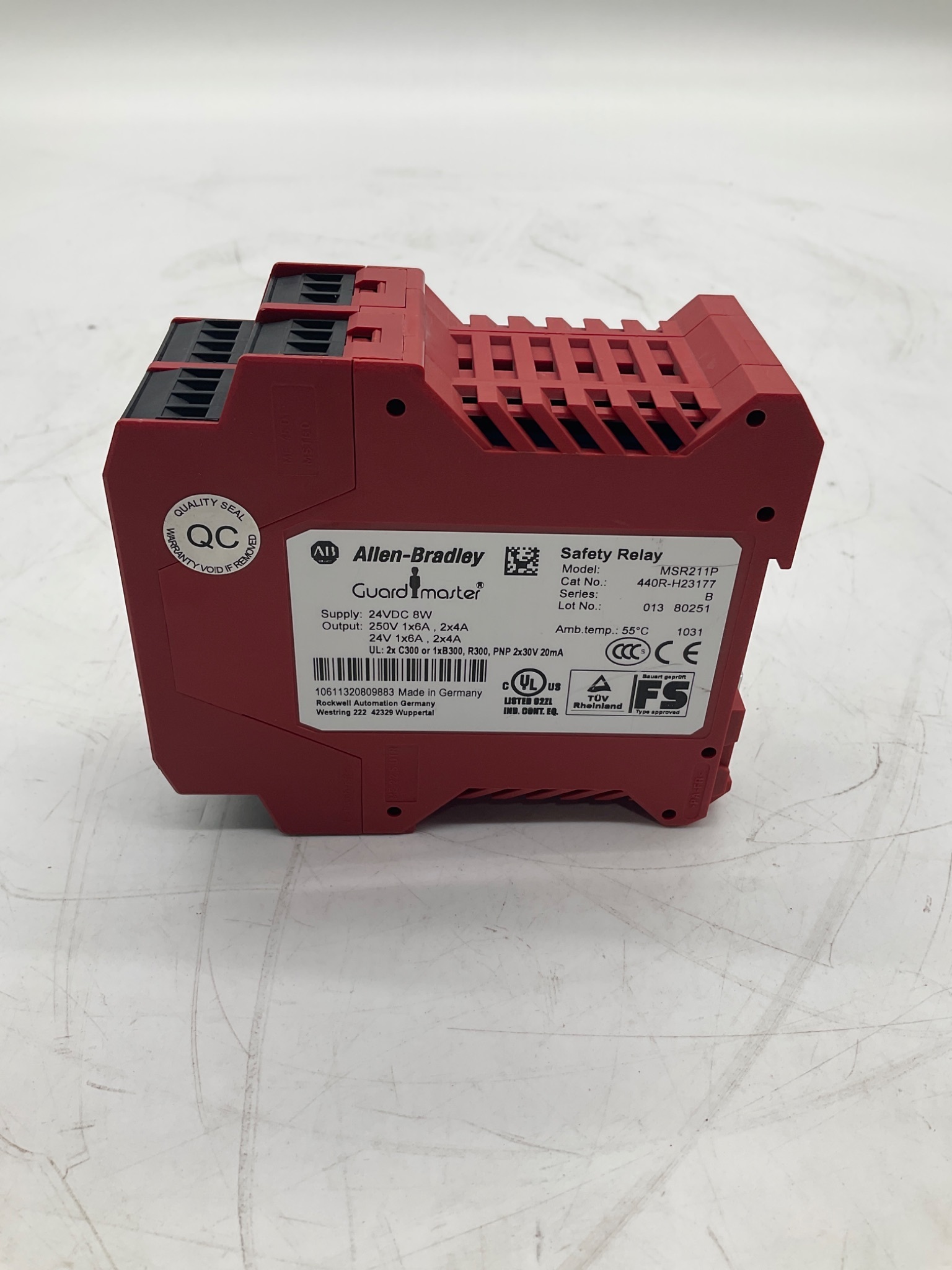

ALLEN-BRADLEY MSR211P Guardmaster Safety Relay USED

Specification Table

Manufacturer: Allen-Bradley Series: Guardmaster Model: MSR211P Part Number: 440R-H23177 Condition: USED   Product Type: Safety Relay Function: Safety Monitoring Relay Safety Architecture: Dual Channel Mounting Type: DIN Rail Mount   Input Specifications   Safety Inputs: 2 Input Configuration: Dual Channel Input Type: Safety Monitoring Inputs   Power Specifications   Supply Voltage: 24 VDC Power Consumption: 8 W   Output Specifications   Safety Outputs: 2 NO Auxiliary Outputs: 1 NC Safety Output Rating: 250 VAC Safety Output Current: 4 A Auxiliary Output Rating: 24 VDC Auxiliary Output Current: 2 A   Relay Ratings   AC15 Rating: 250 VAC 6 A DC13 Rating: 24 VDC 2 A UL Rating: C300 UL Rating: B300 Pilot Duty Rating: PNP 230V 20 mA   Status Indicators   Power Indicator: Yes Run Indicator: Yes Stop Indicator: Yes Ready Indicator: Yes   Environmental Specifications   Maximum Ambient Temperature: 55°C Compliance   UL Listed: Yes CE Marked: Yes TUV Rheinland Approved: Yes FS Type Approved: Yes CCC Approved: Yes   Manufacturing Information   Country of Manufacture: Germany Series Revision: B Lot Number: 01380251 YOM: n/a
