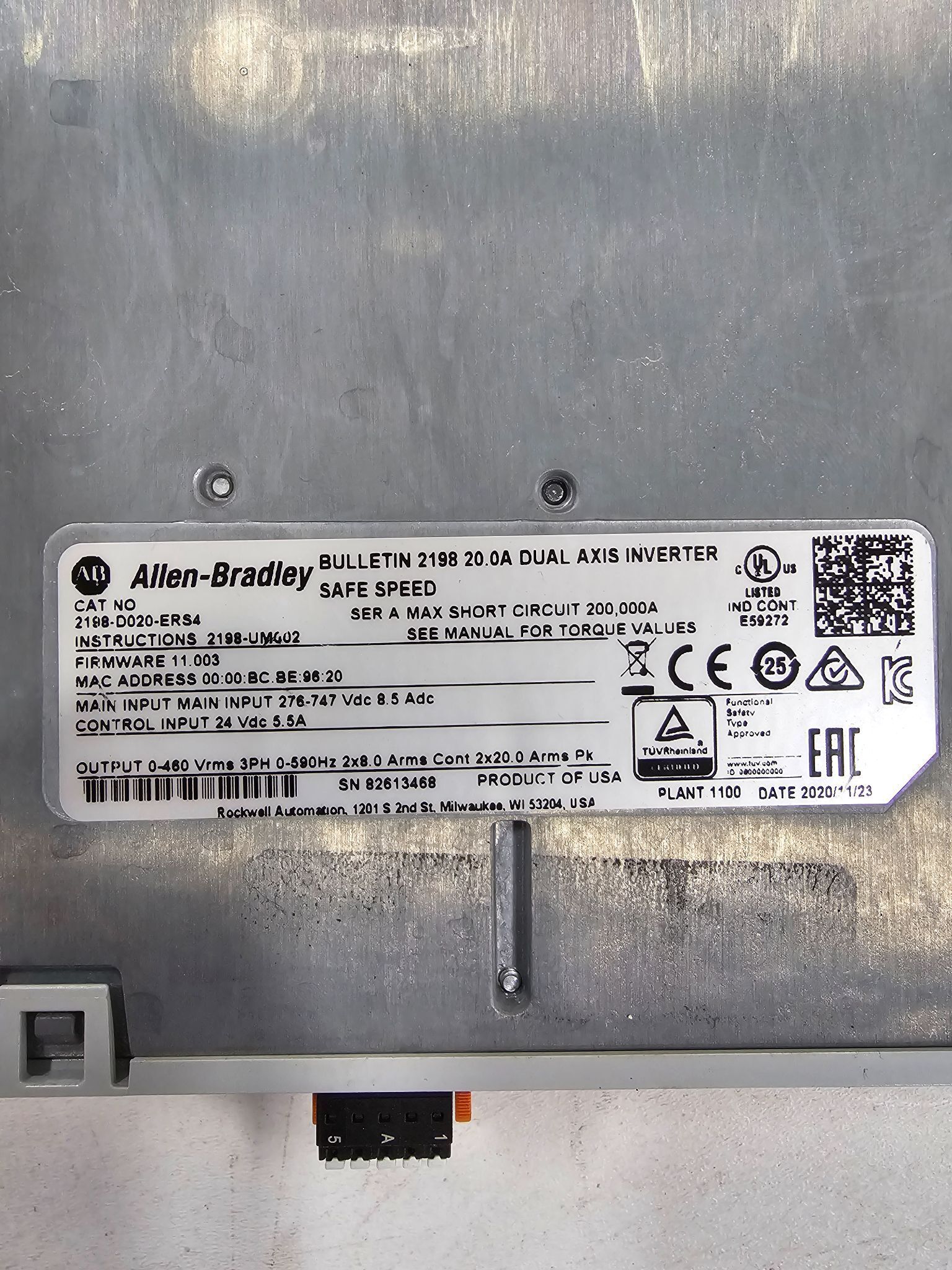

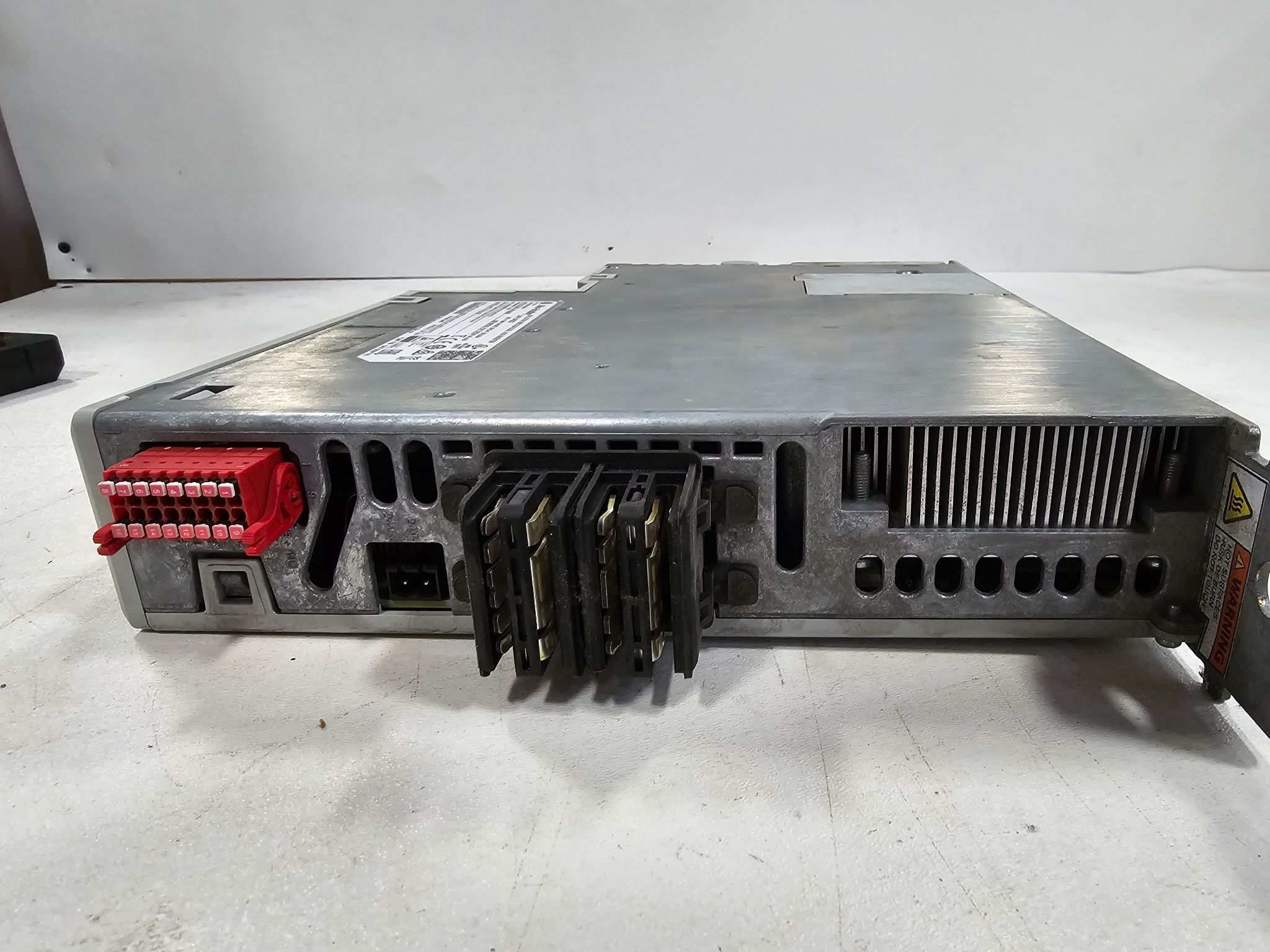

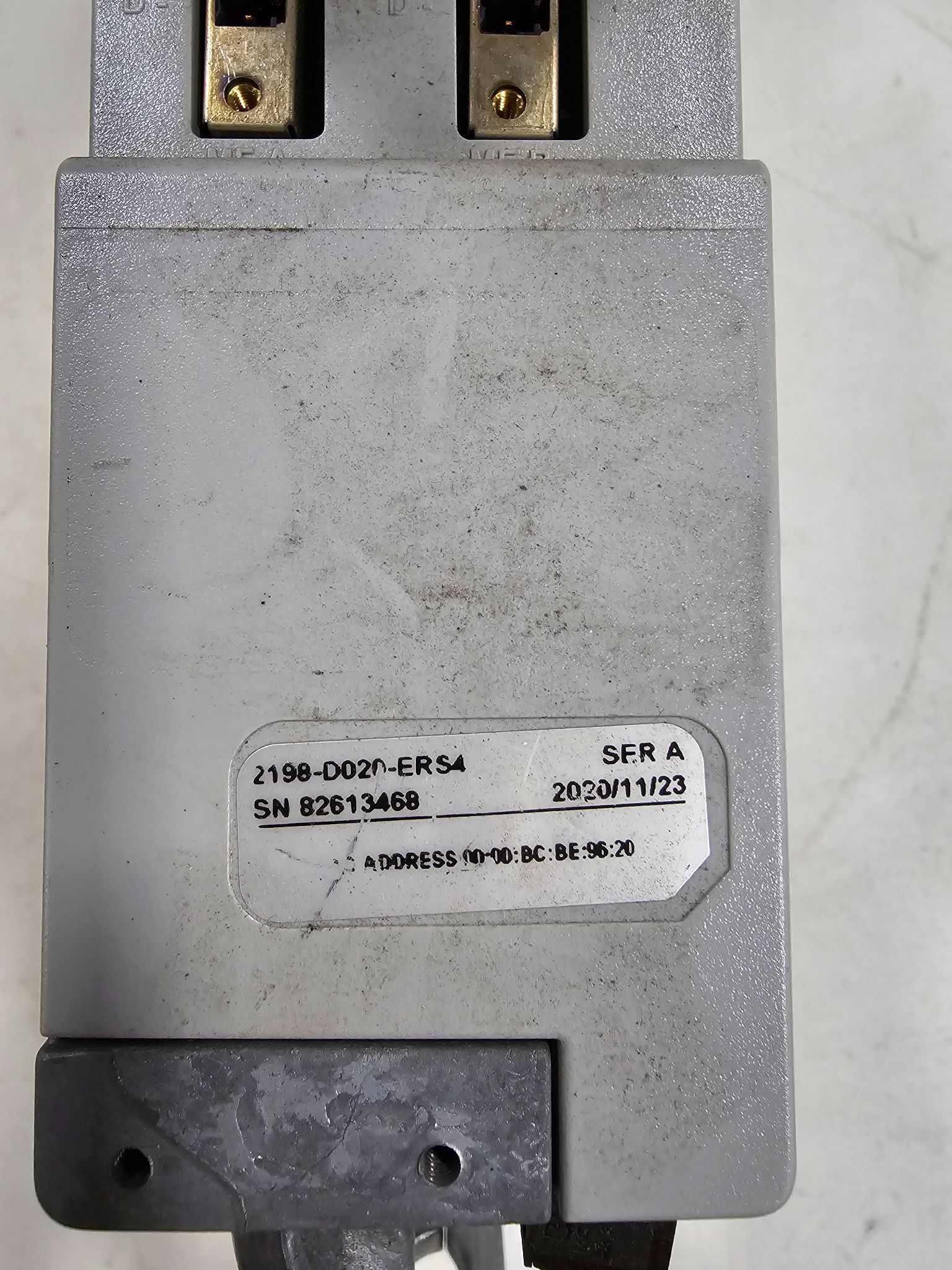

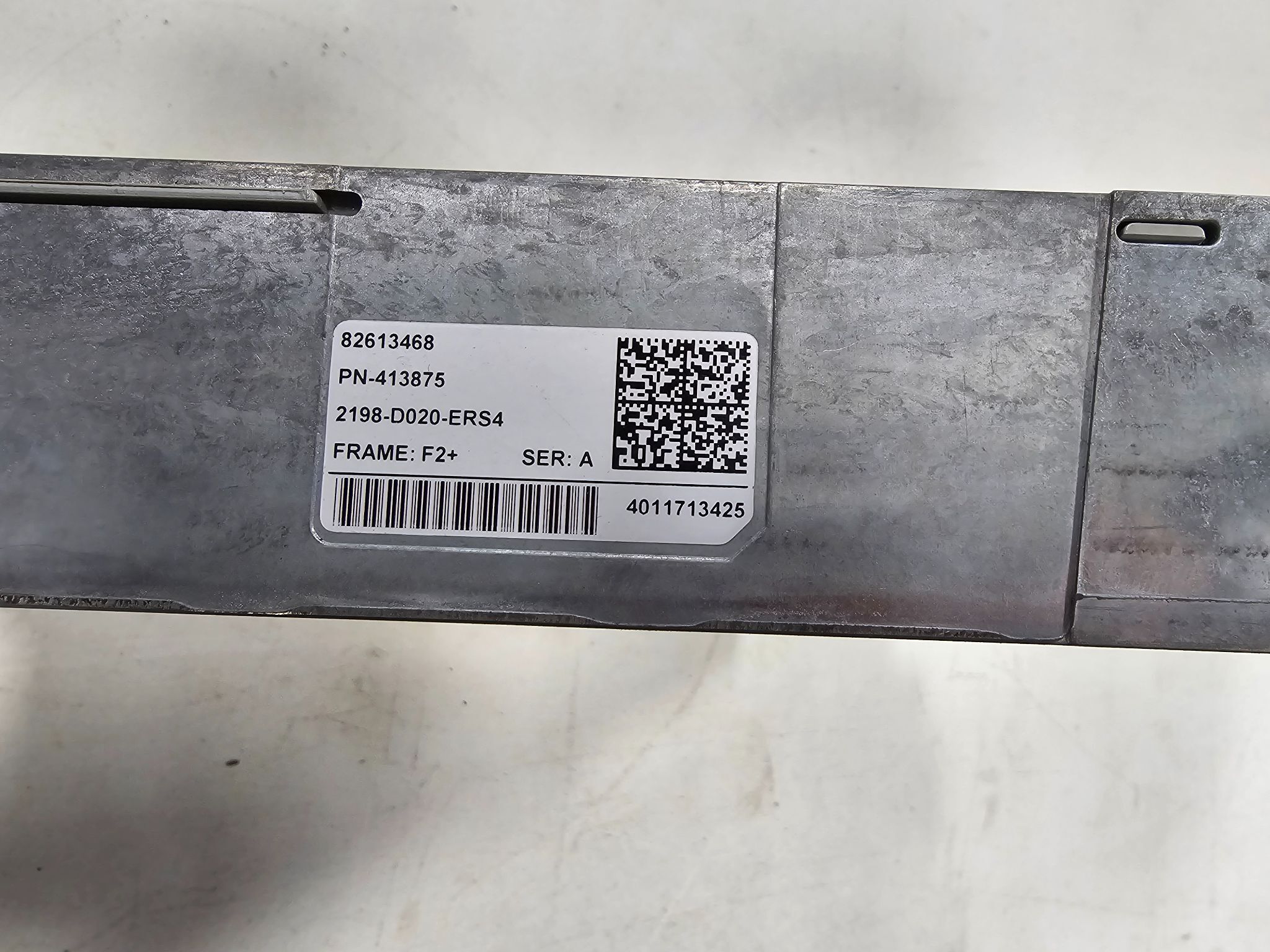

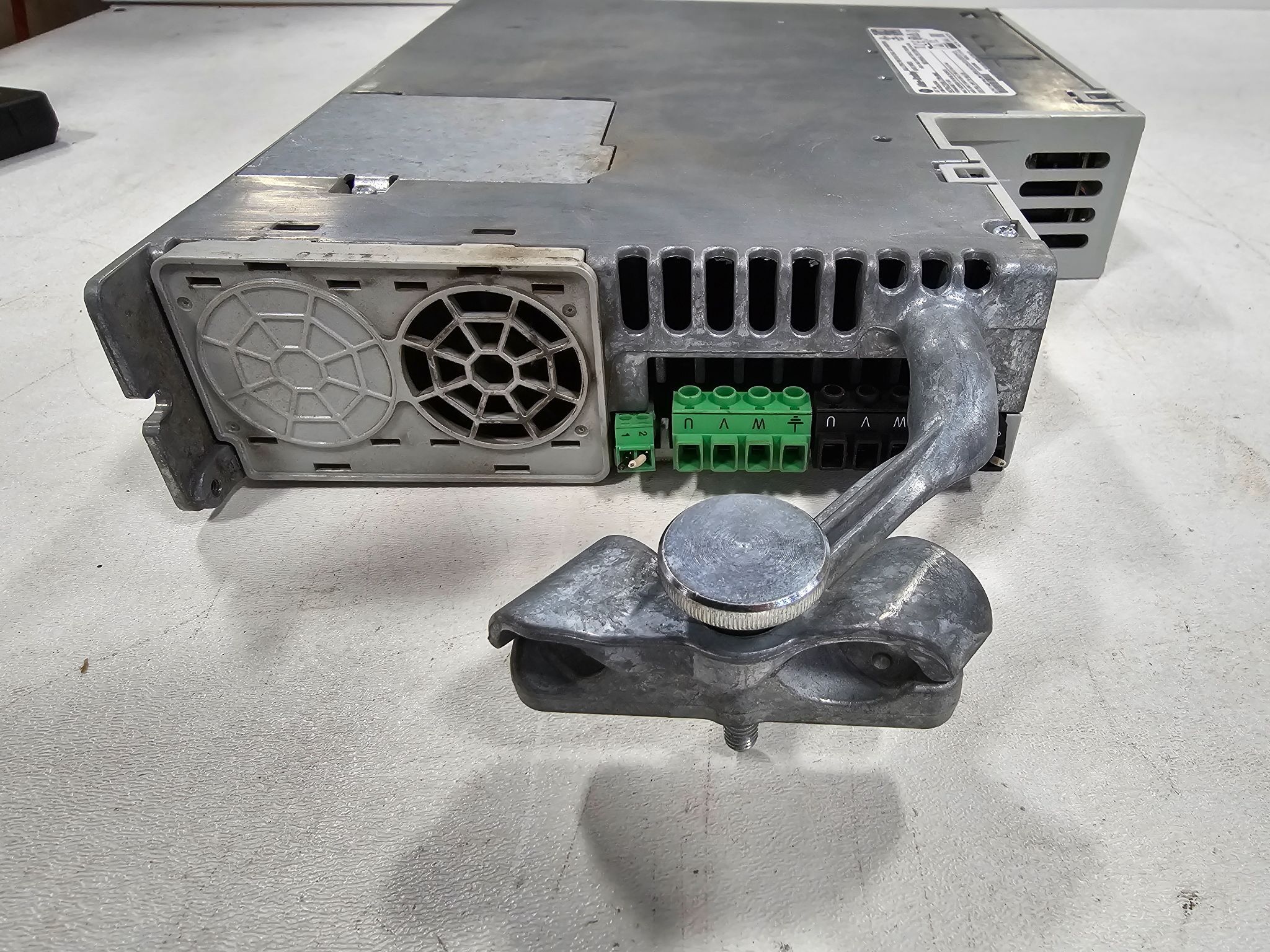

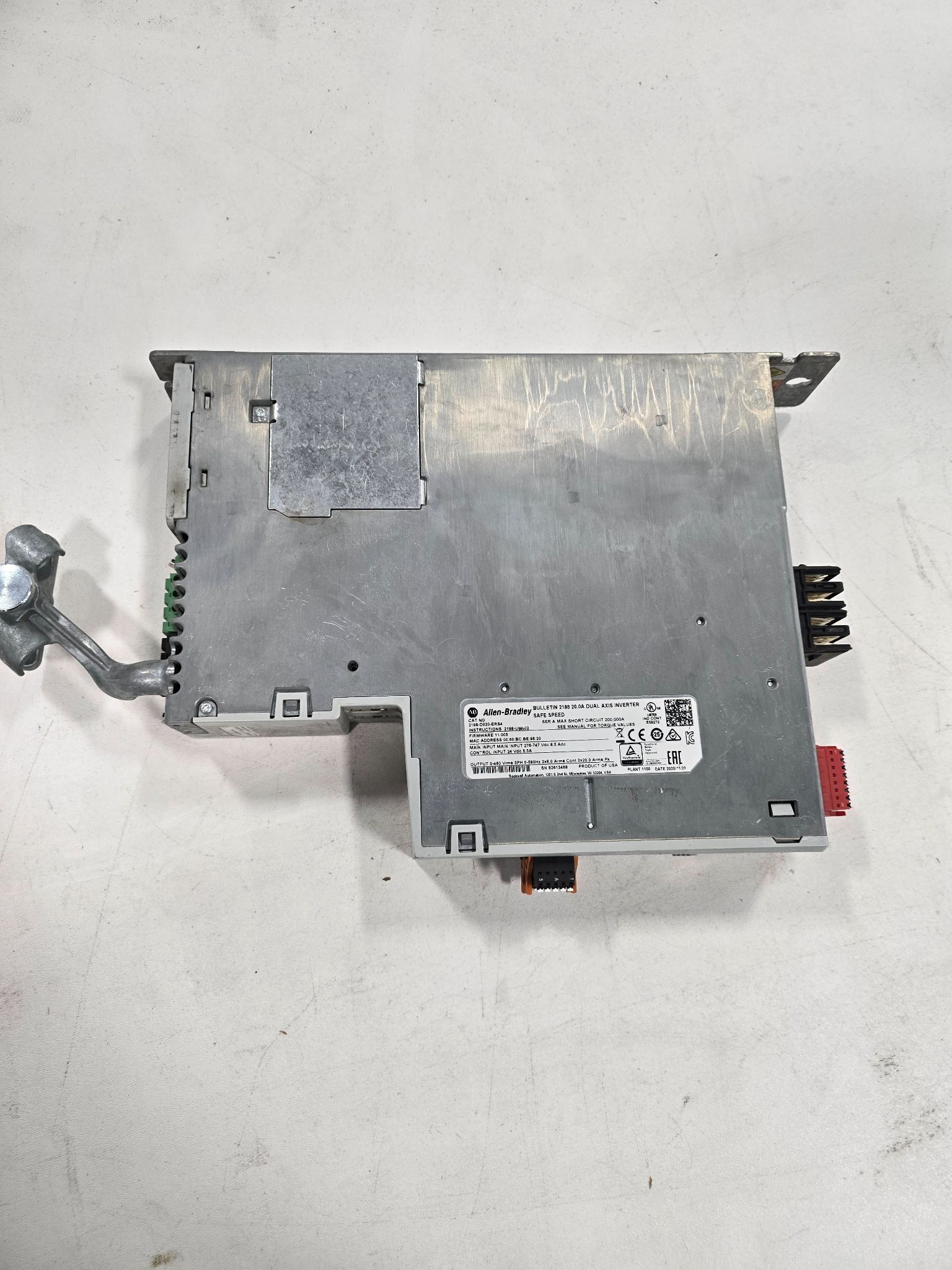

ALLEN BRADLEY KIETIX 5700 2198-D020-ERS4 DUAL AXIS INVERTER USED

Product Specifications

• Manufacturer: Allen-Bradley
• Model Number: 2198-D020-ERS4
• Series: Kinetix 5700
• Input Voltage: 480V AC
• Output Current: 20A per axis
• Power Rating: 8 kW per axis
• Number of Axes: Dual
• Control Type: Servo Drive with EtherNet/IP Support
• Communication Protocol: EtherNet/IP
• Enclosure Rating: Open Type (IP20)
• Safety Features: Integrated Safe Torque Off (STO)
• Operating Temperature Range: 0°C to +50°C
• Certifications: UL, CE, CSA

Key Features

• Dual-Axis Control – Supports independent or synchronized control of two servo axes.
• High-Speed Motion Performance – Optimized for precision applications with fast response times.
• Seamless EtherNet/IP Integration – Enables smooth communication with Allen-Bradley automation systems.
• Energy-Efficient Design – Reduces power consumption while maintaining performance.
• Advanced Safety Functions – Includes Safe Torque Off (STO) for enhanced operational safety.

Applications

• Robotics & Automated Machinery – Provides precision motion control for robotic arms and automated systems.
• CNC & Motion Control Systems – Enhances accuracy and speed in machining applications.
• Material Handling & Packaging – Ensures reliable operation in conveyor and packaging equipment.
• Printing & Textile Machinery – Supports high-speed motion control for production lines.
• Automotive & Aerospace Manufacturing – Powers critical processes in high-performance production environments.

Alternative model numbers include: 2198-D010-ERS4, 2198-D030-ERS4, 2198-D050-ERS4, 2198-D020-ERS3, 2198-D040-ERS4.

Common misspellings include: 2198-DO20-ERS4, 2198-D200-ERS4, 2198-D020-ERS5, 2198-DO2O-ERS4, 2198-D020-ERS.
