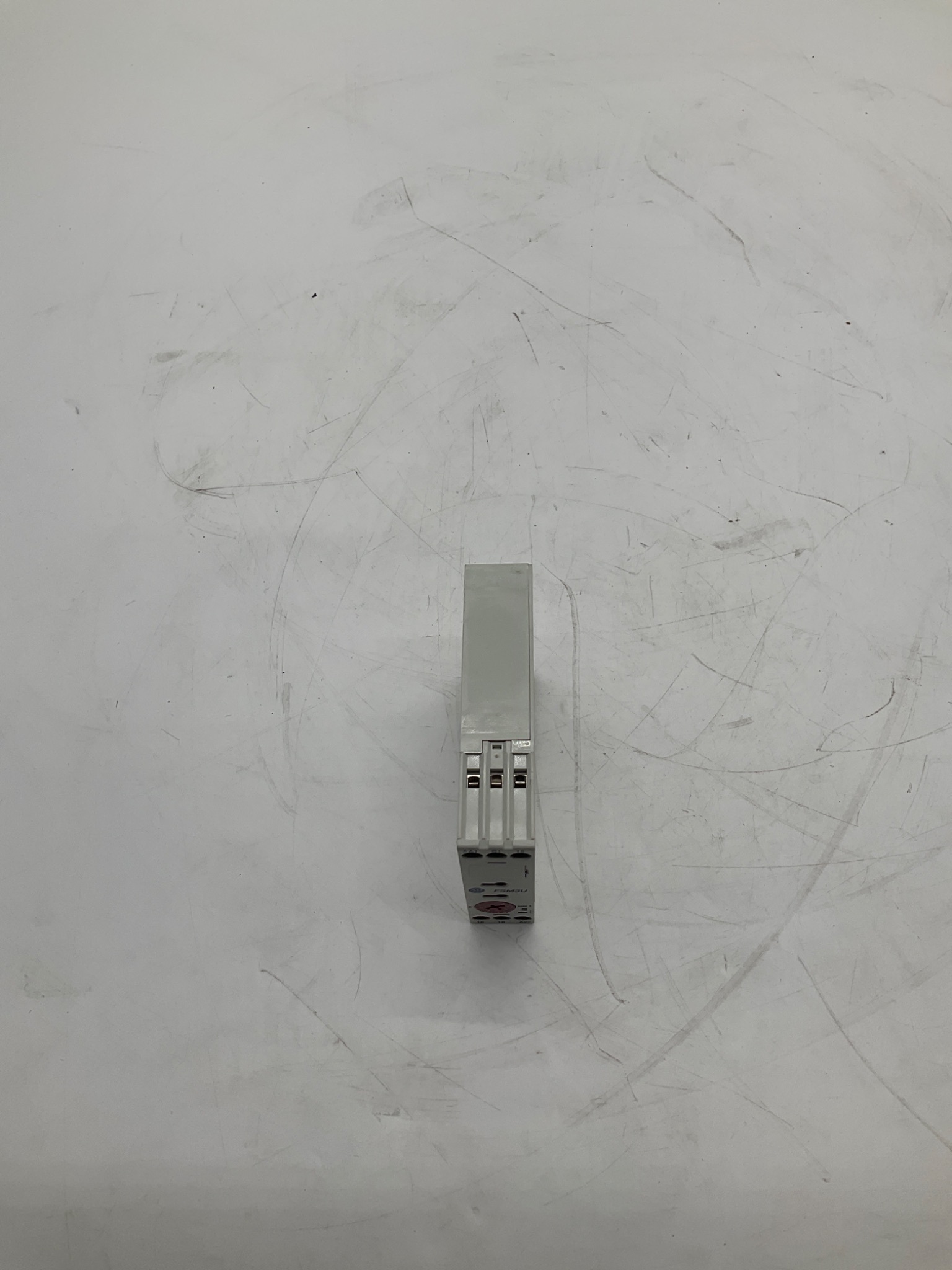

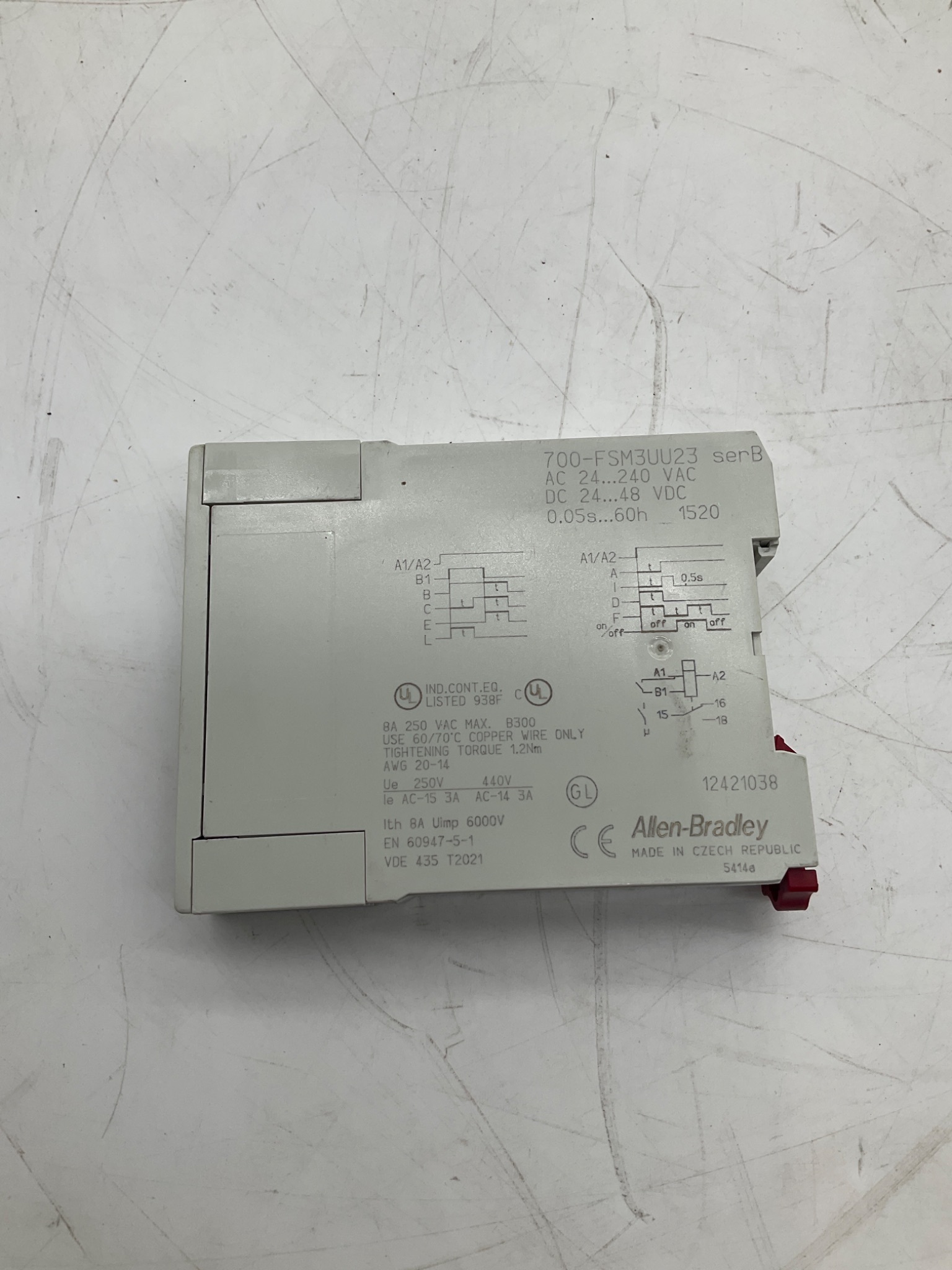

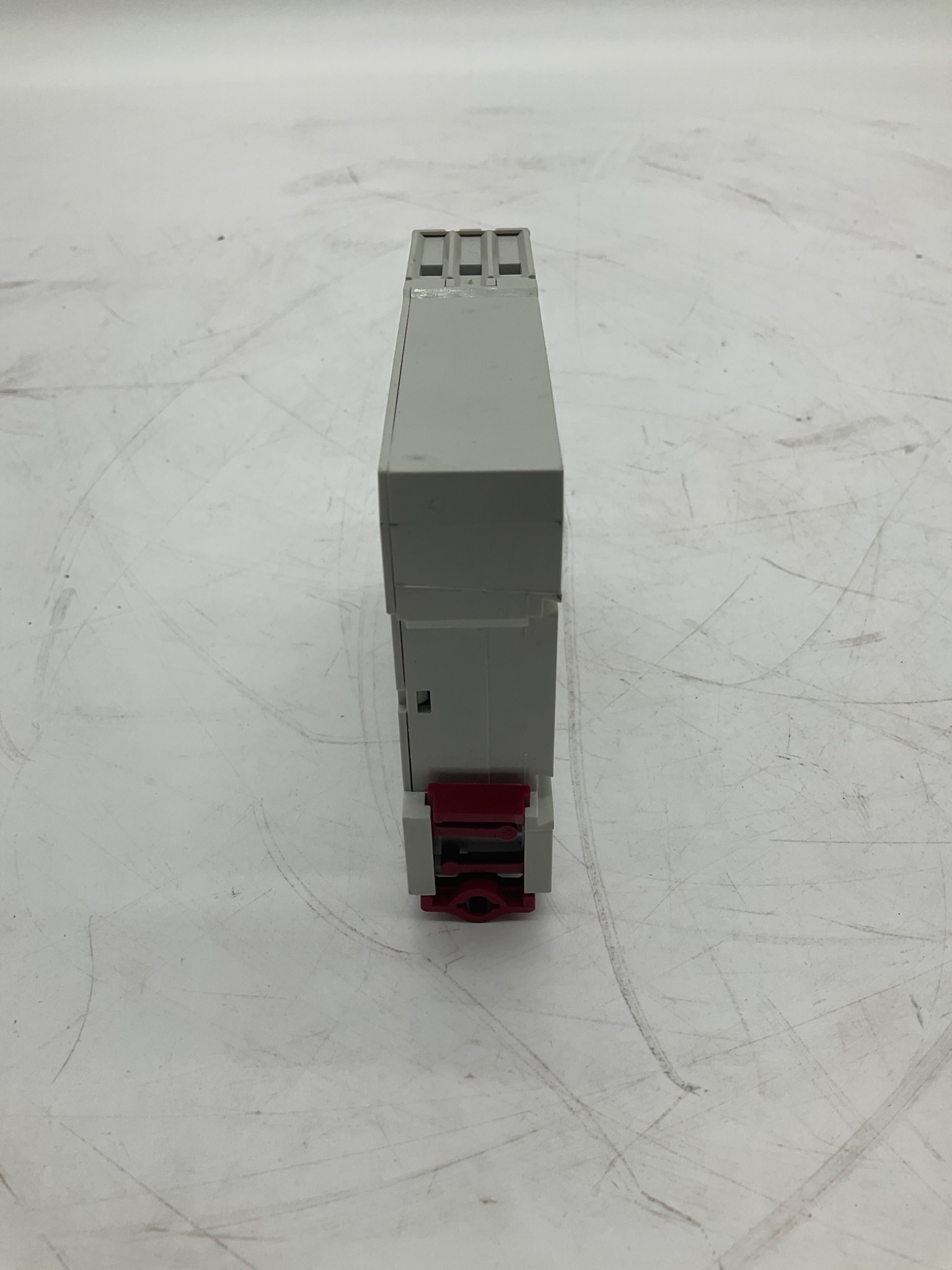

ALLEN-BRADLEY 700-FSM3UU23/B Multifunction Time Relay USED

Specification Table

Manufacturer: Allen-Bradley Series: Bulletin 700-FS Model: FSM3U Part Number: 700-FSM3UU23 Series Revision: B Condition: USED   Product Type: Multifunction Time Relay Relay Type: Electronic Timing Relay Timing Functions: Multifunction Mounting Type: DIN Rail Mount   Power Specifications   Supply Voltage AC: 24-240 VAC Supply Voltage DC: 24-48 VDC Frequency: 50/60 Hz   Timing Specifications   Timing Range: 0.05 Seconds to 60 Hours Time Adjustment: Adjustable Function Selection: Rotary Selector   Output Specifications   Contact Configuration: 1 C/O (SPDT) Terminal Designations: 15-16-18   Contact Ratings   Rated Operational Voltage (Ue): 250 VAC Rated Operational Voltage (Ue): 440 VAC Rated Operational Current (AC-15): 3 A Rated Operational Current (AC-14): 3 A Thermal Current (Ith): 8 A   Electrical Specifications   Rated Impulse Withstand Voltage (Uimp): 6000 V UL Pilot Duty Rating: B300 UL Pilot Duty Rating: C300   Connection Specifications Wire Range: AWG 20-14 Terminal Torque: 1.2 Nm Conductor Material: Copper   Standards   EN 60947-5-1 VDE 435 T2021   Indicators and Controls   LED Status Indicator: Yes Time Adjustment Dial: Yes Function Selector: Yes   Manufacturing Information   Country of Manufacture: Czech Republic YOM: n/a
