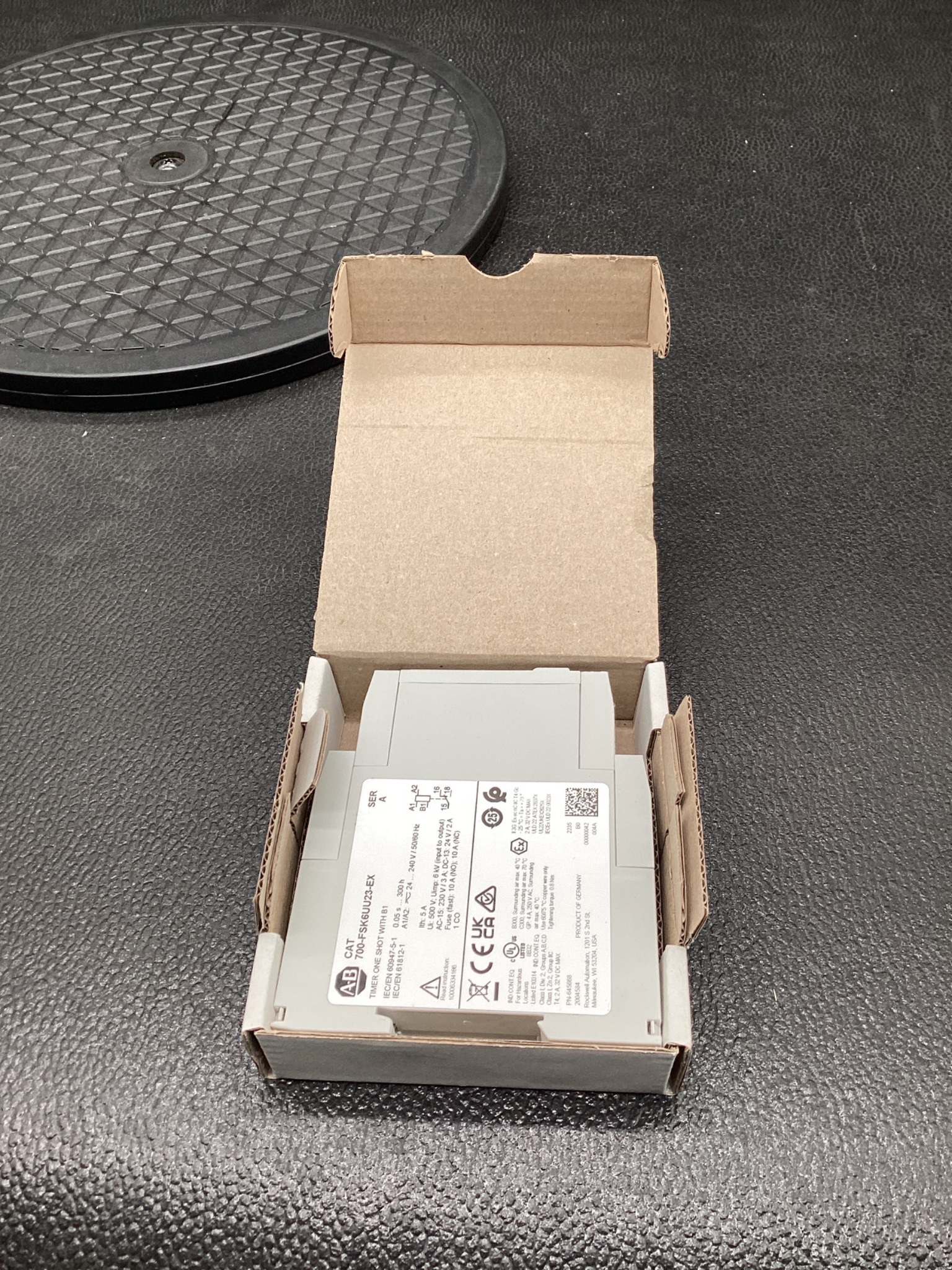

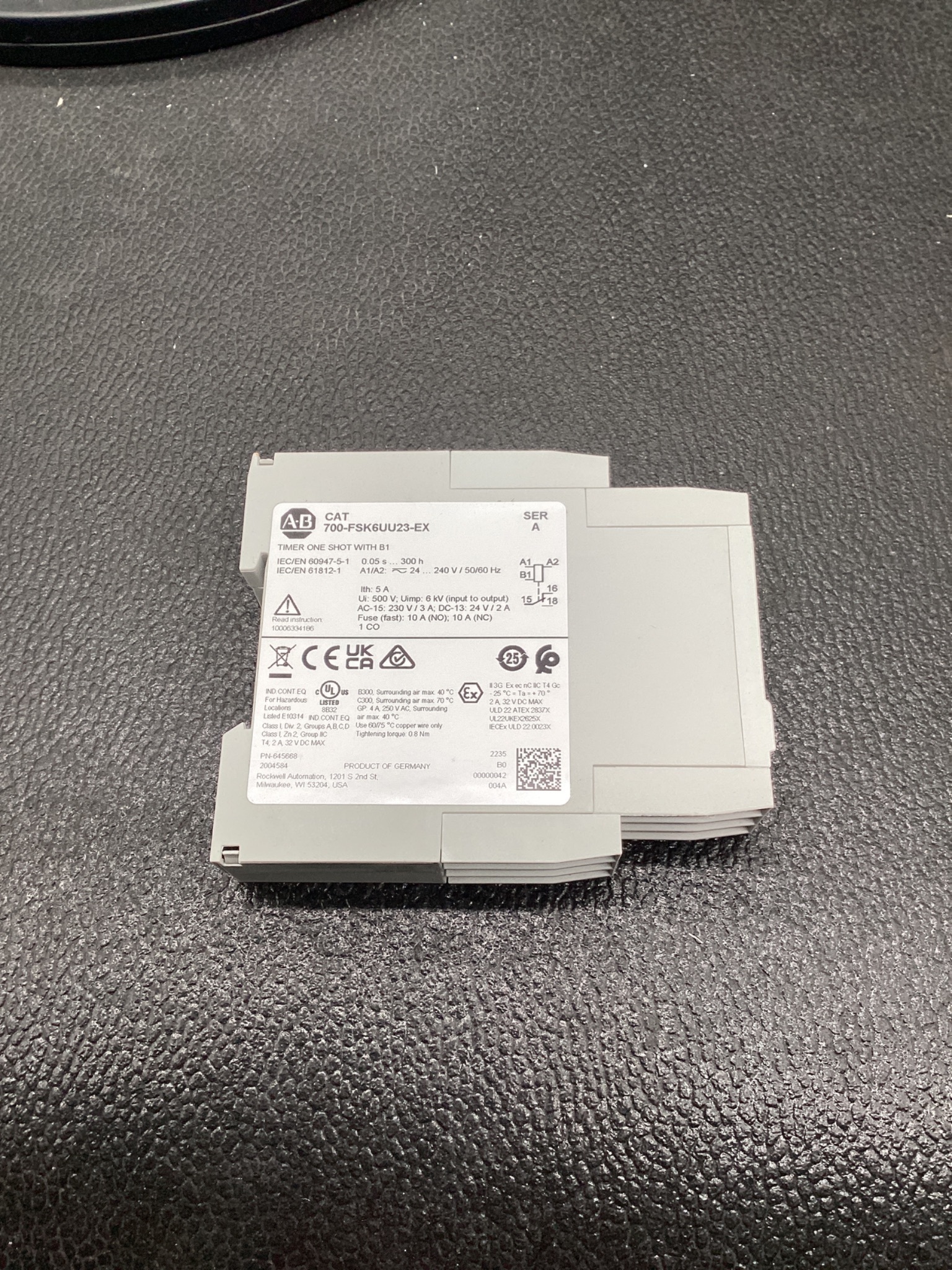

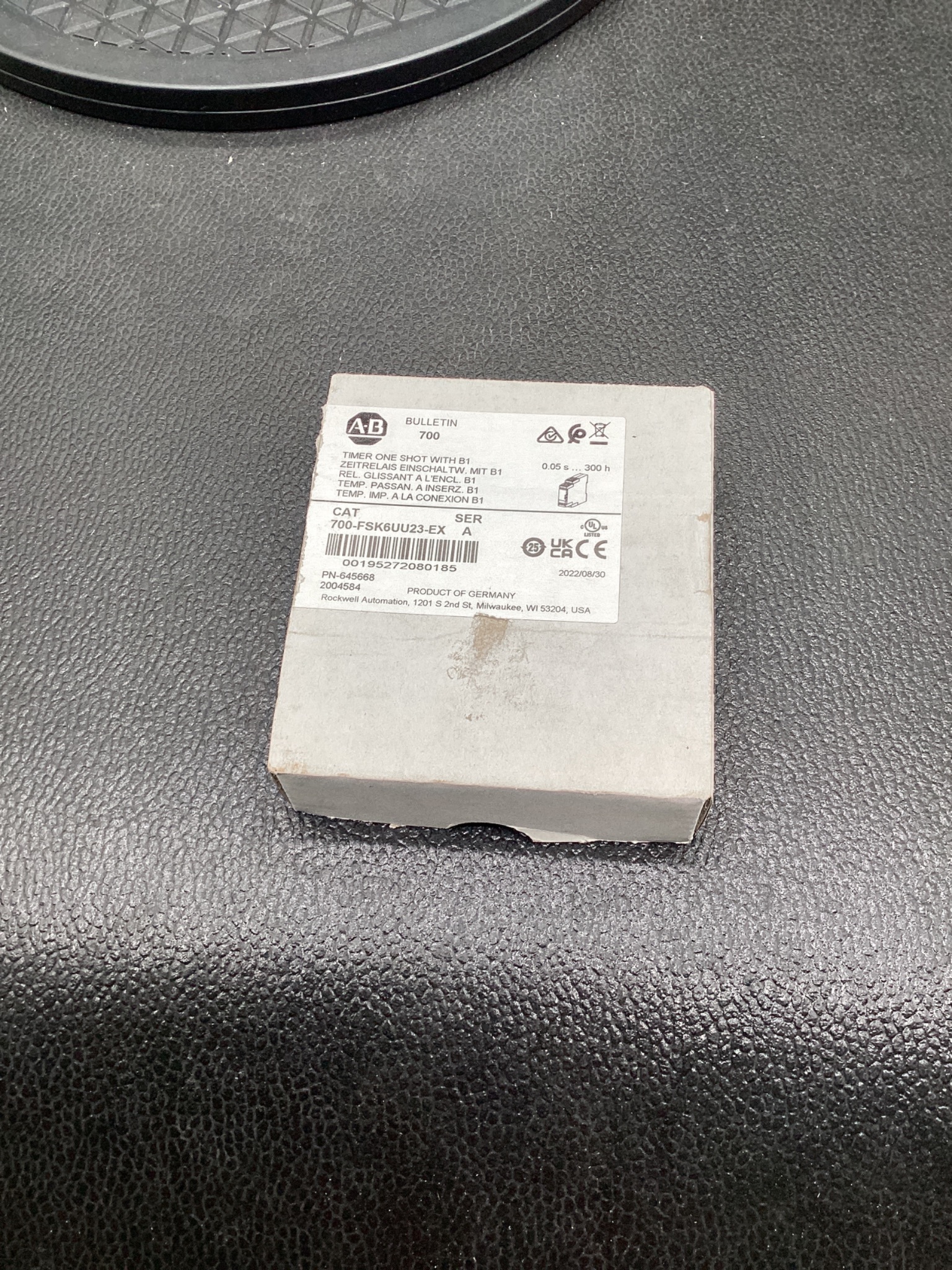

ALLEN-BRADLEY 700-FSK6UU23-EX Multifunction Time Relay NEW

Specification Table

Manufacturer: Allen-Bradley Series: Bulletin 700 Part Number: 700-FSK6UU23-EX Series Revision: A Condition: NEW   Product Type: Multifunction Time Relay Module Type: Electronic Timing Relay Function Type: Multifunction Timer Mounting Type: DIN Rail Mount   Timing Specifications   Timing Range: 0.05 Seconds to 300 Hours Time Adjustment: Adjustable Function Selection: Selectable Timing Modes   Electrical Specifications   Supply Voltage AC: 24-240 VAC Supply Voltage DC: 24-48 VDC Frequency: 50/60 Hz   Output Specifications   Contact Configuration: 1 C/O (SPDT) Output Type: Electromechanical Relay Output   Contact Ratings   Rated Operational Current (AC-15): 3 A Rated Operational Current (AC-14): 3 A Thermal Current (Ith): 8 A Rated Operational Voltage: 250 VAC   Electrical Ratings   Rated Impulse Withstand Voltage (Uimp): 6 kV UL Pilot Duty Rating: B300 UL Pilot Duty Rating: C300   Connection Specifications   Screw Terminal Connections: Yes Conductor Material: Copper Indicators and Controls   LED Status Indicator: Yes Timing Adjustment Dial: Yes Function Selection Control: Yes   Approvals   UL Listed: Yes CE Marked: Yes UKCA Marked: Yes   Manufacturing Information   Country of Manufacture: Germany YOM: 2022
