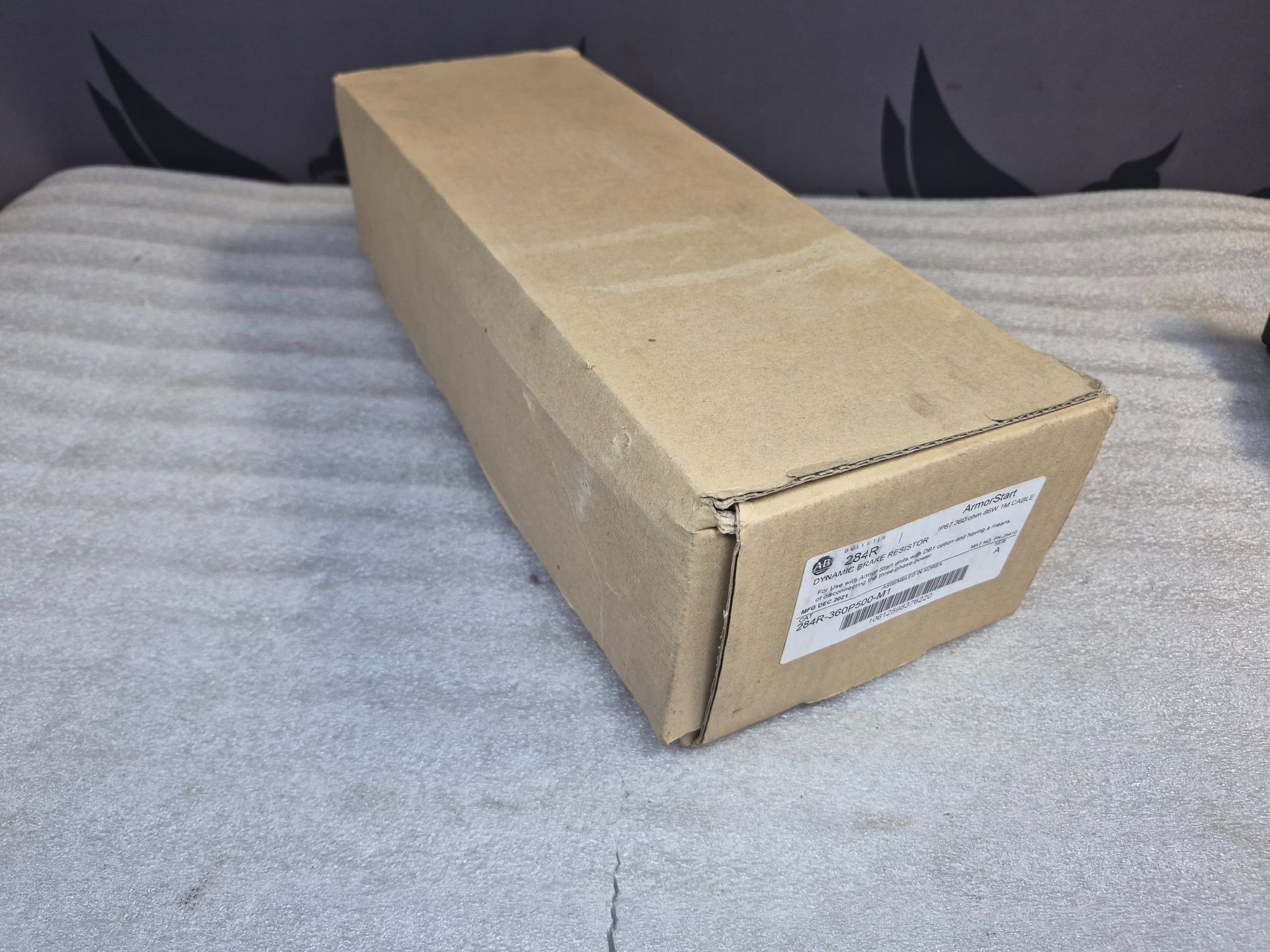

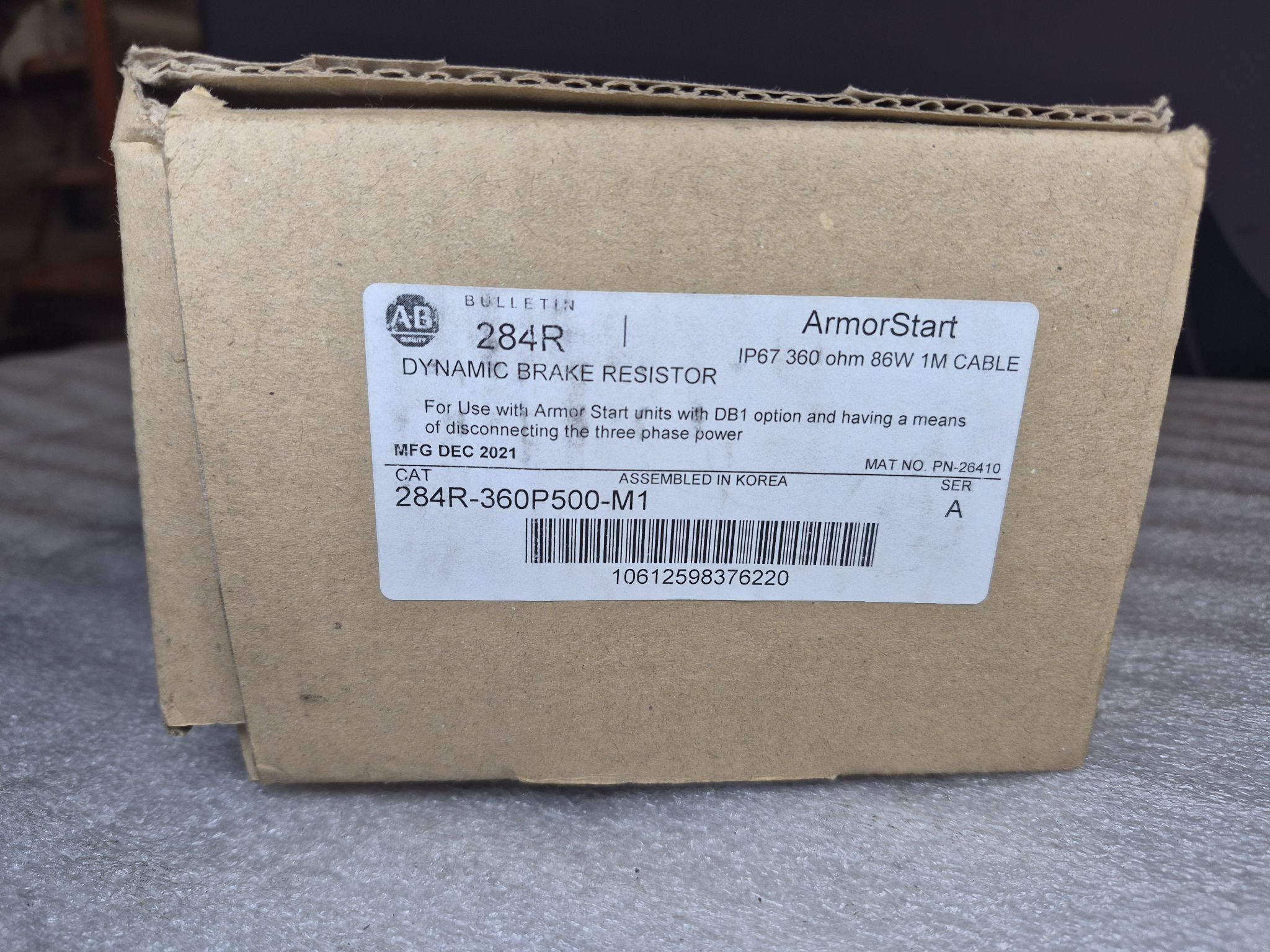

ALLEN BRADLEY 284R-360P500-M1 ArmorStart Dynamic Brake Resistor NEW
ALLEN BRADLEY 284R-360P500-M1 ArmorStart Dynamic Brake Resistor NEW - Image 2
ALLEN BRADLEY 284R-360P500-M1 ArmorStart Dynamic Brake Resistor NEW - Image 3
ALLEN BRADLEY 284R-360P500-M1 ArmorStart Dynamic Brake Resistor NEW - Image 4

SOLD!

ALLEN BRADLEY 284R-360P500-M1 ArmorStart Dynamic Brake Resistor NEW

$55.00
Availability:

15 in stock
BRAND: ALLEN BRADLEY MODEL: 284R-360P500-M1 CONDITION: New
SKU: IGAM3220550 Weight: 8 lbs Shipping Calculated at Checkout

15 in stock

Make an offer

Overview

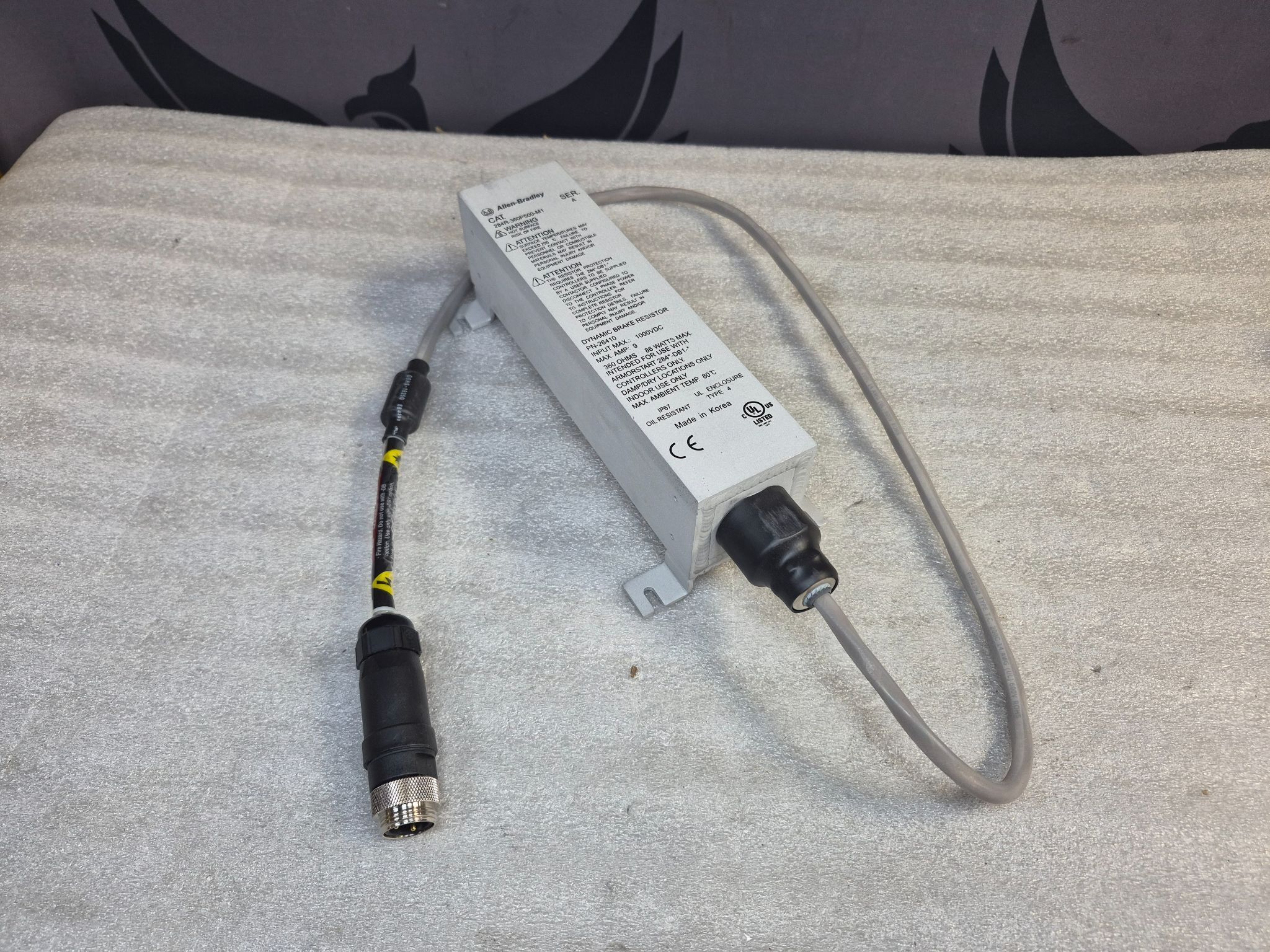

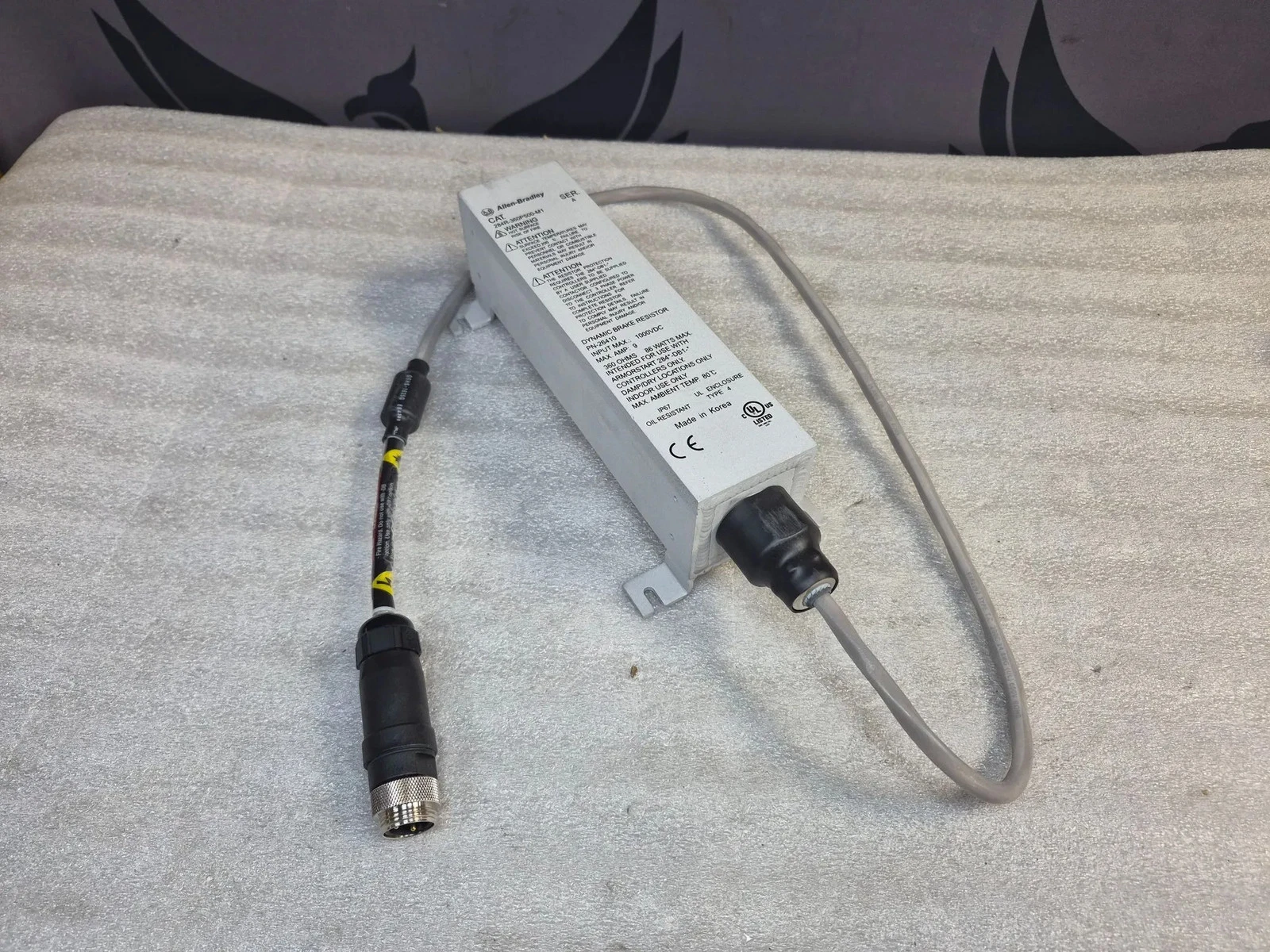

This listing is for a NEW Allen Bradley 284R-360P500-M1 ArmorStart dynamic brake resistor. It is designed for use with ArmorStart distributed motor controllers equipped with a DB1 braking option to dissipate regenerative energy during motor deceleration. This unit is categorized as a motor drive accessory and includes the following capabilities 360 ohm resistance, IP67 sealed enclosure for harsh environments, and an integrated 1 meter brake and motor cable for simplified installation.

Specification Table

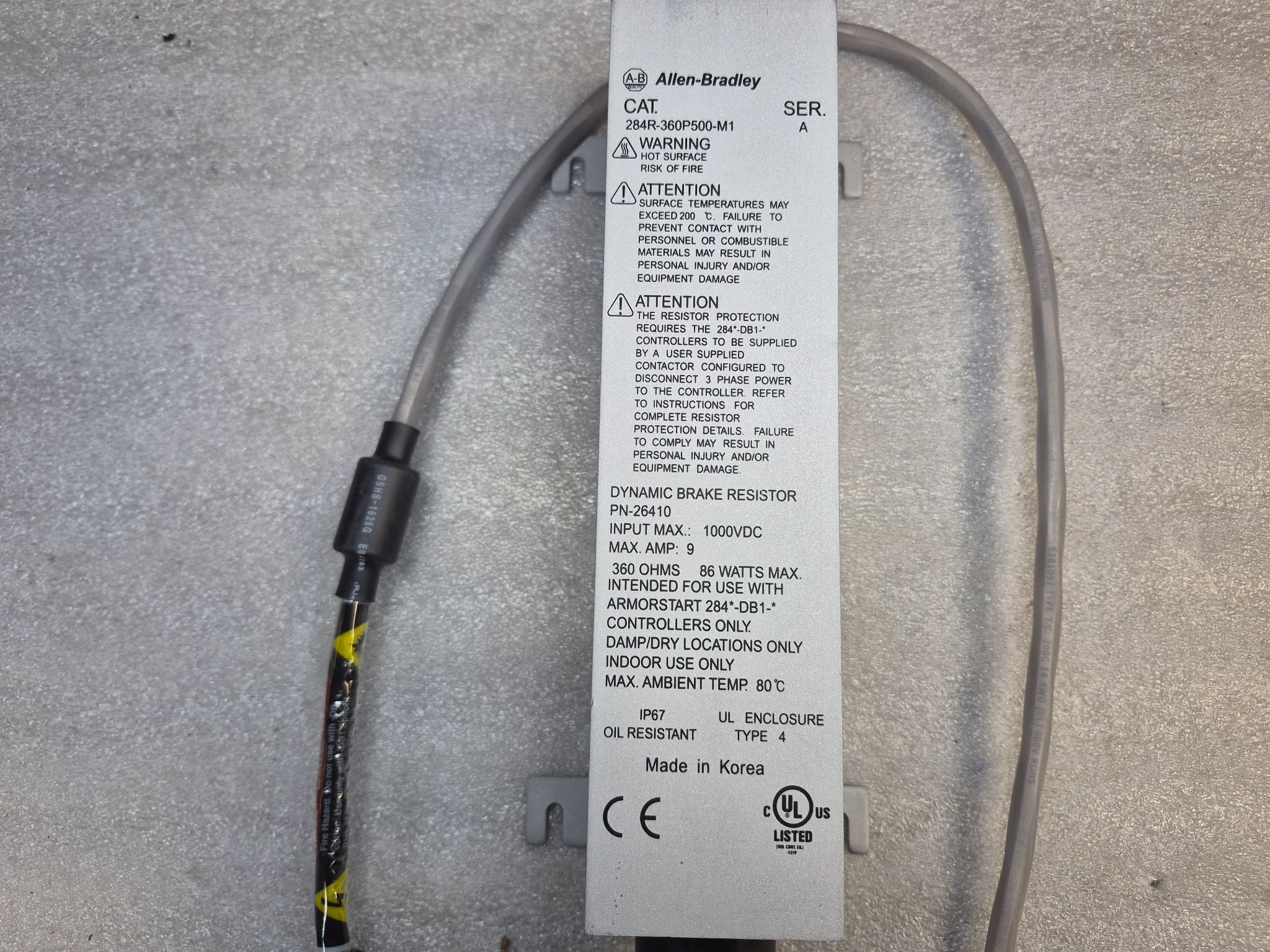

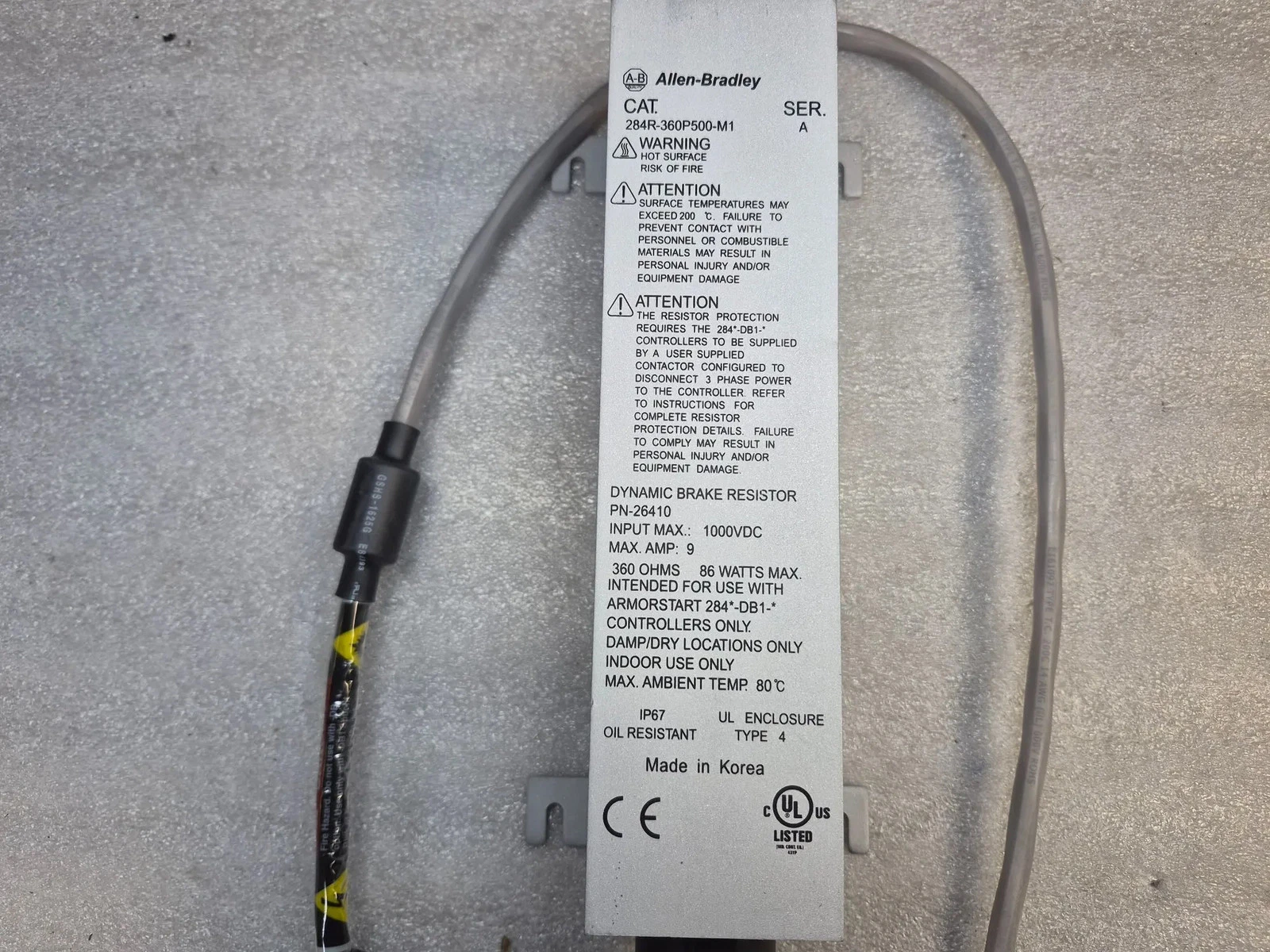

IDENTIFICATION Manufacturer: Allen-Bradley / Rockwell Automation Catalog Number: 284R-360P500-M1 Product Family: ArmorStart Bulletin: 284R Product Type: Dynamic Brake Resistor Series: A Condition: NEW YOM: 2021 Country of Assembly: Korea ELECTRICAL Resistance: 360 Ohm Power Rating: 86 W Maximum Voltage: 1400 VDC HiPot Rating: 1000 VDC Function: Dynamic Braking CONNECTION Cable Length: 1 m Connection Type: Cable / Connector Cable Configuration: Integral Connector: Circular INSTALLATION Mounting Configuration: Surface Mount Mounting Tabs: Integrated Enclosure Type: Enclosed ArmorStart Interface: DB1 Option ENVIRONMENTAL / PROTECTION Protection Rating: IP67 Maximum Ambient Temperature: 60 °C Maximum Ambient Temperature: 140 °F Oil Resistant: Yes APPROVALS / MARKINGS UL: Listed CE: Yes
▸ Key Features:
• Designed for Allen Bradley ArmorStart distributed motor controllers

• 360 ohm resistance for controlled dynamic braking energy dissipation

• IP67 rated enclosure provides protection against dust and water ingress

• Integrated 1 meter cable for quick plug-and-play installation

• Improves motor stopping performance in variable frequency drive applications
▸ Applications:
• ArmorStart motor control systems with dynamic braking requirements

• Conveyor and material handling equipment

• Industrial automation and manufacturing machinery

• Variable frequency drive installations requiring controlled deceleration

• Harsh environment installations including washdown or outdoor use
▸ Alternative Model Numbers:
284R360P500M1

284R-360P500

ALB284R360P500M1

AK-R2-360P500 (equivalent series reference)

284R Series Dynamic Brake Resistor
▸ Common Misspellings or Phrasing:
284R 360P500 M1

284R360P500M1 resistor

ArmorStart brake resistor 360 ohm

Allen Bradley dynamic brake resistor

AB 284R brake resistor
