Specification Table
IDENTIFICATION
Manufacturer: Allen-Bradley
Brand Owner: Rockwell Automation
Part Number: 2711P-T10C4D6
Series: A

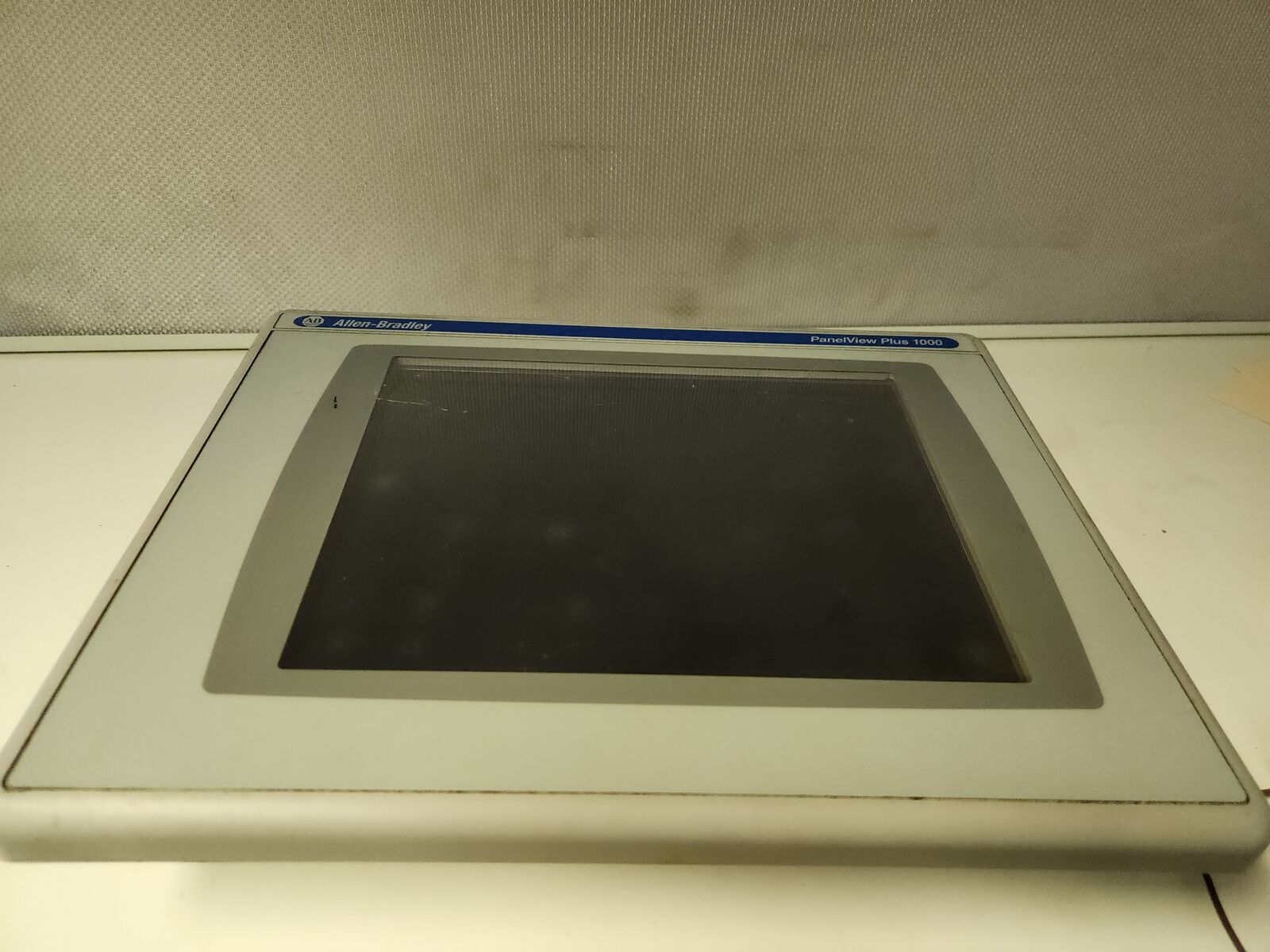

Product Line: PanelView Plus 1000
Product Type: Touchscreen HMI Terminal
Condition: USED
YOM: 2012
Country of Manufacture: USA
DISPLAY
Display Type: Color Touchscreen
Screen Size: 10 in.
Touch Interface: Yes
HMI CONFIGURATION
Platform: FactoryTalk View ME
Terminal Type: Panel Mounted
Operator Interface: Touchscreen
Machine Visualization: Supported
LOGIC MODULE

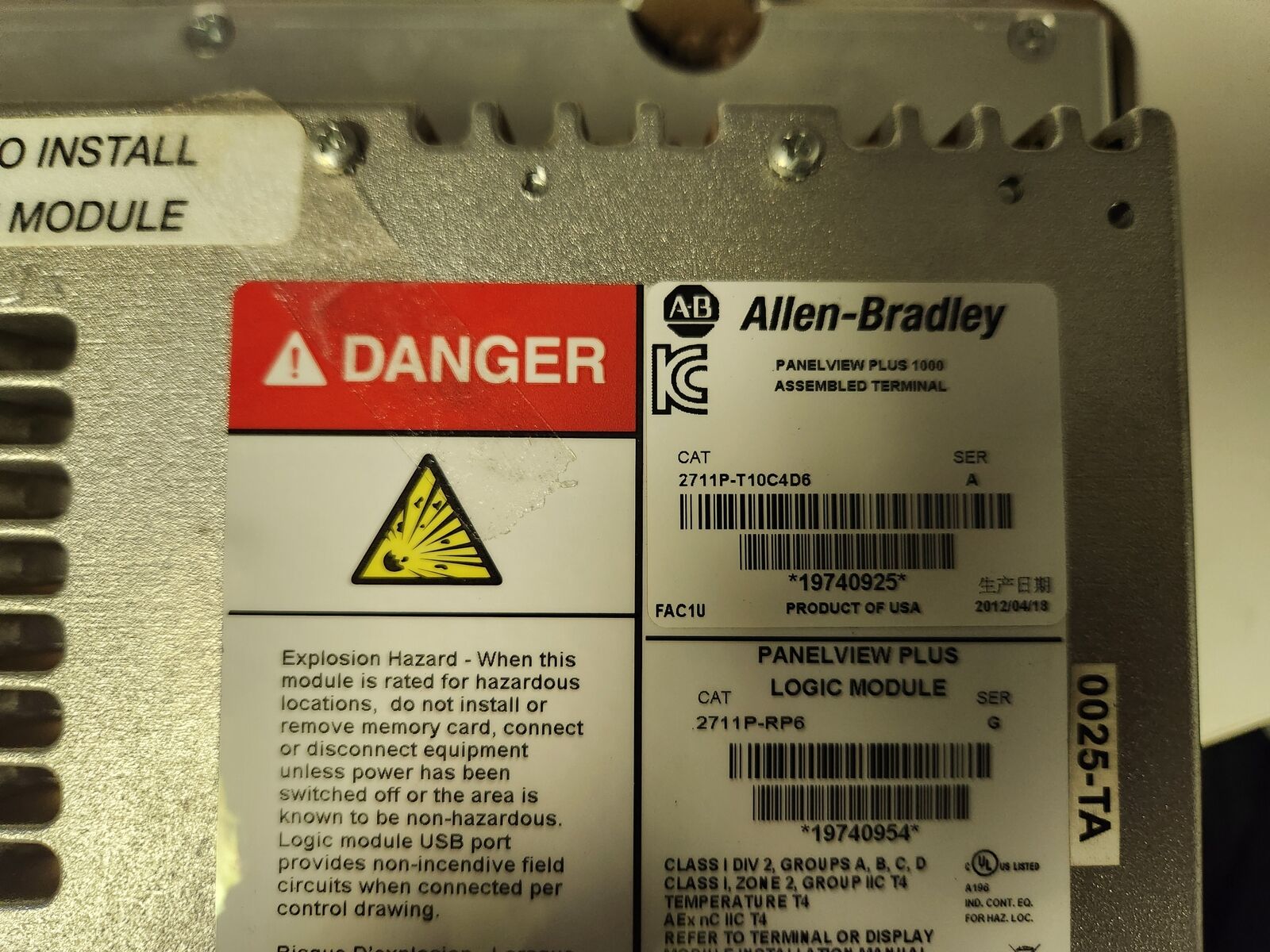

Module Number: 2711P-RP6
Module Type: Logic Module
Series: G
INSTALLATION
Mounting Style: Panel Mount
Configuration: Integrated Terminal
Cooling: Passive Heat Sink
COMPLIANCE
UL: Listed
Hazardous Location Rating: Class I Div 2
Class I Zone 2: Group IIC T4
Temperature Code: T4
Product Specifications
- Display Type: 10.4-inch TFT color touchscreen
- Resolution: 640 x 480 pixels (VGA)
- Communication Ports: Ethernet, RS-232, USB
- Input Voltage: 24V DC
- Memory: 128MB RAM
- Storage: CompactFlash for application storage
- Operating System: Windows CE 6.0
- Software Compatibility: FactoryTalk® View Machine Edition
- Enclosure Rating: NEMA Type 12, 13, 4X (indoor use only)
Key Features
- Touchscreen Interface: Intuitive user-friendly navigation for operators
- Ethernet and RS-232 Support: Flexible communication with PLCs and industrial networks
- CompactFlash Storage: Reliable and expandable data management
- Durable Industrial Design: Rugged construction suitable for harsh environments
- Windows CE-Based Firmware: Ensures stability and seamless integration with automation software
Applications
- Manufacturing Automation: Monitor and control production lines efficiently
- Material Handling Systems: Interface with conveyors, sorters, and automated machinery
- Process Control: Ideal for industries like food processing, packaging, and pharmaceuticals
- Energy & Utilities: Supervisory control of power distribution and water treatment systems
- Automotive Industry: Manage robotic assembly lines and testing stations
Alternative model numbers include: 2711P-T10C4D6, 2711P-T10C4D6/B, 2711P-T10C4D7/A, 2711P-T10C4D8/A, 2711P-T10C4D9/A
Common misspellings include: 2711P-T10C4D6A, 2711P-T10C4D6/A, 2711P-T10C4D, 2711P-T1OC4D6/A, 2711P-T10C4D6A
