Specification Table

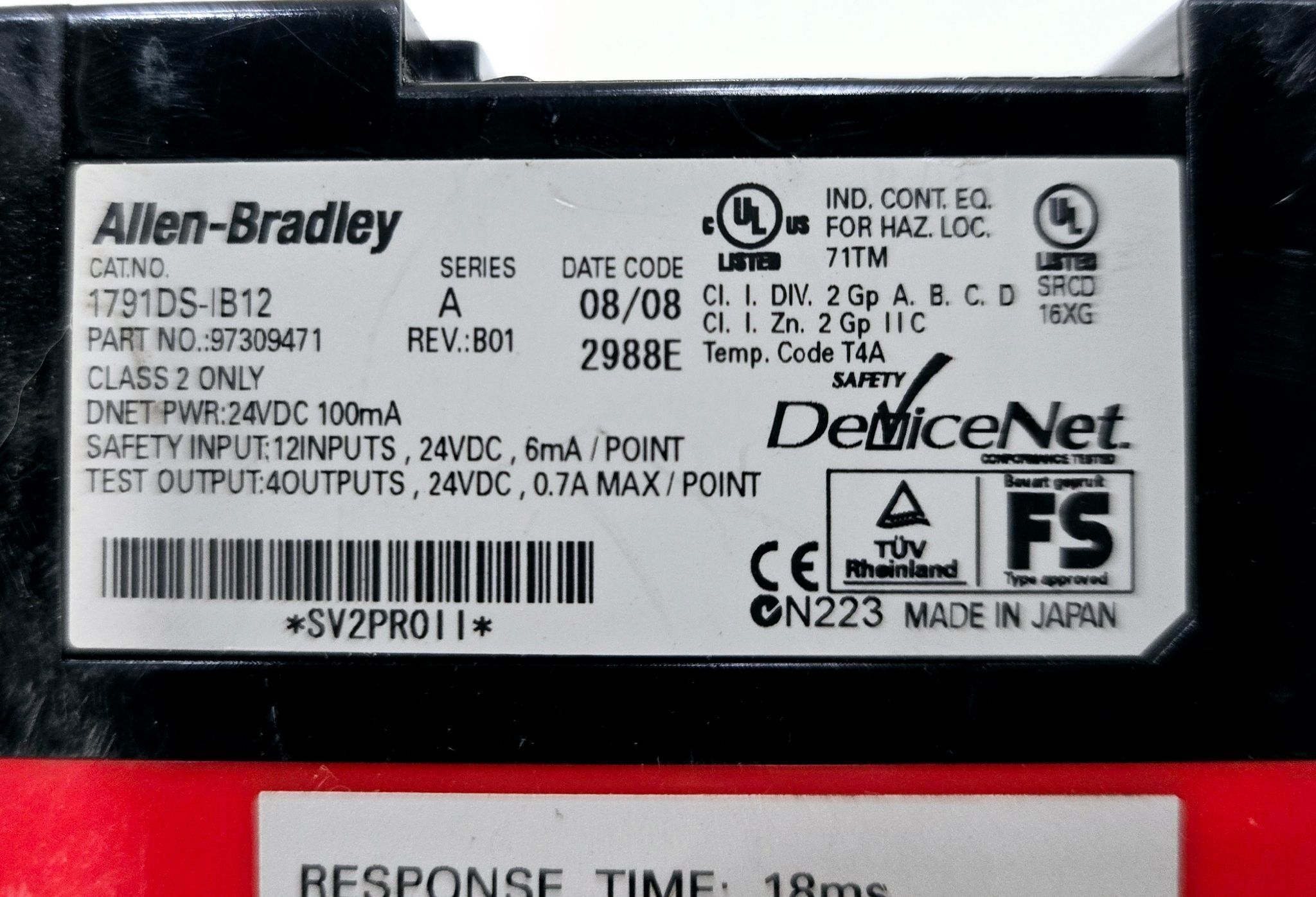

Manufacturer: Allen‑Bradley
Part Number: 1791DS‑IB12
Series: A
Revision: B01
Condition: USED

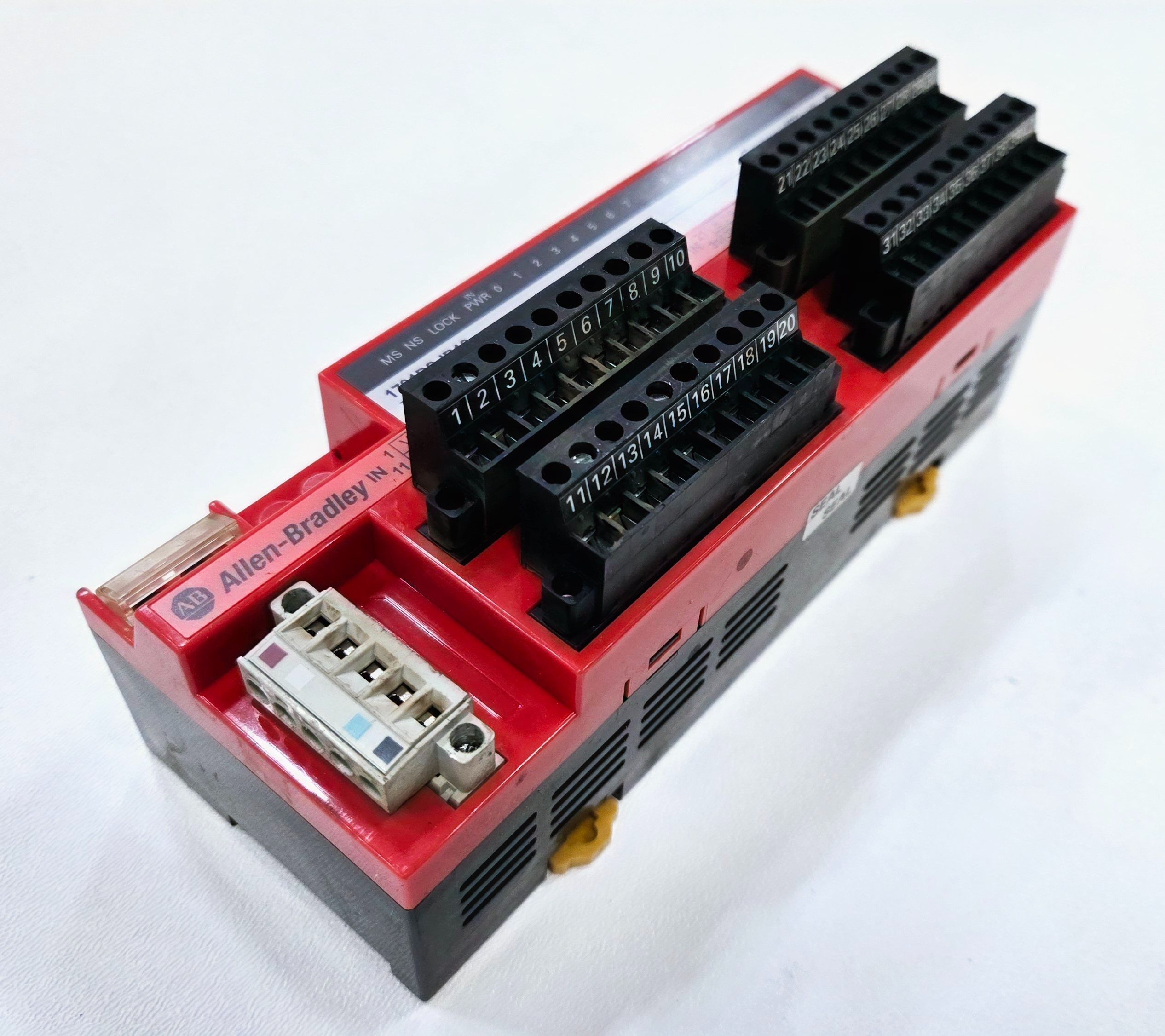

Item Type: DeviceNet Safety Input Module
Network Type: DeviceNet
Safety Inputs: 12 inputs
Safety Input Rating: 24 VDC, 6 mA per point
Test Output Rating: 4 outputs, 24 VDC, 0.7 A max per point
DeviceNet Power: 24 VDC, 100 mA
Certifications Marked:
• UL Listed
• TÜV Rheinland
• CE
Hazardous Location Marking:
• Class I, Division 2, Groups A, B, C, D
Date Code: 08/08
Country of Manufacture: Japan
Year of Manufacture (YOM): 2008
Product Specifications
- Model Number: 1791DS-IB12
- Series: A
- Type: Safety Input Module
- Number of Inputs: 12 safety-rated inputs
- Number of Test Outputs: 4
- Voltage Rating: 24V DC
- Communication Type: DeviceNet Safety communication
- Mounting Type: DIN rail mount
- Operating Temperature: Industrial-grade for harsh environments
- Compatibility: Designed for Allen-Bradley GuardLogix and DeviceNet Safety controllers
Key Features
- 12 safety-rated inputs for monitoring safety devices
- 4 test outputs for system diagnostics and verification
- DeviceNet Safety communication for real-time safety control
- Fast response time to ensure high-performance machine safety
- DIN rail mountable for easy installation and integration
- Rugged and industrial-grade construction for long-term reliability
Applications
- Machine Safety Systems – Ensures reliable monitoring of emergency stops and interlocks
- Robotic Safety – Provides secure safety signal processing for robotic applications
- Manufacturing Automation – Enhances safety compliance in automated production lines
- Industrial Process Control – Ensures accurate monitoring of safety devices
- Guard I/O Systems – Integrates seamlessly with Allen-Bradley safety controllers
